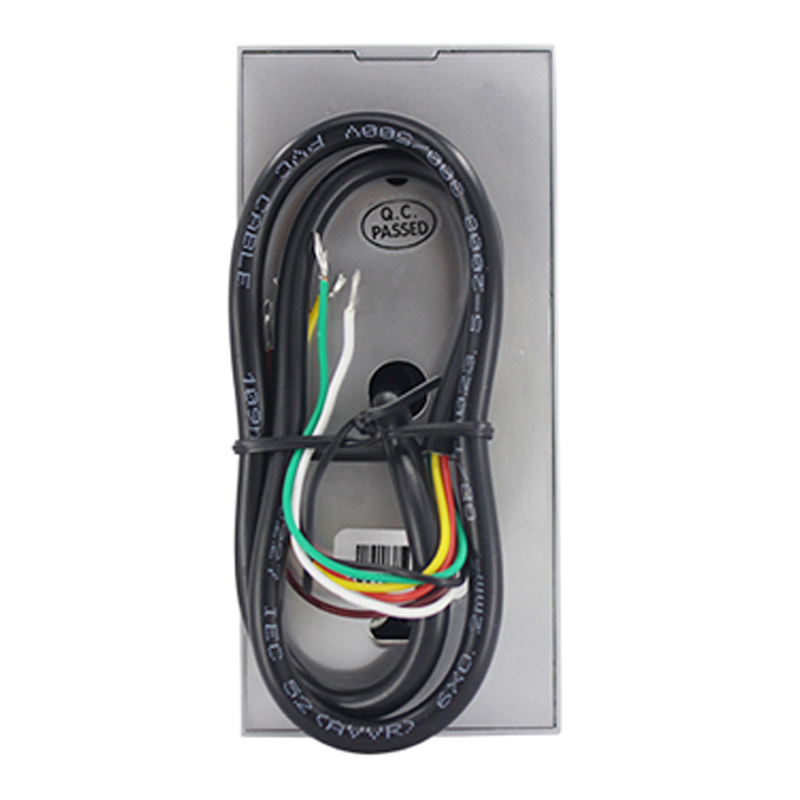

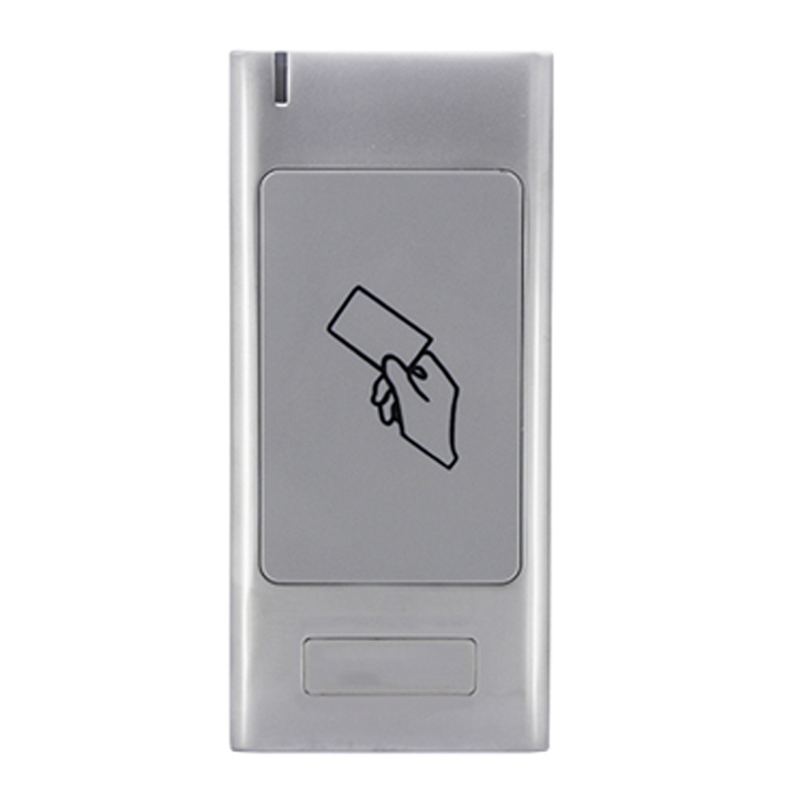

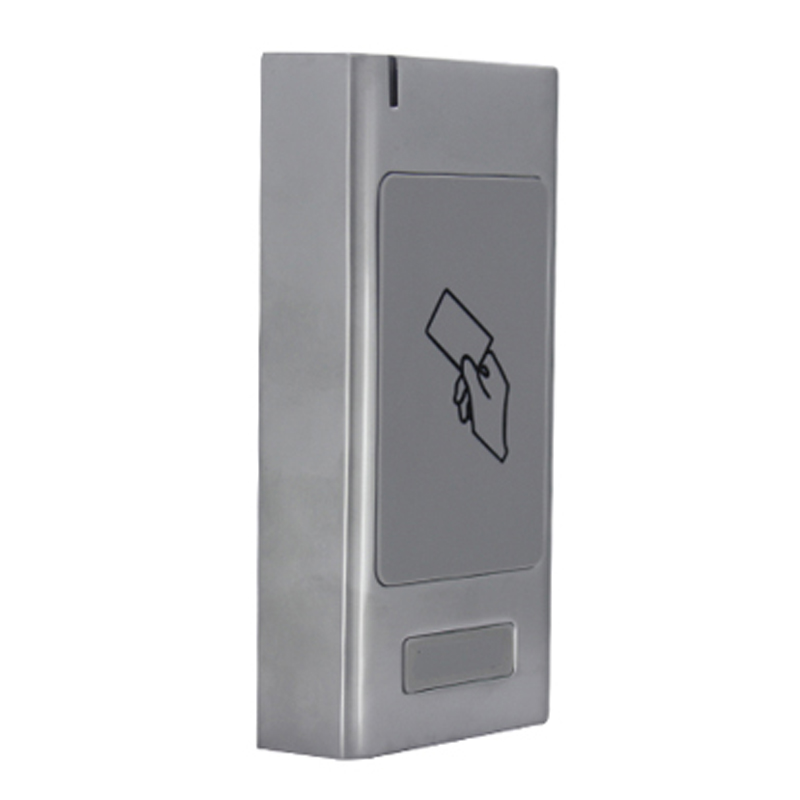

The S6-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in harsh environment.
Brand:
S4AItem NO.:
S6-RXMetal Wiegand Reader(EM/HID/Mifare)
Model No.: S6-RX
> Metal Case, anti-vandal
> Waterproof, conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: Hid card, EM card & Mifare card
> Reading range: 3~8cm

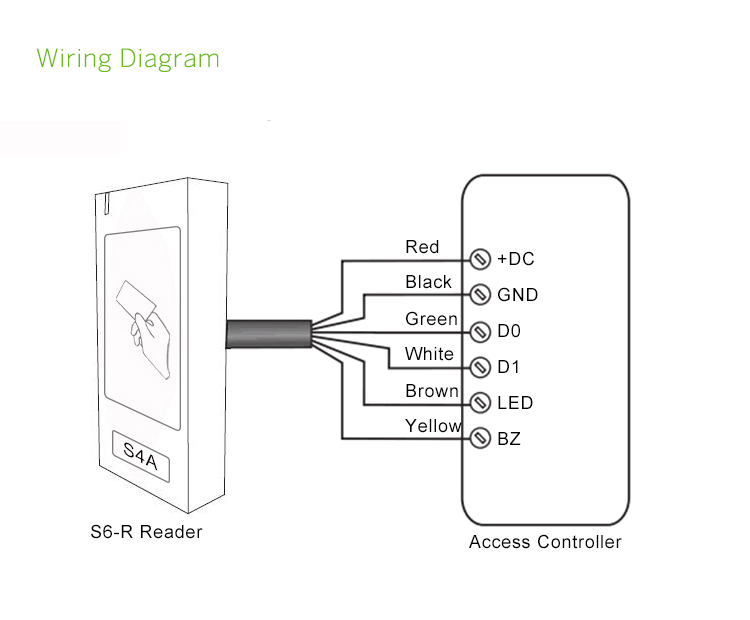

> External LED Control & External Buzzer Control
| Product Parameter | Parameter Description |
| S4A Model | S6-RX |
| Product Name | Metal RFID Reader (E/H/Mifare) |
| Operating Voltage | 9~24V DC |
| Frequency | 125KHz & 13.56MHz |
| Card Type | 125KHz - EM & Hid Card |
| 13.56MHz - Mifare Card (ISO 14443A Compatible) | |
| Reading Distance | 3~8 CM |
| Output Format | Wiegand 26 bits |
| (26~37 bits available upon request) | |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Standby Current | < 25mA |
| Operating Humidity | 10%~98% RH |
| Index of Protection | IP66 |
| Dimensions | L103 x W48 x H19 (mm) |
| Unit Weight | 0.25KG |
| Standard Package | 40PCS/carton |
| Carton Weight | 10.8KG |
| Carton Size | 47*30*19(cm) |
