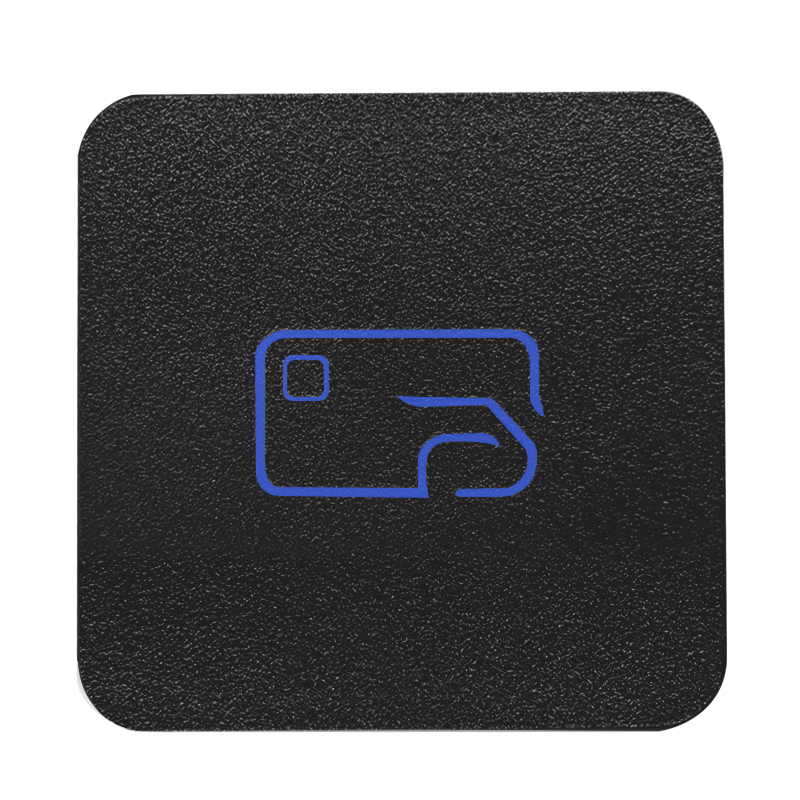

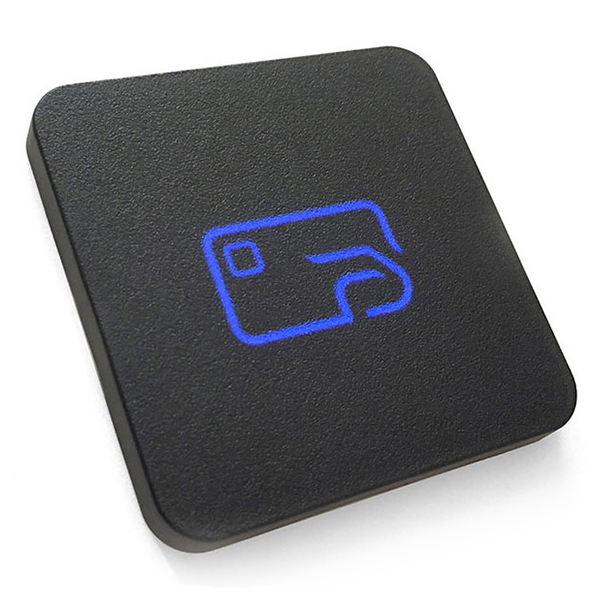

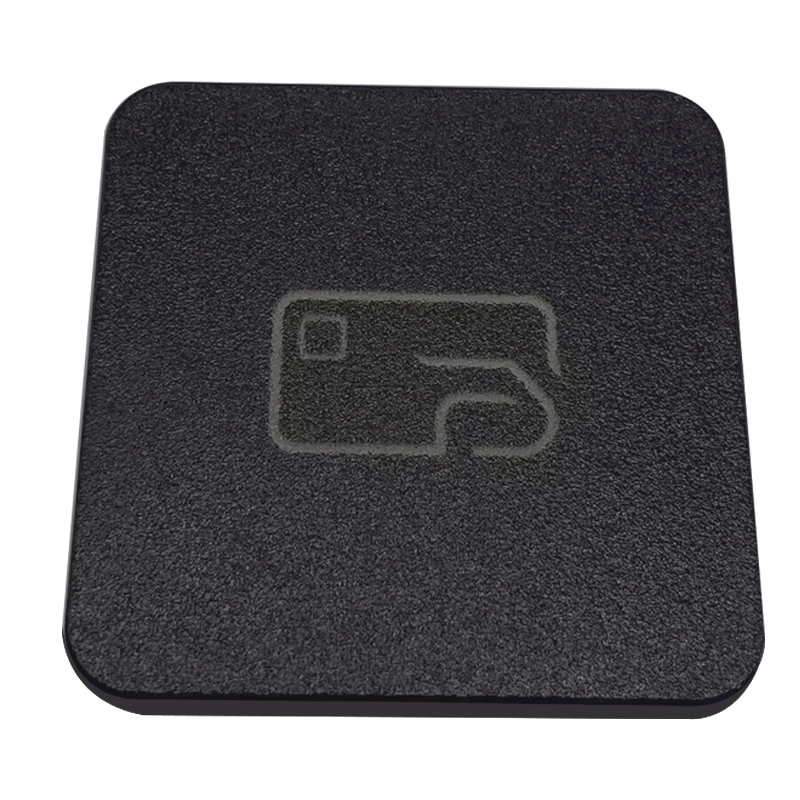

Plastic Housing RFID Access Card Reader

> Material: Plastic pane

> Wiegand 26/34 output

> Dimension: 86x86x8mm

> Voltage: DC9~15V

> Working Frequency: 125KHz & 13.56MHz

> Working Indicator: Beeps and LED Indicator

  • Brand:

    S4A
  • Item NO.:

    PCD-02
Specifications

Plastic Housing RFID Access Card Reader

Model No.: PCD-02


Support card chip: NXP_Mifare1k, NXP_Mifare4k, NXP_Mifare mini, Ultralight(C), Mifare PlusX(S), Desfire D21 D41 D81, EM4100, EM4200, TK4100.


The product can be easily applied in the following:

Oces, Computer rooms, Banks & Building societies, Hospital, Gate life, Airports, Universities, Factories.


Model No,

PCD-01

PCD-02

PCD-01 NFC

PCD-02 NFC

Material

Acrylic panel

Plastic panel

Acrylic panel

Plastic panel

Card type

Standard ID/IC card, ID copy card.

Standard ID/IC card, ID/IC copy card, NFC, City bus card, CPU card, Bank chip card.

Communication

Wiegand26, Wiegand34

Operating voltage

DC9~15V

Working current

≤80mA

Stand-by current

≤30mA

Working frequency

125KHz & 13.56MHz

Operating temperature

-15°C~60°C

Humidity

5%~95%

Reader response

≤100ms

Card reading distance

≤50mm

Transmission distance

<80m (Without electromagnetic interference)

Working Indicator

Beeps and LED Indicator

Colour

Black, White

Dimension

86x86x8mm


Dual RFID Card Reader

Wiring Diagram

Dual RFID Card Reader

Package

Dual RFID Card Reader

Download

S4A Datesheet_Plastic Housing RFID Access Card Reader
