> Card type: EM or MF Card
> Metal structure design, anti-vandal

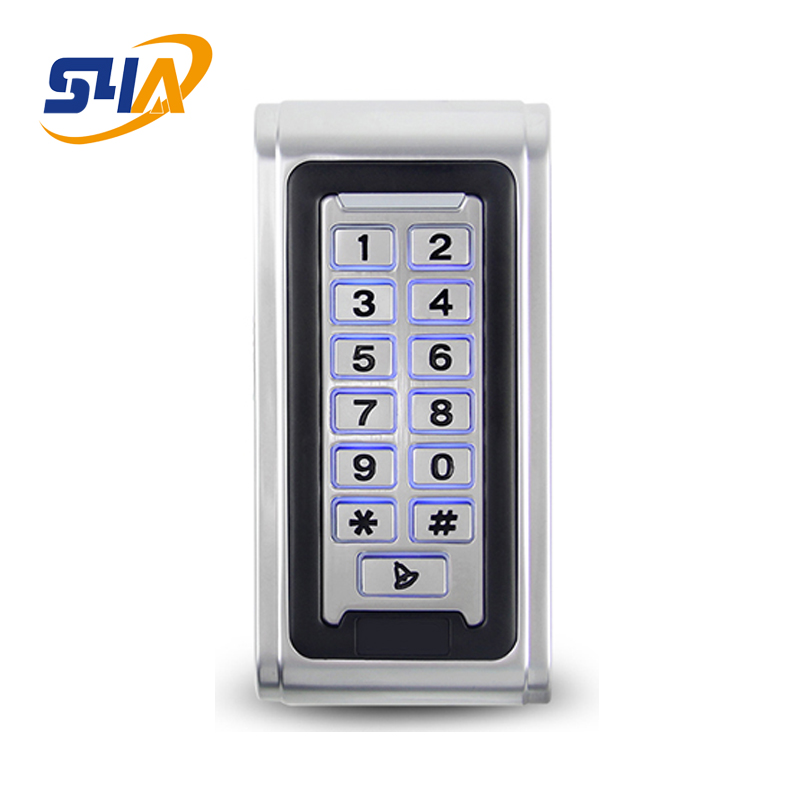

> Digital backlit keyboard
> All-in-one, WG26 output/input
> Three-way to open the door, card, password, card + password

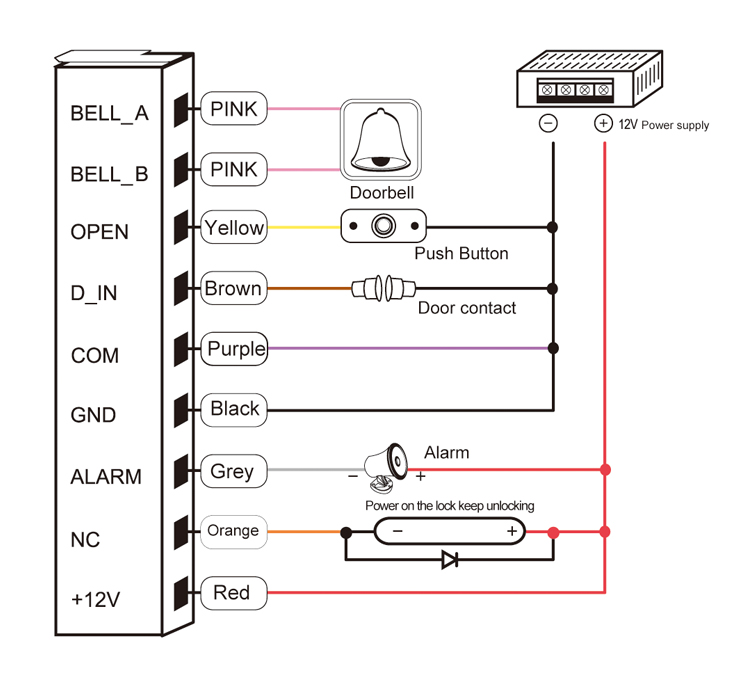

> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Brand:
S4AItem NO.:
S600-WWaterproof Metal Access Control
Model No.: S600-W EM, MF
Card type | EM or MF |
Waterproof degree | Non-Waterproof(S600) / IP68(S600-W) |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

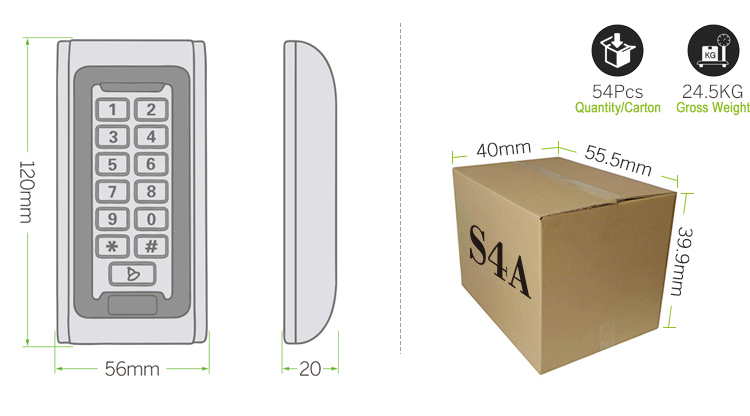

Dimension | 120*56*20mm |
Perfect design, with backlight and fashion silver finish.

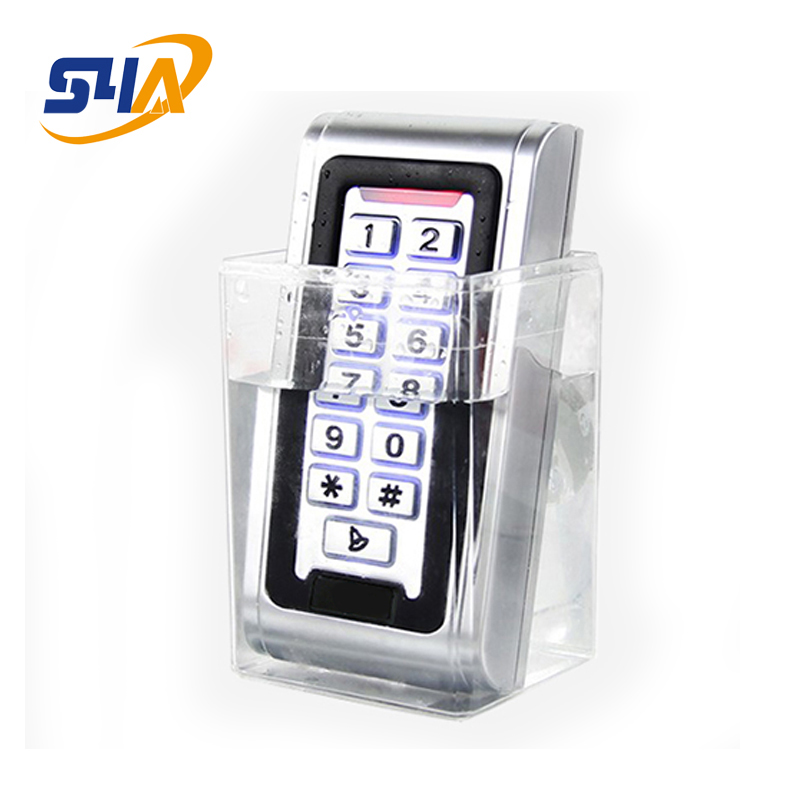

Waterproof design for outdoor use.
A strong standalone function device can be used as a WG26 reader alone.
Capacity: 2000 user's cards, 2000 codes.
Access ways: cards, code, card+code.
Low power: static current less than 30mA
Support the only keypad.
Users can reset private passwords.
Search fast less than 0.1S.
Wiegand output W26 for card and w4 for codes.
Use the keypad to delete lost cards for safety.
Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.
125khz Rfid Card Access Control System with IP68 Waterproof Keypad For Access Control System Rfid | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
S600EM | 54pcs | 24.5KG | 55.5*39.9*40cm |
S600MF | |||
S600EM-W | 54pcs | 27.2KG | |
S600MF-W | |||
S4A User Manual S600-W_Waterproof Network Access Control for Access Control System Rfid
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
