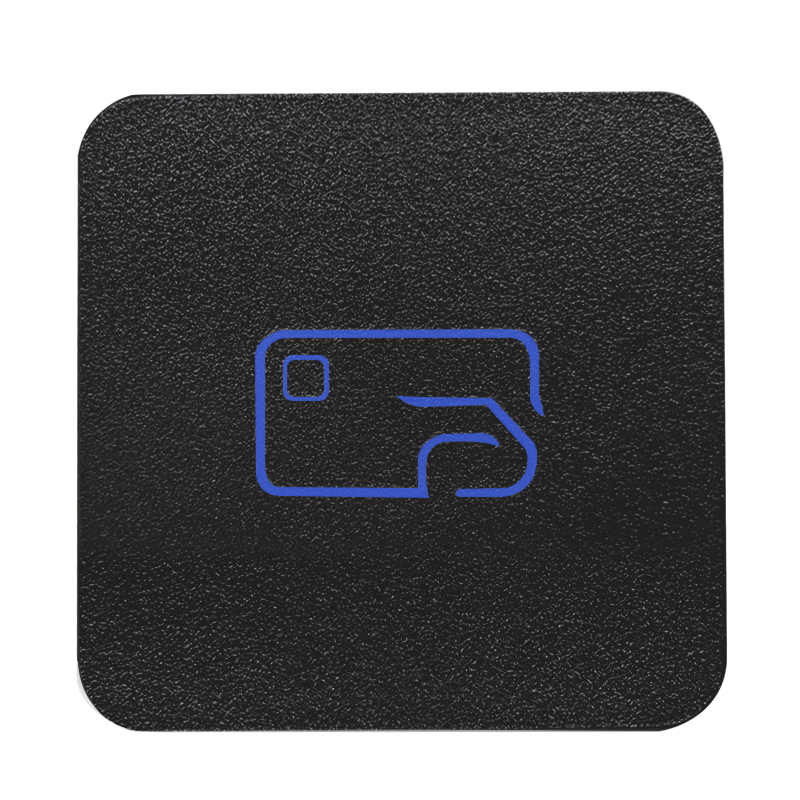

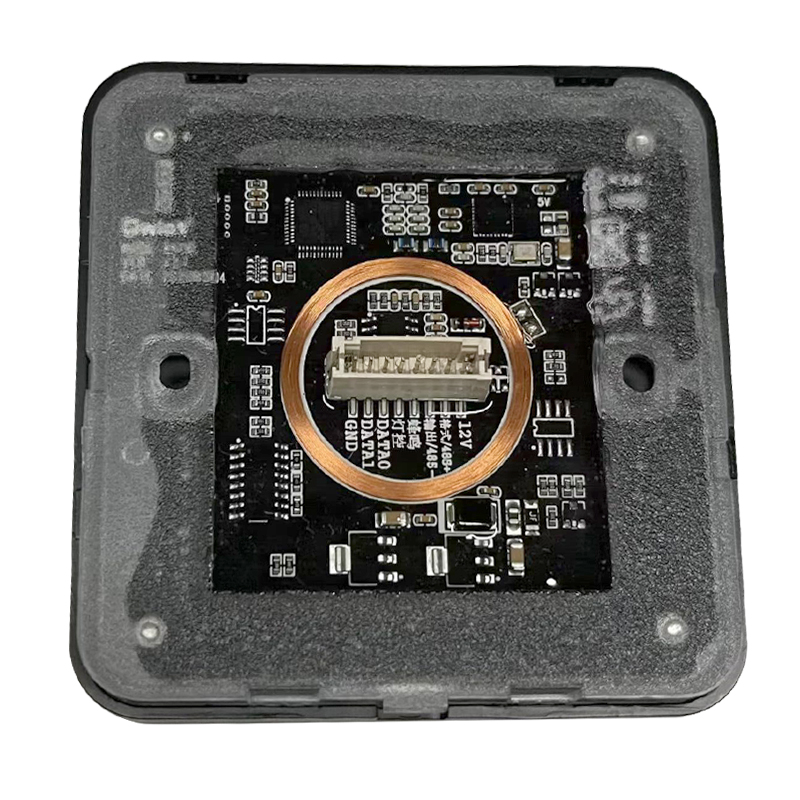

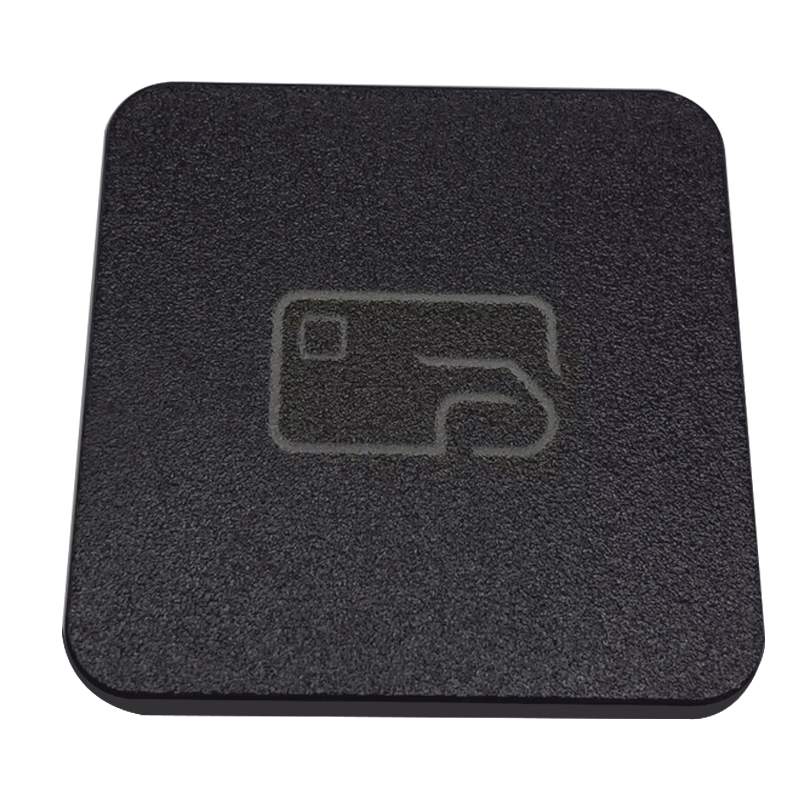

NFC Smart Card Readers with Wiegand26/34 Output

> NFC RFID Access Control Reader
> Material: Plastic pane
> Wiegand 26/34 output
> Dimension: 86x86x8mm
> Voltage: DC9~15V
> Working Frequency: 125KHz & 13.56MHz
> Working Indicator: Beeps and LED Indicator

Brand:
S4A
Item NO.:
PCD-02NFC

Inquire Now

Specifications
Wiring Diagram
Package
Download

NFC Smart Card Readers with Wiegand26/34 Output

Model No.: PCD-02NFC

What is NFC Smart Card Reader?

Reader/Writer mode: NFC-enabled devices are able to read and write to NFC and many other contactless cards. For example, if an NFC tag is attached to a poster, the NFC smartphone can “tap” the tag to access the information stored in the tag (e.g. coupons, maps, product information, etc) easily and conveniently.

Support card:

Standard ID/IC card, ID/IC copy card, NFC, City bus card, CPU card, Bank chip card.

Support card chip:

NXP_Mifare1K, NXP_Mifare4K, NXP_Mifare mini, Ultralight(C), Mifare PlusX(S), Desfire D21 D41 D81, EM4100, EM4200, TK4100.

Model No,	PCD-01	PCD-02	PCD-01 NFC	PCD-02 NFC
Material	Acrylic panel	Plastic panel	Acrylic panel	Plastic panel
Card type	Standard ID/IC card, ID copy card.		Standard ID/IC card, ID/IC copy card, NFC, City bus card, CPU card, Bank chip card.
Communication	Wiegand26, Wiegand34
Operating voltage	DC9~15V
Working current	≤80mA
Stand-by current	≤30mA
Working frequency	125KHz & 13.56MHz
Operating temperature	-15°C~60°C
Humidity	5%~95%
Reader response	≤100ms
Card reading distance	≤50mm
Transmission distance	<80m (Without electromagnetic interference)
Working Indicator	Beeps and LED Indicator
Colour	Black, White

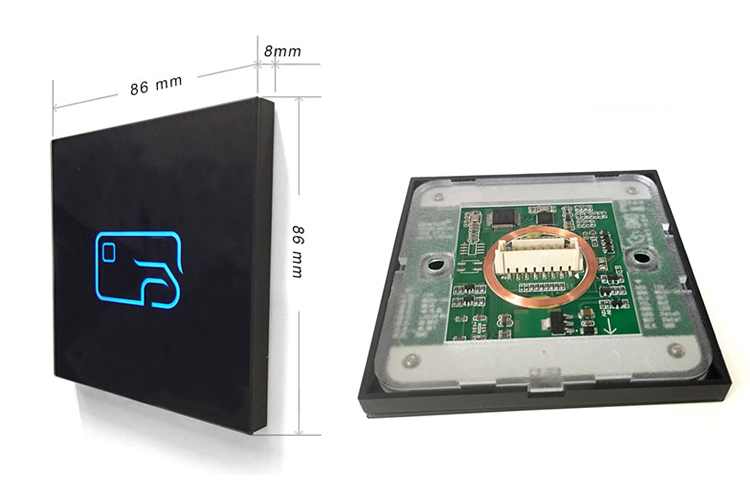

Dimension	86x86x8mm

Nfc Smart Card Reader

S4A Datesheet_NFC Smart Card Readers with Wiegand26/34 Output

Download
