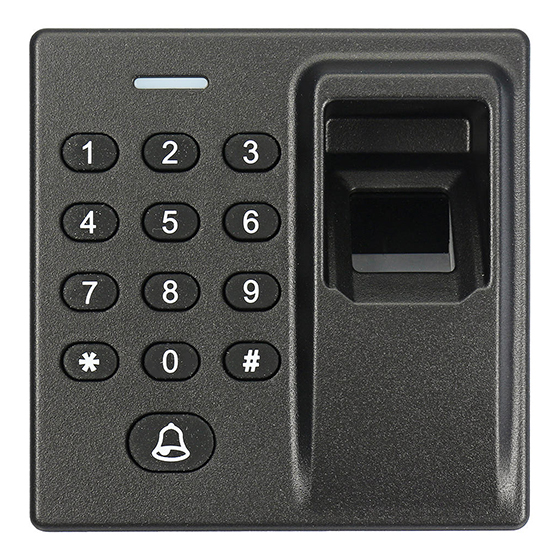

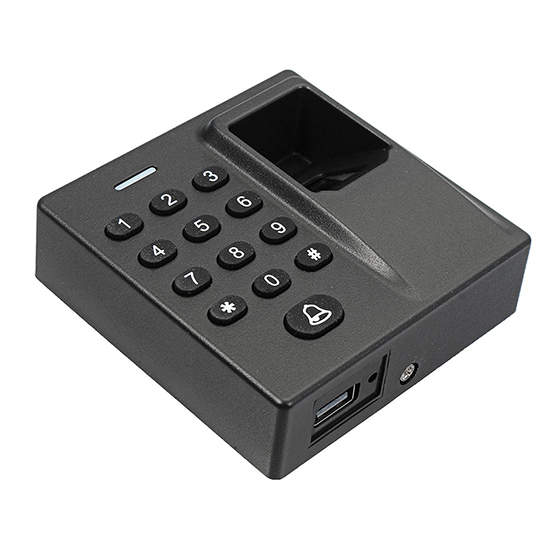

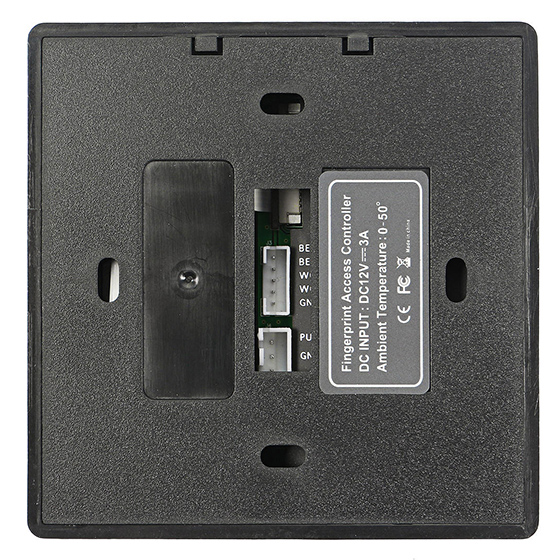

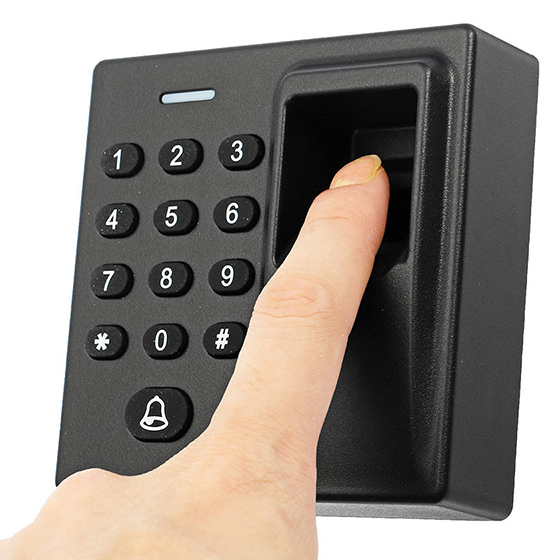

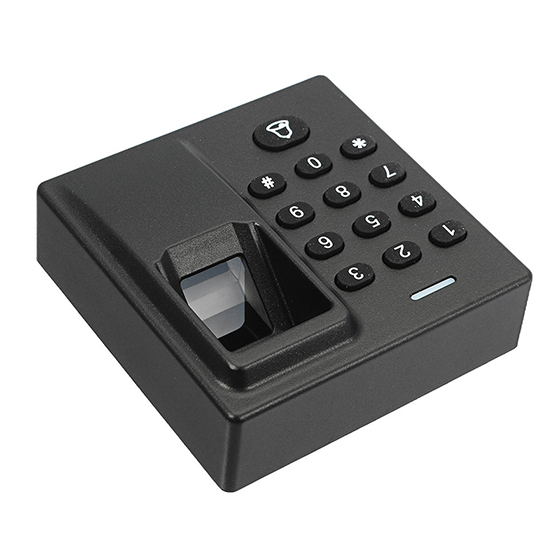

Fingerprint Access Control Device Door Lock with USB

> Card type: EM Card

> Support Finger+RFID 125KHz+Pincode

> Finger capacity: 500

> Built in USB to upload and download

> Working voltage: 12V

  • Brand:

    S4A
  • Item NO.:

    SA-D1
  • Specifications

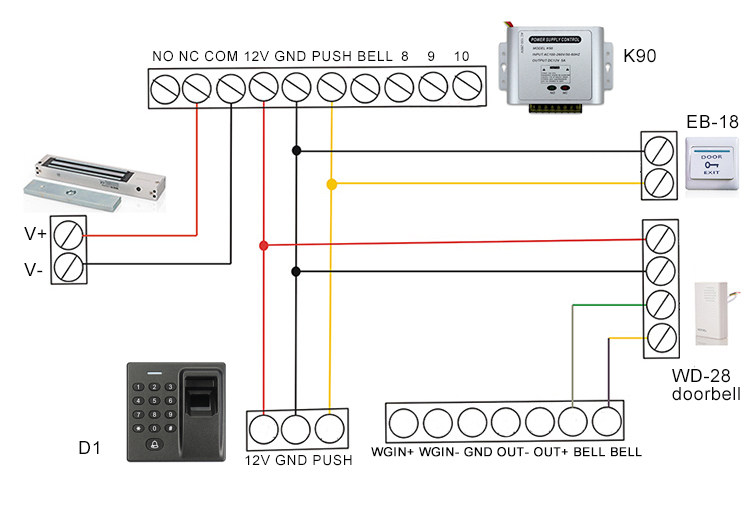

  • Wiring Diagram
  • Package
  • Download

USB Fingerprint Access Control

Model No.: SA-D1 EM


Hardware Platform

ARM9

Fingerprint Capacity

500

Password Capacity

500groups

Administrator Function

Support 2 groups of administrators to register and delete

U disk Function

Support upload and download

Card Support

Standard RFID 125KHz

Wiegand

26 output

Recognition Speed

<1second

LED

Red and Blue

Alert Tone

Buzzer

Alarm Function

Tamper devise, Force to open the door, Open door overtime

Power supply

12V

Dimension

88 x 88 x 30mm

USB Fingerprint Access Control

USB Fingerprint Access Control

Fingerprint Access Control Device Door Lock with USB

Model No.

Quantity/Carton

Gross Weight

Carton Size

D1

55pcs

10.18KG

47 X 36 X 30cm

USB Fingerprint Access Control


S4A User Manual D1_Fingerprint Access Control Device Door Lock with USB
