> Card type: EM, HID, MF, CPU Card
(Factory default: EM 125KHz)
> Metal backlight keypad
> User capacity: 10,000 users
> Dimensions: 152x60x24mm
> Waterproof IP68
Brand:
S4AItem NO.:
KF5Indoor and Outdoor Rated IP68 Access Control Standalone Biometric Fingerprint Reader with Wiegand 600 Fingerprints and Capacitive Semiconductor Sensor
Model No.: KF5 EM, HID, MF, CPU
This series of products is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..
Features:
> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
> Metal backlight keypad
> Contains card reader mode. The transmission format could be adjusted by user.
> Supports different access ways: Entry by Card + Code or Entry by multi cards
> Support master added a card and deleted the card
> User capacity: 10,000 users
Card type | EM / HID / MF / CPU |
User Capacity | 10,000 users |
Fingerprint Capacity | 600 |
Operating Voltage | DC 12-24V |
Standby Current | ≤35mA |
Operation Current | ≤100mA |
Operating Temperature | -40℃～60℃ |
Operating Humidity | 0%～95% |
Waterproof | IP68 |
Dimensions | 129x56x22mm |
Access ways | Fingerprint, card, code, or multiple combination method to access |
Waterproof IP68 Fingerprint Standalone Access Control | ||||

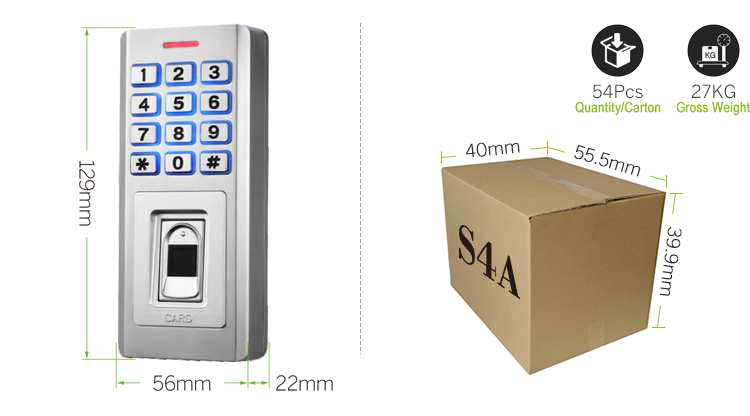

Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
KF5EM-W | 129x56x22mm | 54pcs | 27KG | 55.5x40x39.9cm |
KF5MF-W | 54pcs | 27KG | ||
S4A User Manual KF5_Indoor and Outdoor Rated IP68 Access Control Standalone Biometric Fingerprint Reader with Wiegand 600 Fingerprints and Capacitive Semiconductor Sensor
>Storage capacity:100,000 records>Data download:U disk>Communication interface:USB>Wiegand format:Wiegand 26 and Wiegand 34
> Card type: EM, HID, MF, CPU Card (Factory default: EM 125KHz) > Metal backlight keypad > User capacity: 10,000 users > Dimensions: 152x60x24mm > Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x22mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 135x47x23mm> Waterproof IP68
> Two Accesses: Fingerprin, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Card type: EM Card> Metal case, anti-vandal> Capacity: 200fingerprints and 10,000 card> Two accesses: card, fingerprint> Fingerprint access controller and reader, WG26 Input/output
> Card type: EM Card> Metal case, anti-vandal> Capacity: 1000 fingerprints and 2000 cards> Two accesses: card, fingerprint> Fingerprint access controller and reader, WG26 Input / output
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
