> Two Accesses: Fingerprin, Pincode
> Waterproof, conforms to IP66
> Metal case, anti-vandal
> One Programming relay output
> Multi-color LED Status Display
> PIN length: 4~6 digits
> Integrated alarm & Buzzer output
> Capacitive Fingerprint Sensor
>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
Brand:
S4AItem NO.:
SF5Waterproof IP66 Fingerprint Access Control
Model No.: SF5 Pincode&Finger

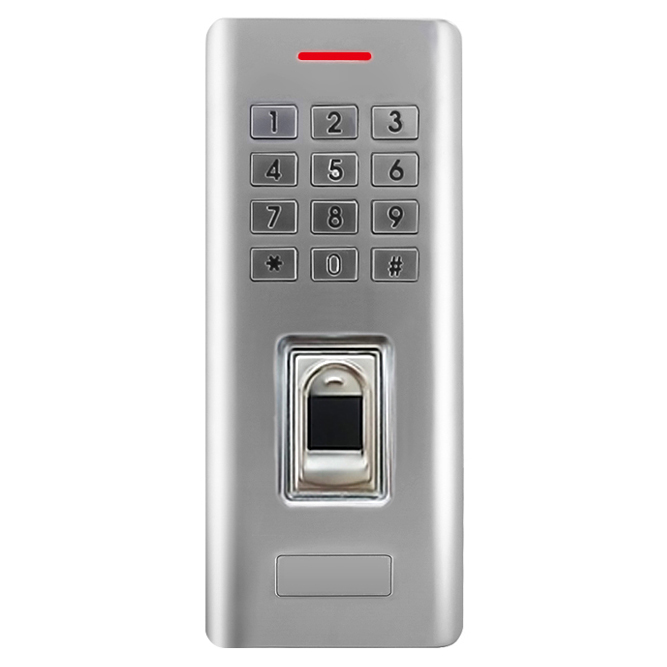

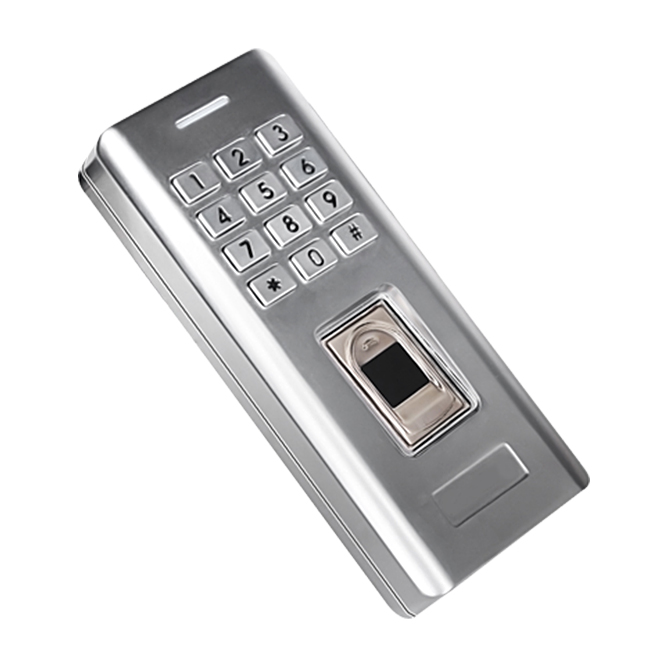

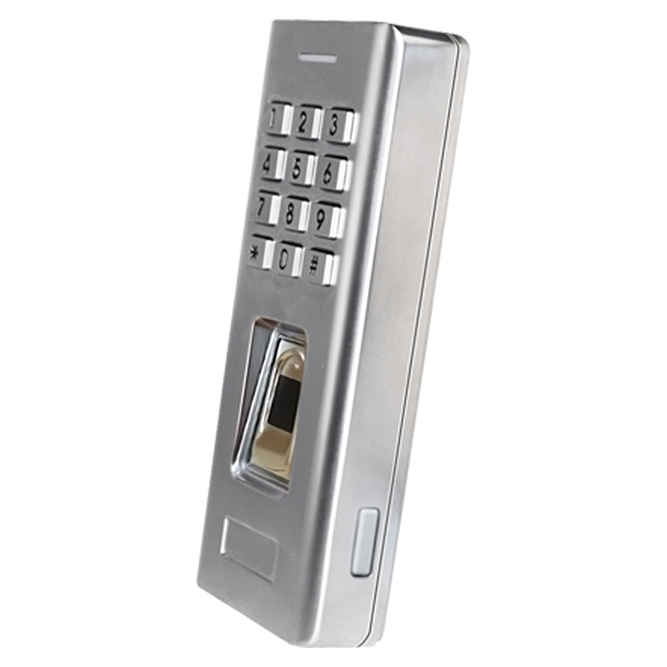

SF5 is a standalone fingerprint access control with a keypad.
The IP66 waterproof version is very suitable for outdoor use. The device supports up to100 fingerprint users and 900 PIN users, it can be easily operated through the keypad and master.
Features:
> Waterproof, conforms to IP66
> Metal case, anti-vandal
> One Programming relay output
> Multi-color LED Status Display
> 1000 Users: 100 Fingerprint Users, 890 PIN Users, 10 Visitor Users
> PIN length: 4~6 digits
> Integrated alarm & Buzzer output
> Capacitive Fingerprint Sensor
User Capacity | 1000 |
Fingerprint | 100 |
PIN | 890 |
Visitor | 10 |
PIN Length | 4~6 digits |
Operating Voltage | 12V DC |
Idle Current | ≤ 45mA |
Active Current | ≤ 150mA |
Fingerprint Reader | Capacitive Fingerprint Module |
Resolution | 500DPI |
Identification time | <1S |
FAR | <0.001% |
FR | <0.01% |

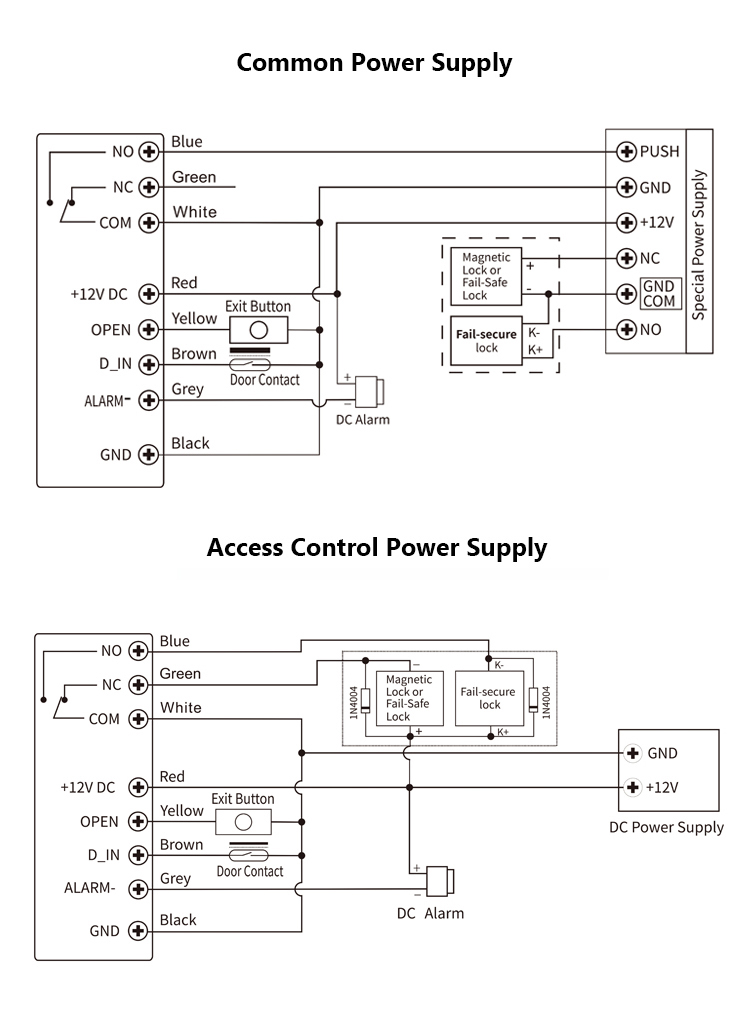

Wiring Connections | Relay output, exit button, alarm, door contact |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Adjustable Alarm Output Time | 0~3 Minutes (default: 1 minute) |
Lock Output Load | 2 Amp Maximum |
Alarm Output Load | 5 Amp Maximum |
Environment | Meets IP66 |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F)--Default |
-40°C ~ 60°C (-40°F ~ 140°F)--Optional | |
Operating Humidity | 20%RH ~ 90%RH |
Physical | Zinc-Alloy |
Surface Finish | Powder Coat |

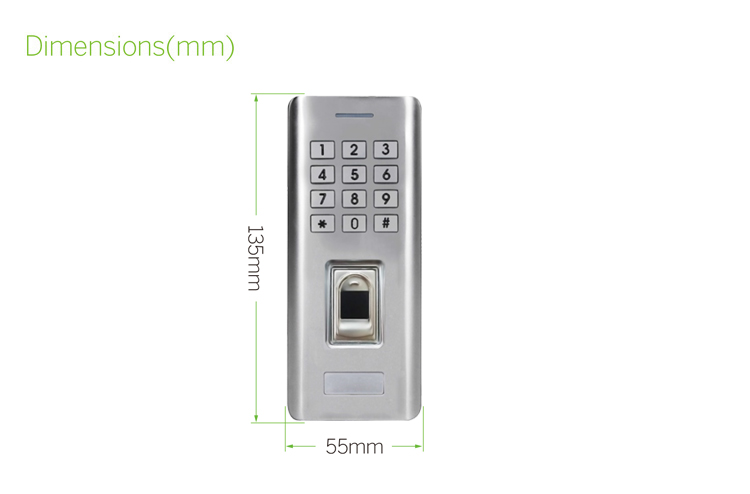

Dimensions | L135 x W55 x H25 (mm) |
Unit Weight | 232g |
Shipping Weight | 269g |
S4A User Manual SF5_Waterproof IP66 Fingerprint Standalone Access Control
