>Working current: 120mA/240mA
>Safety type: power on to close the door and power off to open the door
>Maximum pull: 70kg linear pull
Brand:
S4AItem NO.:

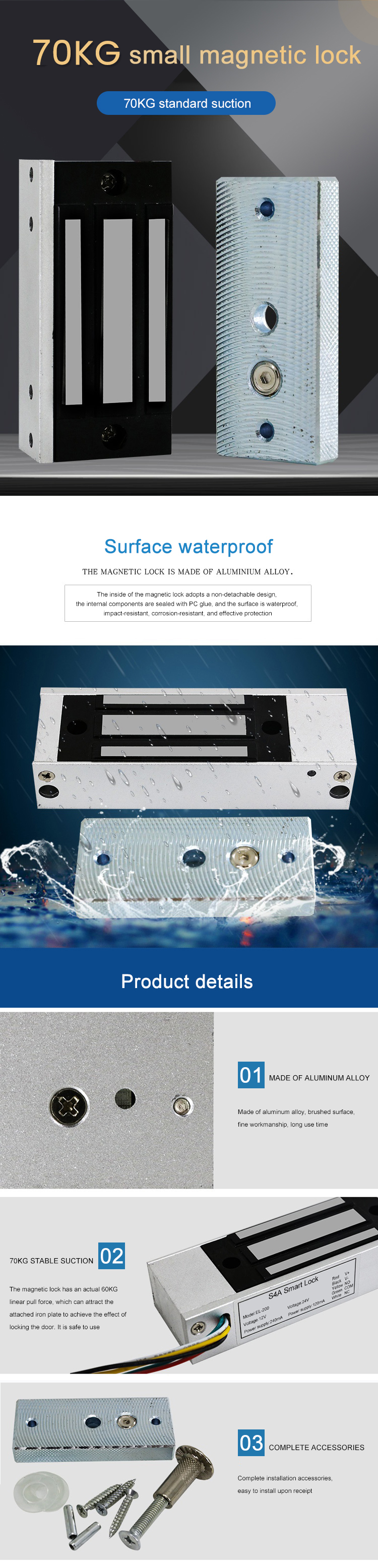

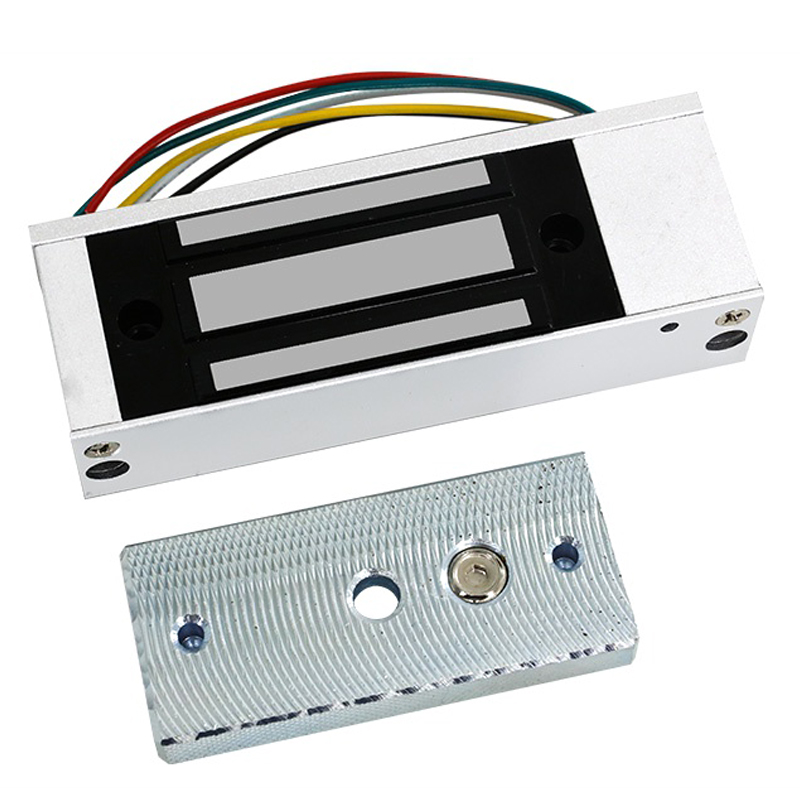

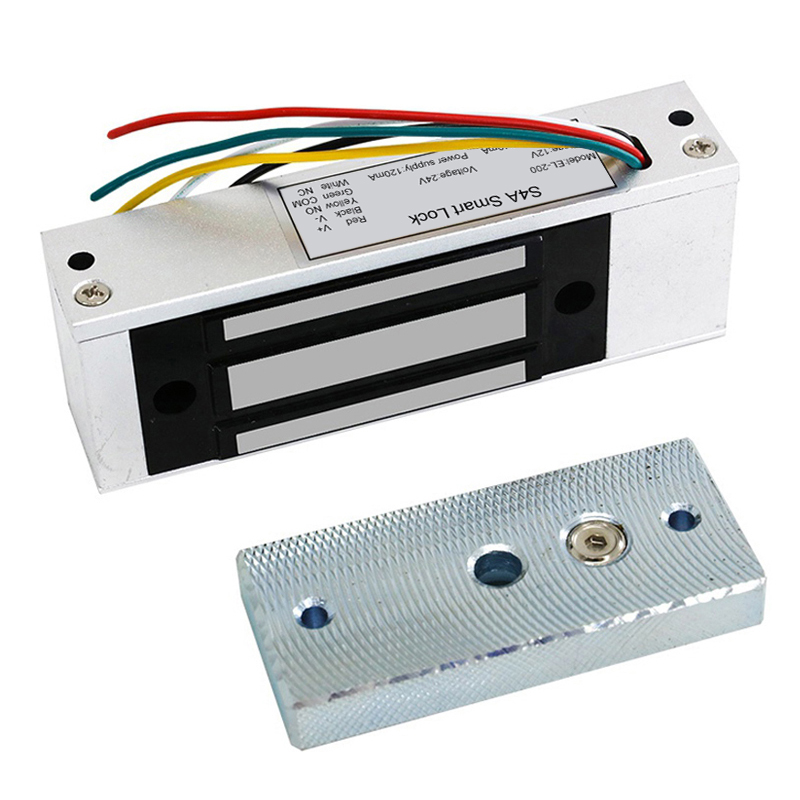

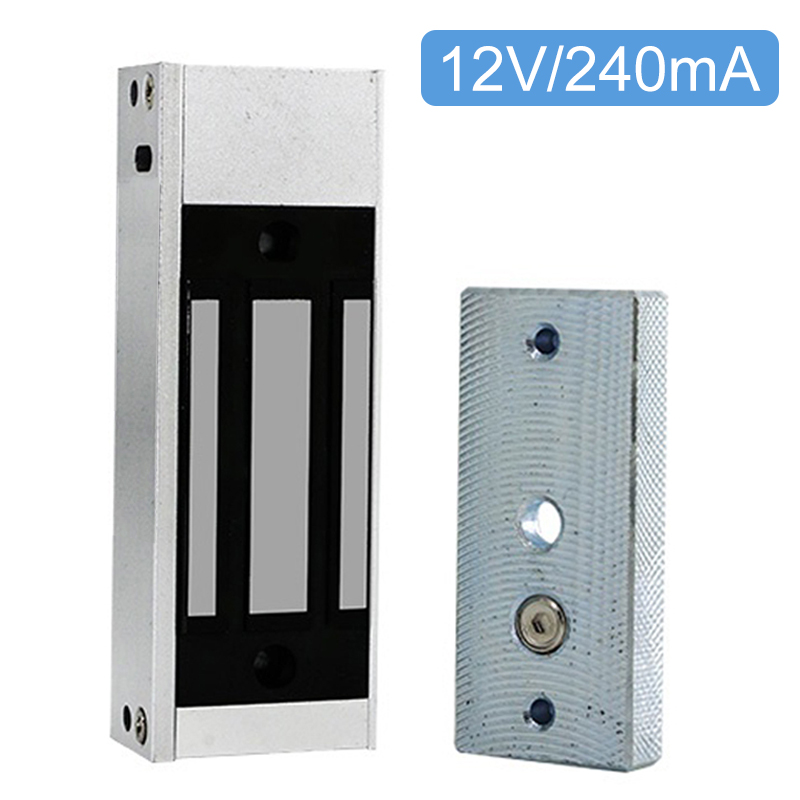

EL-200Factory Direct Sales Mini 70KG Magnetic Electromagnetic Door lock
Model No.: EL-200
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
S4A Model | EL-200 |
Input voltage | DC24/12V |
Working current | 120mA/240mA |
Safety type | power on to close the door and power off to open the door |
Maximum pull | 70kg linear pull |
Lock body treatment | electroplating treatment |
Shell material | aluminum alloy shell |
Applicable door types | drawers, sliding doors, cabinet doors, etc. |
Protection performance | built-in reverse breakthrough protection function |
S4A Datesheet_Factory Direct Sales Mini 70KG Magnetic Electromagnetic Door lock
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor> 1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Door Weight: 50-65KG> Material: Aluminum alloy> Door Width: 1000mm
> Wire diameter: 8mm> Door loop length: 400mm>Head Material: Zinc Alloy>Installation: Exposed Mounting
> Wire diameter: 10mm> Door loop length: 440mm> Inner Diameter: Support 1pcs 8mm cat6 wires
>Working current: 120mA/240mA>Safety type: power on to close the door and power off to open the door>Maximum pull: 70kg linear pull
>Working current: 120mA/240mA>Safety type: power on to close the door and power off to open the door>Maximum pull: 70kg linear pull
>Working current: 120mA/240mA>Safety type: power on to close the door and power off to open the door>Maximum pull: 70kg linear pull
> Output relays: 230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See the label on the detector)> Reaction time: 100ms> Size of Housing: L78 x W40 x H108mm
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor> 1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Door Weight: 50-65KG> Material: Aluminum alloy> Door Width: 1000mm
> Wire diameter: 8mm> Door loop length: 400mm>Head Material: Zinc Alloy>Installation: Exposed Mounting
> Wire diameter: 10mm> Door loop length: 440mm> Inner Diameter: Support 1pcs 8mm cat6 wires
>Working current: 120mA/240mA>Safety type: power on to close the door and power off to open the door>Maximum pull: 70kg linear pull
>Working current: 120mA/240mA>Safety type: power on to close the door and power off to open the door>Maximum pull: 70kg linear pull
>Working current: 120mA/240mA>Safety type: power on to close the door and power off to open the door>Maximum pull: 70kg linear pull
> Output relays: 230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See the label on the detector)> Reaction time: 100ms> Size of Housing: L78 x W40 x H108mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
