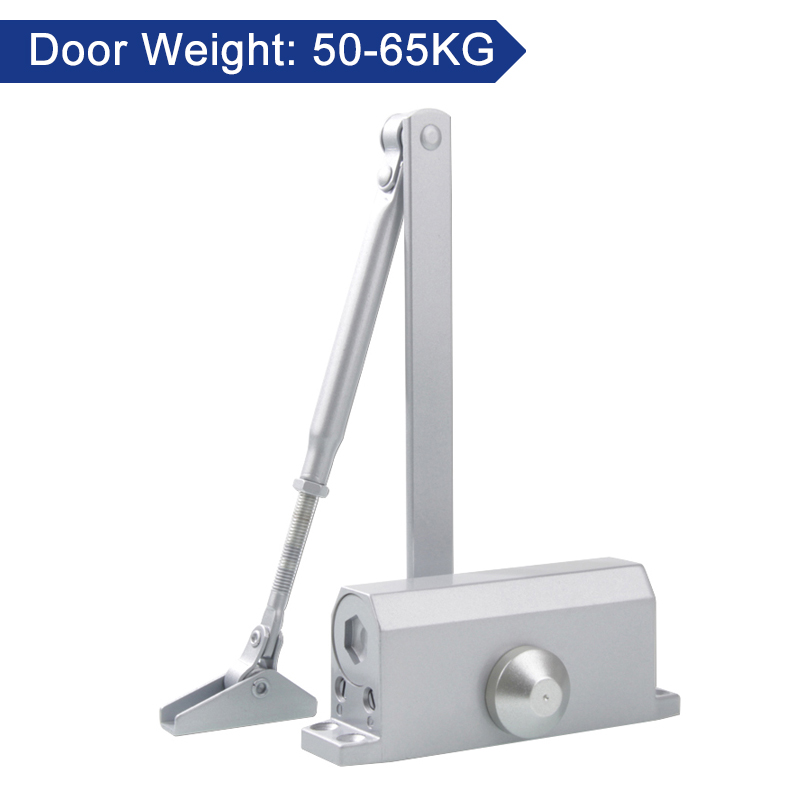

> Door Weight: 50-65KG
> Material: Aluminum alloy
> Door Width: 1000mm
Brand:
S4AItem NO.:

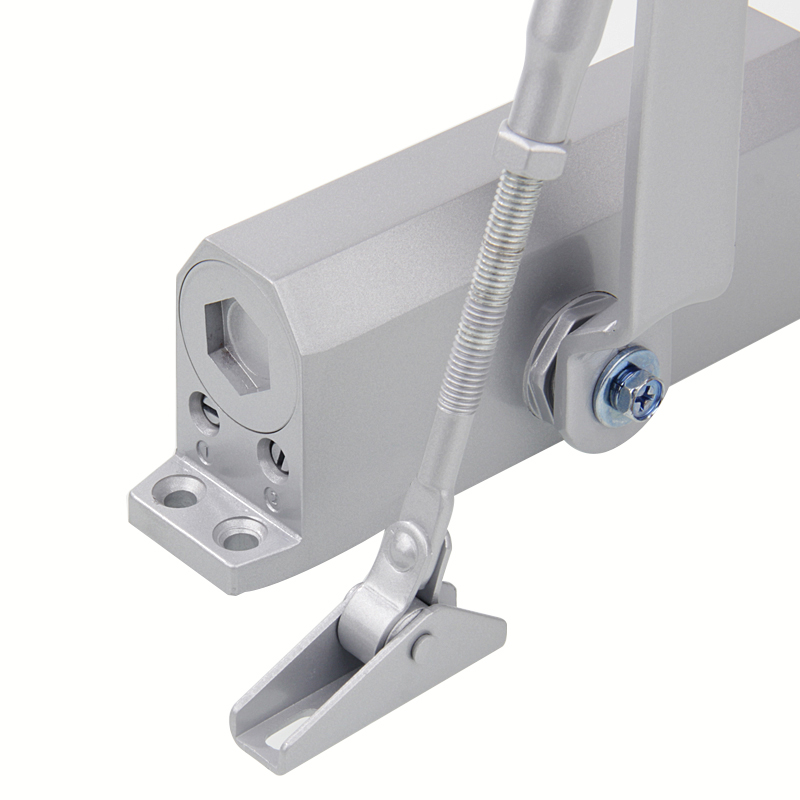

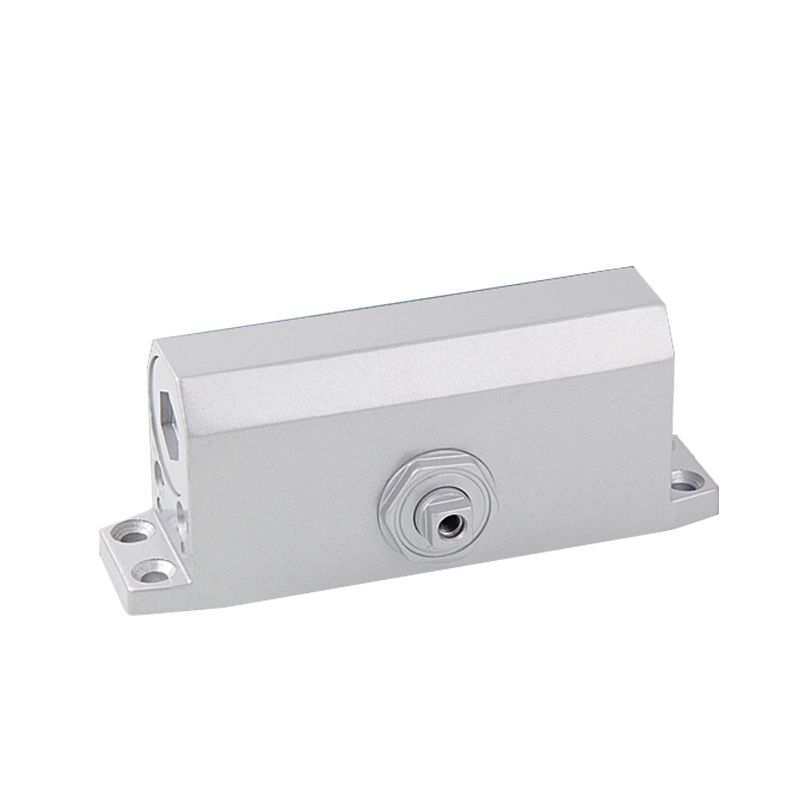

DL-60ANSI Heavy Duty Door Closer Universal Aluminum Alloy Door Closer
Model No.: DL-60
Material | Aluminum alloy |
Door Weight | 50~65KG |
Door Width | 1000mm |
Finish | Electrostatic paint |
Speed adjustment | Two stages of adjustable speed |
Temperature | -40°C~80°C, -60°C~80°C |
Function | 90° hold-open and Automatic (Factory default is Automatic) |
Warranty | 300000 times; 500000 times |

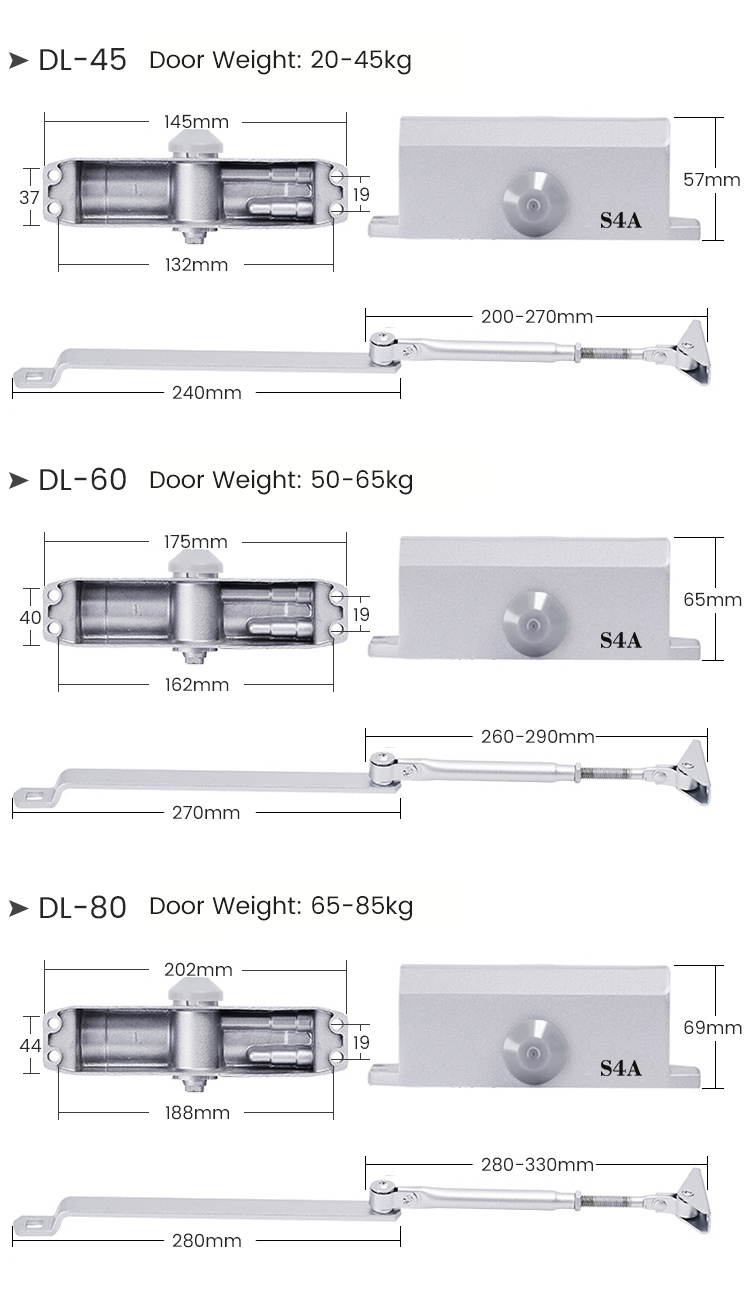

Dimensions | 175x65x40mm |
Application:
The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.
Functional:
A. Economic type door closer of residential and commercial
B. Performance standard: QB/T 2698-2013
C. Two speed control valve,adjusting closing speed and latching speed
D. ADC12 environmental production of aluminum alloy casting body
Product Details:
1. Cycle test: up to 500,000 cycles
2. Hydraulic oil: low-temperature resistance to -45℃
3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken
4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance
5. Power Size EN4/5
6. Positioning Function Optional
7. Back-check function Optional
8. Manufactured under strict observation of EN1154 standard
9. Precise sealed, preventing oil leakage
10. High quality die-casting aluminum alloy, protected with two-layer bright paint.
11. Two hydraulic press valves controlling two stage doors closing automatically.

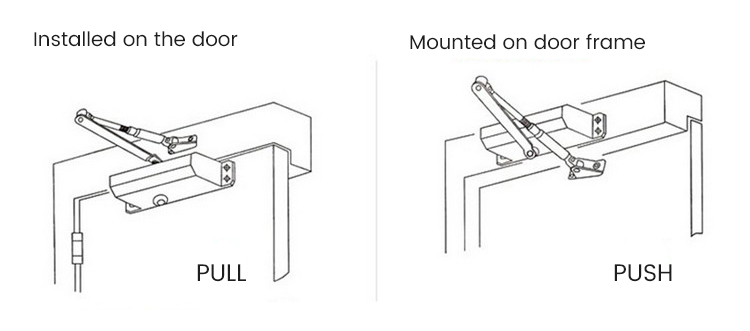

12. It can be installed on the door plate or installed on the doorframe.
Packaging:
Polybag inside, carton box outside, each carton is less than 25kg.(Or according to the customer request)
S4A Datasheet_ANSI Heavy Duty Door Closer Universal Aluminum Alloy Door Closer
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
