>Working current: 120mA/240mA
>Safety type: power on to close the door and power off to open the door
>Maximum pull: 70kg linear pull
Brand:
S4AItem NO.:

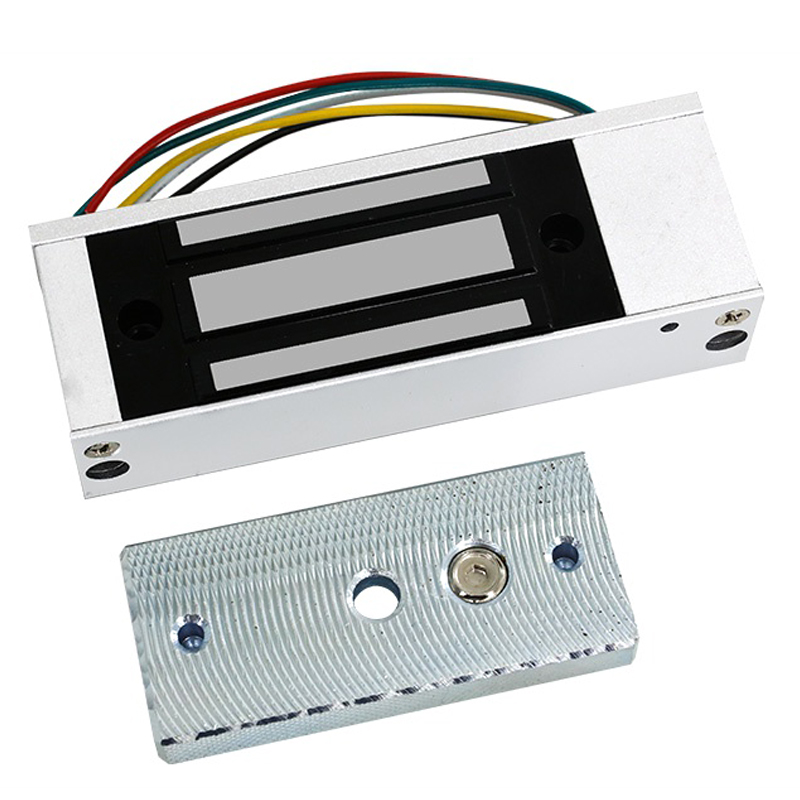

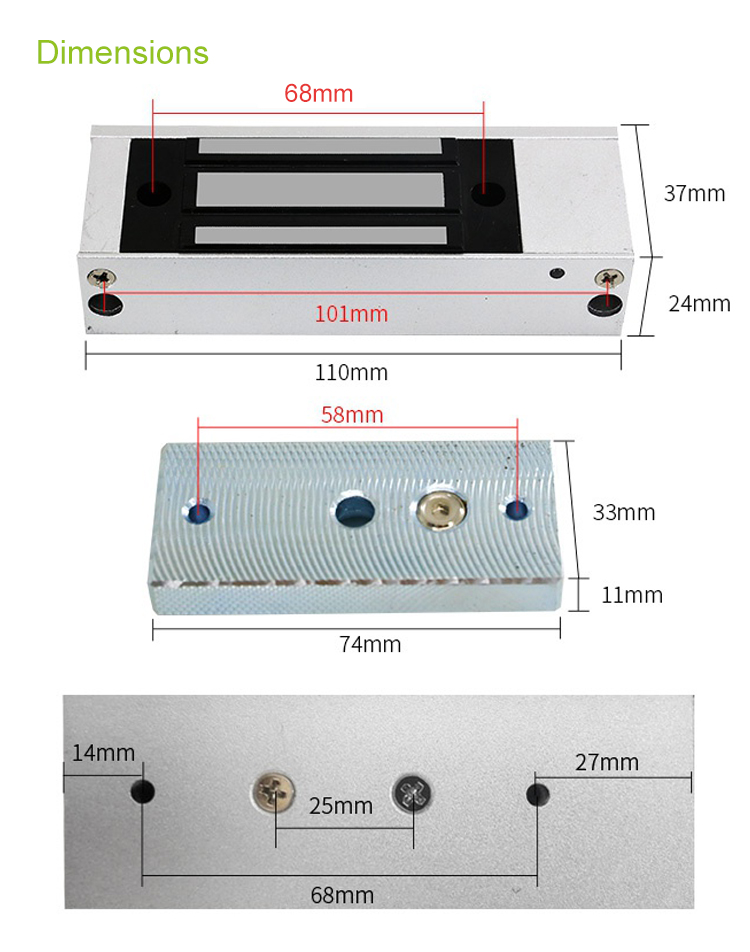

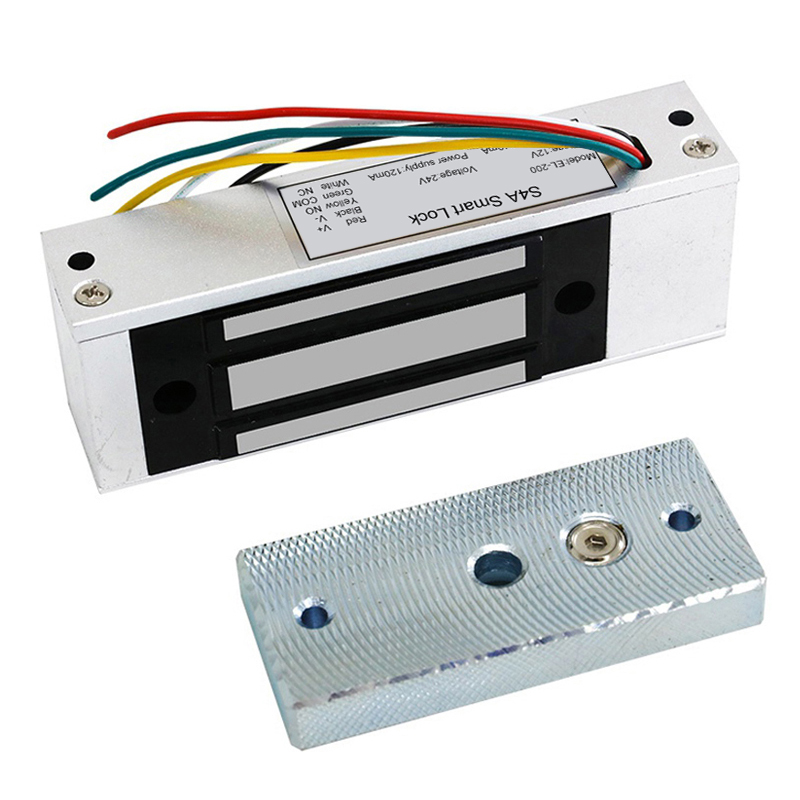

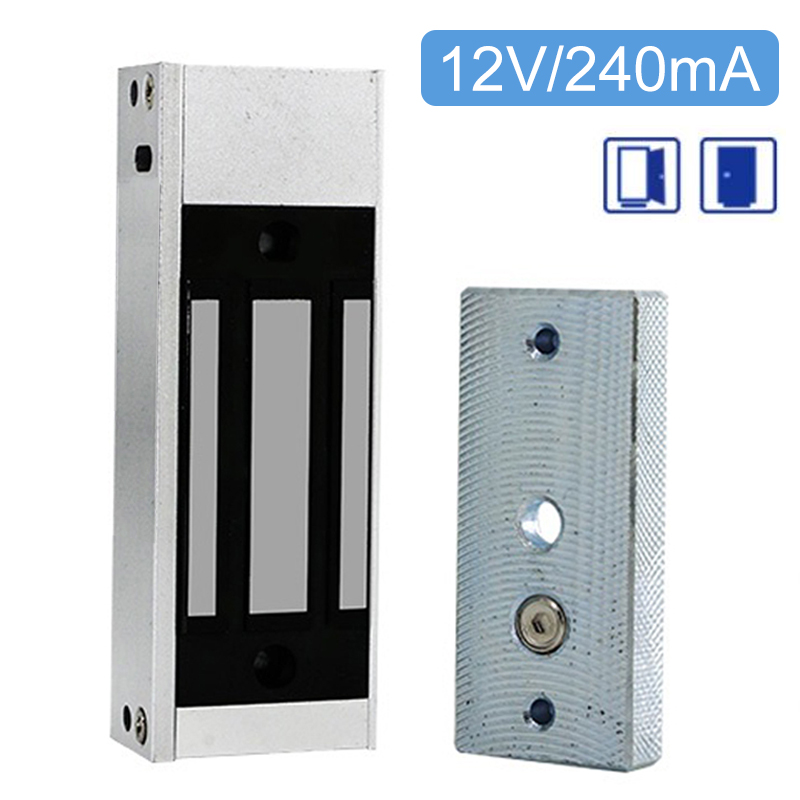

EL-200S70KG holding force magnetic locks
Model No.: EL-200S
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
S4A Model | EL-200S |
Input voltage | DC24/12V |
Working current | 120mA/240mA |
Safety type | power on to close the door and power off to open the door |
Maximum pull | 70kg linear pull |
Lock body treatment | electroplating treatment |
Shell material | aluminum alloy shell |
Applicable door types | drawers, sliding doors, cabinet doors, etc. |
Protection performance | built-in reverse breakthrough protection function |
S4A Datesheet_70KG holding force magnetic locks
Electric RIM lock with Double Cylinder
> Voltage: DC12V or DC24V> Holding Force: 500KG (1200Lbs)> Current Draw: 12V/420mA 24V/210mA

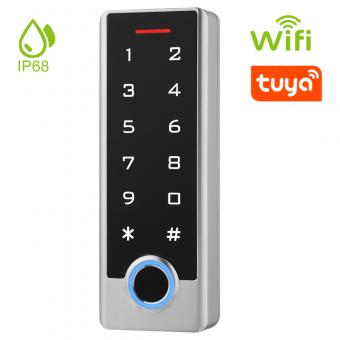

> Card type: EM Card> Waterproof conforms to IP66> One relay, 1000 users> Wiegand 26~37 bits input & output> User data can be transferred by Wiegand line> Access modes: Card, PIN, Card + PIN, Multi Cards/PINs> Card type: 125KHz Hid & EM card, PIN length: 4~6 digits> Pulse mode, toggle mode> 2pcs device support interlock for two doors

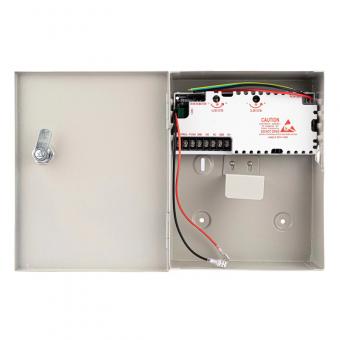

> Input Voltage: AC110-240V> Output Voltage: 12VDC/3A> Time Delay: 0-15S
