Brand:
S4AItem NO.:
WK1-EMEM 125KHz Wireless Access Control Reader
Model No.: WK1-EM

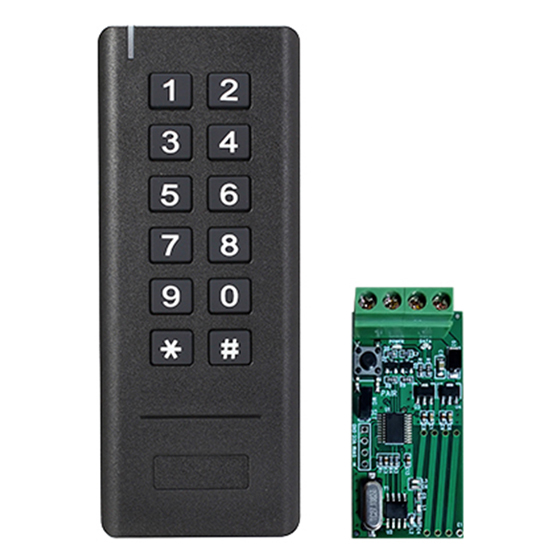

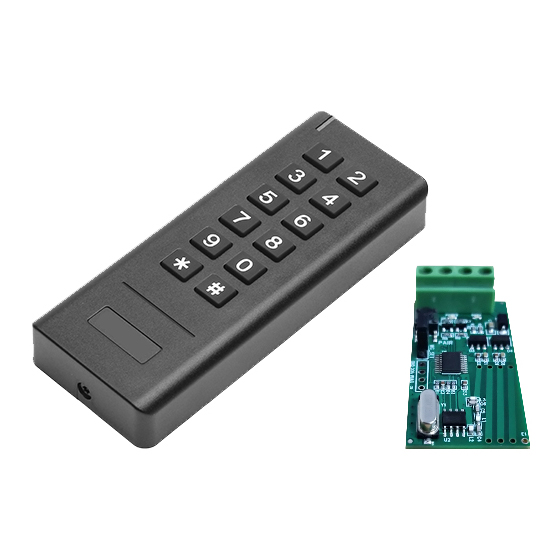

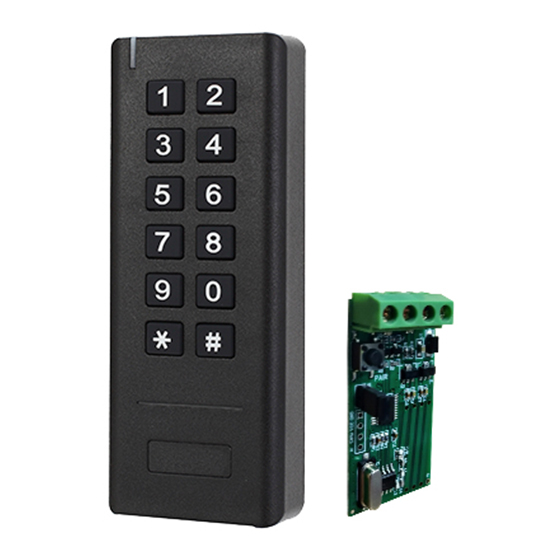

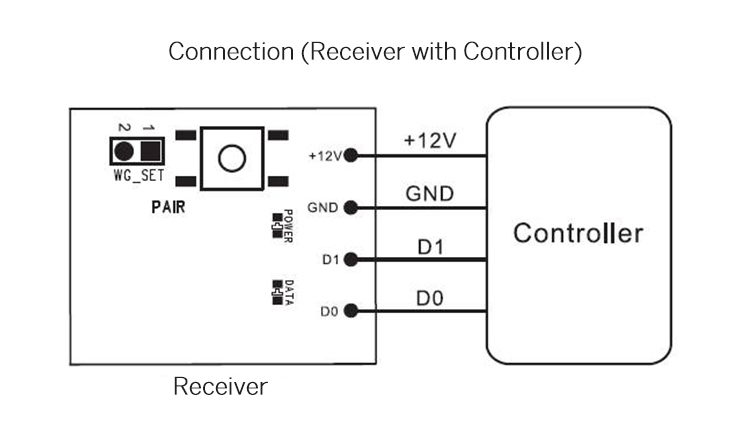

WK1-EM is a Wireless Keypad & EM Card Reader, including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.
> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Card Type: 125KHz EM card
> Programmable Wiegand output of the Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra-low power consumption
Wireless Keypad Reader | PIN Length | 1-6 digits |
Card Type | 125KHz EM card | |
Operating Voltage | 3 units of AAA batteries | |
Idle Current | ≤5uA | |
Working Current | ≤45mA | |
Reading Distance | ≤3cm | |
Communication Frequency | 433MHz | |
Communication Distance | 30m Maximum | |
Operating Temperature | -20°C～60°C (-4°F～+140°F) | |
Operating Humidity | 0%～86% | |
Physical | ABS | |

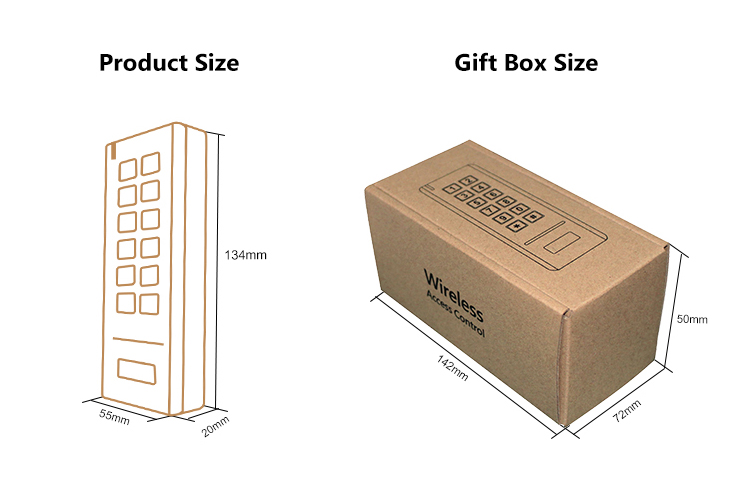

Dimensions | L134 x W55 x H20 (mm) | |
Net Weight | 100g | |
Receiver | Operating Voltage | 12V DC |
Working Current | ≤15mA | |
Communication Frequency | 433MHz | |
Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
Operating Temperature | -20°C～60°C (-4°F～140°F) | |
Operating Humidity | 0%～86% | |
Dimensions | L25 x W50 (mm) | |
Net Weight | 10g | |
Wireless Button | Operating Voltage | 1unit of 2023 Lithium battery |
Idle Current | ≤2uA | |
Working Current | ≤20mA | |
Communication Frequency | 433MHz | |
Communication Distance | 20m Maximum |
S4A Datesheet_EM 125KHz Wireless Access Control Reader
