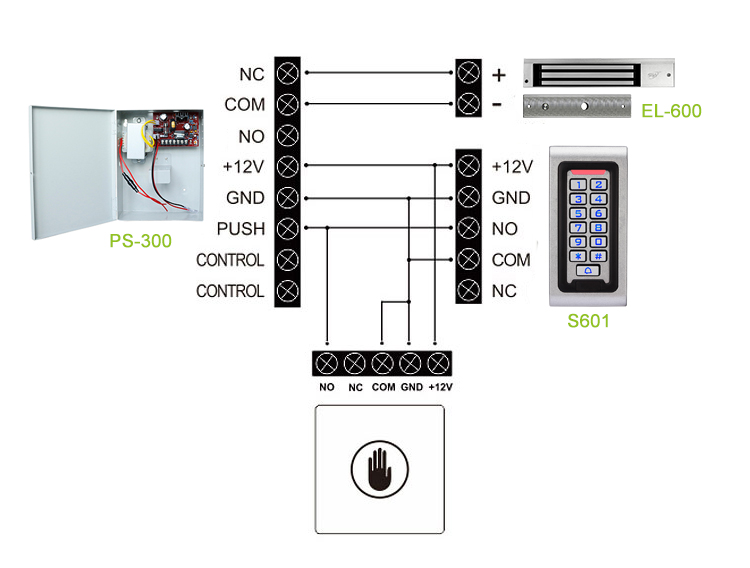

Wiring Diagram
Package
Download

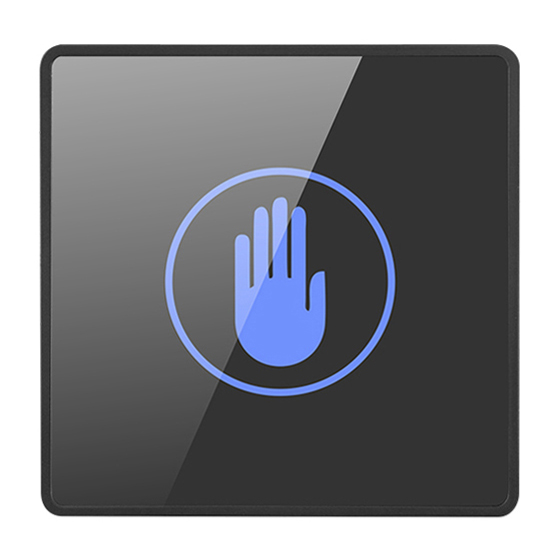

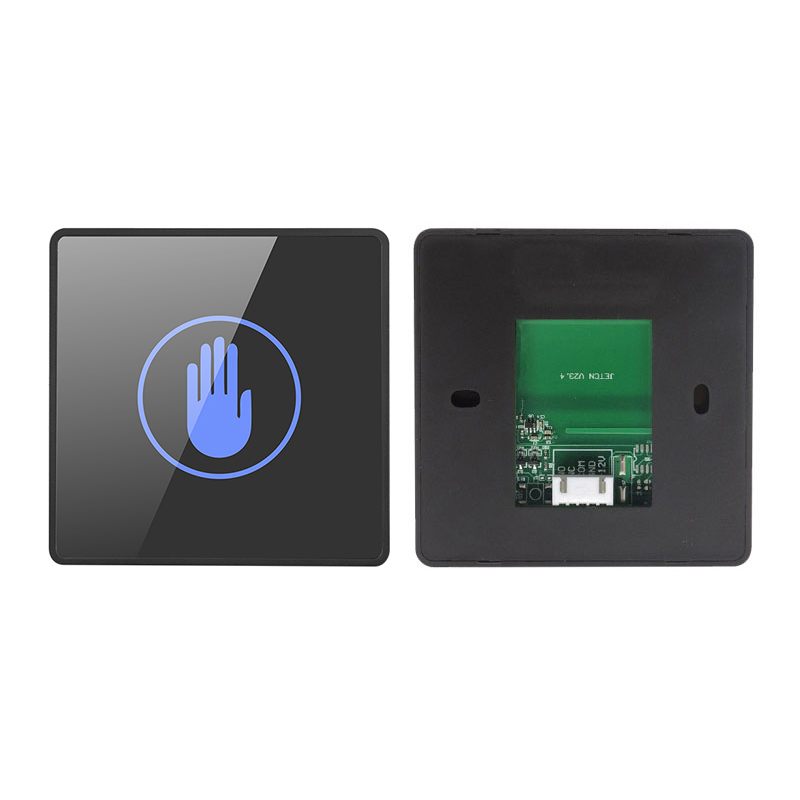

Contactless Hand Wave Sensor Switch Button

Model No: WS-86

What is Hand Wave Sensor Button?

Hand Wave Sensor Button It is activated by hands waving. After correctly connected this sensor with your power supply and access control system, when you wave your hand at the sensor, the door will turn on automatically.

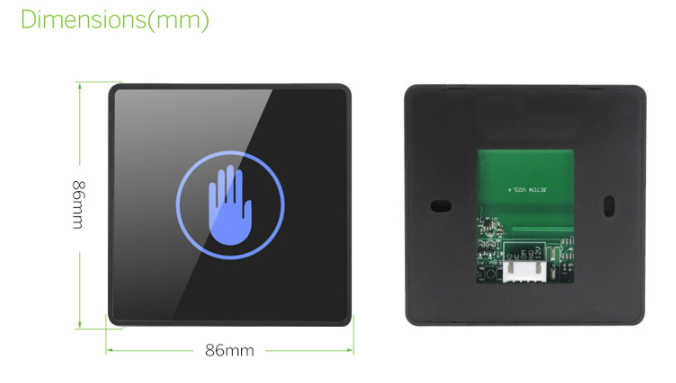

Dimension	86x86x11.5mm
Panel Material	Tempered glass
Input Voltage	DC12-24V
Output Contact	NO NC
Transmit Distance	5~8cm
Mechanical Life	1000000 tested
Backlight State	Blue to green

Hand Wave Sensor Button

Contactless Hand Wave Sensor Switch Button
Model No.	Quantity/Carton	Net Weight	Gross Weight	Carton Size
WS-86	100PCS	10KG	10KG	35x40x45cm

Hand Wave Sensor Button

S4A_Datesheet_Contactless Hand Wave Sensor Switch Button

Download
