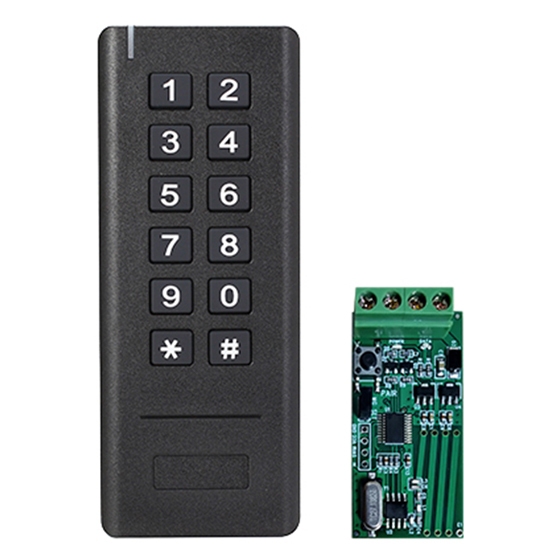

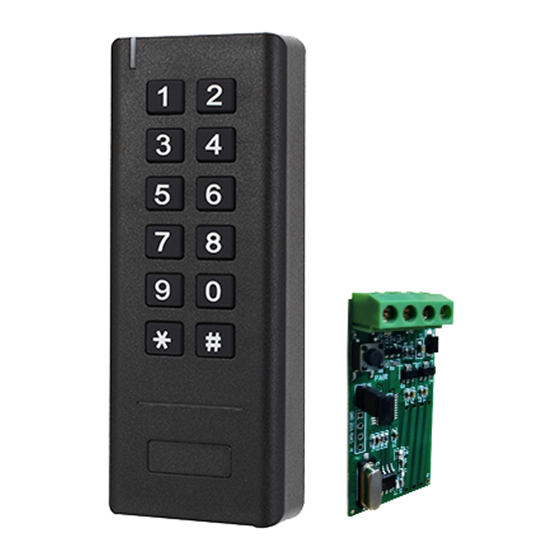

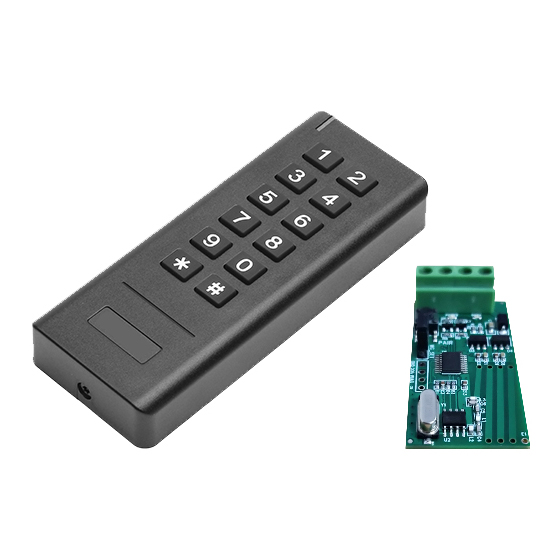

WK1-MFWireless Keypad Reader (Mifare)
Model No.: WK1-MF

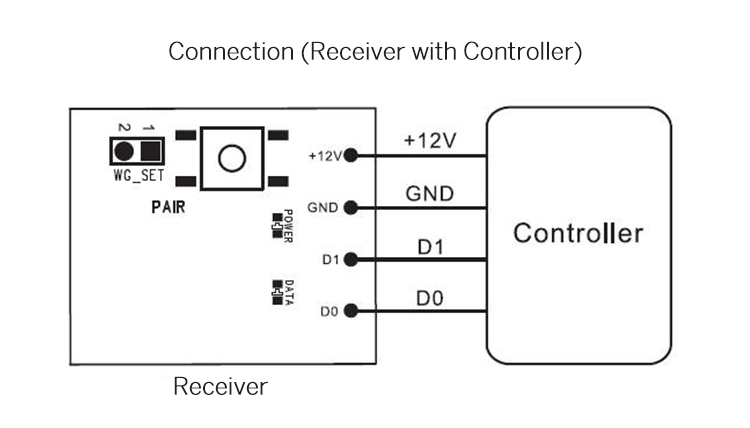

WK1-MF is a Wireless Keypad & Mifare Card Reader, including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.
> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Card Type: 13.56MHz Mifare card
> Programmable Wiegand output of the Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra-low power consumption
Wireless Keypad Reader | PIN Length | 1-6 digits |
Card Type | 13.56MHz Mifare card | |
Operating Voltage | 3 units of AAA batteries | |
Idle Current | ≤5uA | |
Working Current | ≤45mA | |
Reading Distance | ≤3cm | |
Communication Frequency | 433MHz | |
Communication Distance | 30m Maximum | |
Operating Temperature | -20°C～60°C (-4°F～+140°F) | |
Operating Humidity | 0%～86% | |
Physical | ABS | |

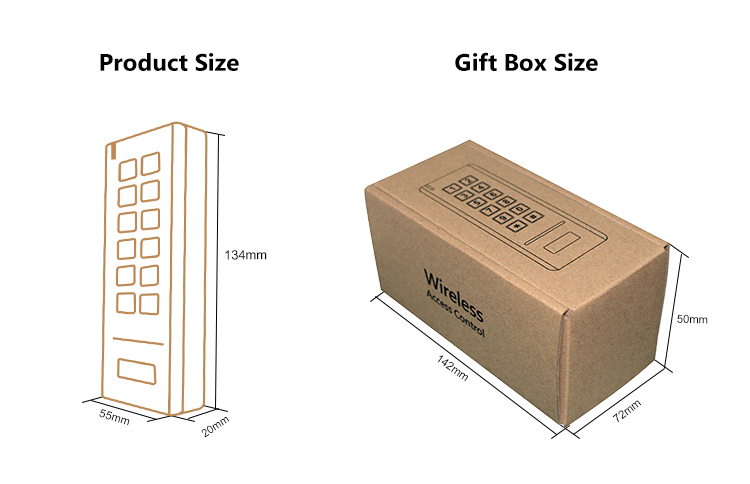

Dimensions | L134 x W55 x H20 (mm) | |
Net Weight | 100g | |
Receiver | Operating Voltage | 12V DC |
Working Current | ≤15mA | |
Communication Frequency | 433MHz | |
Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
Operating Temperature | -20°C～60°C (-4°F～140°F) | |
Operating Humidity | 0%～86% | |
Dimensions | L25 x W50 (mm) | |
Net Weight | 10g | |
Wireless Button | Operating Voltage | 1unit of 2023 Lithium battery |
Idle Current | ≤2uA | |
Working Current | ≤20mA | |
Communication Frequency | 433MHz | |
Communication Distance | 20m Maximum |
S4A Datesheet_Wireless Keypad Reader (Mifare)
