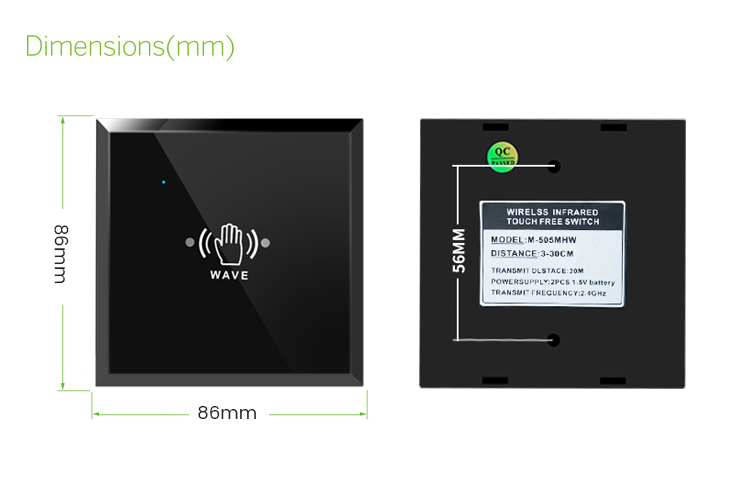

Dimensions: 86x86x14mm
Brand:
S4AItem NO.:

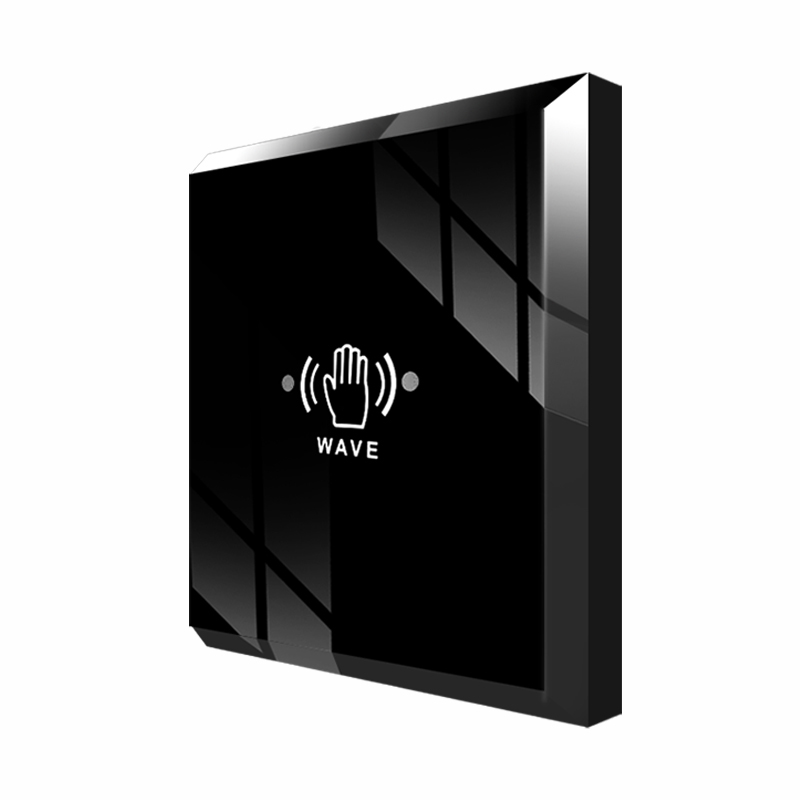

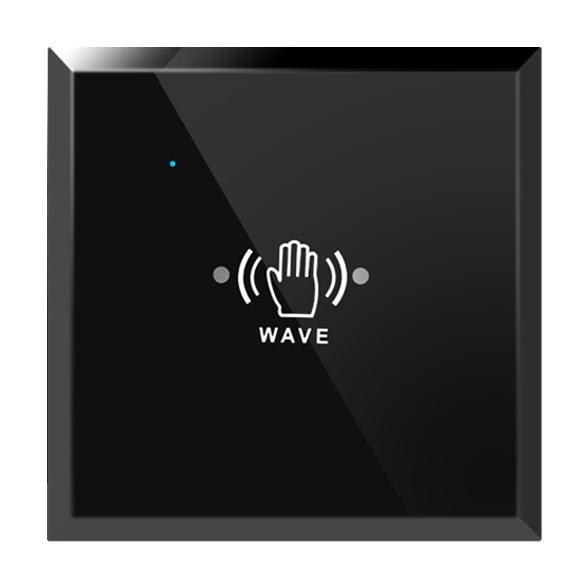

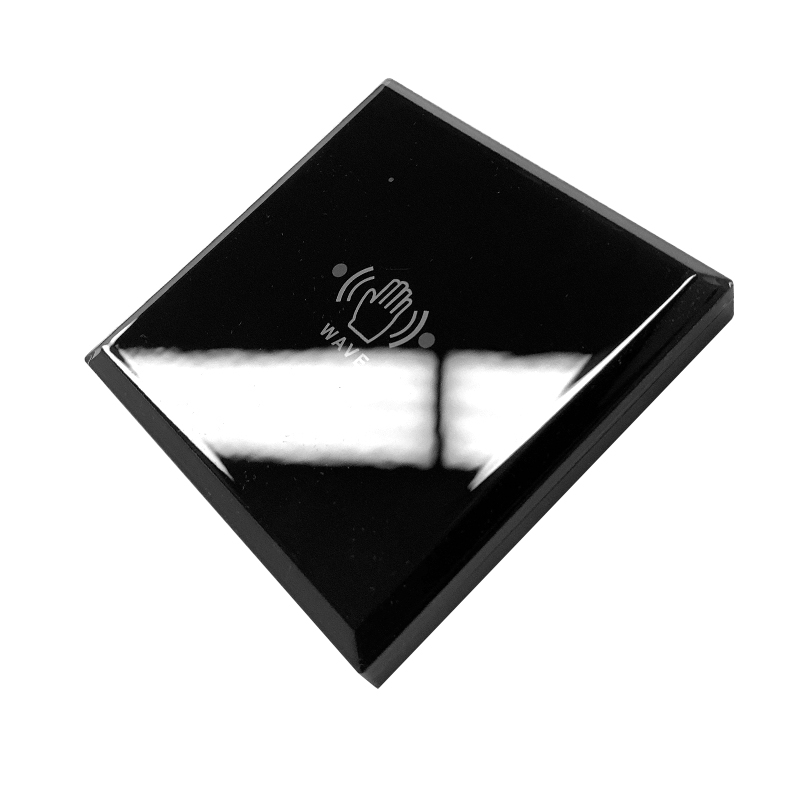

S4A-505MHWInfrared Touch Free Wireless Switch
Model No: S4A-505MHW

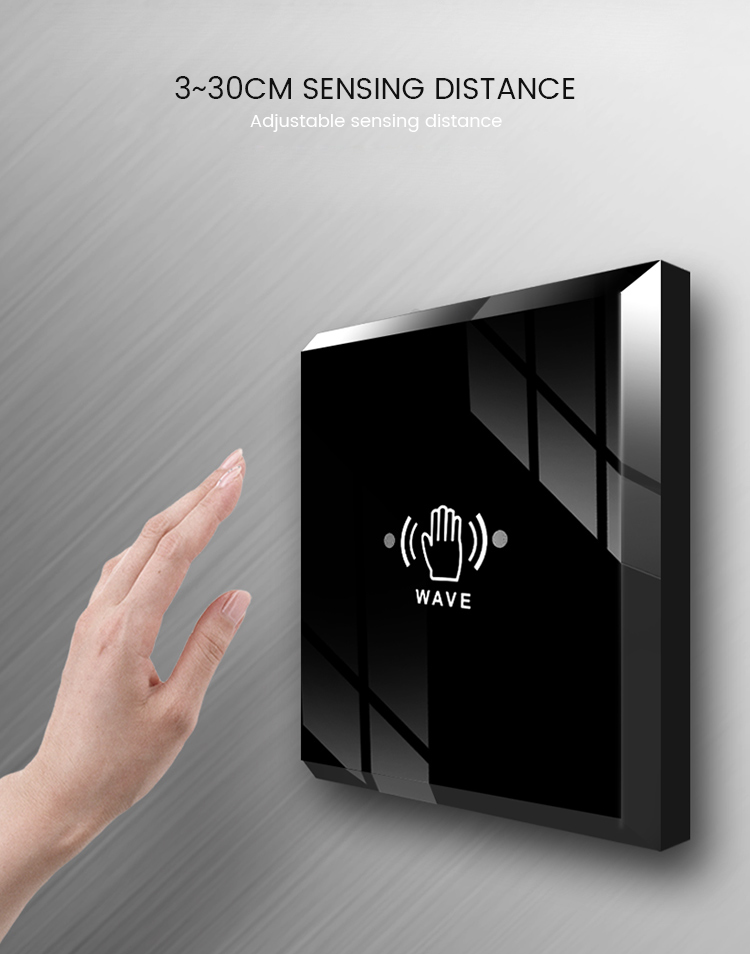

Infrared sensing distance: 3~17cm adjustable
What is Hand Wave Sensor Button?

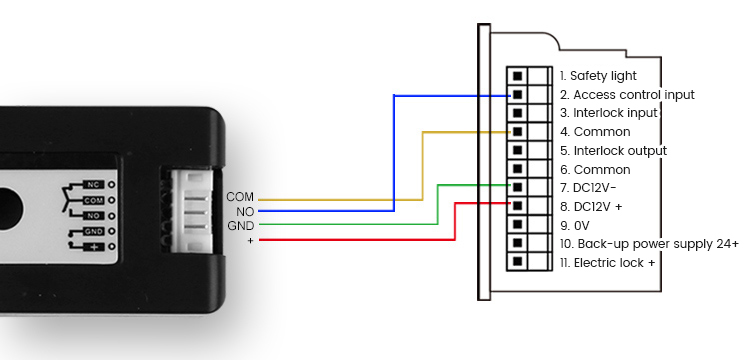

Hand Wave Sensor Button It is activated by hands waving. After correctly connected this sensor with your power supply and access control system, when you wave your hand at the sensor, the door will turn on automatically.

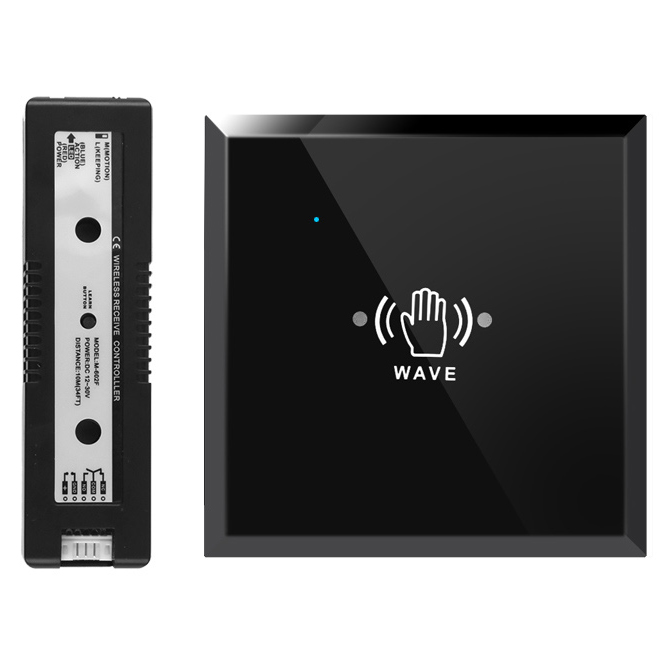

S4A-505MHW adopts 2.4G wireless communication technology, which has good frequency consistency and high wireless transceiver stability. The transmitter adopts low-power transmission technology, which has a long transmission distance, low power consumption and long battery life. The receiver adopts self-learning code matching, which is convenient for customers to add induction switches at any time. The receiver has a wide voltage input design, and the 12∽30V DC power input is valid. The blue light is on when the remote control is valid, and you can confirm whether the switch is valid.

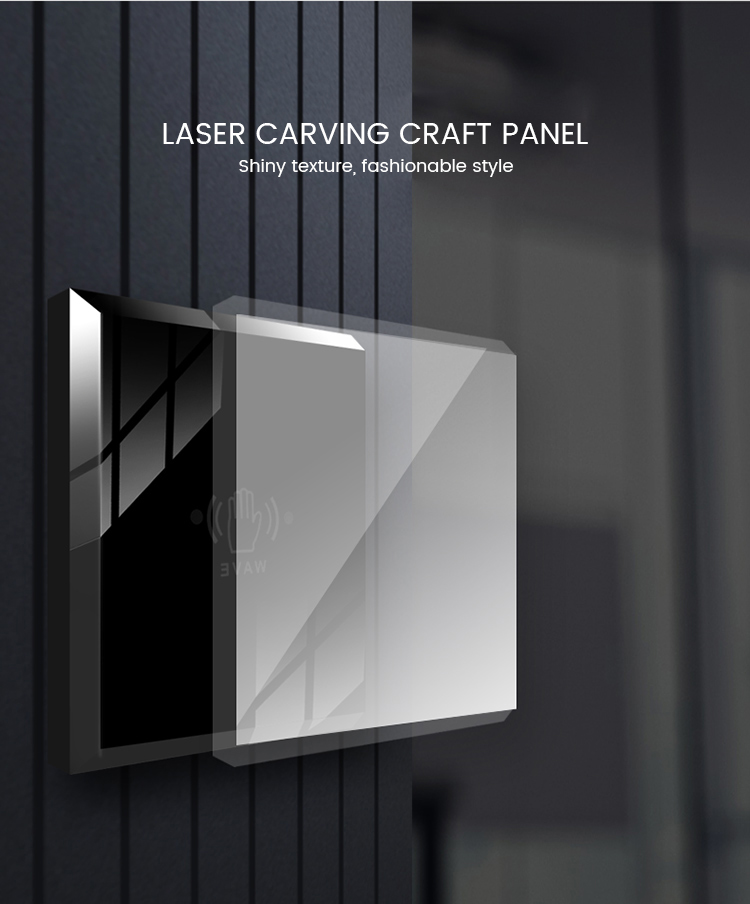

Standard 86 type switch panel, wireless design, installation free of wiring, more flexible installation. The panel adopts laser engraving technology, with backlight display, fashionable and fashionable.
Power supply (transmitter) | 2pcs 1.5V dry batteries, power supply in series) |
Standby current (transmitter) | ≤10.3μA |
Emission current (transmitter) | 12.55mA |
Battery life (transmitter) | An average of 200 inductions per day, 220 days of durability |
Receiver sensitivity | -95dbm |
Infrared sensing distance | 3~17cm adjustable |
Launch distance | 30 meters in an open space, up to 30 meters or more |
Power supply (wireless receiver) | DC12～30V |
Quiescent current (wireless receiver) | 30mA (when DC12V power supply) |
Action current | 74mA (when DC12V power supply) |
Main contact capacity (wireless receiver) | 1A 24VDC |
Contact holding time (wireless receiver) | 1.5 seconds |
