Access Control Exit Button

/

No Touch Exit Button

/DC12V/24V Hand Sensor Switch

Categories

Categories

New Products

Hand Sensor Switch Hand Sensor Switch Hand Sensor Switch Hand Sensor Switch

DC12V/24V Hand Sensor Switch

Dimensions: 92x92x33mm

  • Brand:

    S4A

  • Item NO.:

    S4A-201G
Inquire Now
  • Specifications

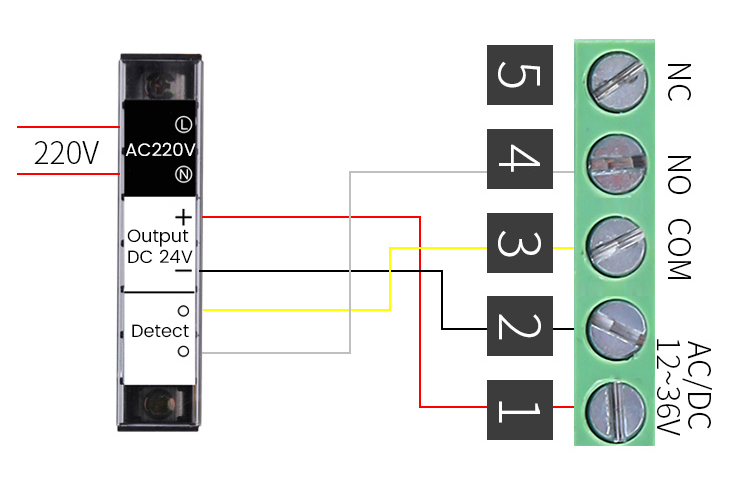

  • Wiring Diagram
  • Package
  • Download

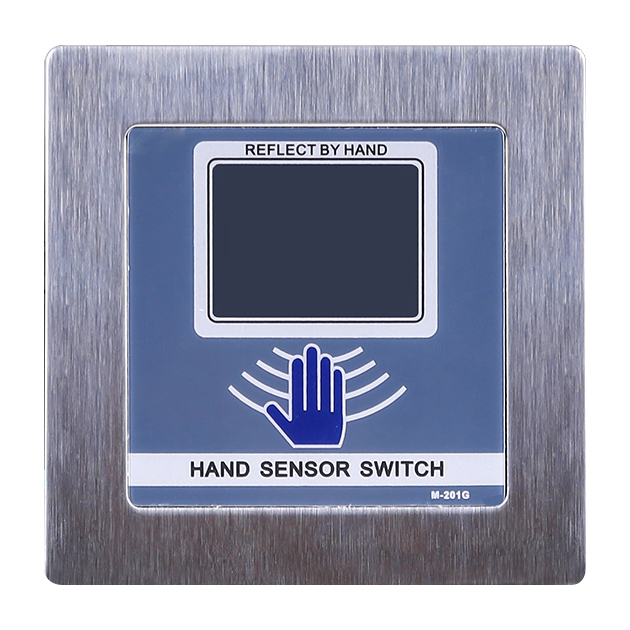

DC12V/24V Hand Sensor Switch

Model No: S4A-201G


What is Hand Wave Sensor Button?

Hand Wave Sensor Button It is activated by hands waving. After correctly connected this sensor with your power supply and access control system, when you wave your hand at the sensor, the door will turn on automatically.


Input power

AC/DC 12~36V

Sensing distance

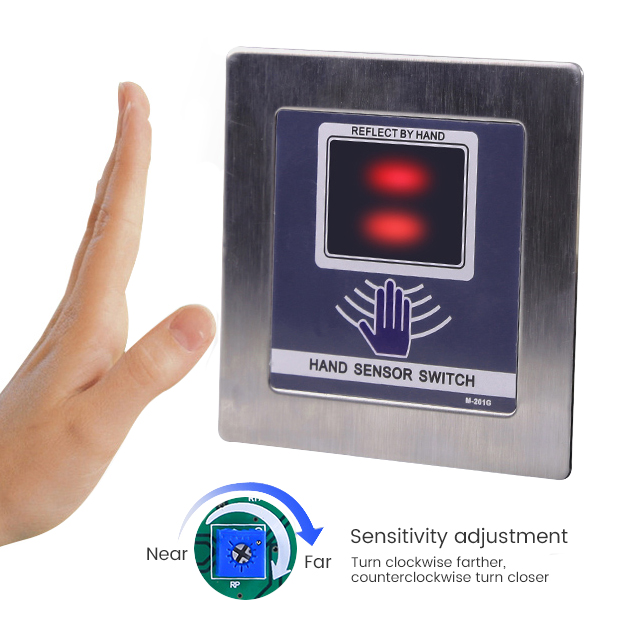

3~15cm Adjustable

frequency

38KHz

Current

55mA

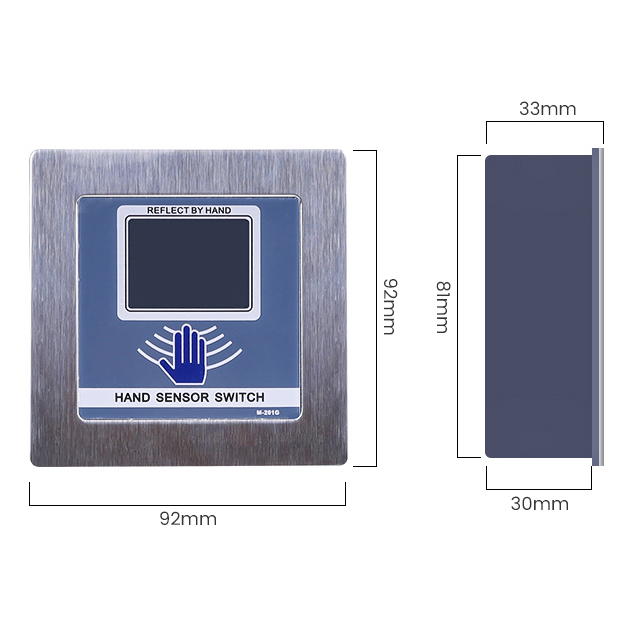

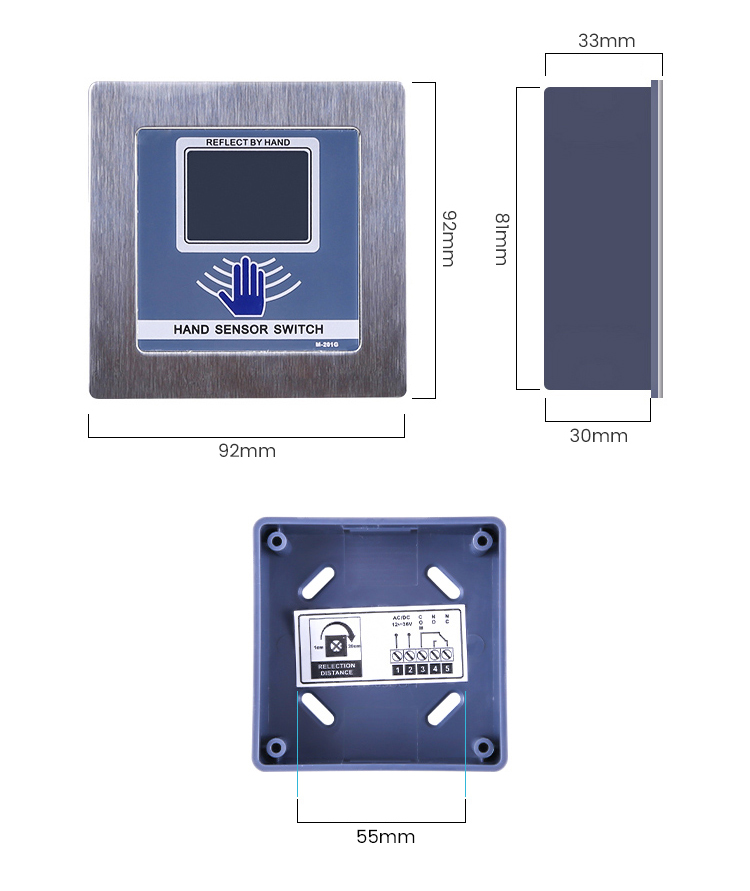

physical dimension

92x92x33mm

Hole Size

85x85x30mm


Hand Sensor SwitchHand Sensor SwitchHand Sensor SwitchHand Sensor SwitchHand Sensor SwitchHand Sensor Switch

Hand Sensor Switch

Hand Sensor Switch

S4A_Datesheet_DC12V/24V Hand Sensor Switch

Download
Related Tags : Hand Sensor Switch No Touch Exit Button Switch
