> Card type: EM, HID, MF Card
> Waterproof conforms to IP66
> One relay, 600 users
> PIN length: 4~6 digits
> Wiegand 26~37 bits input & output
> Can be used as a Wiegand reader with LED & Buzzer output
> Pulse mode, Toggle mode
> 2 devices can be interlocked for 2 doors
> 12~28V AC/DC
> Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card
Brand:
S4AItem NO.:

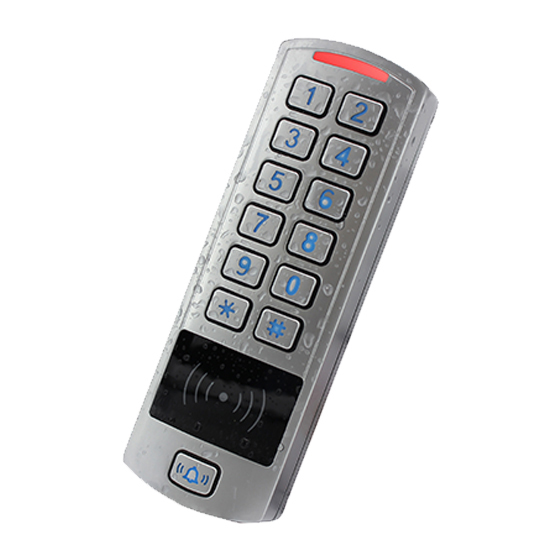

SK6-XWaterproof Standalone Access Controller
Model No.: SK6-X EM+HID+Mifare
> Waterproof conforms to IP66
> One relay, 600 users
> Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card
> PIN length: 4~6 digits
> Wiegand 26~37 bits input & output
> Can be used as a Wiegand reader with LED & Buzzer output
> Pulse mode, Toggle mode
> 2 devices can be interlocked for 2 doors
> 12~28V AC/ DC
User Capacity | 600 |
Common Users | 598 |
Panic Users | 2 |
Operating Voltage | 12~28V AC/DC |
Idle Current | < 65mA |
Active Current | < 100MA |
Proximity Card Reader | HID & EM & Mifare |
Radio Technology | 125KHz &13.56Mhz |
Read Range | 2~6 cm |

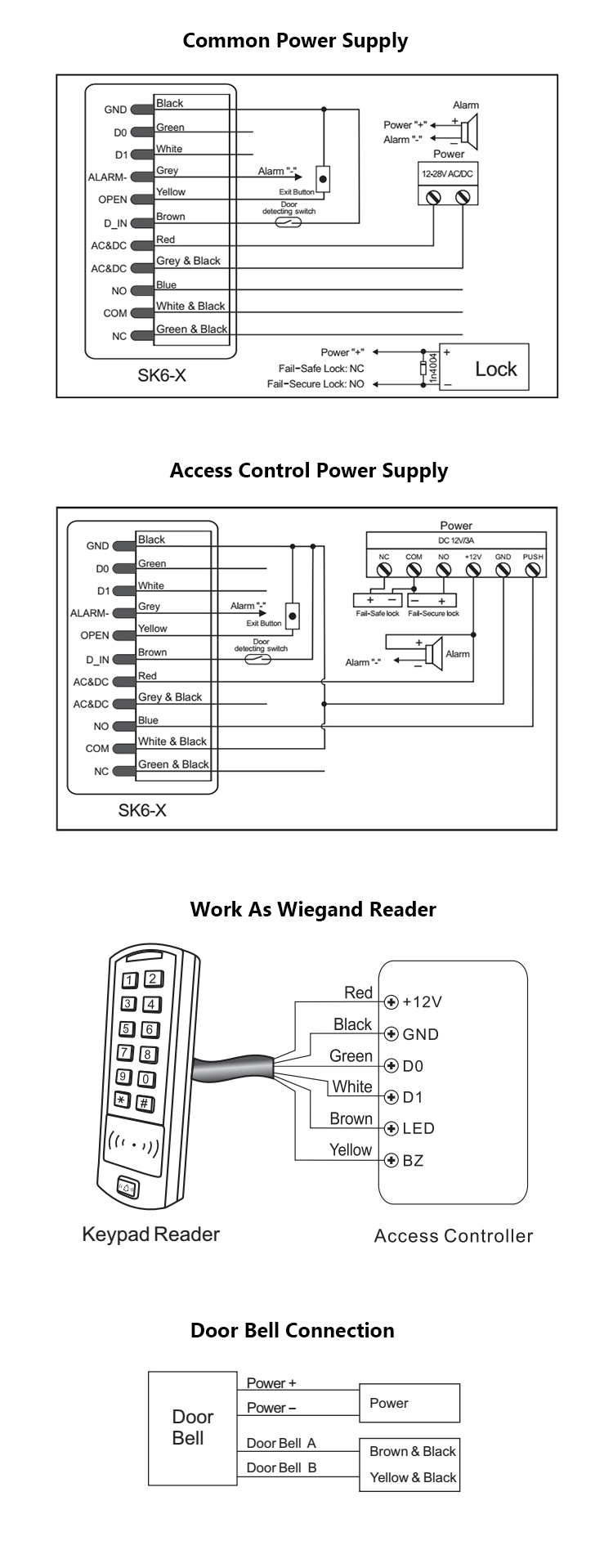

Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Wiegand Interface | Wiegand 26~37bits |
Wiegand Input | 26~37bits |
Wiegand Output | 26~37bits |
PIN Output | 4 bits, 8 bits(ASCII), 10 digits Virtual Number |
Environment | Meets IP66 |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Operating Humidity | 0%RH ~ 98%RH |
Physical | Zinc-Alloy Enclosure |
Surface Finish | Powder Coat |

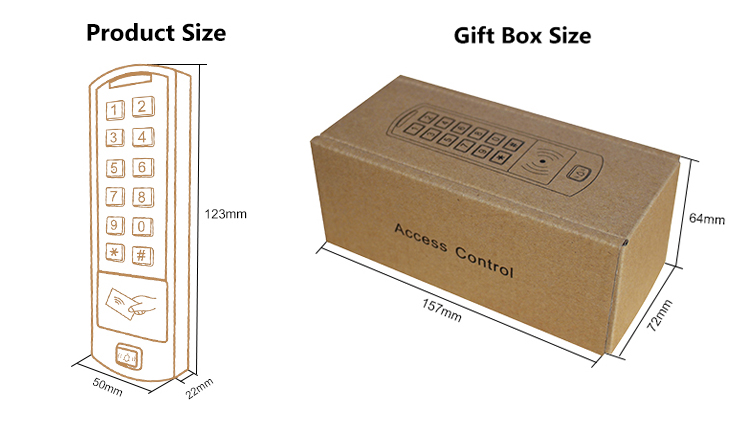

Dimensions | L150xW51xH23mm |
Unit Weight | 500g |
Shipping Weight | 600g |
S4A User Manual SK6-X_Waterproof Standalone Security Access Control Systems
