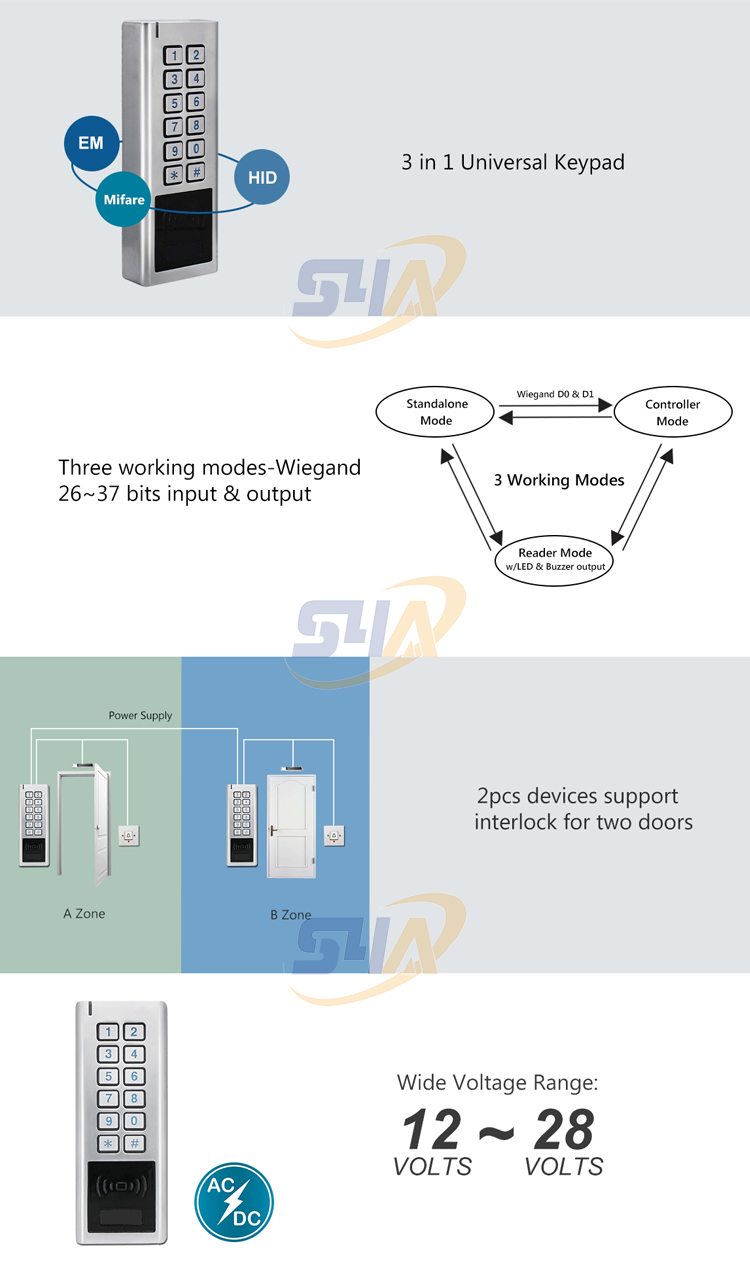

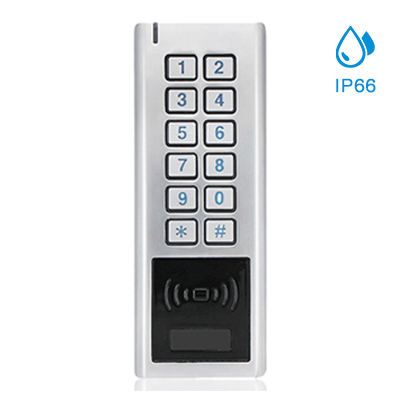

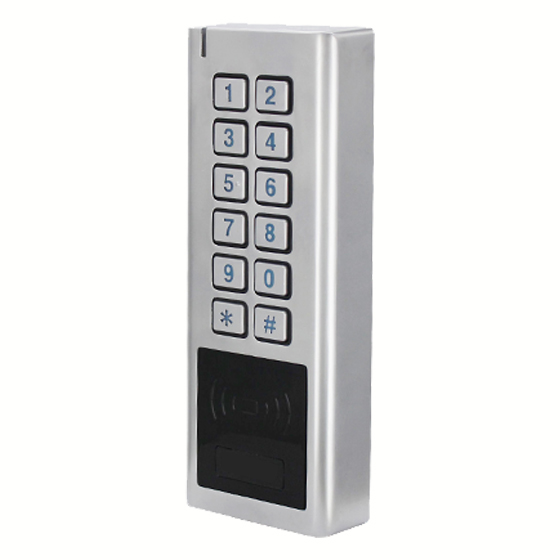

Waterproof Standalone Access Controller with Wiegand Input

> Card type: EM, HID, MF Card

> Metal case, anti-vandal

> Waterproof, conforms to IP66

> One relay, 600 users

> Wiegand 26~37 bits input & output

> User data can be transferred by Wiegand line

  • Brand:

    S4A
  • Item NO.:

    SK5-X

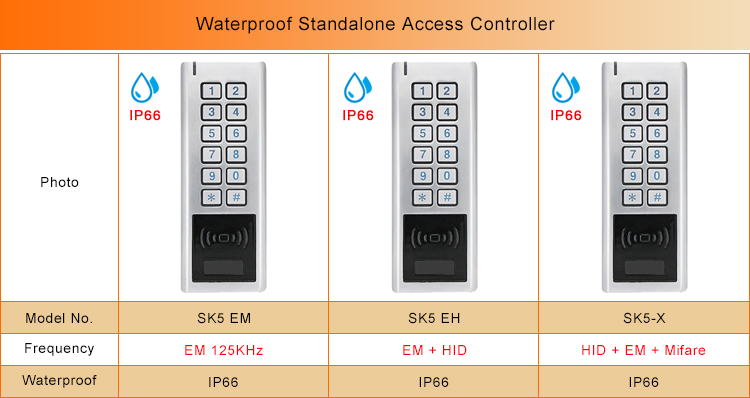

Specifications

Waterproof Standalone Access Controller

Model No.: SK5-X EM+HID+Mifare


Waterproof Standalone Access Controller


User Capacity

600

Common Users

598

Panic Users

2

Operating Voltage

12~28V AC/DC

Idle Current

< 65mA

Active Current

< 100MA

Proximity Card Reader

HID & EM & Mifare

Radio Technology

125KHz &13.56Mhz

Read Range

2~6 cm

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Wiegand Interface

Wiegand 26~37bits

Wiegand Input

26~37bits

Wiegand Output

26~37bits

PIN Output

4 bits, 8 bits(ASCII), 10 digits Virtual Number

Environment

Meets IP66

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Operating Humidity

0%RH ~ 98%RH

Physical

Zinc-Alloy Enclosure

Surface Finish

Powder Coat

Dimensions

L148xW56xH22.5mm

Unit Weight

500g

Shipping Weight

600g


Waterproof Standalone Access Controller

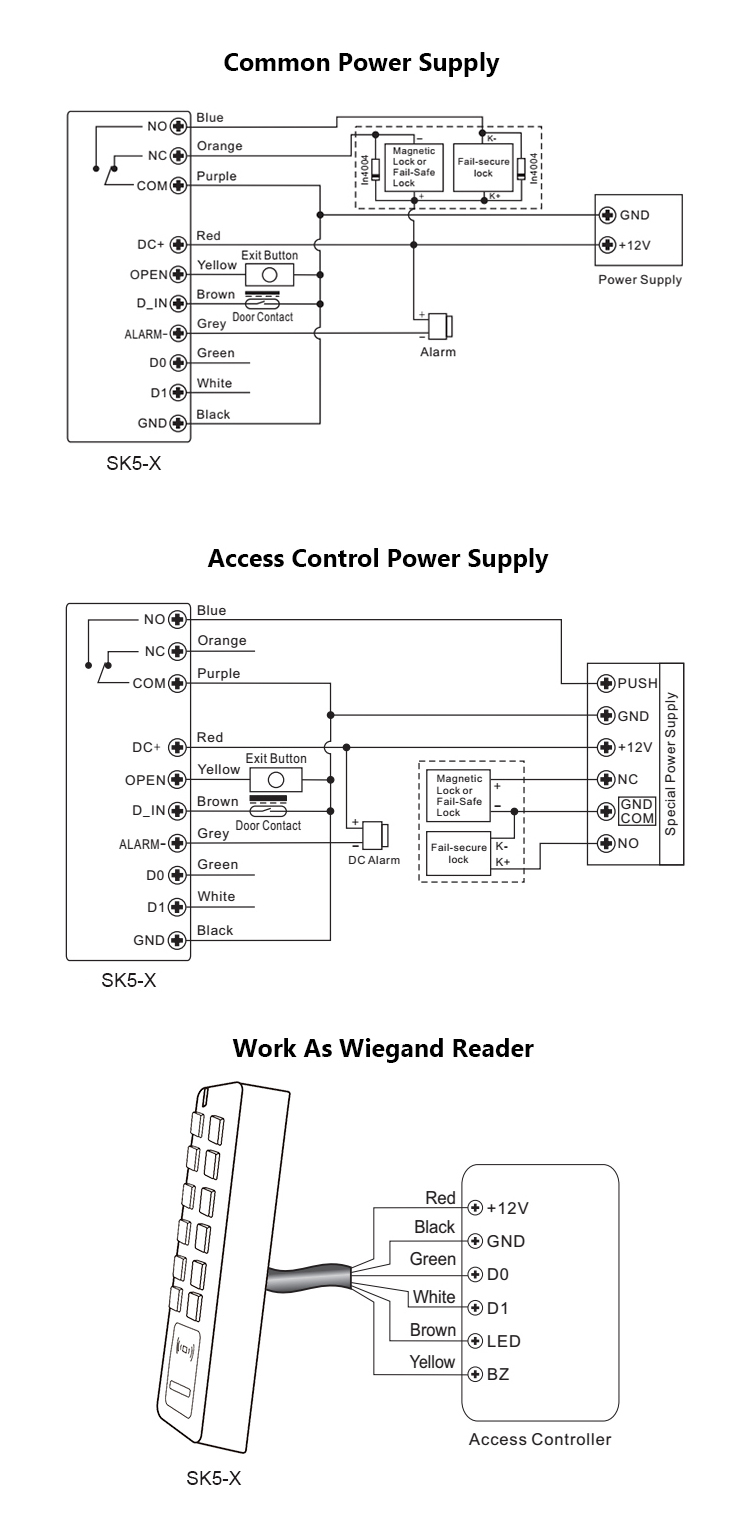

Wiring Diagram

Waterproof Standalone Access Controller

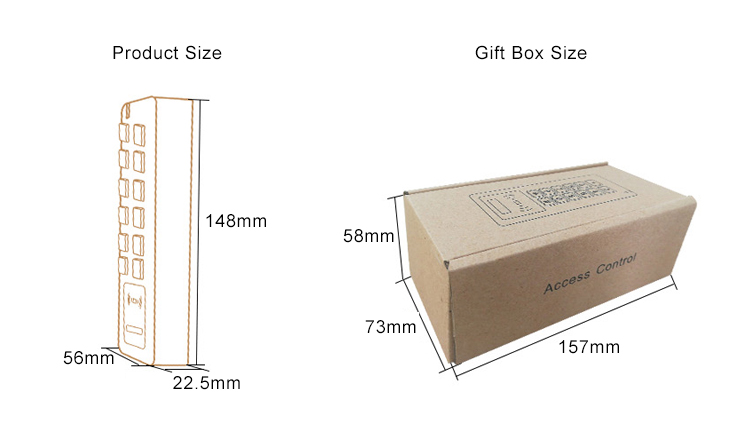

Package

Waterproof Standalone Access Controller

Download

S4A User Manual SK5-X_Waterproof Standalone Access Controller with Wiegand Input
