> Metal Case, anti-vandal
> Waterproof conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: EM card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control
Brand:
S4AItem NO.:
S7-RWaterproof IP66 Metal rfid card reader
Model No.: S7-R EM

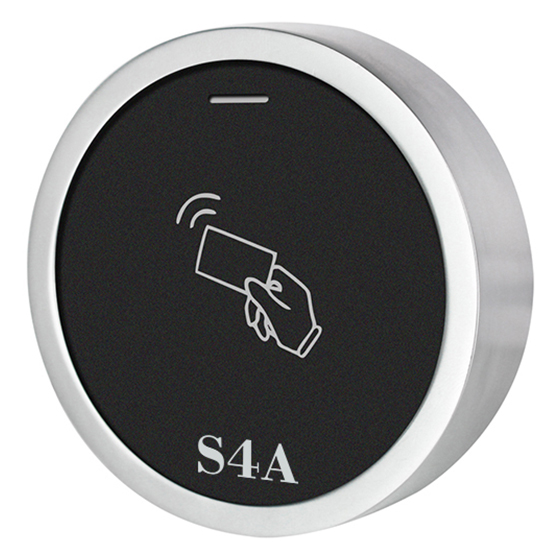

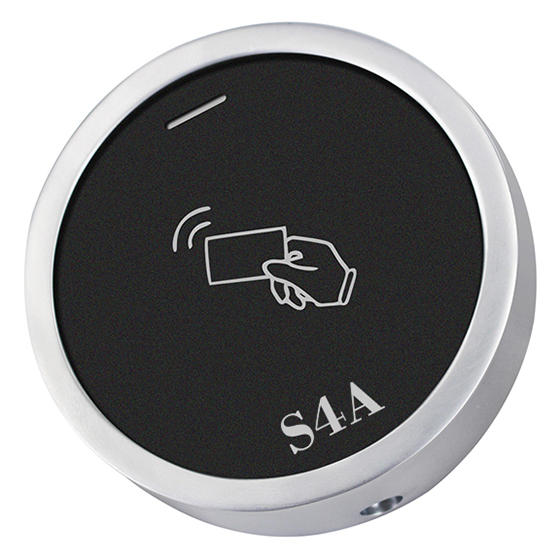

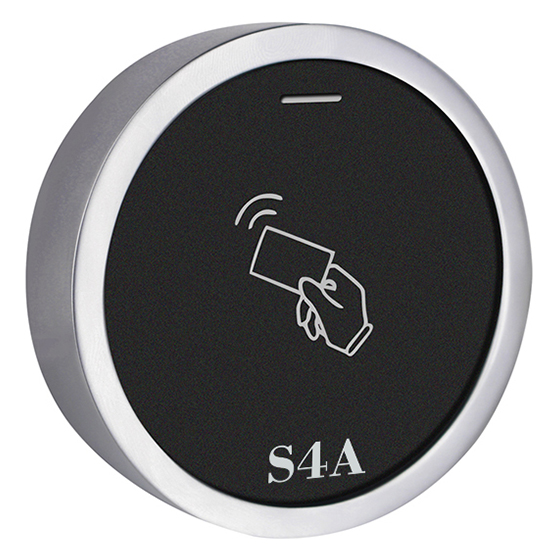

The S7-R (EM) reader is a metal case anti-vandal proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
Features:
> Metal Case, anti-vandal
> Waterproof, conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: EM card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control
Operating Voltage | 9~24V DC |
Frequency | 125KHz |
Card Type | EM Card |
Reading Distance | 3~8 CM |
Output Format | Wiegand 26 bits |
(26~37 bits available upon request) | |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Standby Current | < 25mA |
Operating Humidity | 10%~98% RH |
Index of Protection | IP66 |

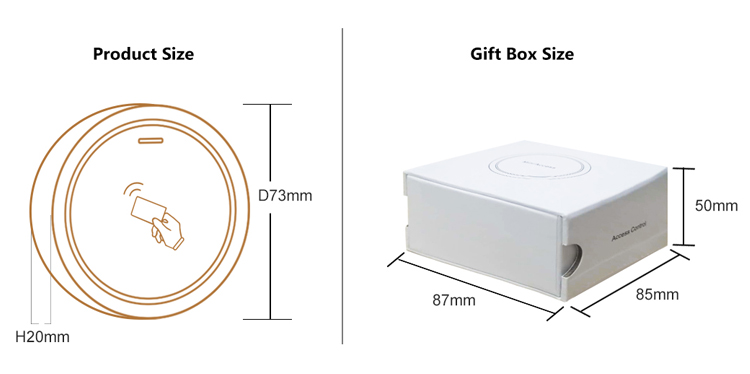

Dimensions | Diameter: 73mm, Thickness: 20mm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
