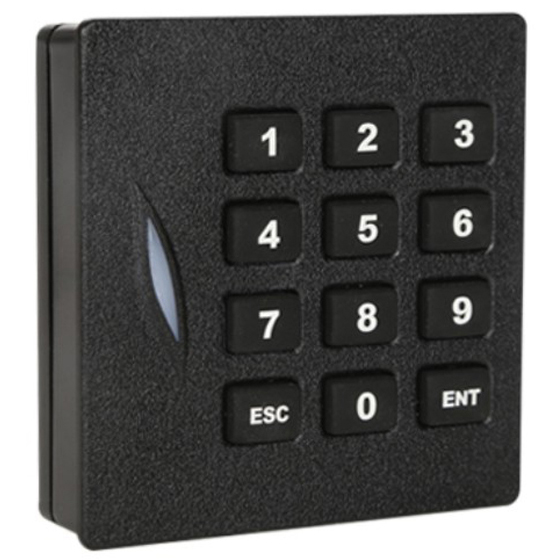

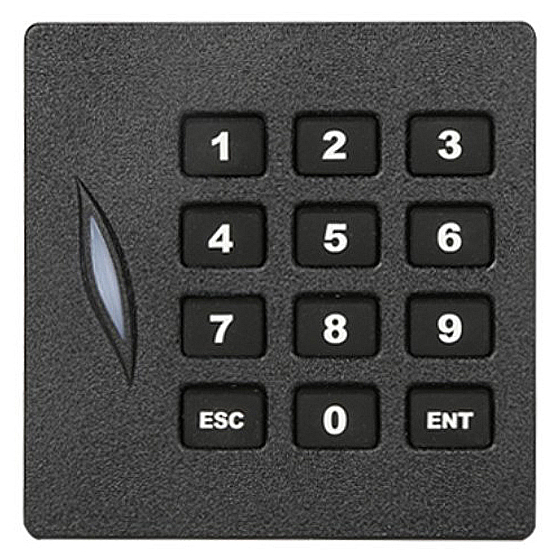

KR102Keyboard Access Control RFID Proximity Magnetic Card Reader
Model No.: KR102 EM, MF
Introduction:
KR102E: 125KHz Proximity card reader
KR102M: 13.56MHz Mifare card reader
Features:
> 125KHz Proximity /13.56MHz Mifare Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
Model | KR102EM and KR102MF |
Read Range | KR102EM: Up to 10CM, KR102MF: Up to 5CM |
Reading Time (Card) | ≤300ms |
Power / Current | DC 6-14V / Max.70mA |
Input Port | 2ea (External LED Control, External Buzzer Control) |
Output Format | 26bit/34bit Wiegand (default) |
LED Indicator | 2 Colour LED Indicators(Red and Green) |
Beeper | Yes |
Operating Temperature | -20° to +65°C |
Operating Humidity | 10% to 90% relative humidity non-condensing |
Colour | Black |
Material | ABS+PC with texture |
Dimension(W x H x T)mm | 86X86X35mm |
Weight | 50g |
Index of Protection | IP65 |
Package | 100pcs/Carton |
Unit weight | 0.12KG/pcs |
Carton Dimension: | 45X55X20(cm) |
S4A Datesheet_Keyboard Access Control RFID Proximity Magnetic Card Reader
