> EL-W1200S 4Wires
> Size: 222Lx62Wx38H(mm)
> Armature plate: 195Lx61Wx15H(mm)
> Holding Force: 500kg (1200Lbs)
> Voltage: DC12V or DC24V
Brand:
S4AItem NO.:

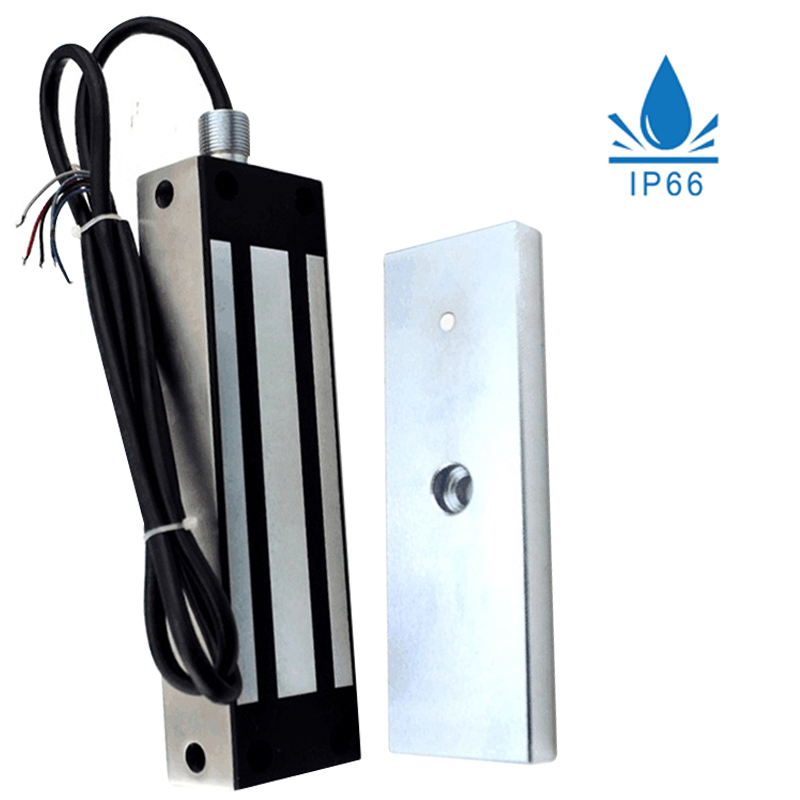

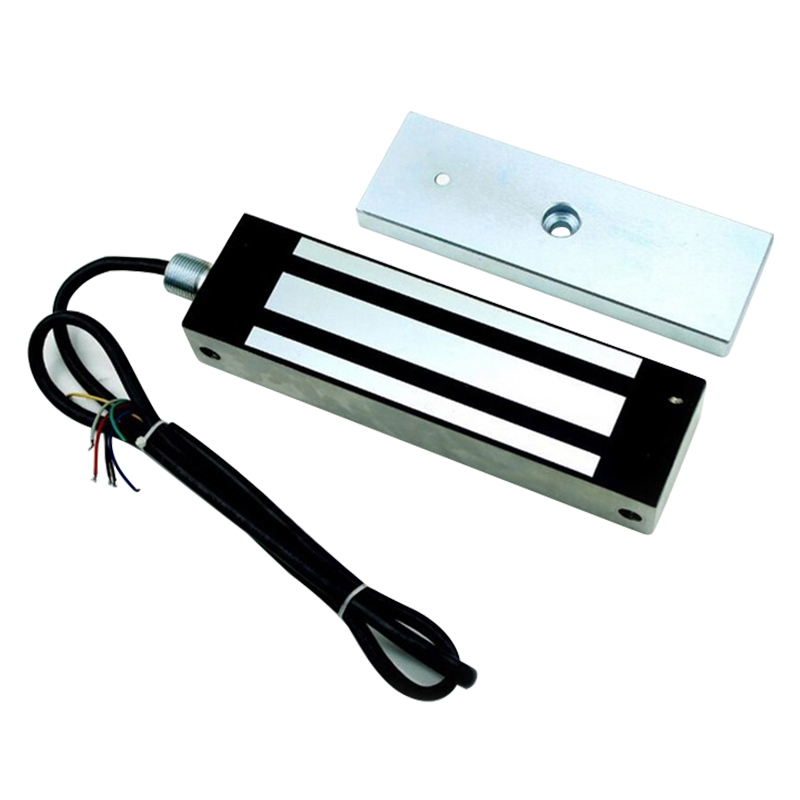

EL-W1200S 4WiresWaterproof Electromagnetic Lock with 4Wires
Model No.: EL-W1200S 4Wires
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Dual voltage selectable (12VDC or 24VDC)
304 stainless steel housing
Epoxy sealed electronics and weatherized for indoor and outdoor use
Anti-Residual magnetism designed
Low current consumption
High strength material, anodized aluminum housing
Anti-residual magnetism designed
Durable and silence operation
CE Certificate by European Union
Specification
EL-W1200S 4Wires | 12V & 24V adjustable |

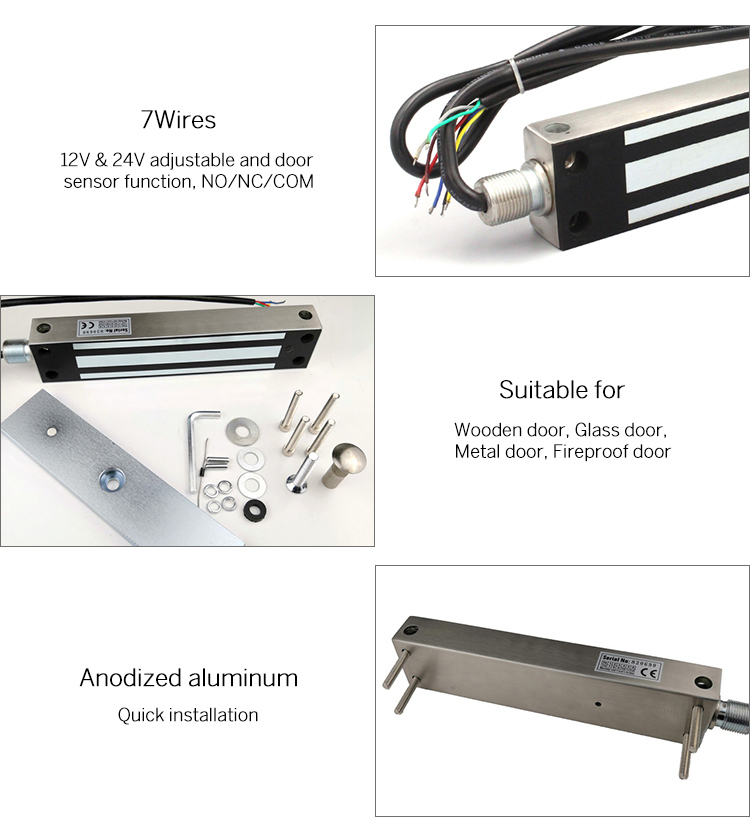

EL-W1200SD 7Wires | 12V & 24V adjustable and door sensor function, NO/NC/COM |

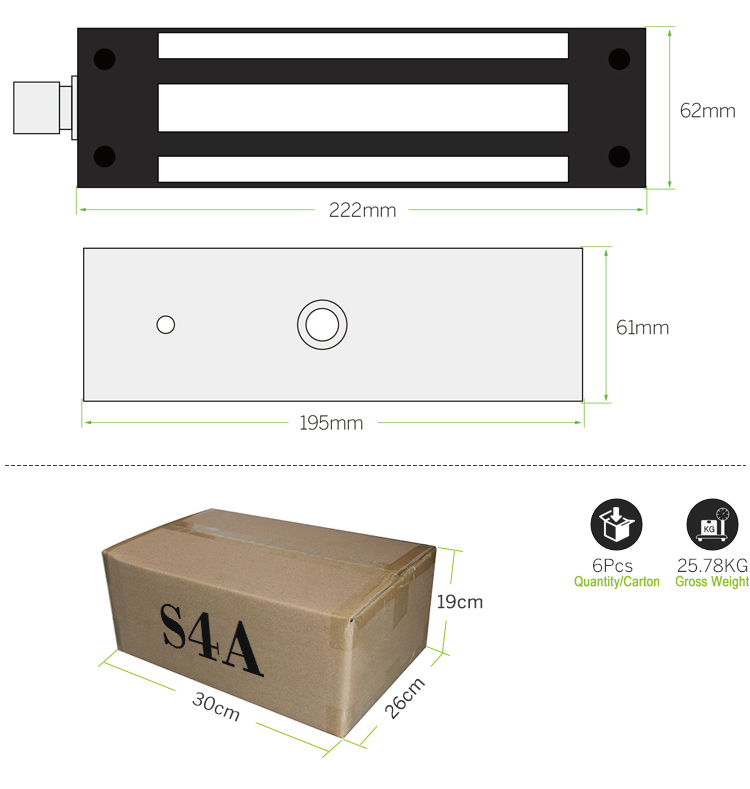

Lock Size | 222Lx62Wx38H(mm) |
Armature plate | 195Lx61Wx15H(mm) |
Holding Force | 500kg(1200Lbs) |
Voltage | DC12V or DC24V(adjustable) |
Current Draw | 12V/420mA 24V/210mA |
Optional Bracket | LZ-W1200 |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4.5kg |
Waterproof Electromagnetic Lock with 4Wires | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EL-W1200S 4Wires | 6pcs | 25.78KG | 30x26x19cm |
S4A Instruction_EL-W1200S 4Wires_Waterproof Electromagnetic Lock with 4Wires
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> With LED (Red only) > Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED and Lock sensor> Single door 500KG magnetic lock=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED, Lock sensor and time delay> Current Draw: 12V/420mA 24V/210mA> 100% Copper material> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> LED, Lock sensor and Buzzer> Single door EM lock 500KG=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Voltage: DC12V or DC24V> Holding Force: 500KG (1200Lbs)> Current Draw: 12V/420mA 24V/210mA
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> EL-W1200SD 7Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
