> Built in LED, Lock sensor and time delay
> Current Draw: 12V/420mA 24V/210mA
> 100% Copper material
> Voltage: DC12V and DC24V(adjustable)
> Holding Force: 500KG(1200Lbs)
Brand:
S4AItem NO.:

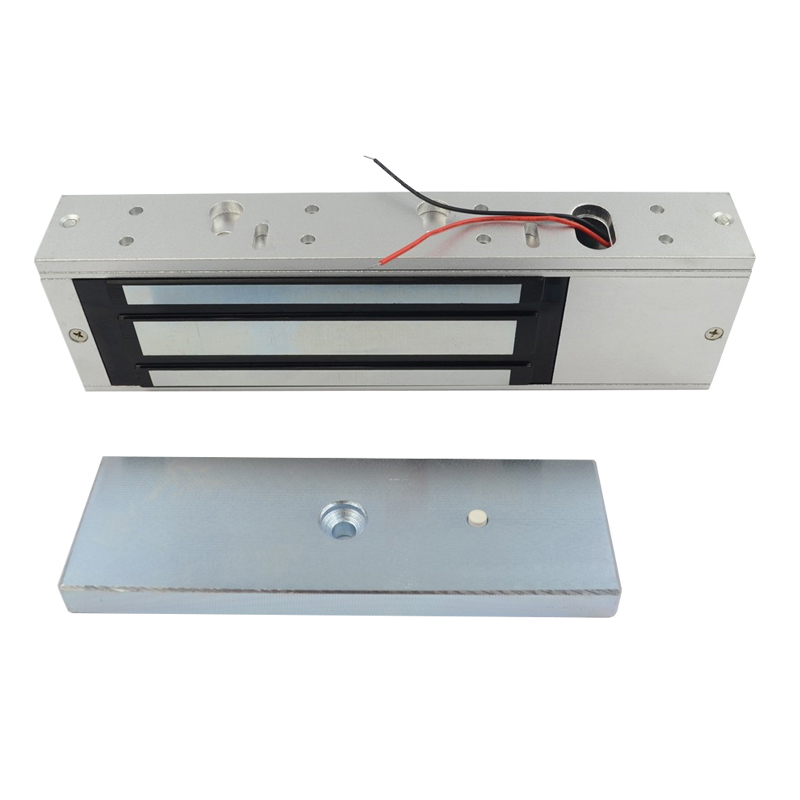

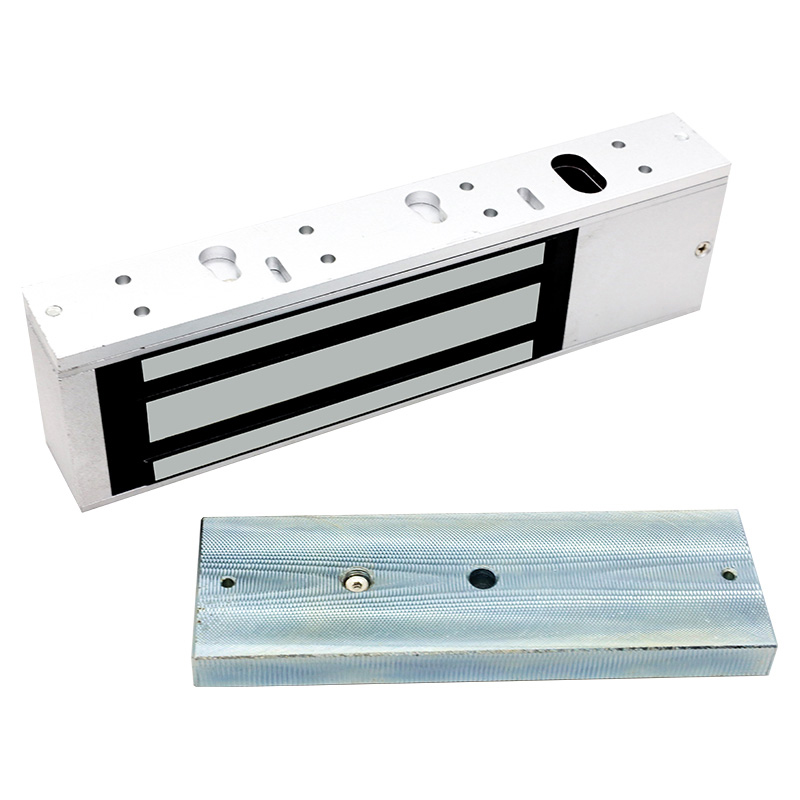

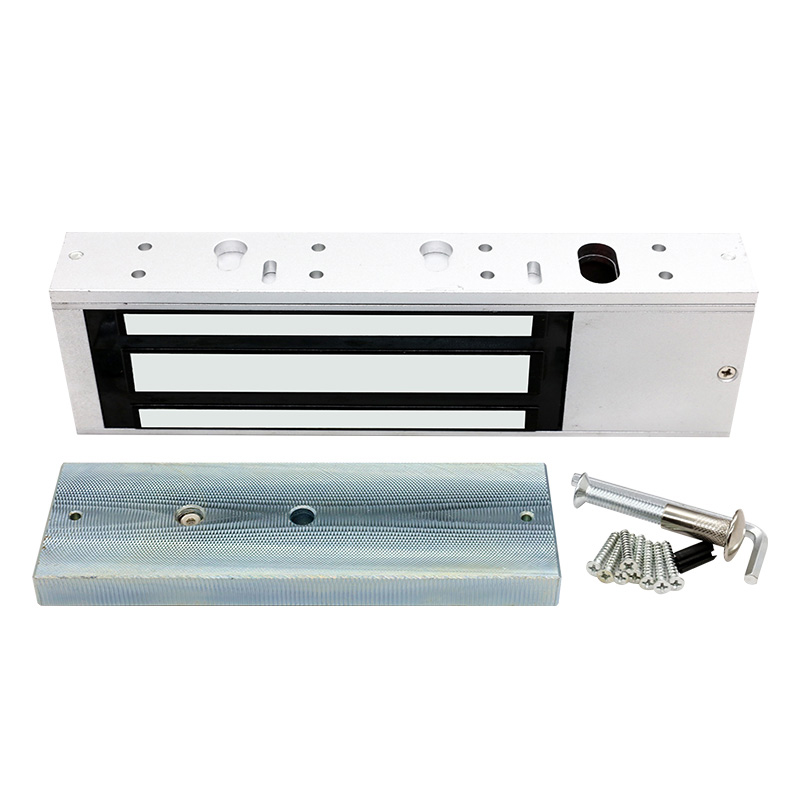

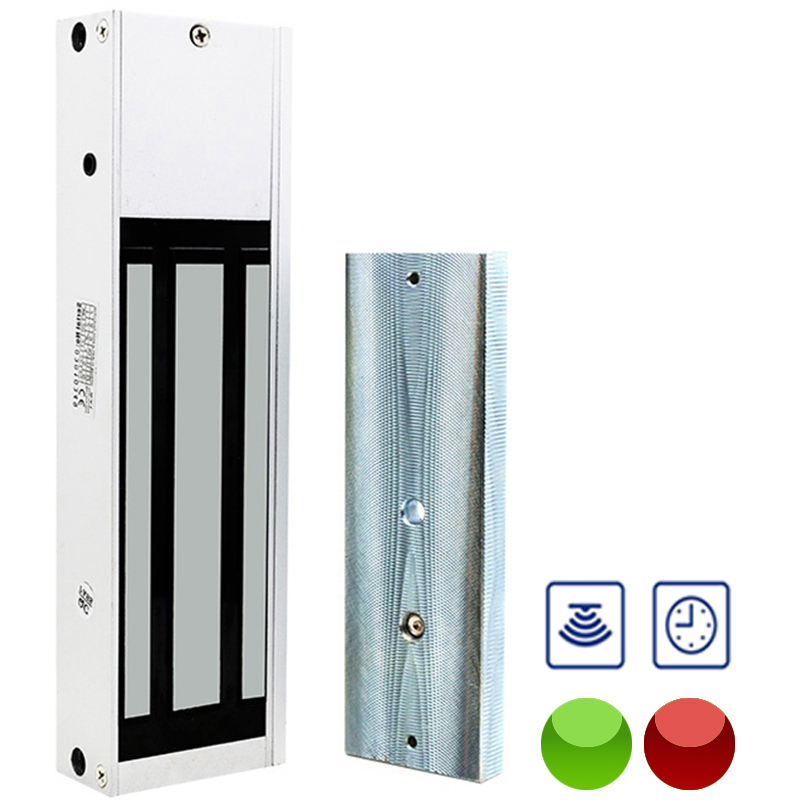

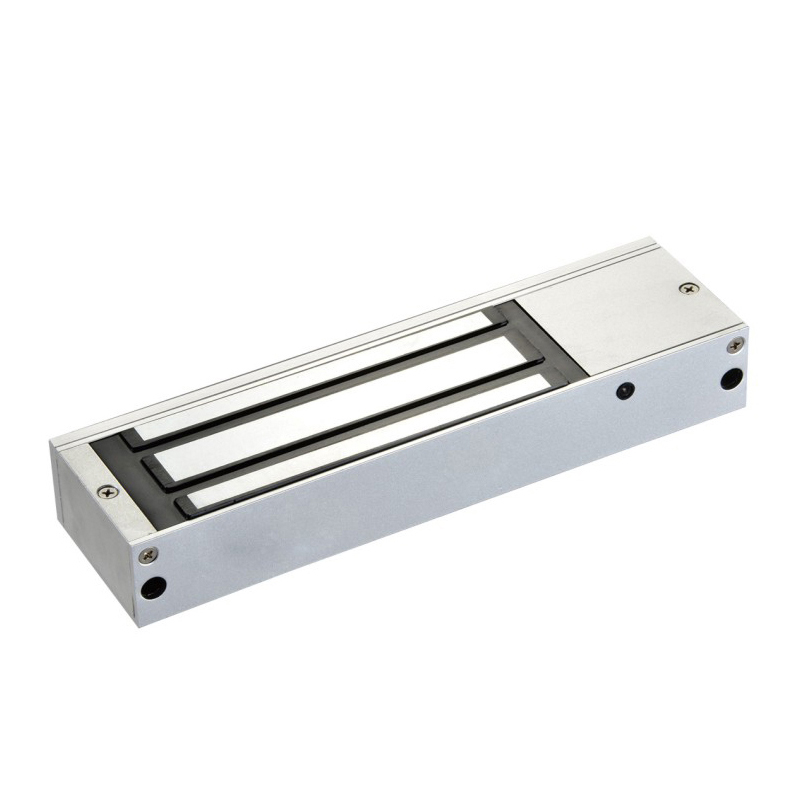

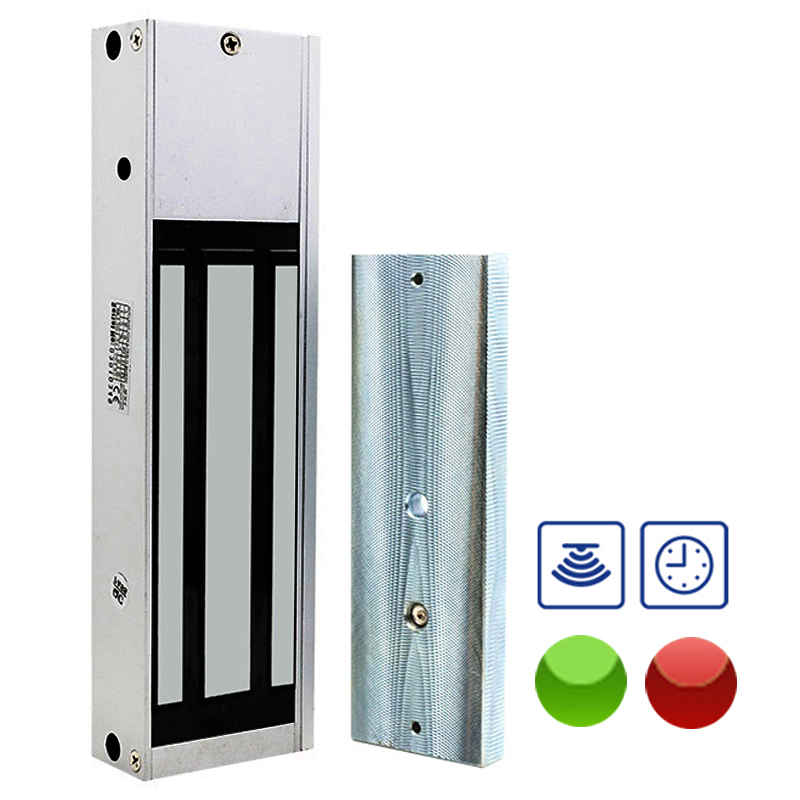

EL-1200STSingle Door 500KG Magnetic Lock
Model No.: EL-1200ST
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Model No. | LED | Lock Sensor | Door Sensor | Time Delay | Buzzer | Voltage |
EL-1200S | √ | x | x | x | x | 12V |
EL-1200SD | √ | √ | x | x | x | 12V |
EL-1200ST | √ | √ | x | √ | x | 12V & 24V |
EL-1200SZ | √ | √ | x | x | √ | 12V & 24V |
EL-1200LSD | √ | √ | √ | x | x | 12V & 24V |

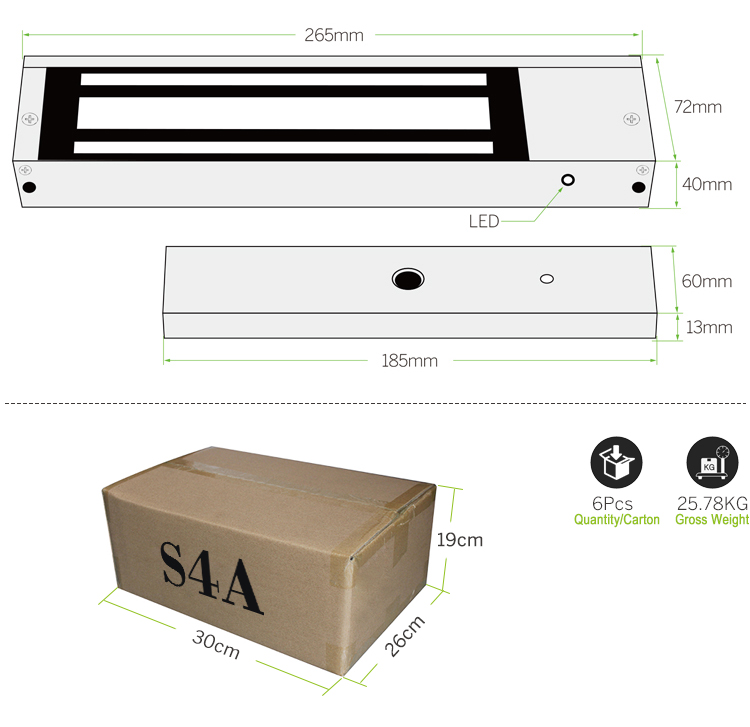

Lock size | 265Lx72Wx40H(mm) |
Plate | 185Lx60Wx13H(mm) |
Holding Force | 500kg(1200Lbs) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/420mA 24V/210mA |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10°C ~ 55°C (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4.5kg |
Standard Packing | 4pcs |
500kg 1100LBs Holding Force Electric Lock | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EL-1200ST | 6pcs | 25.78KG | 30x26x19cm |

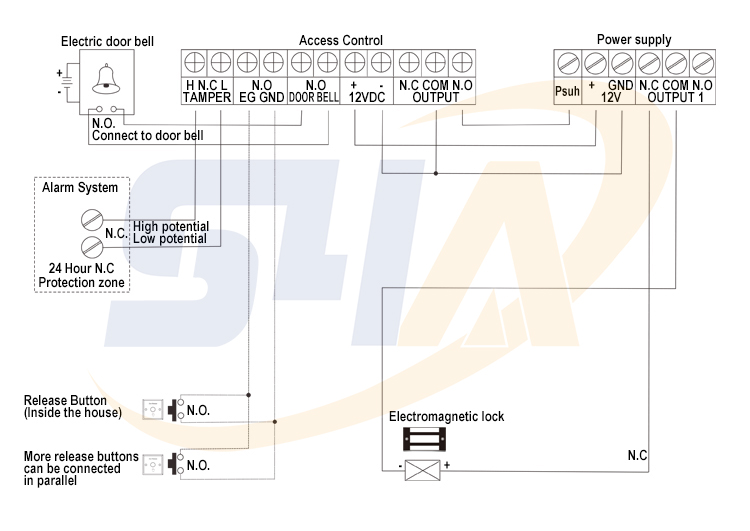

S4A Instruction_EL-1200ST_500kg 1100LBs Holding Force Electric Lock
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> With LED (Red only) > Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED and Lock sensor> Single door 500KG magnetic lock=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> LED, Lock sensor and Buzzer> Single door EM lock 500KG=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Voltage: DC12V or DC24V> Holding Force: 500KG (1200Lbs)> Current Draw: 12V/420mA 24V/210mA
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> EL-W1200S 4Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: DC12V or DC24V
> EL-W1200SD 7Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
