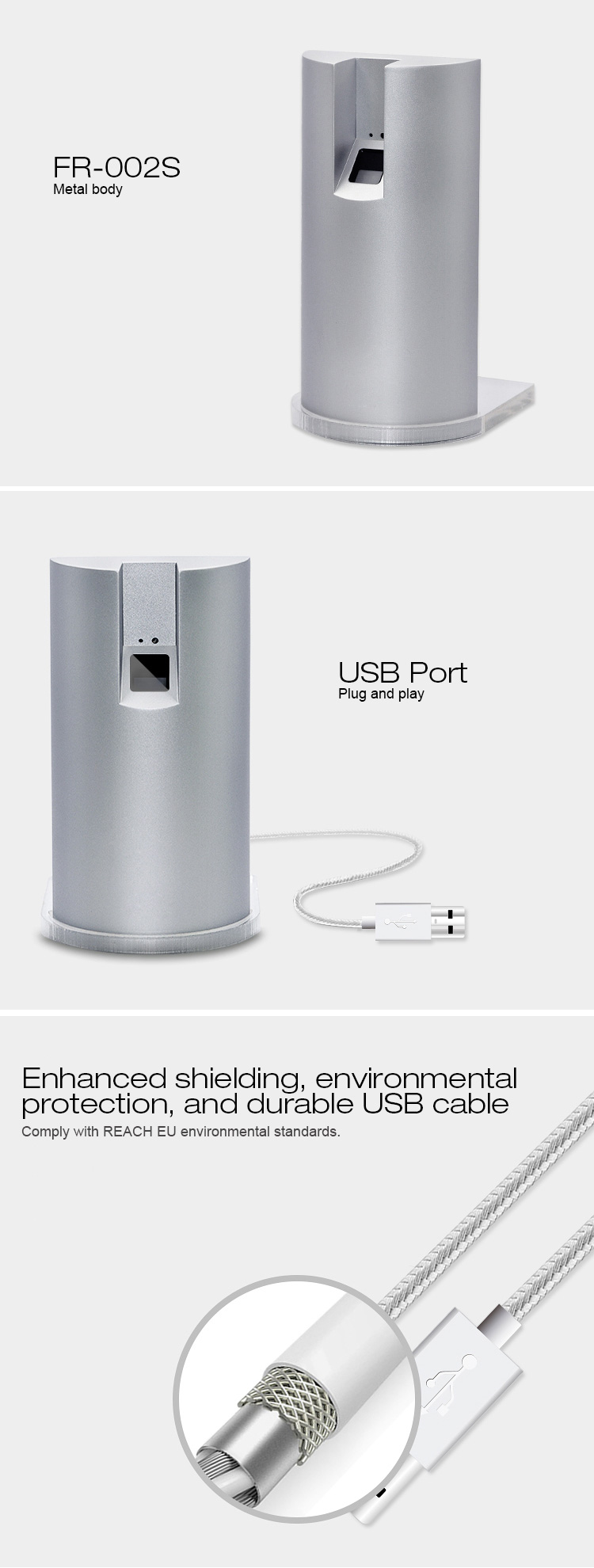

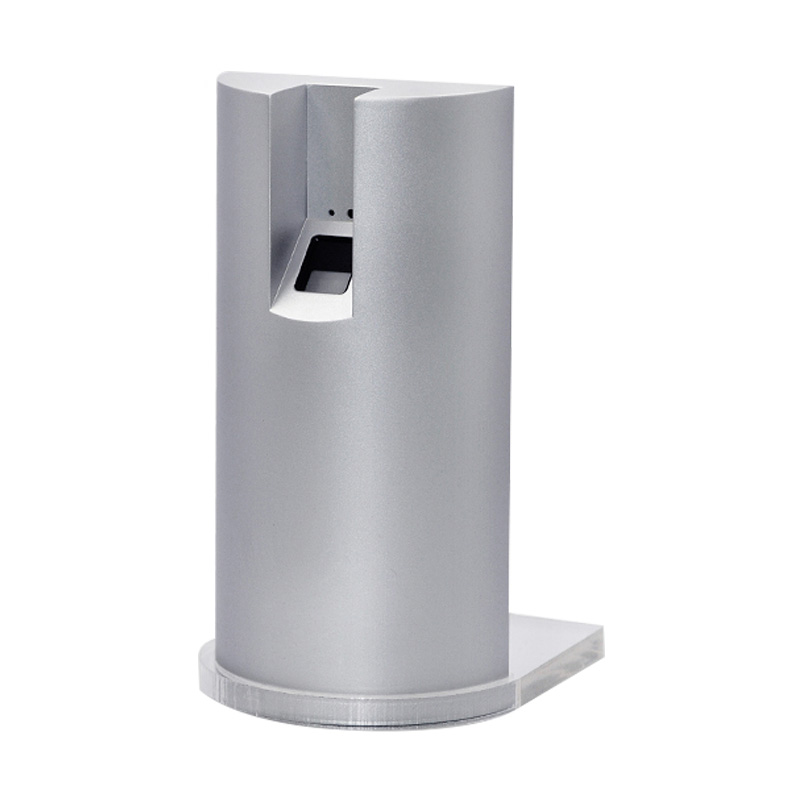

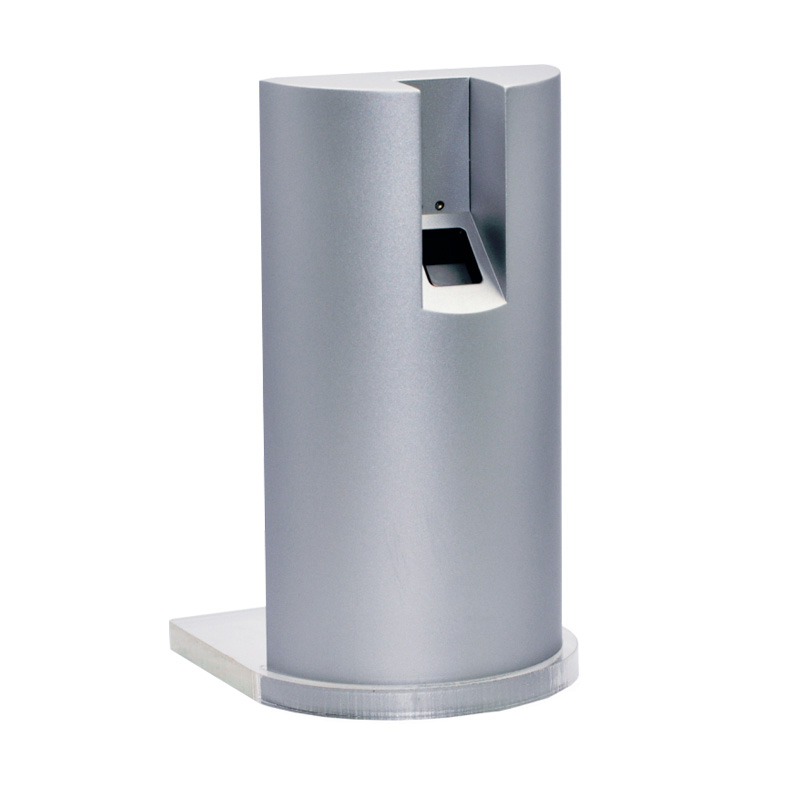

USB Fingerprint Scanner Devices to Enroll Users

FR-002S USB Fingerprint reader issuing device to work with FR-002 reader only, Easy to authorize users by finger or Mifare 13.56MHz cards


  • Brand:

    S4A
  • Item NO.:

    FR-002S
Specifications

USB Fingerprint Scanner Devices to Enroll Users

Model No.: FR-002S


Model No.

FR-002S

Operating Voltage

5VDC USB

Working current

≤100mA

Fingerprint capacity

1000

Fingerprint resolution

450DPI

Fingerprint research time

<1.0S

Fingerprint recognition false rate

<0.001%

False Reject Rate

<1.0%

Working temperature

-20℃ ~ 50℃

Working humidity

20% ~ 95%

Dimension

179 * 89 * 45mm

Communication method

USB

Operating system

XP / Windoows7 / Windoows8 / Windoows10


USB fingerprint scanner devices

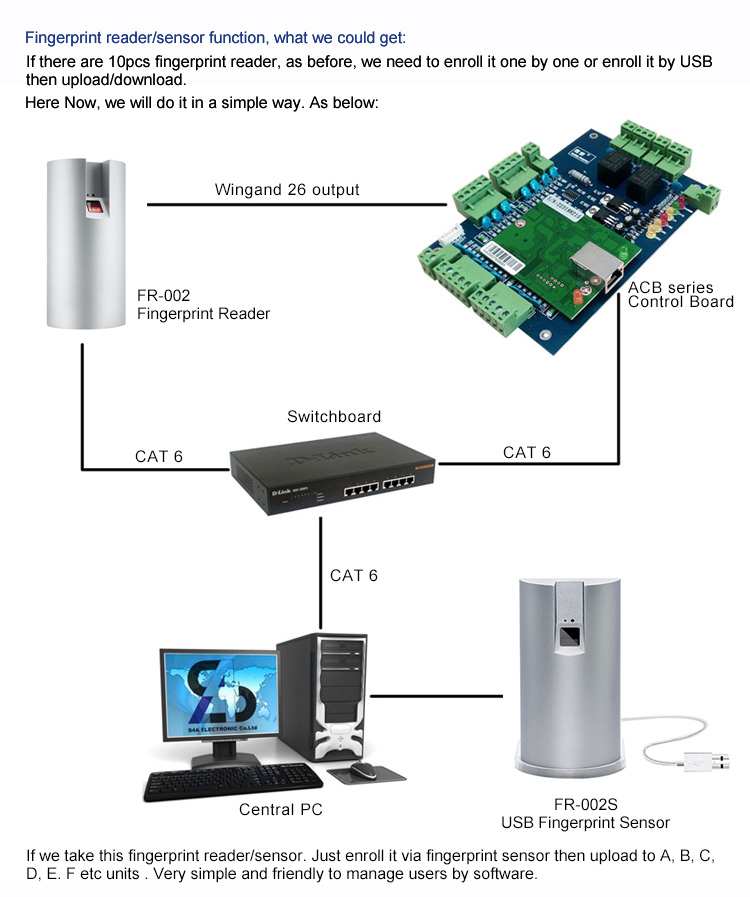

Wiring Diagram

USB fingerprint scanner devices

Package

USB Fingerprint Scanner Devices To Enroll Users

Model No.

Quantity/Carton

Gross Weight

Carton Size

FR-002S

20 PC

15.9 KG

50x23x38 CM
