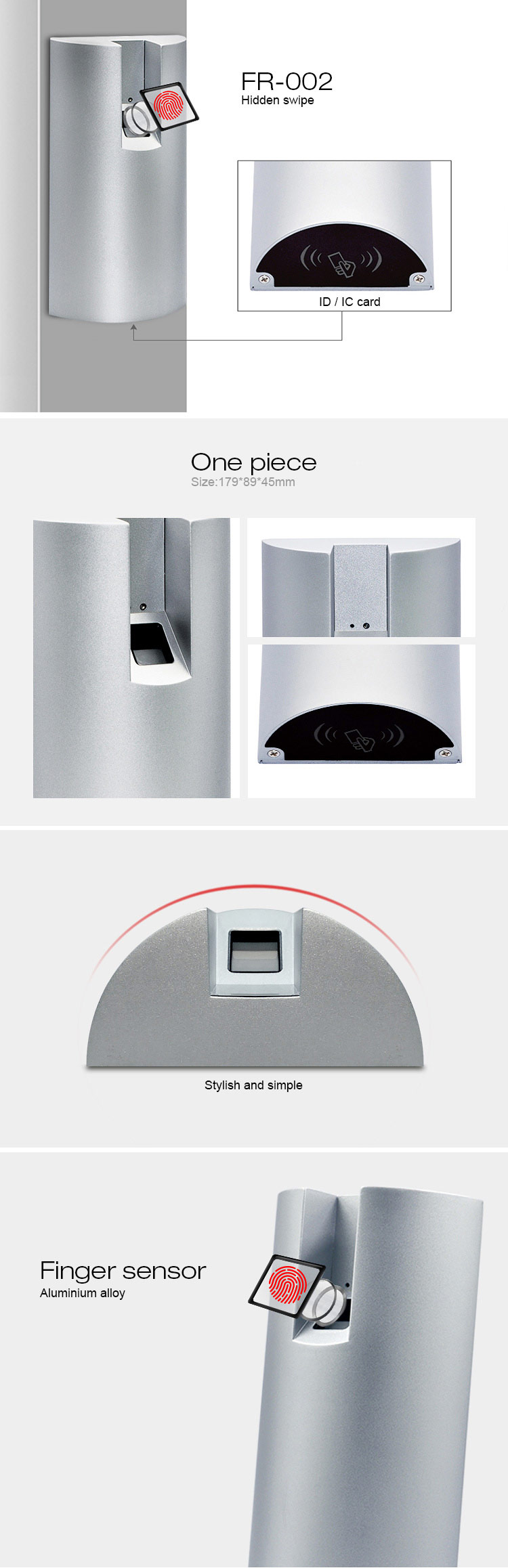

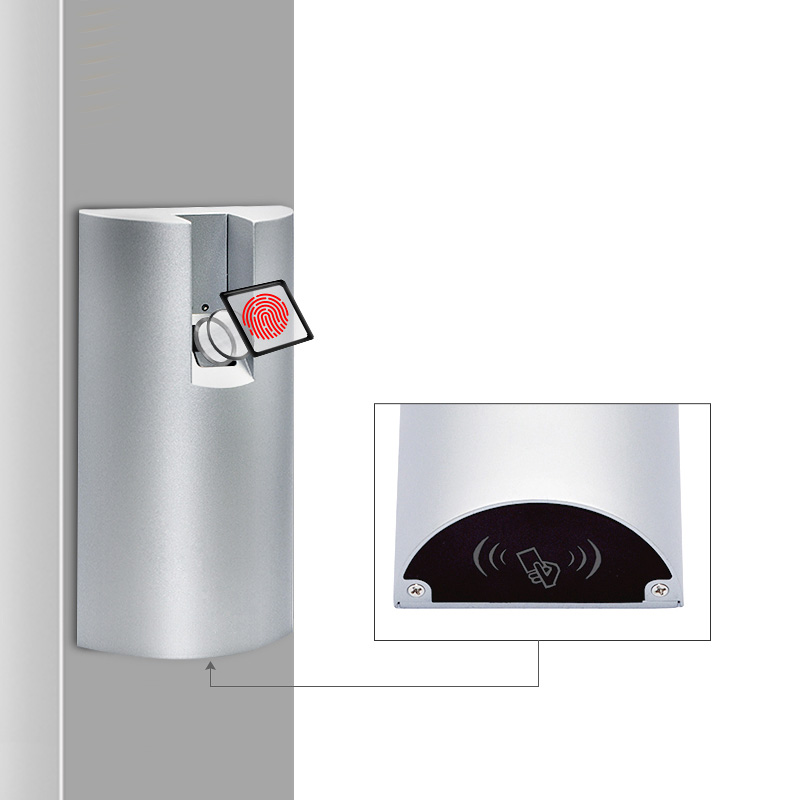

Fingerprint Rfid Reader Built in Wiegand Output and TCP/IP

Fingerprint reader FR-002 to work with ACB-001 002 004 series.

> built-in Wiegand output and TCP/IP to authorize users.

> Support: Mifare cards 13.56MHz + Finger

In the same network, 10pcs reader, only enroll 1 time and then upload it by software

  • Brand:

    S4A
  • Item NO.:

    FR-002
Specifications

Fingerprint Rfid Reader Built in Wiegand Output and TCP/IP

Model No.: FR-002


The FR-002 Fingerprint rfid reader works together with the access control board.

Built-in TCP/IP communication and WG 26output.


Model No.

FR-002

Support

Mifare cards 13.56MHz + Finger

Input Voltage

12VDC

Static current

≤150mA

Working current

≤300mA

Fingerprint capacity

1000

Fingerprint resolution

450DPI

Fingerprint research time

<1.0S

Fingerprint recognition false rate

<0.001%

False Reject Rate

<1.0%

Output format

Wiegand

Working temperature

-20℃ ~ 50℃

Working humidity

20% ~ 95%

Dimension

179 * 89 * 45mm

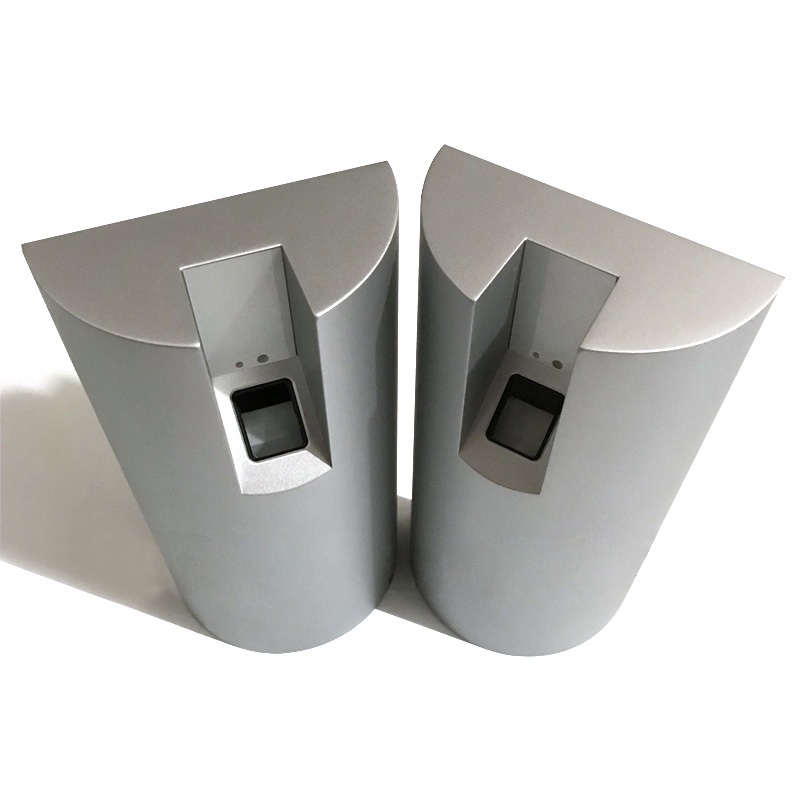

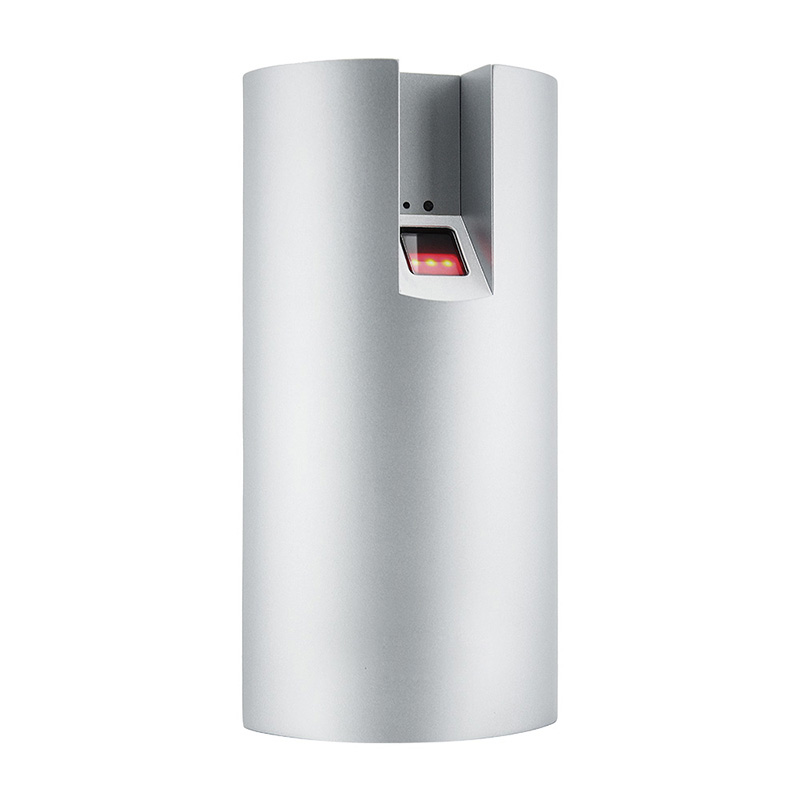

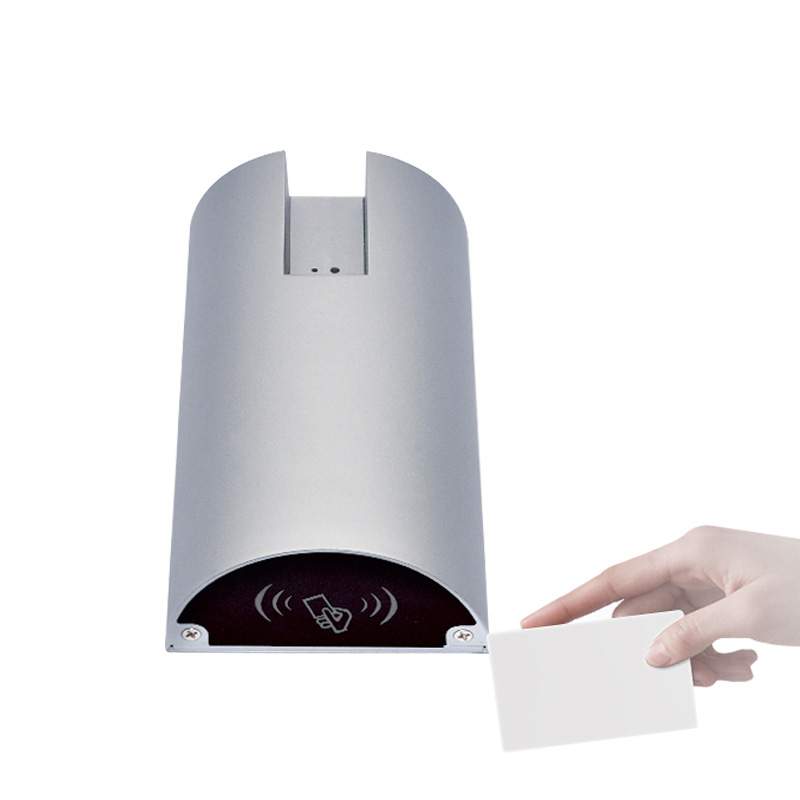

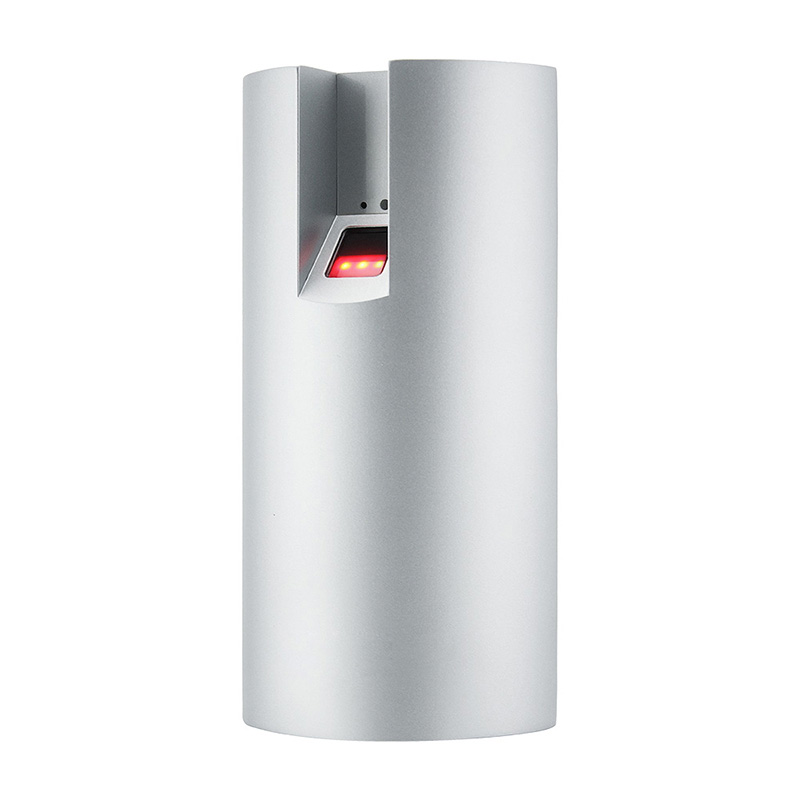

Fingerprint Rfid Reader

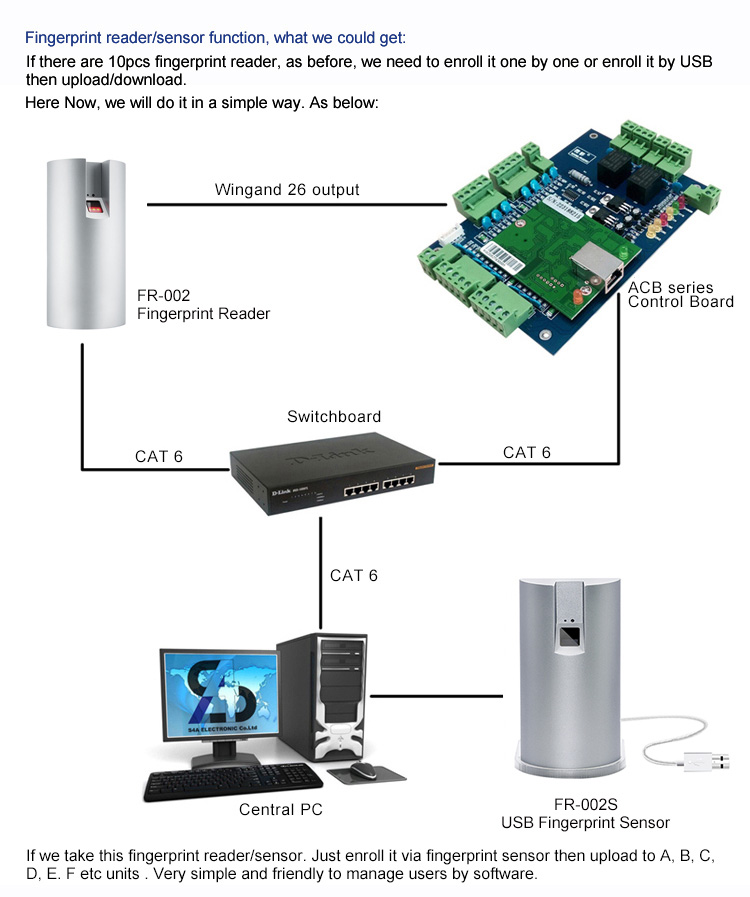

Wiring Diagram

Fingerprint Rfid Reader

Package

Fingerprint Rfid Reader Built in Wiegand Output and TCP/IP

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

FR-002

20 PCS

8.74KG

15.9 KG

50x23x38 cm




Download

S4A Datesheet_Fingerprint Rfid Reader Built in Wiegand Output and TCP/IP
