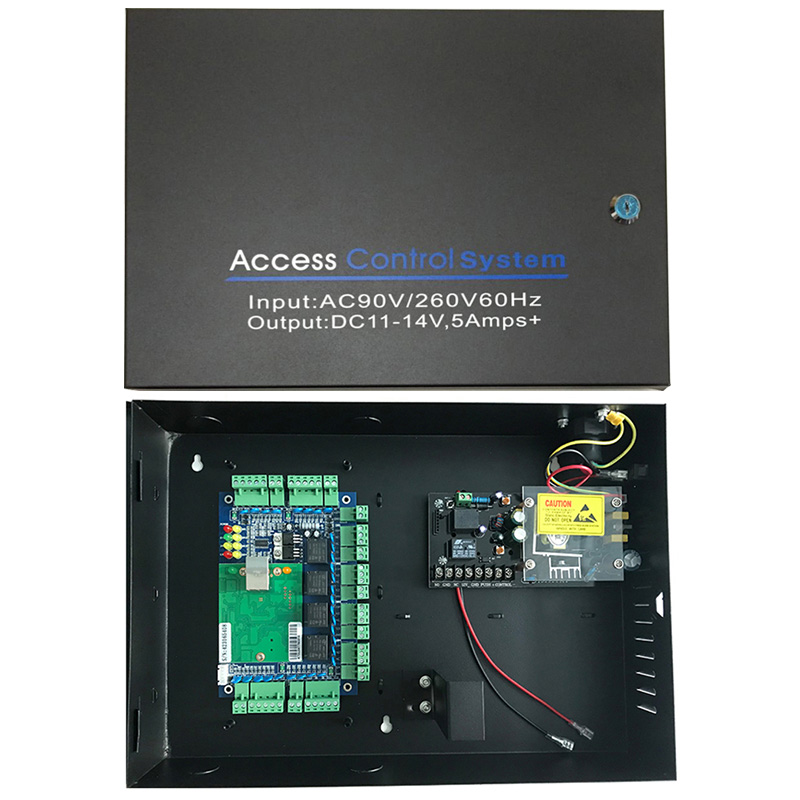

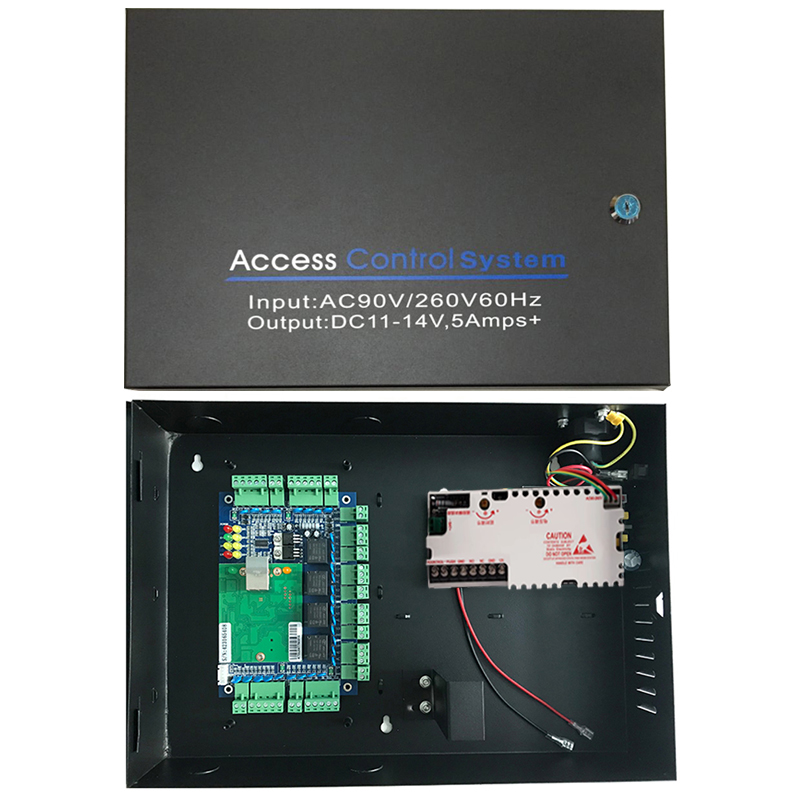

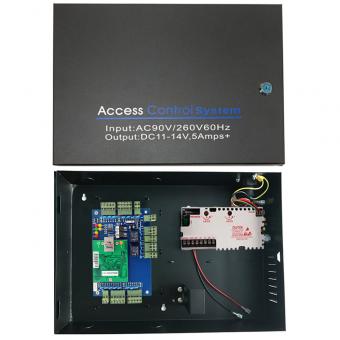

TCP/IP Network Computer Based Four Doors Wiegand Access Control Board System with Access Power Supply Box

Control 4 doors via TCP/IP with AC110~240V 5A access power supply and backup battery

  • Brand:

    S4A
  • Item NO.:

    ACB-004PS
  • Specifications
  • Wiring Diagram
  • Package
  • Download

TCP/IP Network Computer Based Four Doors Wiegand Access Control Board System with Access Power Supply Box

Model No.: ACB-004PS

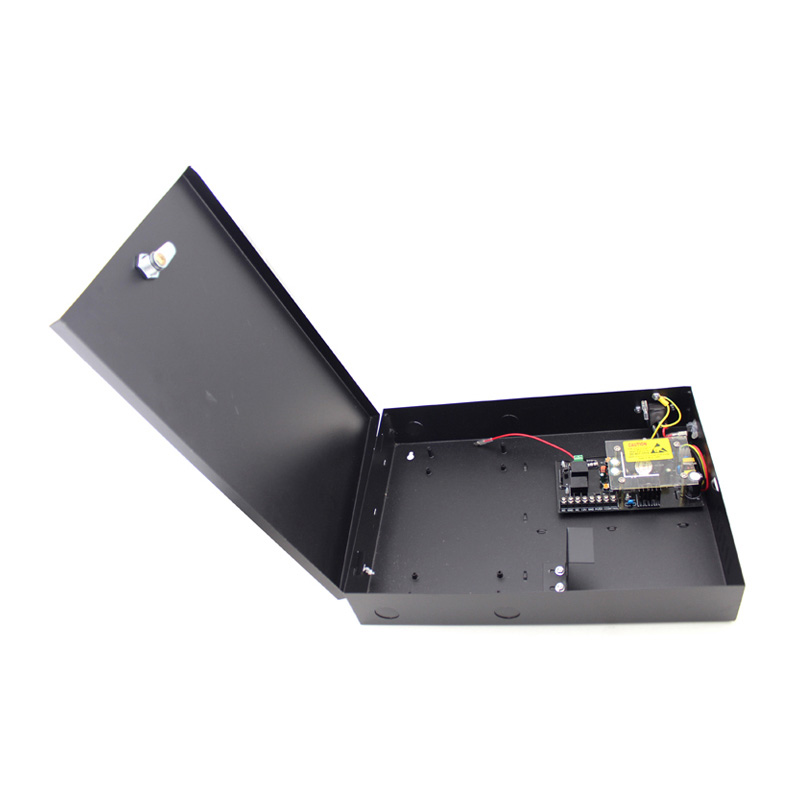

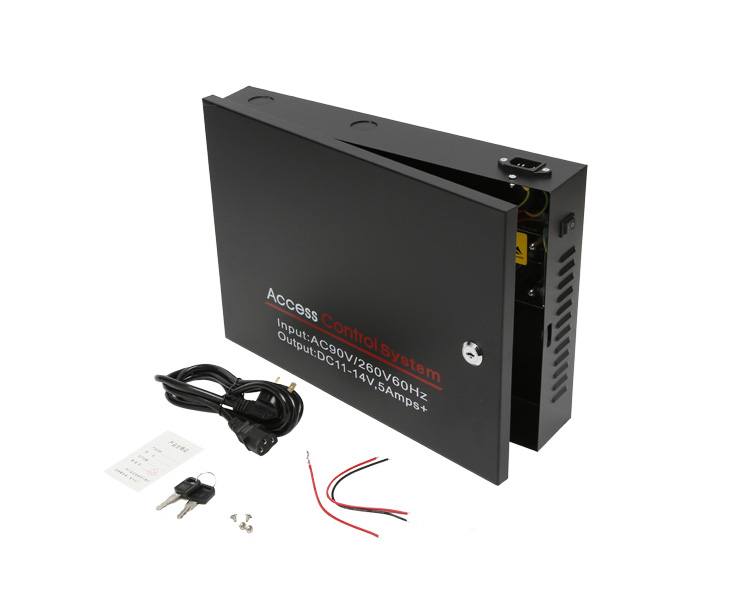

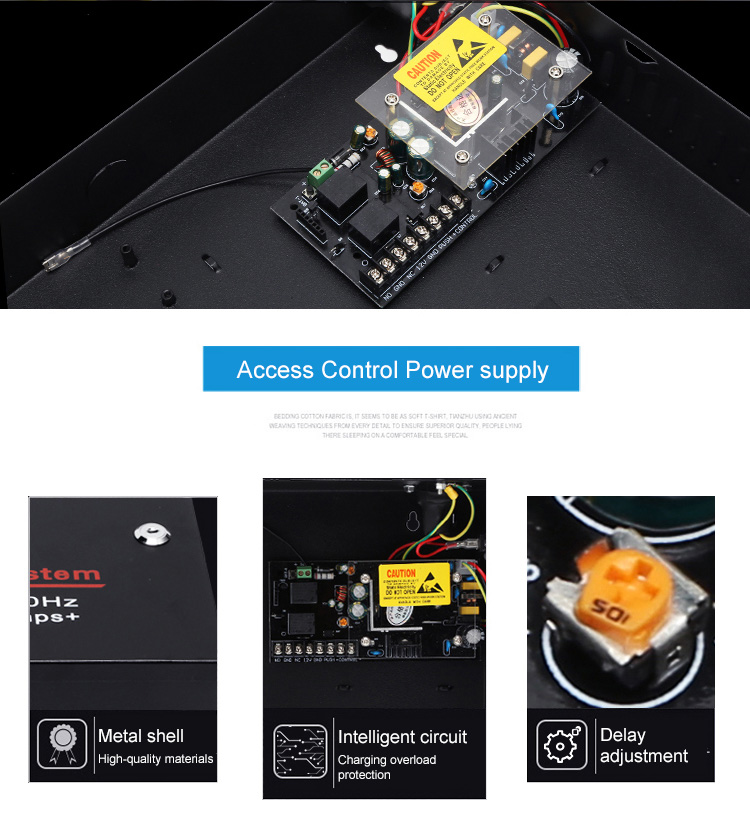

PS-6653B Power supply with Backup battery (AC110~240V 5A)

Input Voltage

AC110~240V 50Hz~60Hz

Output Voltage

DC9V~16V

Output Current

5A

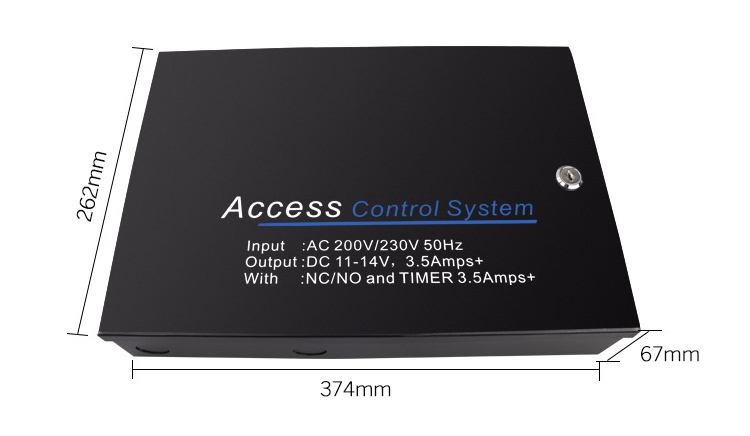

Dimension

371 x 266 x 66mm

Packing box

395 x 270 x 74mm

Weight

2.04kg


4door Network Access control board with free software, built-in TCP/IP.

Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-001

ACB-002

ACB-004

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Description

Control 1 door, get in and out the door by swiping the card or get in by swiping the card and get out the door by button

Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button

Control 4 doors, get in the door by swiping the card and get out the door by button

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Quantity of Readers

2pcs

4pcs

4 pcs

Door Controlled

1door

2 Doors

4 Doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit

Access Control system with power supplyAccess Control system with power supplyAccess Control system with power supplyAccess Control system with power supply

Here are all available powerful functions for our ACB-001, ACB-002, and ACB-004

Access Control system with power supply



Access Control system with power supply

TCP/IP Network Computer Based Four Doors Wiegand Access Control Board System with Access Power Supply Box

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

ACB-004PS

8 PCS

16.46 KG

21.75 KG

58X33X43 CM

10 PCS

27 KG

27.1 KG

43X40X57 CM





Access Control system with power supply

S4A Datesheet_TCP/IP Network Computer Based Four Doors Wiegand Access Control Board System With Access Power Supply Box
