Control 2 doors via TCP/IP with AC110~240V 5A access power supply
Brand:
S4AItem NO.:

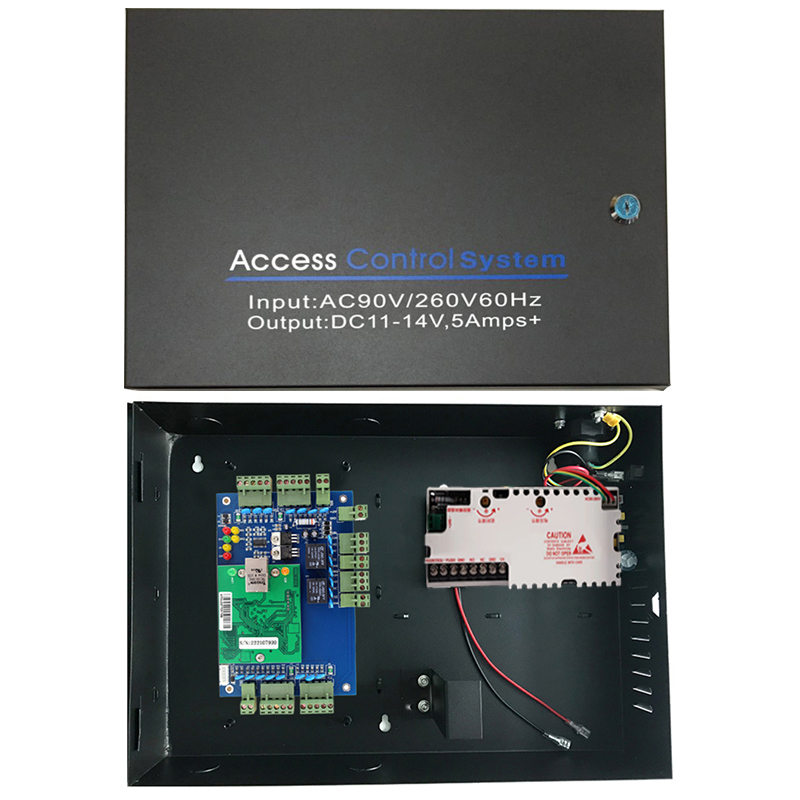

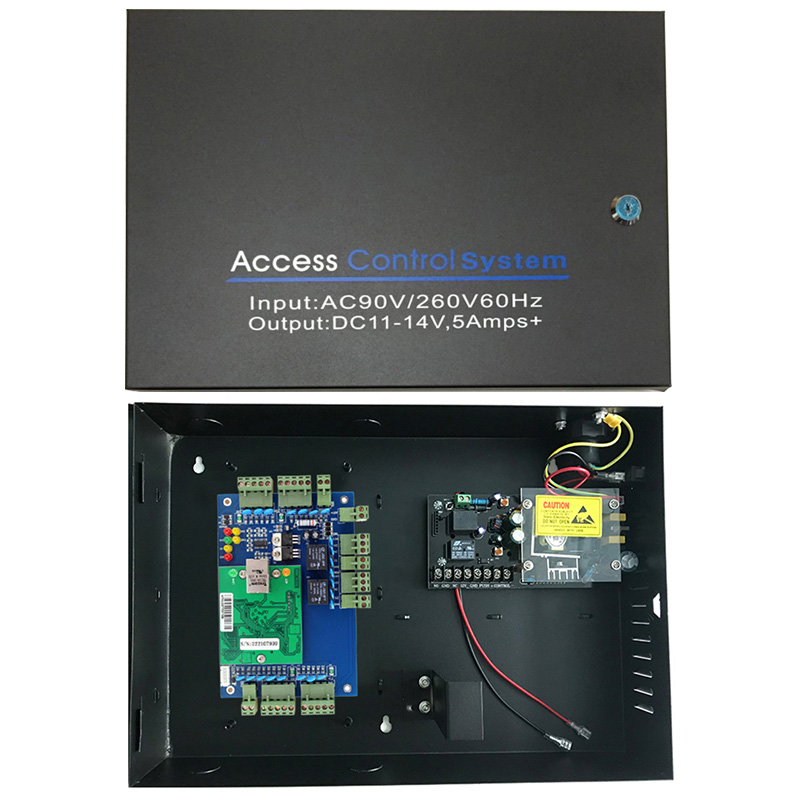

ACB-002PSTCP IP 2door Network RFID Access Control Panel Set with AC110V/220V Access Power Supply
Model No.: ACB-002PS
Double door Network Access Controller (Control 2 doors via TCP/IP with AC110~240V 5A access power supply)

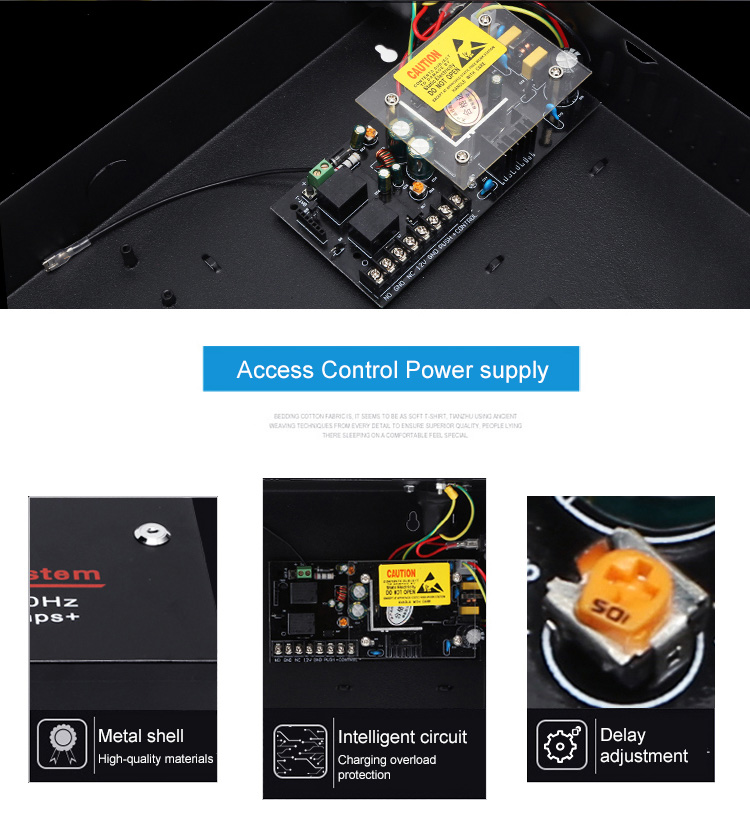

PS-6653B Power supply with Backup battery (AC110~240V 5A)
Input Voltage | AC110~240V 50Hz~60Hz |
Output Voltage | DC9V~16V |
Output Current | 5A |
Dimension | 371 x 266 x 66mm |
Packing box | 395 x 270 x 74mm |
Weight | 2.04kg |
Network Access control board built-in TCP/IP with free software.
support APP+4G+Webserver
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-001 | ACB-002 | ACB-004 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping the card, or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card, and get outdoor by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pcs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||

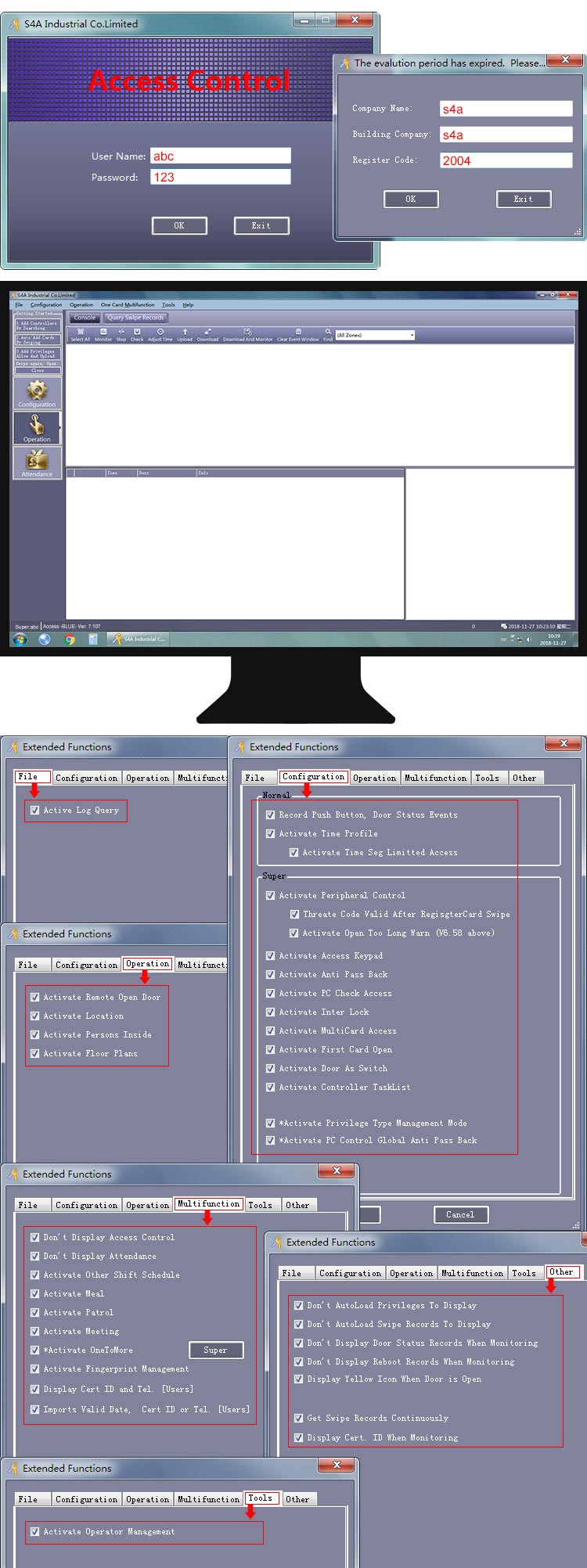

Here are all available powerful functions for our ACB-001, ACB-002, and ACB-004
2door Network RFID Access Control Panel with AC110V/220V Access Power Supply | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ACB-002PS | 8 PC | 20.75 KG | 33x43x58 cm |
S4A Datesheet_2door Network RFID Access Control Panel With AC110V/220V Access Power Supply
