> Standard Structure: Stainless steel, Wire Drawing Finished
> Suitable for Door: glass door
> Glass Thickness: 10-15mm
> Opening Mode: 180°Degress Door
> Use with: BL-2001 series
> Finished for Shell: Stainless steel Wire Drawing
Brand:
S4AItem NO.:

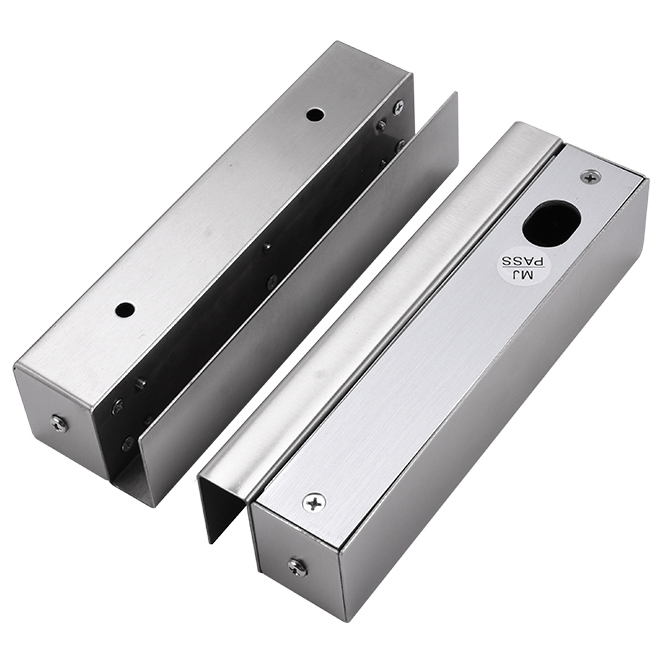

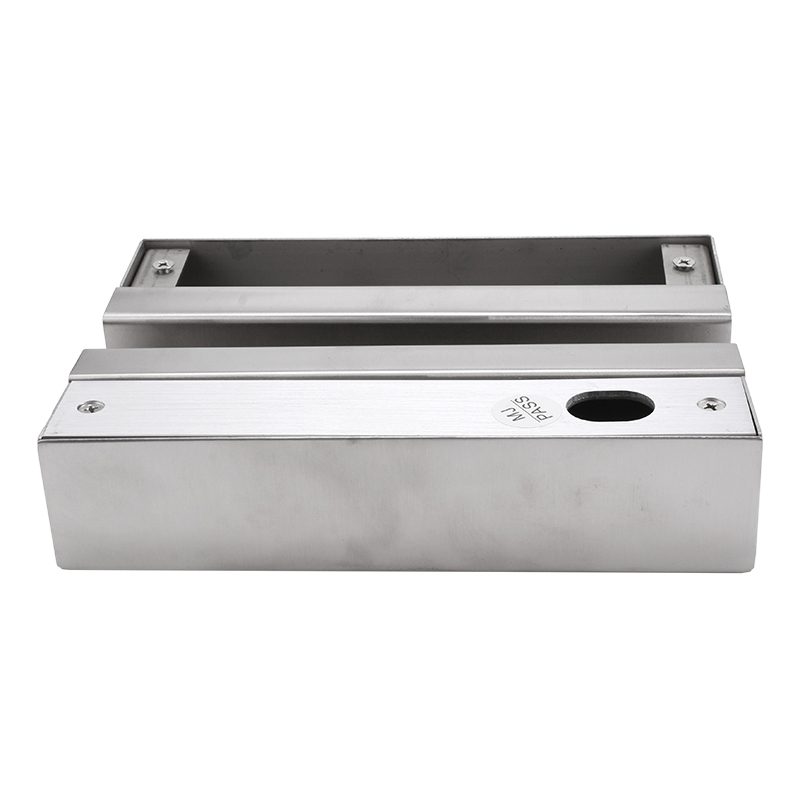

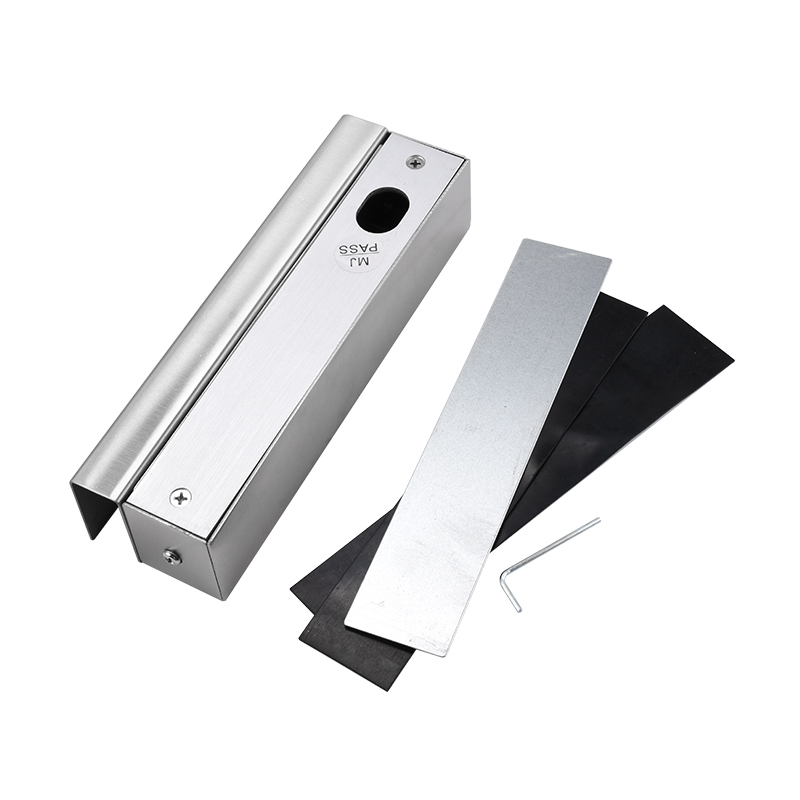

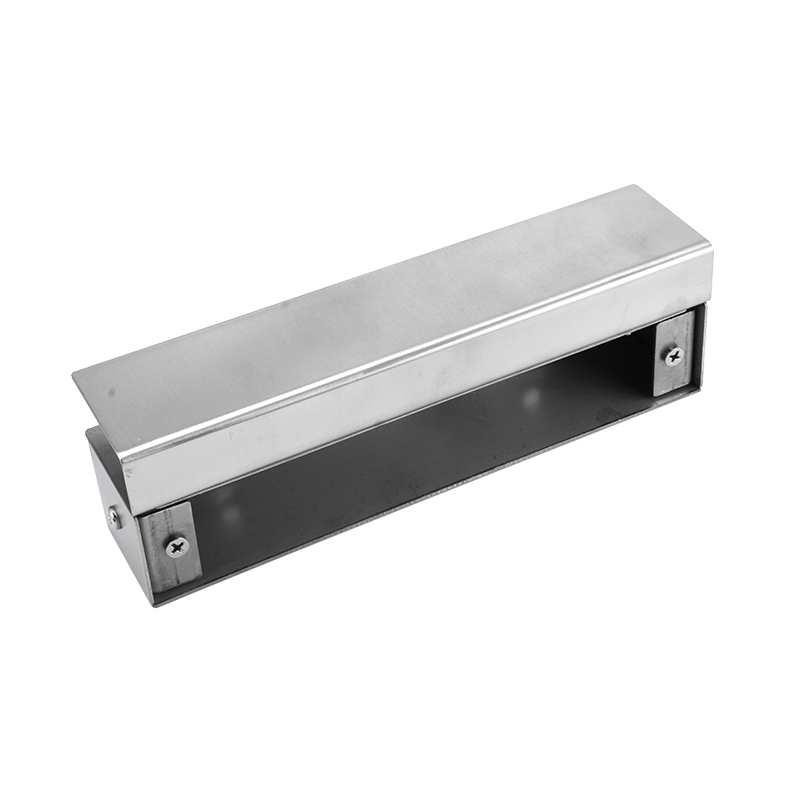

BK-08CStainless Steel Bracket for Electric Bolt Lock
Model No.: BK-08C
Product Parameter | |
Dimension | 202X38.5X46mm |
Glass Thickness | 10-15mm |
Suitable | Fully Frameless Glass Door |
Opening Mode | 180 Degree Swing Door |
Finished for Shell | Stainless steel, Wire Drawing |
Weight | 1.3kg |

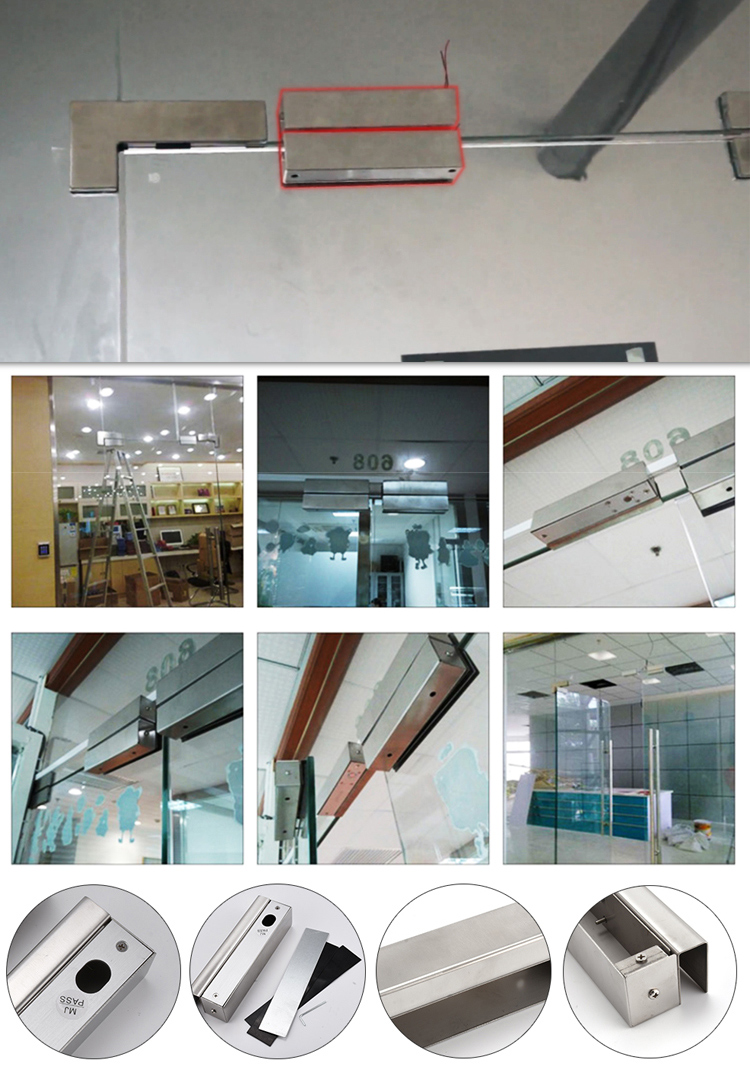

Stainless Steel, Firm and Durable. Special Design, Suitable for Fully Frameless Glass Door.

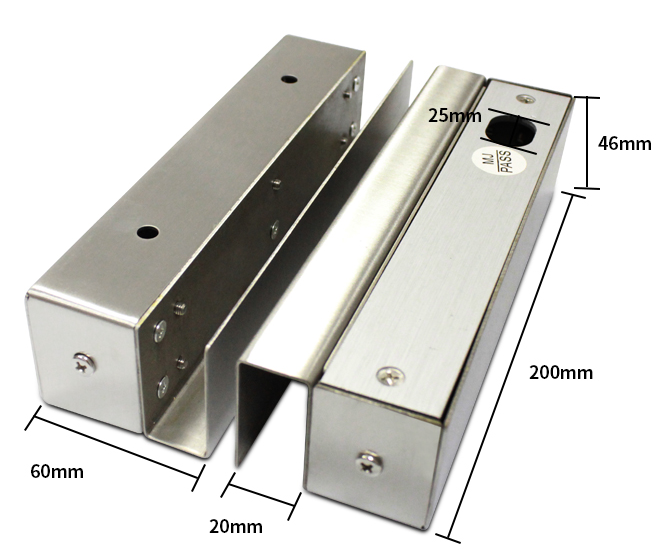

200mm length version:(if your bolt lock's length is 200mm,then take this one)

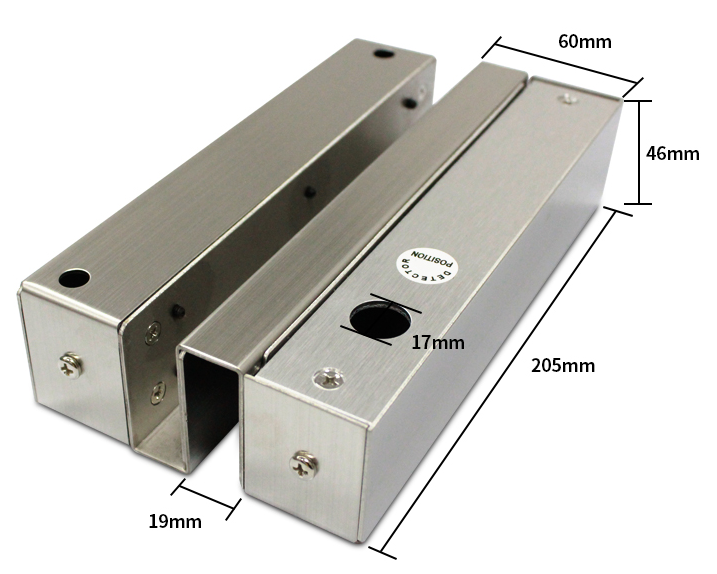

205mm length version:(if your bolt lock's length is 205mm, then take this size)
Stainless Steel Bracket for Electric Bolt Lock | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
BK-08C | 50PCS | 9.15KG | 35.48KG | 51x39x23cm |
S4A Datesheet_Stainless Steel Bracket for Electric Bolt Lock
> Power supply: DC12-24V> Locking start current: 980mA> Quiescent Current: 200mA> Security type: Power on lock
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Face Plate: 200X34X42mm> Strike Plate: 90X25X3mm> Lock Cylinder: 15mmX15mm> Working Voltage: DC12V> Start working: 450mA
> Face Plate: 205Lx35WX40H(mm)> Bolt: 16mm(Throw) x 16mm(Diameter)> Voltage: DC12V
Signal Output: door open or door close state detectionwith output point, NC/COM
> Voltage: DC12V> Start Current: 900mA> Standby Current: 150mA> Face Plate: 205Lx35WX41H(mm)> Strike plate: 90Lx25Wx2W(mm)> Solid Bolt: polishing housing, 800Kg Holding Force> Signal Output: Door status Output, NC/COM> Timer: 0/ 3/ 6/ 9 seconds available to set
Fail-Secure (power off, the door is locked) 12V-24V> Low Temperature, safe & Durable> Low Power, Environmental Protection> MOV Provides Reverse Current Protection> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt> Autolock Time Delay: 0,3,6,9sec.> Double protection for loading current> Auto-relock if no Action within 5 secs.
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
