> Power supply: DC12-24V
> Locking start current: 980mA
> Quiescent Current: 200mA
> Security type: Power on lock
Brand:
S4AItem NO.:

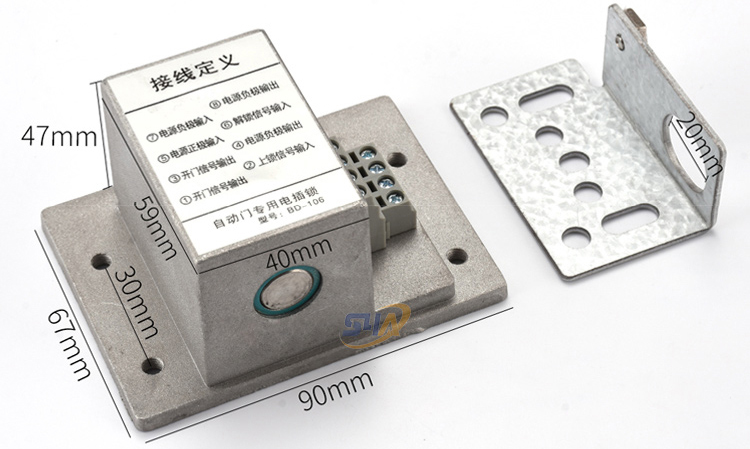

BD-106Electric Bolt lock for Auto-door
Model No.: BD-106
Model | BD-106 |
Power supply | DC12-24V |
Locking start current | 980mA |
Quiescent Current | 200mA |
Security type | Power on lock |
Working environment humidity | 10 ~ 90%RH |
Working temperature | 0'C ~ 60'C |
Weight | 430g |
S4A Datesheet_Electric Bolt Lock For Auto-Door
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Face Plate: 200X34X42mm> Strike Plate: 90X25X3mm> Lock Cylinder: 15mmX15mm> Working Voltage: DC12V> Start working: 450mA
> Face Plate: 205Lx35WX40H(mm)> Bolt: 16mm(Throw) x 16mm(Diameter)> Voltage: DC12V
Signal Output: door open or door close state detectionwith output point, NC/COM
> Voltage: DC12V> Start Current: 900mA> Standby Current: 150mA> Face Plate: 205Lx35WX41H(mm)> Strike plate: 90Lx25Wx2W(mm)> Solid Bolt: polishing housing, 800Kg Holding Force> Signal Output: Door status Output, NC/COM> Timer: 0/ 3/ 6/ 9 seconds available to set
Fail-Secure (power off, the door is locked) 12V-24V> Low Temperature, safe & Durable> Low Power, Environmental Protection> MOV Provides Reverse Current Protection> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt> Autolock Time Delay: 0,3,6,9sec.> Double protection for loading current> Auto-relock if no Action within 5 secs.
> Fail-Safe( Power off, the door is open) 12V-24V> Voltage: Support wide Voltage DC12V- 24V> Start Current: 1.3A, Working Current: 0.08A> Time delay: 0-6S adjustable
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
