Dimension: 86x86x38mm
Brand:
S4AItem NO.:

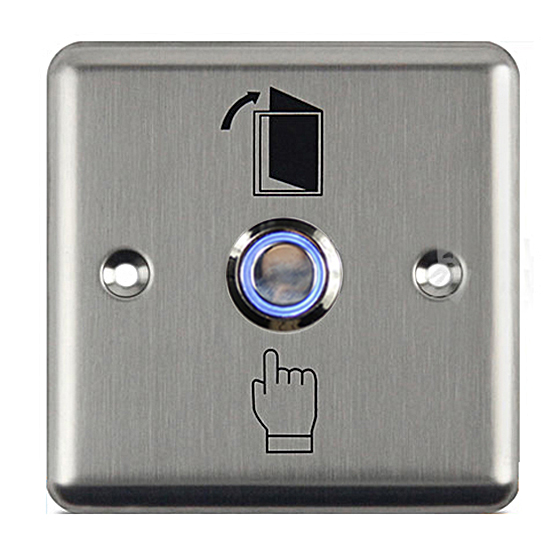

EB-13AStainless steel access control switch normally open normally closed reset exit button
Model No: EB-13A
EB-13 | Without LED |
EB-13A | With LED |
Dimensions | 86L X 86W X 38H |
Standard Structure | Stainless steel Panel, Steel Button |
Current Rating | 3A,36VDC Max |

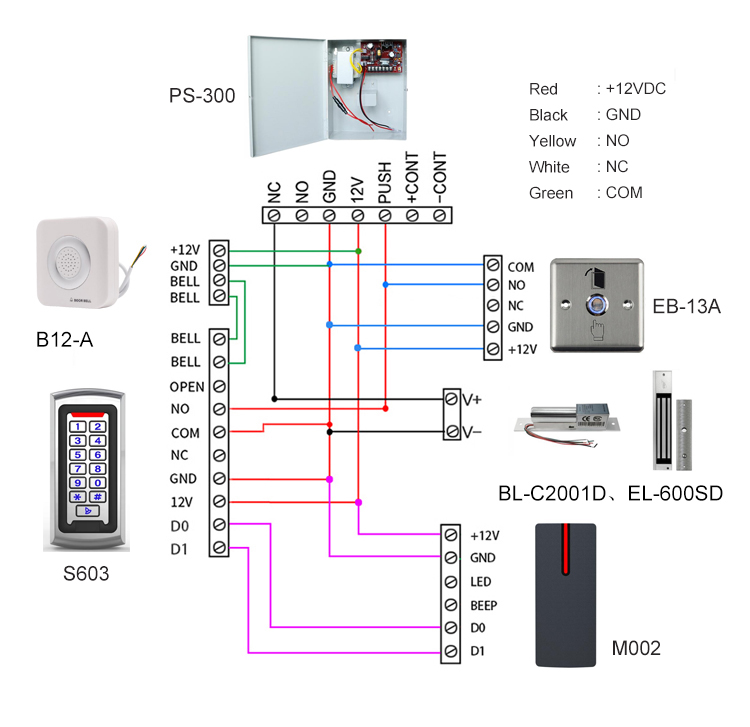

Output Contact | +12V GND NO NC COM |
Mechanical Life | 1000000 tested |
Suitable for Door | Hollow Door |
Operating temp | -10℃ ~ 55°C (14°F-131°F) |
Operating Humidity | 0-95% (non- condensing) |
Weight | 0.15kg |
Standard Packing | 70pcs |
Access Control Stainless Steel Exit Button | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EB-13A | 100 PC | 10.08 KG | 31x54x34 CM |
200 PC | 18.8 KG | 41x60x44 CM | |
Dimension: 91x30x20mm
Dimension: 91x30x20mm
Dimension: 115x70x25mm
Dimension: 115x70x25mm
Dimension: 86x86x38mm
Dimension: 86x86mm
Dimension: 86x86mm
Dimension: 86x86mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
