Dimension: 86x86mm
Brand:
S4AItem NO.:

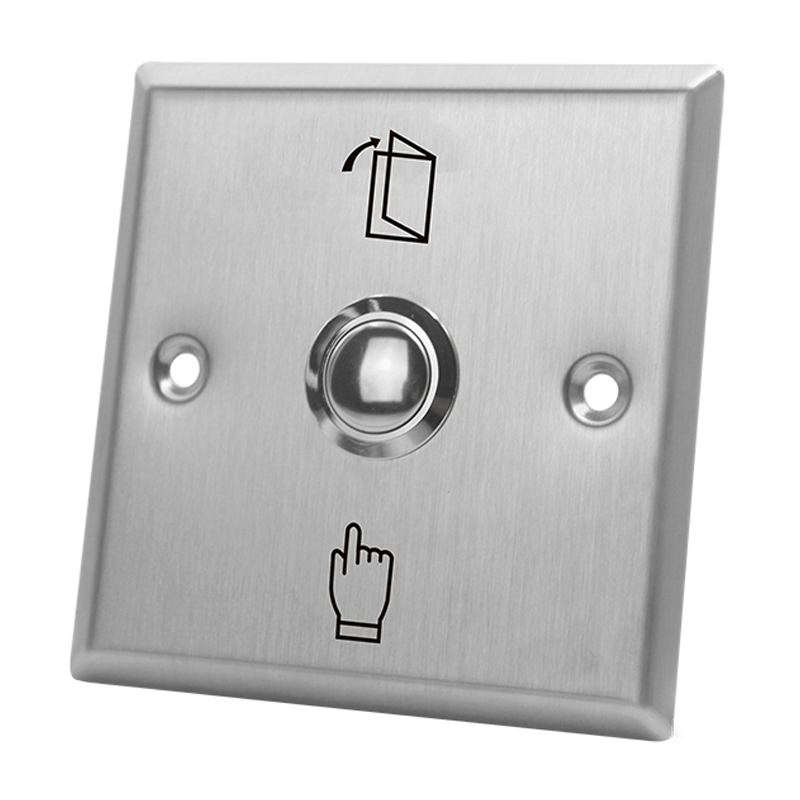

S86S86 86 * 86 Stainless Stele Exit Panel Button Switches
Model No: S86
Product Parameter | Parameter Description |
S4A Model | S86 |
Product Name | Stainless Steel Exit Button |

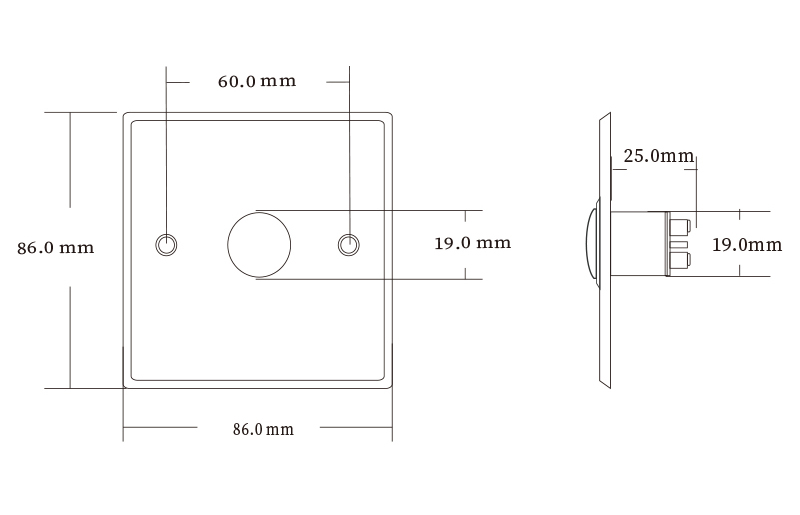

Dimensions | 86Lx86W(mm) |
Panel | 0.9mm Thick 304 Stainless steel (Wire Drawing) |
Input | 12VDC or 24VDC |
Contact Rating | 3A/125-250VAC |
Output Contact | NO/COM |
Mechanical Life | 100,000 Tests |
Suitalbe for Door | Hollow Door |
Operating Temperature | -20℃~+55℃(14-131F) |
Suitable Humidity | 0-95% (relative humidity) |
Installation Diameter | 19mm |
Button Colour | Silvery |
Logo | S4A Customizable |
Unit Weight | 0.085KG |
Packing Quantity | 100 PCS/CTN |
Packing Size(L*W*H) | 50*45*24 (cm) |
Gross Weight | 9.5KG |
