Sbutton-02W Waterproof Non-Contact LED Color Display Exit Push Button Switch

Zinc-alloy Housing + Acrylic Panel; NO/NC/COM

  • Brand:

    S4A

  • Item NO.:

    Sbutton-02
Inquire Now
  • Specifications
  • Package

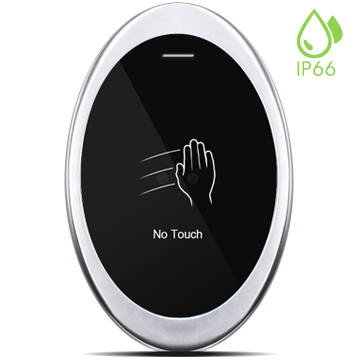

Sbutton-02W Waterproof Non-Contact LED Color Display Exit Push Button Switch

Model No: Sbutton-02


> Waterproof, IP66

> Zinc-alloy housing

> 9~24V DC

> Output contact: NO/NC/COM

> Sensor Distance: 3~10cm (Adjustable)

> Red LED indicator: standby

> Green LED indicator: active

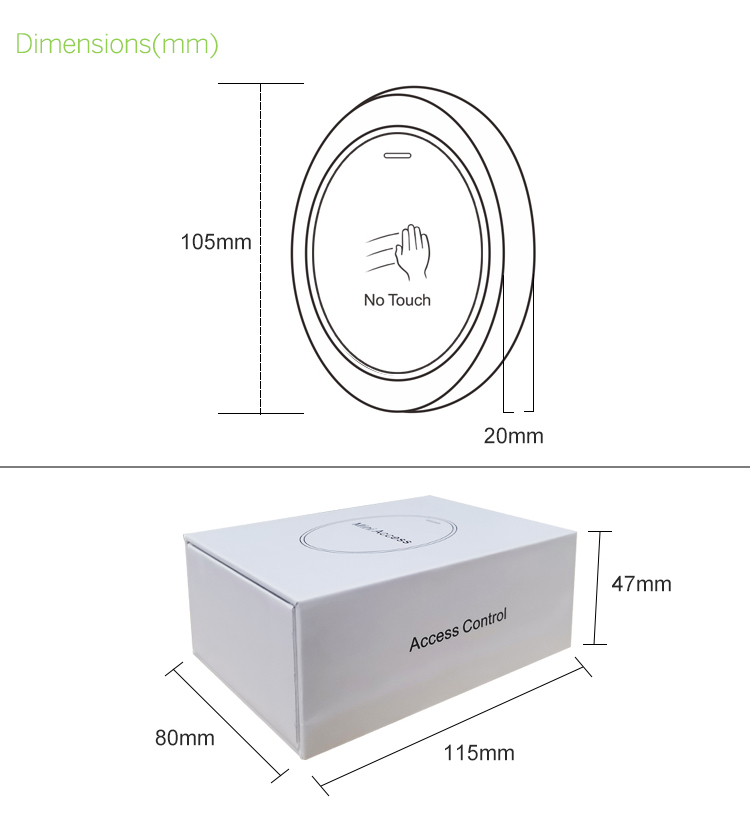

> Dimensions: L105 x W69 x H20 mm

> Optional version: with 5s or 10s time delay or Toggle Mode


Product ParameterParameter Description
S4A ModelSbutton-02
Product NameWaterproof  Housing No Touch Exit Button

DimensionsL105 x W69 x H20 mm
Standard StructureZinc-alloy Housing + Acrylic Panel
Current Rating＜50mA@12~24V DC MAX
Output ContactNO/NC/COM
Mechanical Life100000 tested
Sensitive Distance3-250px adjustable
Operating Temperature-20 oC ~ 55 oC (-4 oF ~ 131 oF)
Operating Humidity0% ~ 95% ( relative humidity)
Working EnvironmentWaterproof, IP66
Panel MaterialAcrylic
Weight350g
