Electromagnetic Lock

/

280KG-600LBS

/LZ Bracket is for Inward Door

New Products

LZ Bracket is for Inward Door

> Material Selection: High Strength Aluminum, Sandblast Finished

> Suitable for Door: In-swing Door

> Opening Mode: 90° Degrees Door

> Finished for Shell: Anodized aluminum

  • Brand:

    S4A
  • Item NO.:

    LB-600 + ZB-600
Specifications

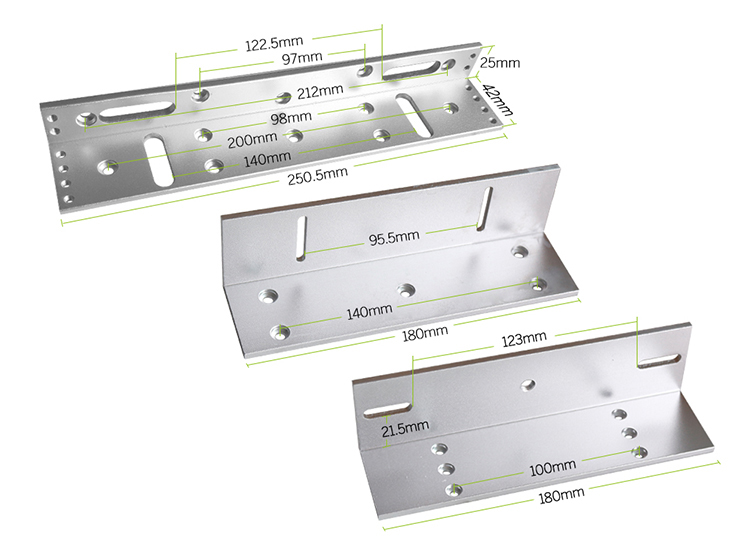

LZ Bracket is for Inward Door

Model No.: LB-600 + ZB-600


What is LZ Bracket?

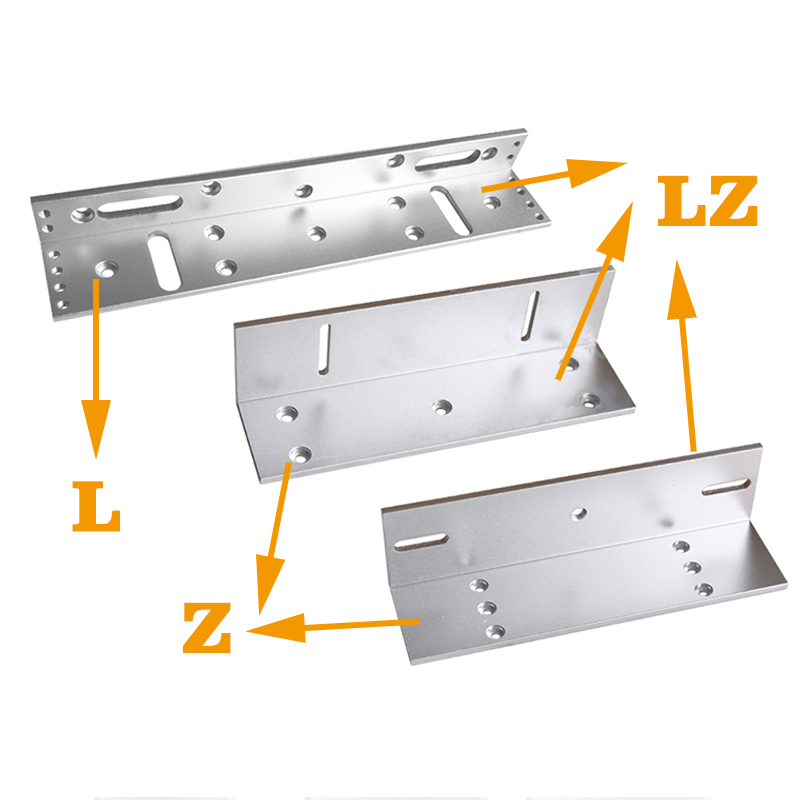

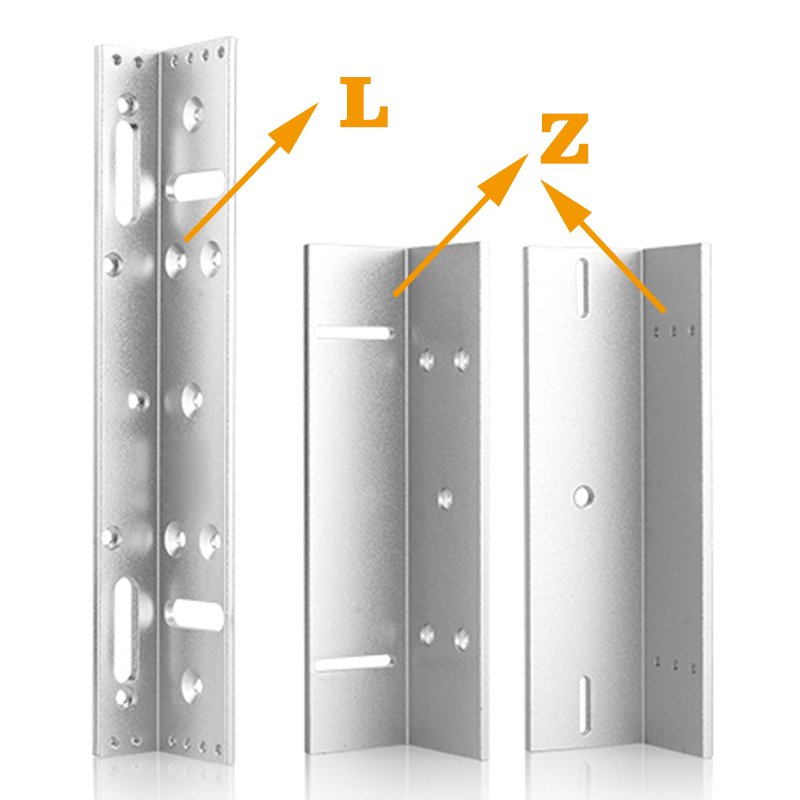

An LZ bracket is an accessory used to mount electromagnetic locks for access control door security. LZ brackets comprise of a combination of 3 brackets used to mount different types of electromagnetic locks and its armature plate.

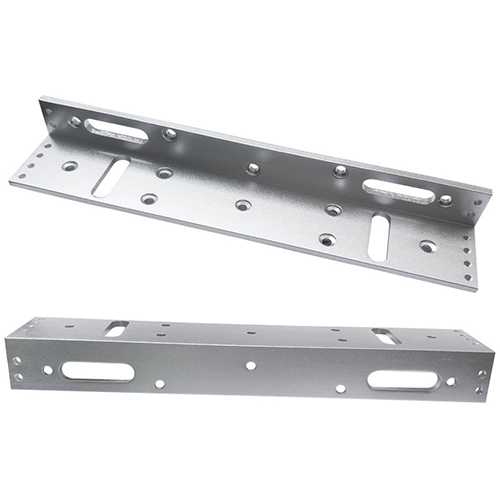

Model No.

LB-350, LB-600, LB-800, LB-1200

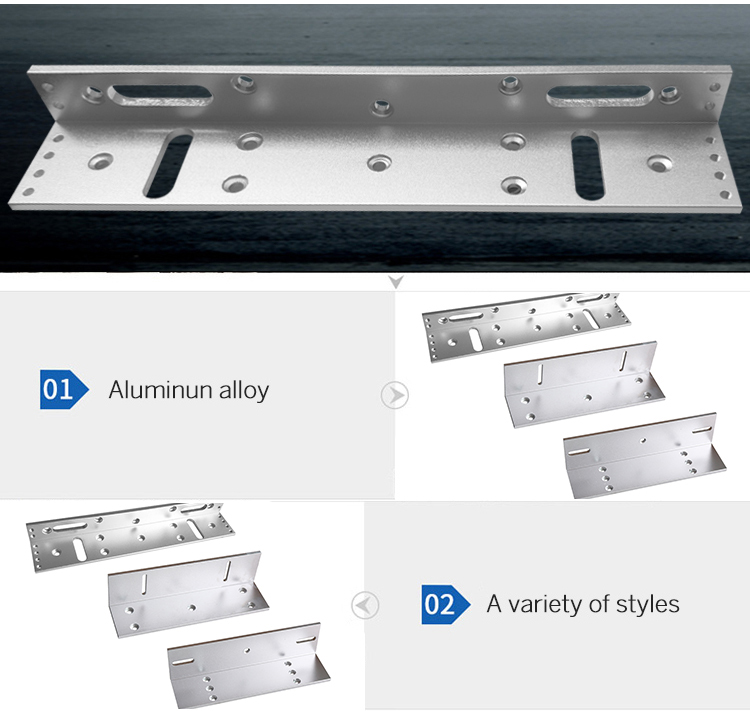

Material Selection

High Strength Aluminum, Sandblast Finished

Suitable for Door

In-swing Door

Opening Mode

90° Degrees Door

Finished for Shell

Anodized aluminum


Model No.

ZB-350, ZB-600, ZB-800, ZB-1200

Material Selection

High Strength Aluminum, Sandblast Finished

Suitable for Door

In-swing Door

Opening Mode

90° Degrees Door

Finished for Shell

Anodized aluminum

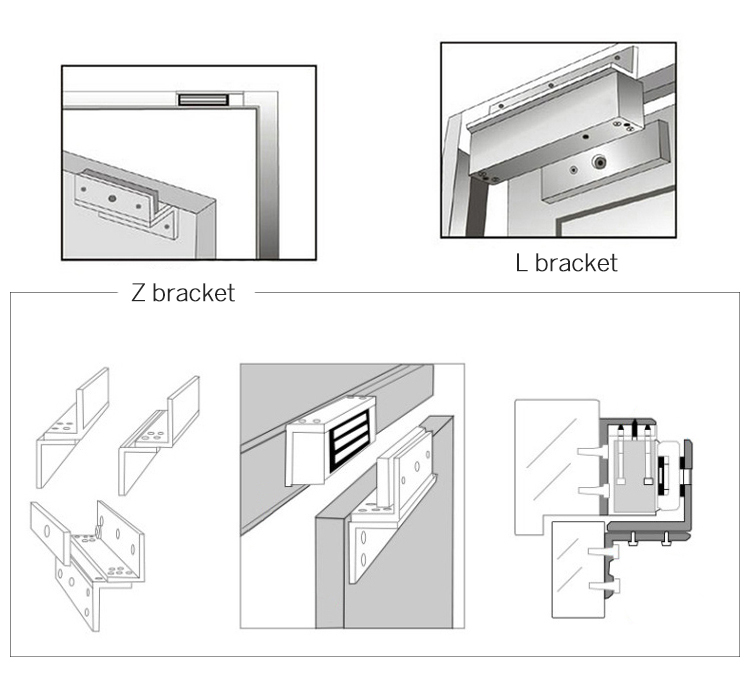

LZ Bracket is for Inward Door

Wiring Diagram

LZ Bracket is for Inward Door

Package

LZ Bracket is for Inward Door

Model No.

Quantity/Carton

Gross Weight

Carton Size

LB-600 + ZB-600

30PCS

18.76KGS

42x34x29cm



LZ Bracket is for Inward Door


Download

280KG LZ bracket_User Manual
