> With LED (Red only)
> Voltage: DC12V and DC24V
> Holding Force: 280KG (600Lbs)
> Lock Size: 250Lx48.5Wx25H(mm)
> Current Draw: 12V/500mA 24V/250mA
Brand:
S4AItem NO.:

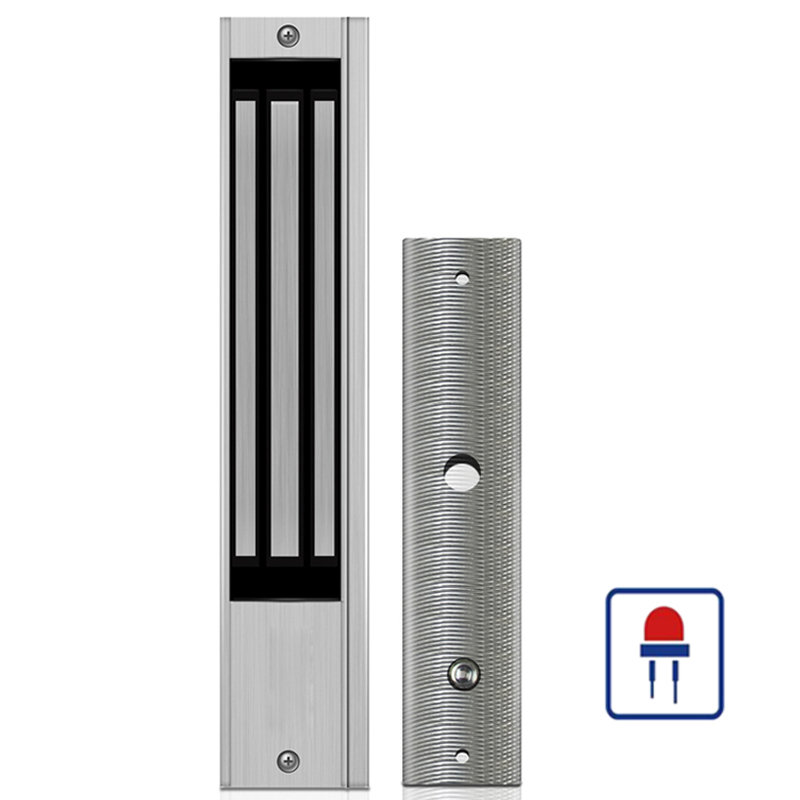

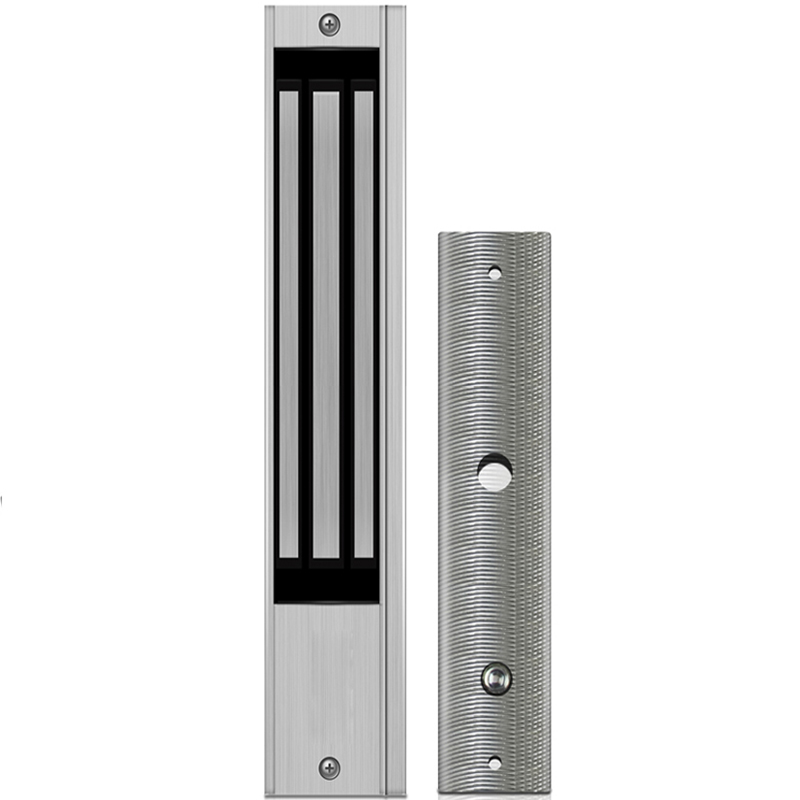

EL-600SElectromagnetic Lock 600lb Holding Force Fail Safe with LED for Out-Swing Door
Model No.: EL-600S
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Model No. | LED | Lock Sensor | Door Sensor | Time Delay | Buzzer | Voltage |
EL-600S | √ | x | x | x | x | 12V |
EL-600SD | √ | √ | x | x | x | 12V |
EL-600ST | √ | √ | x | √ | x | 12V & 24V |
EL-600SZ | √ | √ | x | x | √ | 12V & 24V |
EL-600LSD | √ | √ | √ | x | x | 12V & 24V |

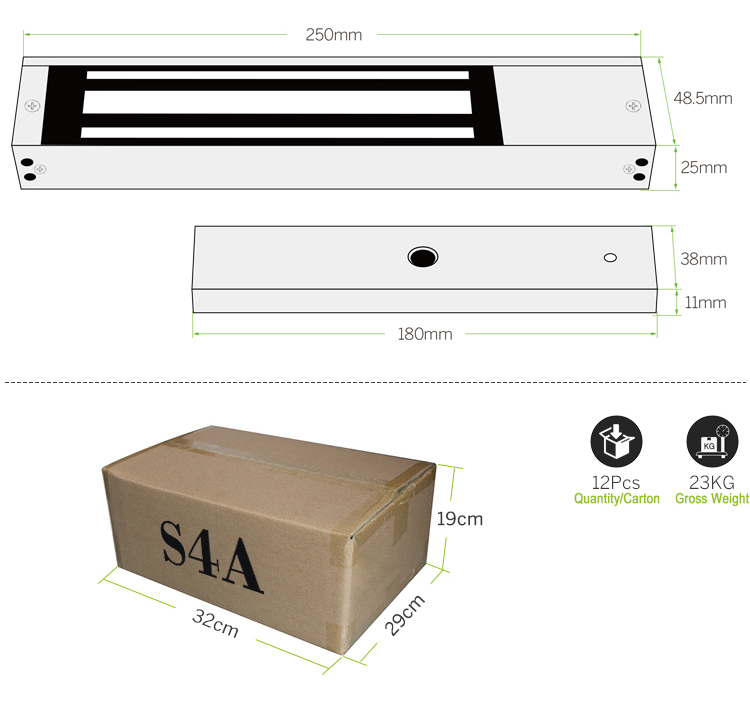

Lock size | 250Lx48.5Wx25H(mm) |
Plate | 180Lx38Wx11H(mm) |
Holding Force | 280kg (600Lbs) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/500mA 24V/250mA |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10°C ~ 55°C (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 2kg |
Standard Packing | 10pcs |
Electromagnetic Lock 600lb Holding Force Fail Safe with LED for | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-600S | 250x48.5x25mm | 12pcs | 23KG | 32x29x19cm |
S4A Instruction_EL-600S_Electromagnetic Lock 600lb Holding Force Fail Safe with LED for Out-Swing Door
> Without indicator lights> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, Lock sensor> Voltage: DC12V and DC24V> Holding Force: 280KG> Built in LED and door sensor
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> Built in LED, Lock sensor and buzzer> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, Lock sensor and time delay> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
100% Cooper Material and built-in Standalone access control function> No Need to order standalone control> Connect it with our reader-ID-WG26. then it works> User Capacity: 1364> Voltage: 7-18V
> EL-W600 4Wires> Waterproof IP66> Holding Force: 280KG(600Lbs)> Voltage: DC12V> Lock Size: 225Lx45Wx25H(mm)
> EL-W600S 4Wires> Waterproof IP66> Holding Force: 280KG(600Lbs)> Voltage: 12V & 24V adjustable> Lock Size: 220Lx47Wx28H(mm)
