> Maximum door weight: 180kg
> Maximum door width: 1200mm
> Opening and closing time: 6~12S
> Power supply: AC110-220V±10% 50/60HZ
> Rated power: 55W
Brand:
S4AItem NO.:

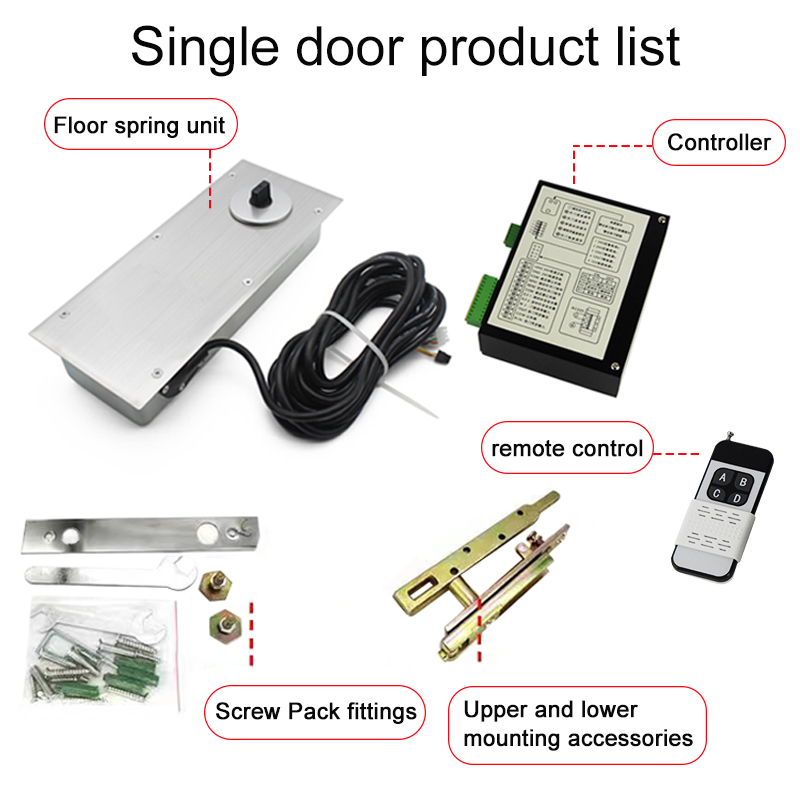

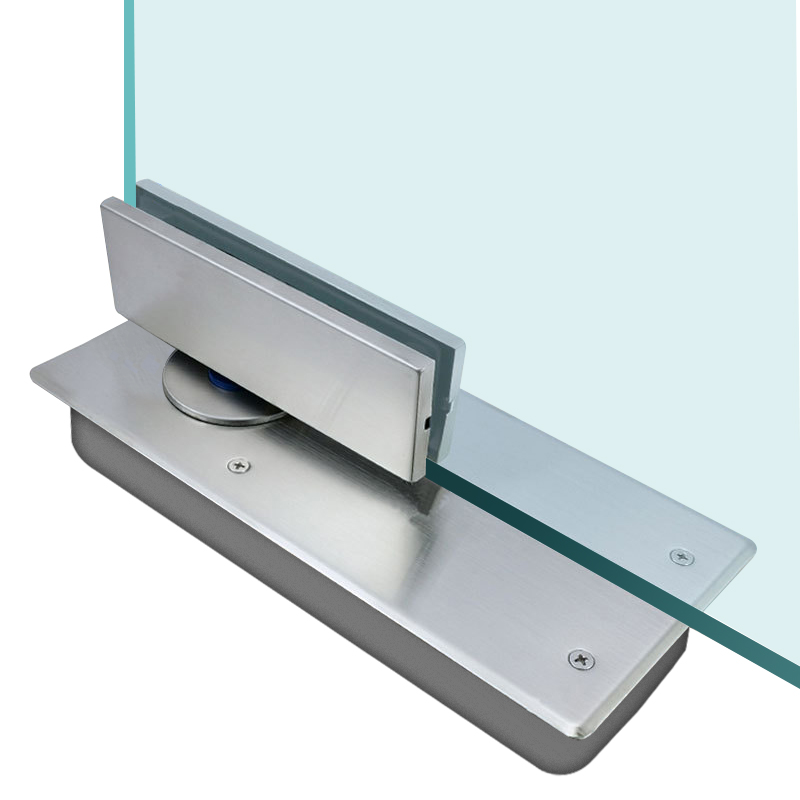

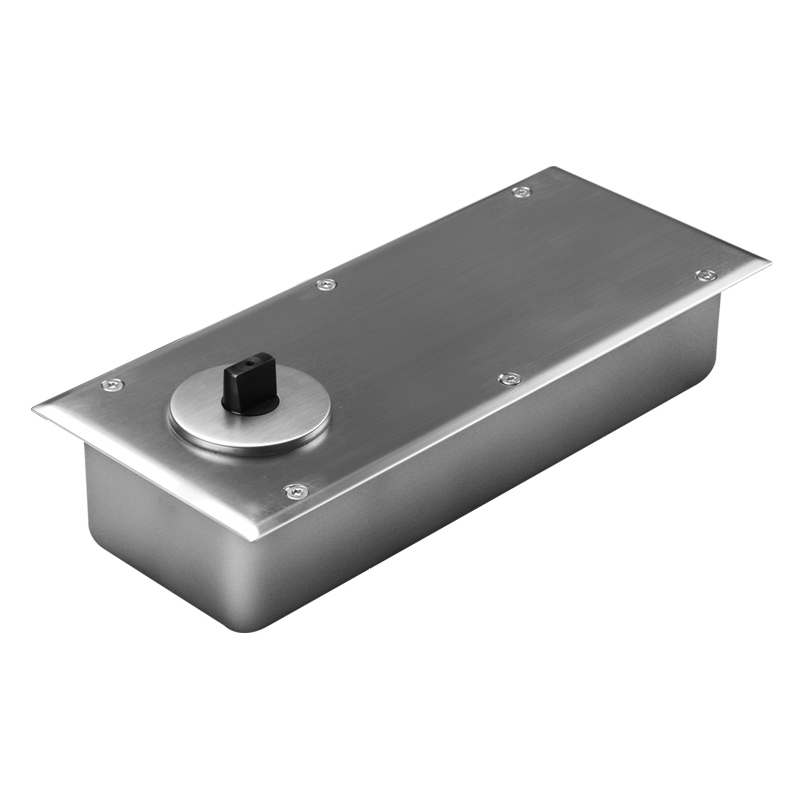

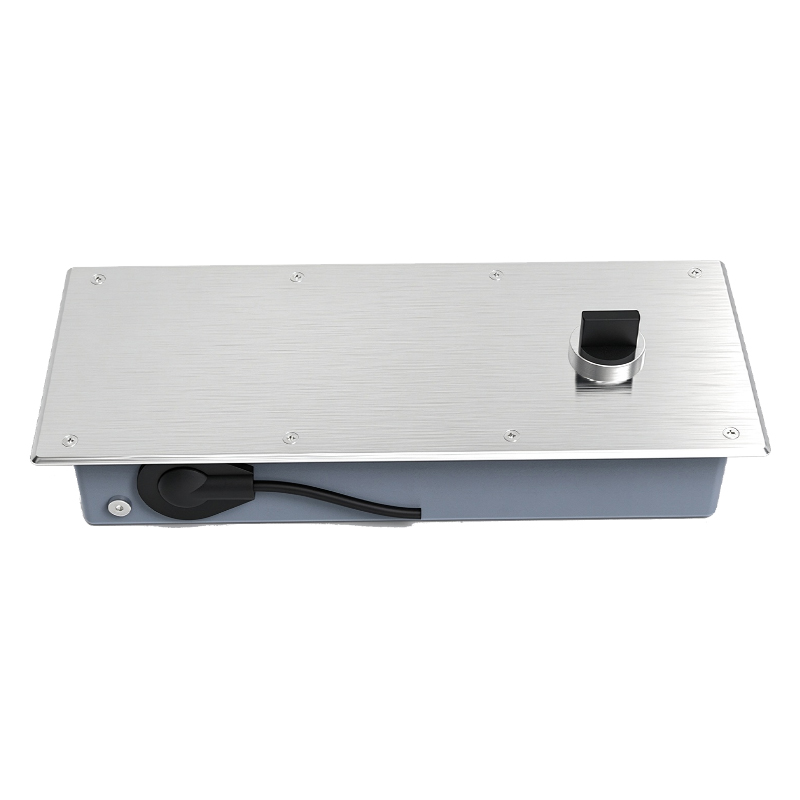

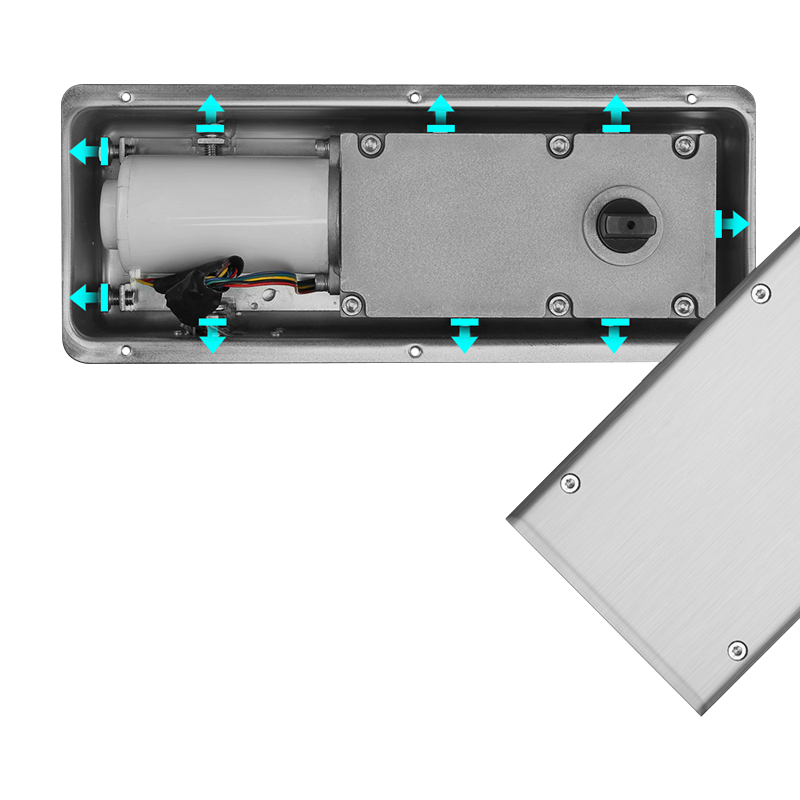

D180SHydraulic Floor Spring Heavy Duty Frameless Glass Concealed Door Closer Single Cylinder Floor Spring Hinge
Model No.: D180S
What is Floor Concealed Door Closers?
The overhead or floor mounted concealed door closer is a very common type of door closer mechanism which is normally unseen and unnoticed. ... Some concealed closers only allow single directional control for opening and closing to a fixed point or door stop.
Maximum door weight | 180KG |
Maximum door width | 1200mm |
Maximum torque | 165Nm |
Noise | <60dB |
Opening and closing time | 6-12S |
Open range | 86°~95° |
Power supply | AC110-220V±10% 50/60HZ |
Rated power | 55W |
Special machine power | <2W |
Operating temperature | -20°C~55°C |
Protection level | IP68 |

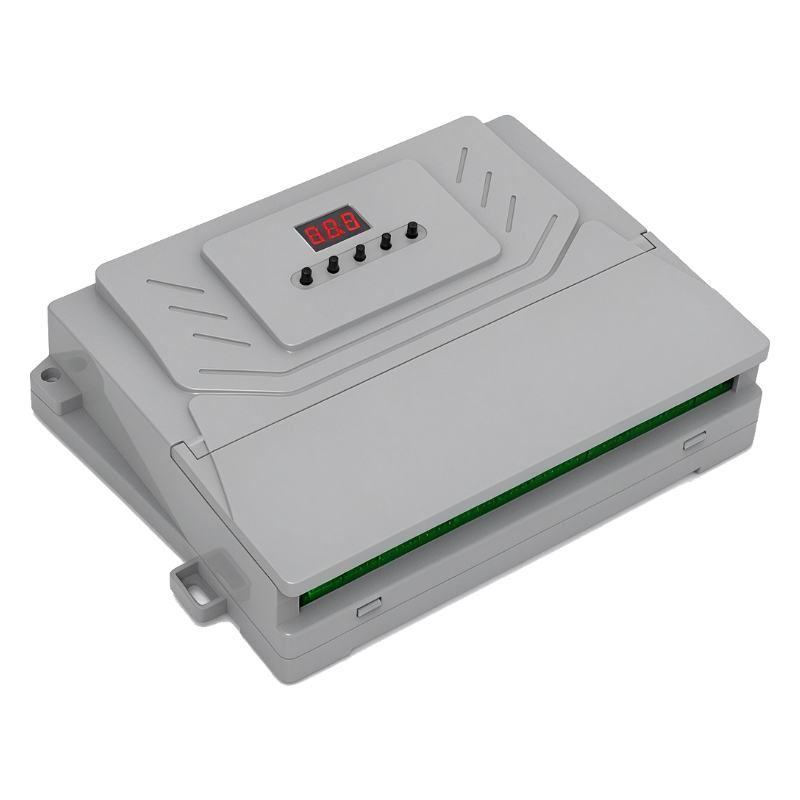

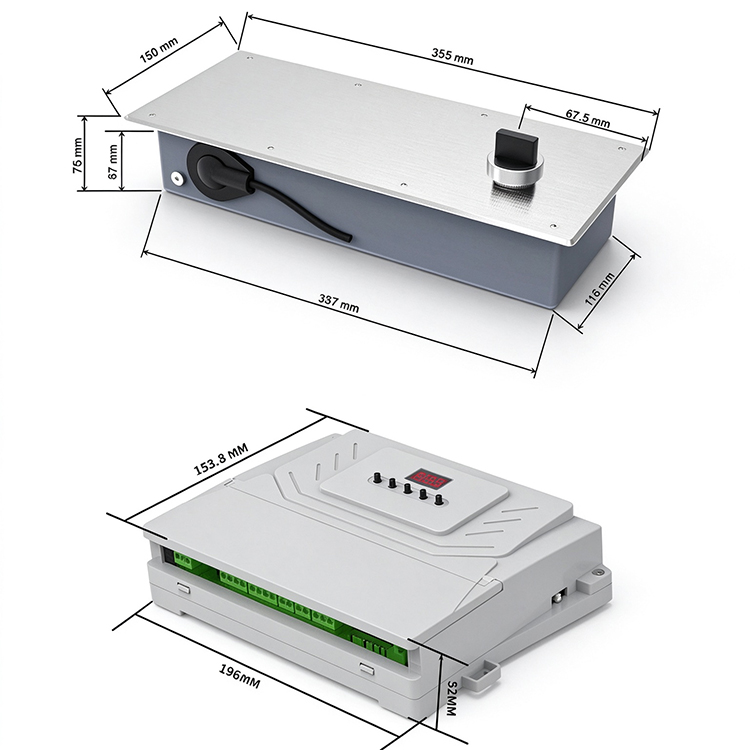

Control box size | 156x120x46mm |
Unit size | 320x110x70mm |
Unit weight | 9.25KG |
Installation process
1.Confirmed the installation position well, produce the corresponding side slot on theground according to set size, wire lay out according to requirements.
2.Connect the set output wire, controller and electric insert lock to do power on testbefore fix the set.
3.Install the up fitting of support (Picture a) on the cross beam, install the down fittingof support (Picture b) and rotating arm rod (Picture c) on the corresponding positionof door leaf.
4.Install the door leaf after set fix position, adjust the opposite position between doorleaf and door frame well through the adjustment screw of set and support, fix the setwell through casting the concrete or tighten support (Picture d)

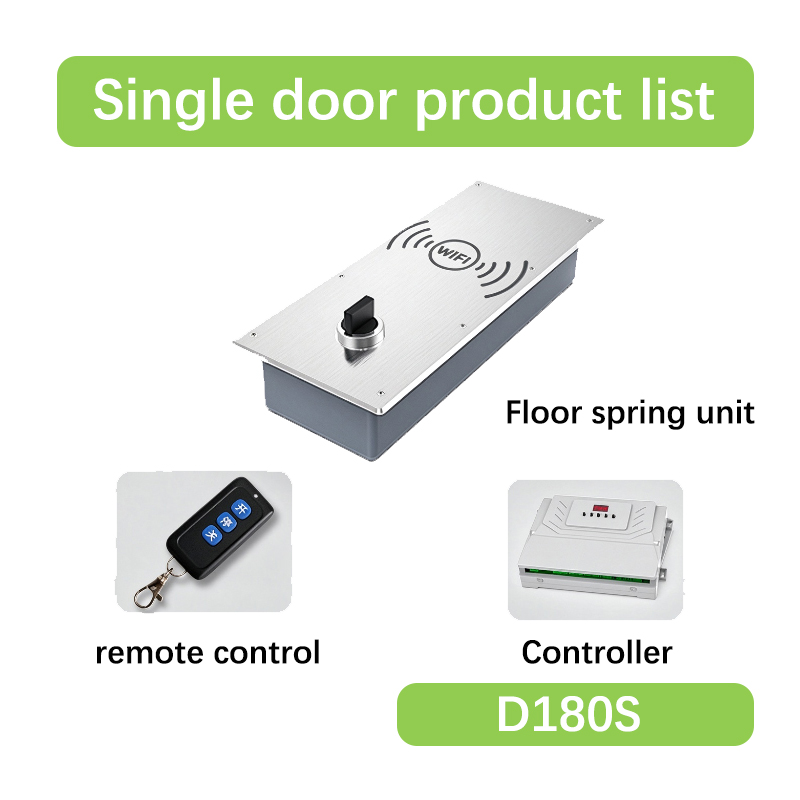

Floor Concealed Door Closers | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
D180S | 1 PC | 4.7 KG | 9.3 KG | 31x38x20 CM |
S4A D180S User Manual_Floor Concealed Door Closers
