> Maximum door weight: 180kg
> Maximum door width: 1200mm
> Opening and closing time: 6~12S
> Power supply: AC110-220V±10% 50/60HZ
> Rated power: 55W
Brand:
S4AItem NO.:

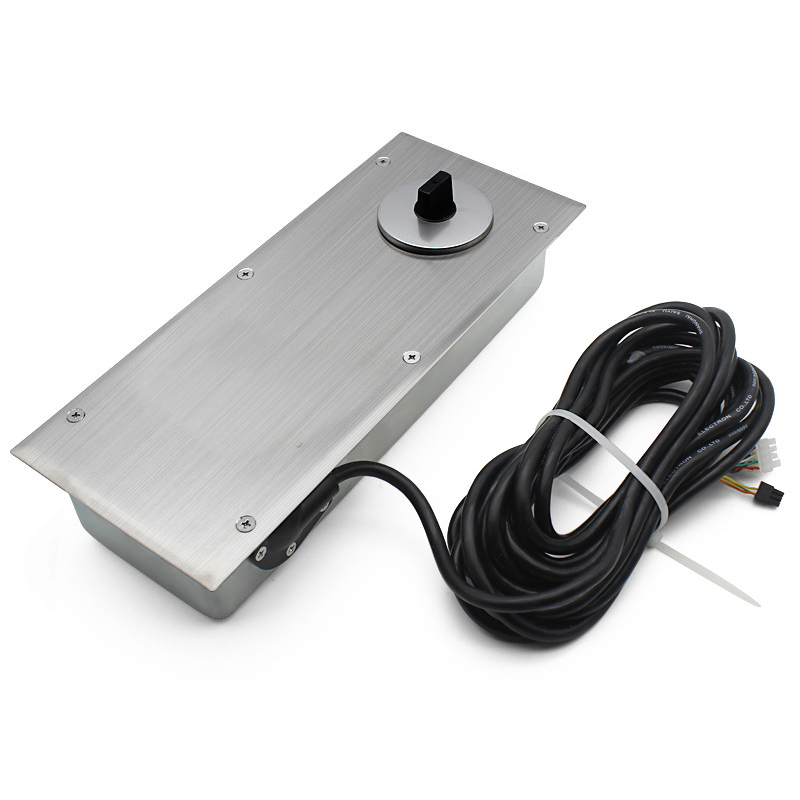

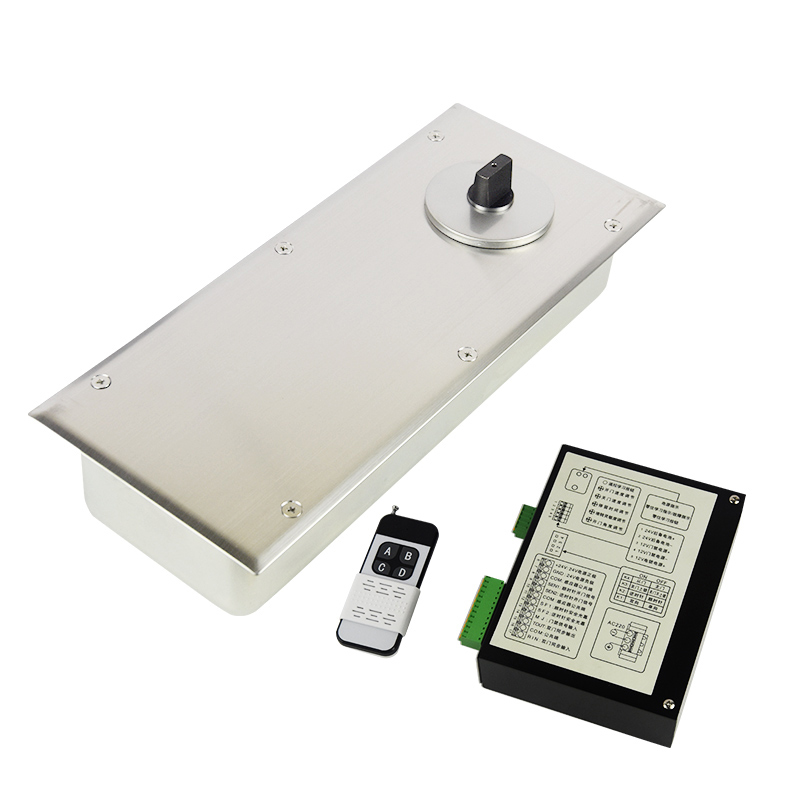

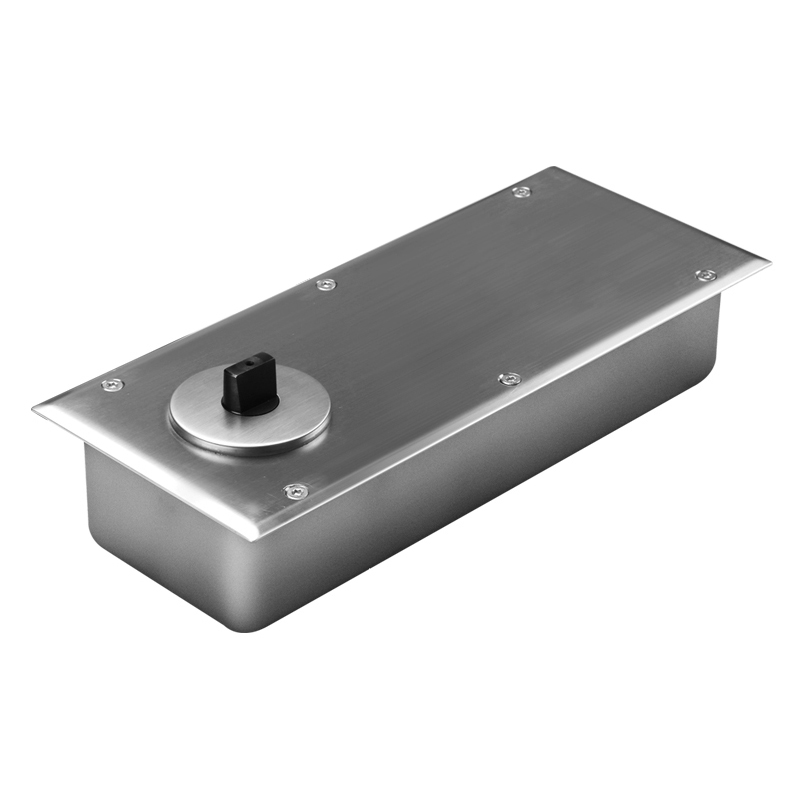

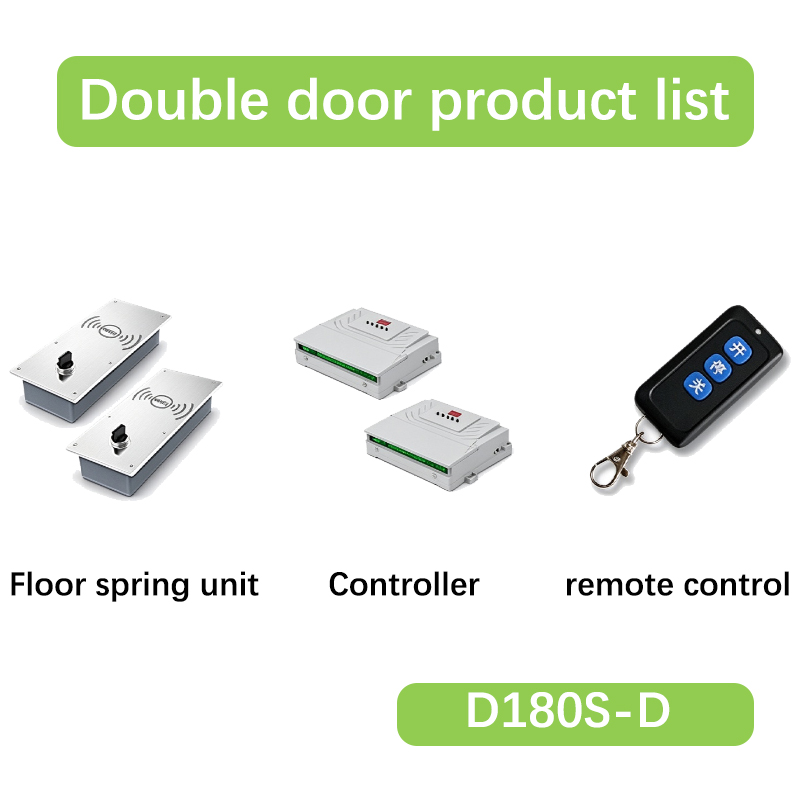

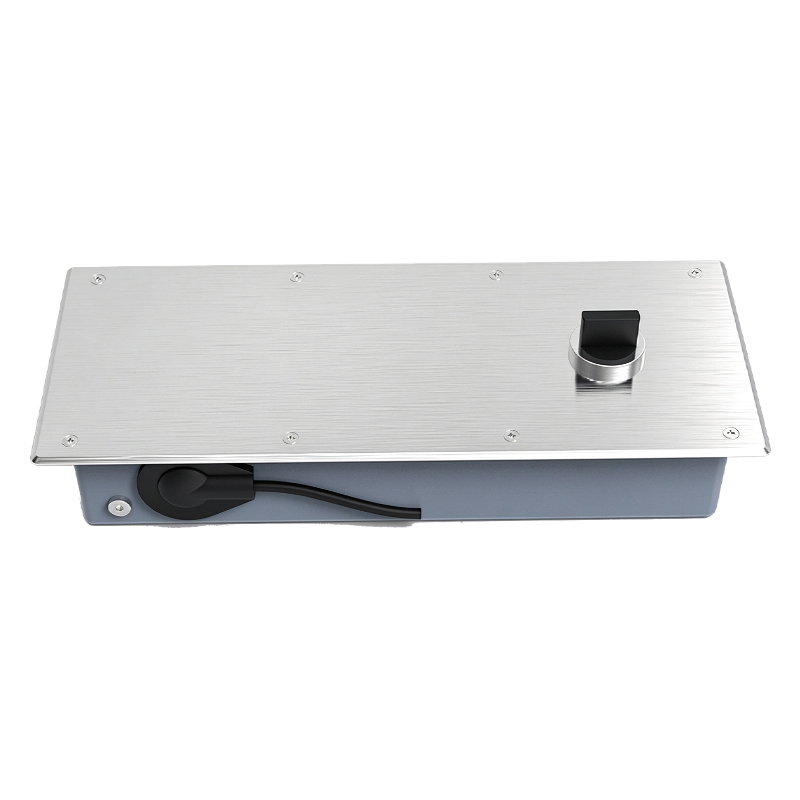

D180S-DConcealed Glass Floor Door Closer for double door
Model No.: D180S-D
What is Floor Concealed Door Closers?
The overhead or floor mounted concealed door closer is a very common type of door closer mechanism which is normally unseen and unnoticed. ... Some concealed closers only allow single directional control for opening and closing to a fixed point or door stop.
Maximum door weight | 180KG |
Maximum door width | 1200mm |
Maximum torque | 165Nm |
Noise | <60dB |
Opening and closing time | 6-12S |
Open range | 86°~95° |
Power supply | AC110-220V±10% 50/60HZ |
Rated power | 55W |
Special machine power | <2W |
Operating temperature | -20°C~55°C |
Protection level | IP68 |

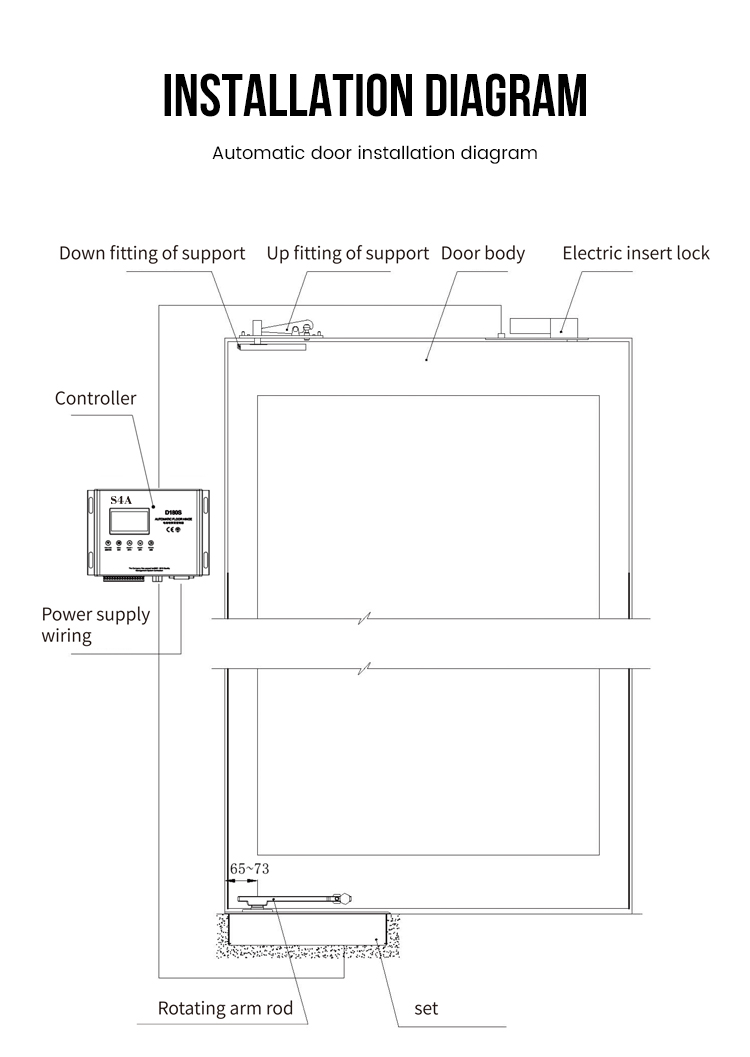

Installation process
1.Confirmed the installation position well, produce the corresponding side slot on theground according to set size, wire lay out according to requirements.

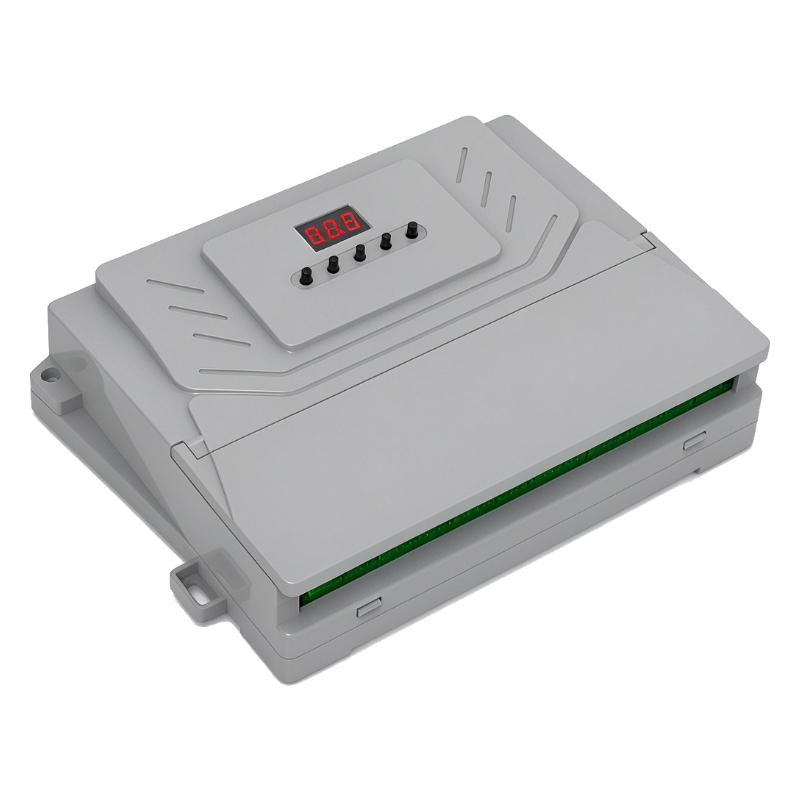

2.Connect the set output wire, controller and electric insert lock to do power on testbefore fix the set.

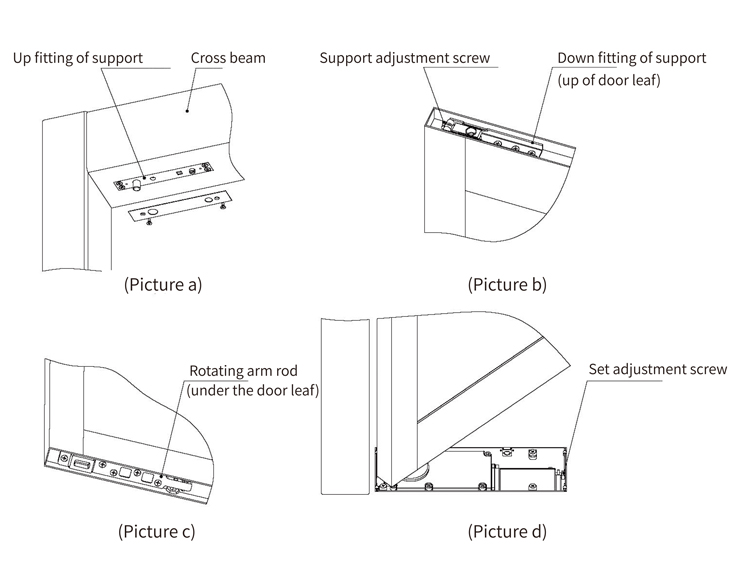

3.Install the up fitting of support (Picture a) on the cross beam, install the down fittingof support (Picture b) and rotating arm rod (Picture c) on the corresponding positionof door leaf.
4.Install the door leaf after set fix position, adjust the opposite position between doorleaf and door frame well through the adjustment screw of set and support, fix the setwell through casting the concrete or tighten support (Picture d)
>Material: Fireproof>Installation Mode: Surface Mount>Input: DC12V>Contact Rating: 3A/125-250VAC>Output Contact: NO/COM
>Chip: H9 chip>Label size: 110x45mm>Reading distance: 0-12m

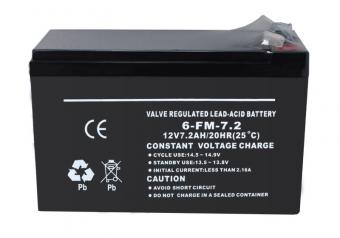

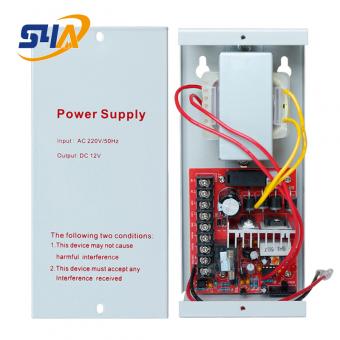

Specially designed for automatic door back-up power. The power can help automatic door work normally once power off (open-close about 500 times, around 7hours), or keep door open automatically based on fire evacuation requirements.> Input Voltage: AC220V 50Hz> Output Voltage: DC24V 2.6AH; DC12V 5.2AH> Working Mode: Automatic working or keep opening
>Operating Voltage:12V/24VDC>Working frequency:Default 315MHz, optional 433MHz>Encoding type: Rolling code, fixed code, learning code
> Maximum door weight: 180kg> Maximum door width: 1200mm> Opening and closing time: 6~12S> Power supply: AC110-220V±10% 50/60HZ> Rated power: 55W
>Material:cast iron + stainless steel>Scope of application:framed door, wooden door, etc.
Work with ACB-R0 series, ACB-T01 series, and ACB-00 series

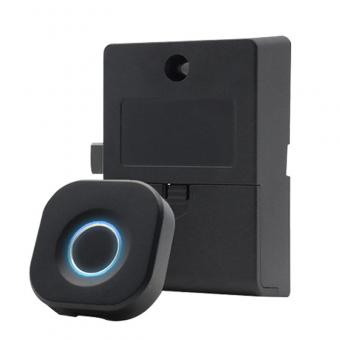

> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 fingerprint/card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
