> Voltage: DC 12V or 24V
> Start Current: 580mA
> Standby Current: 200mA
> Power on to lock
Brand:
S4AItem NO.:

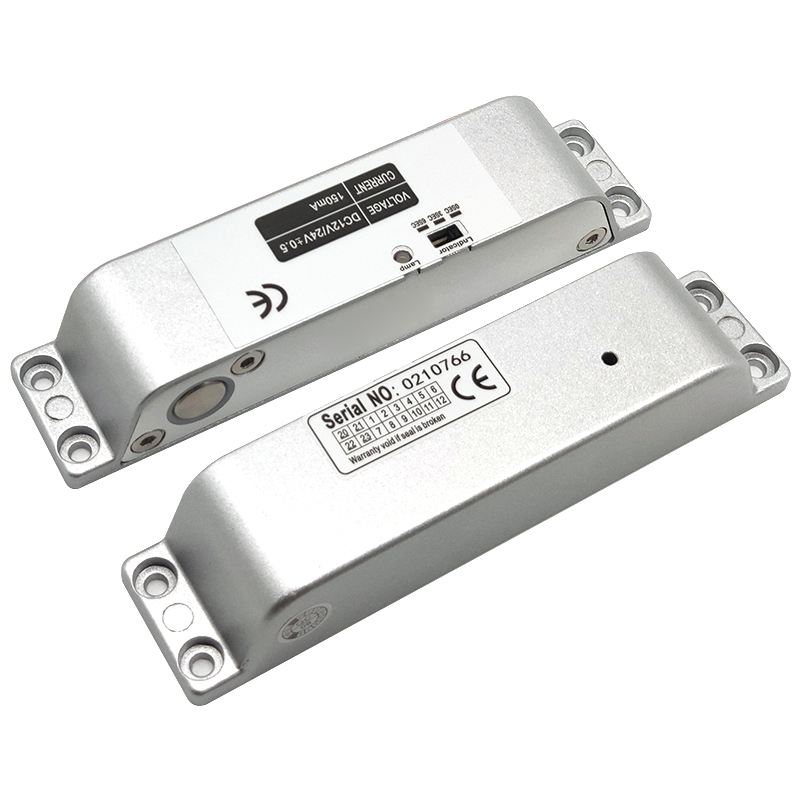

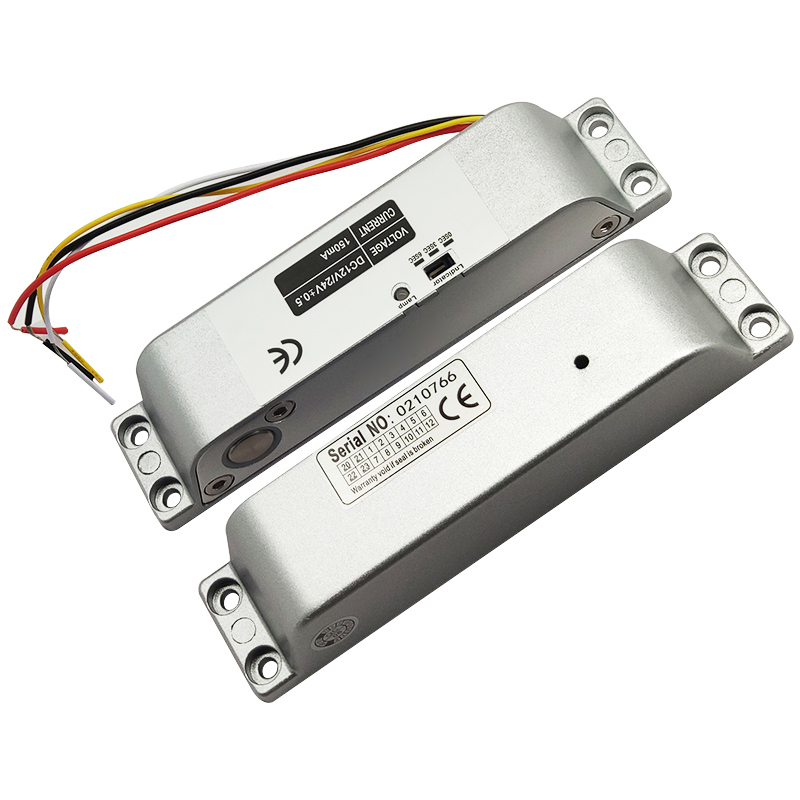

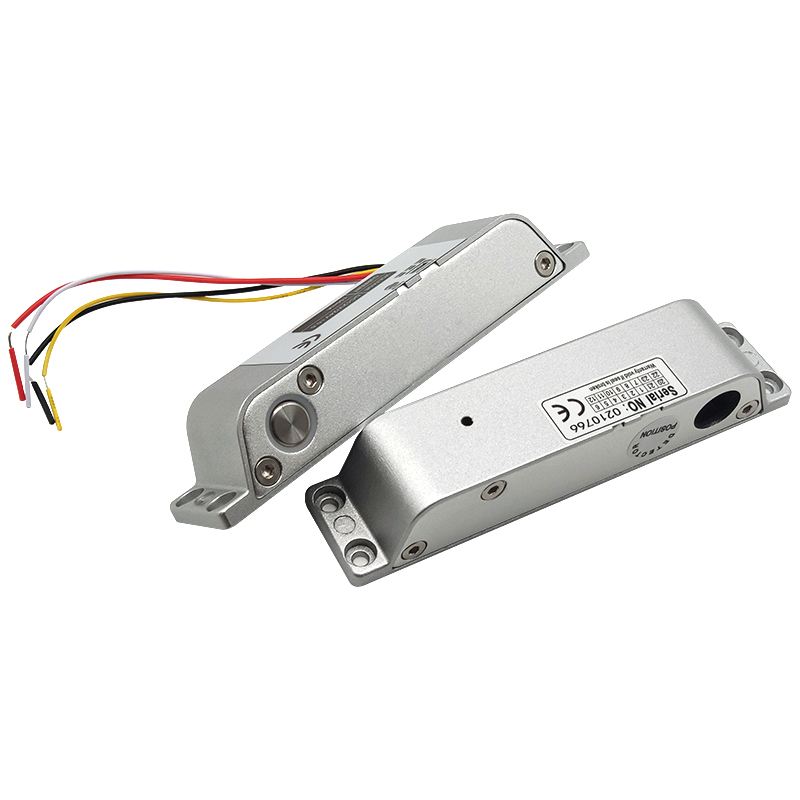

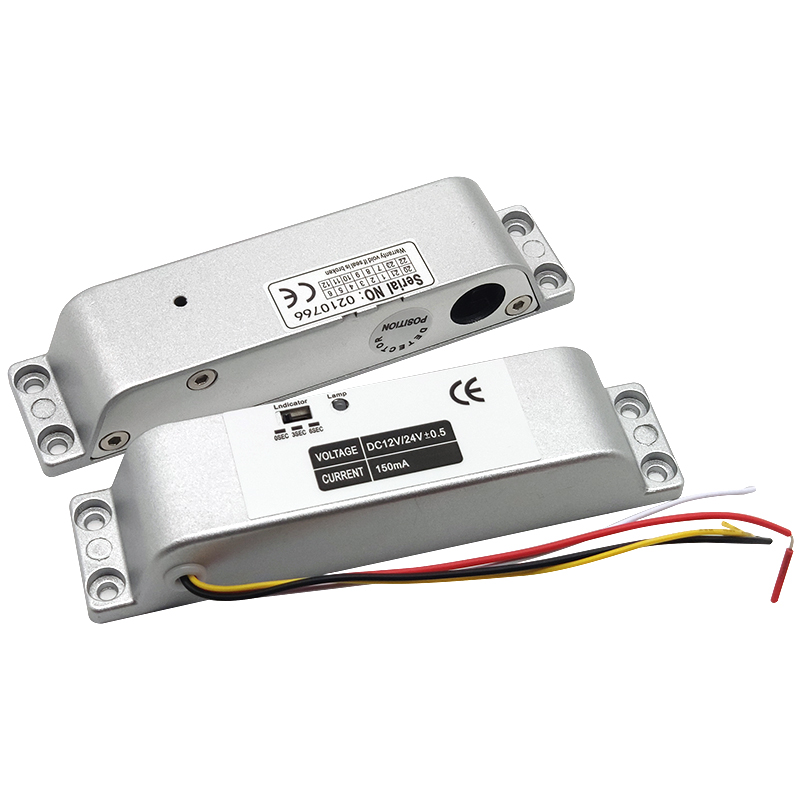

BL-3000Hanging Electric Drop Bolt Door lock Smart Lock With Timer
Model No.: BL-3000
BL-3000 Electric hanging bolt lock-Power on to lock, with 4wires and time delay, 0.3.6seconds
Aluminium alloy material built-in LED indicate.
Voltage | 12V/24V DC |
Working current | 0.25A |
Start current | 1.2A |
Holding force | 800kg |
Unlock way | Power off to open |

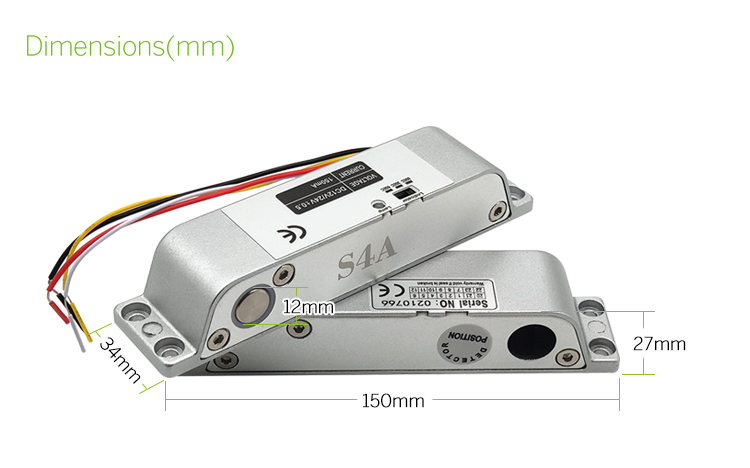

Lock dimension | 150x34x27mm |

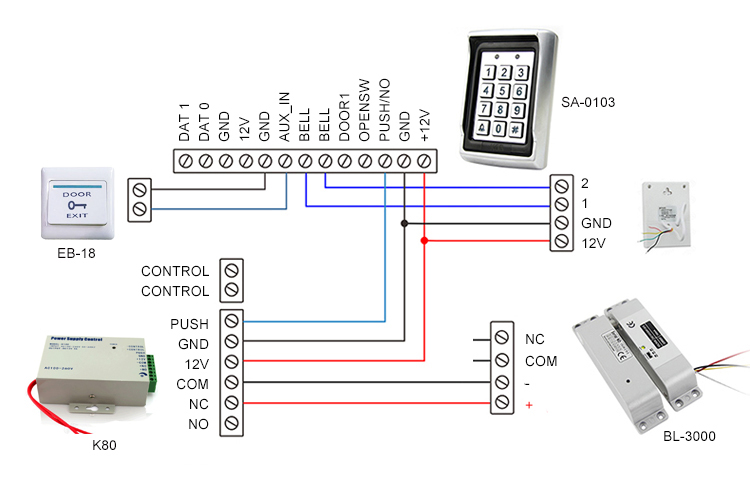

Diagram
Red | DC 12V |
Black | GND |
Yellow | NC |
White | COM |
