> Bolt: 17mmDIA, stainless steel 13mm throw
> Timer: 0 / 3 / 6 seconds available to set
> Signal Output: Door Status Output, NO/COM
Brand:
S4AItem NO.:

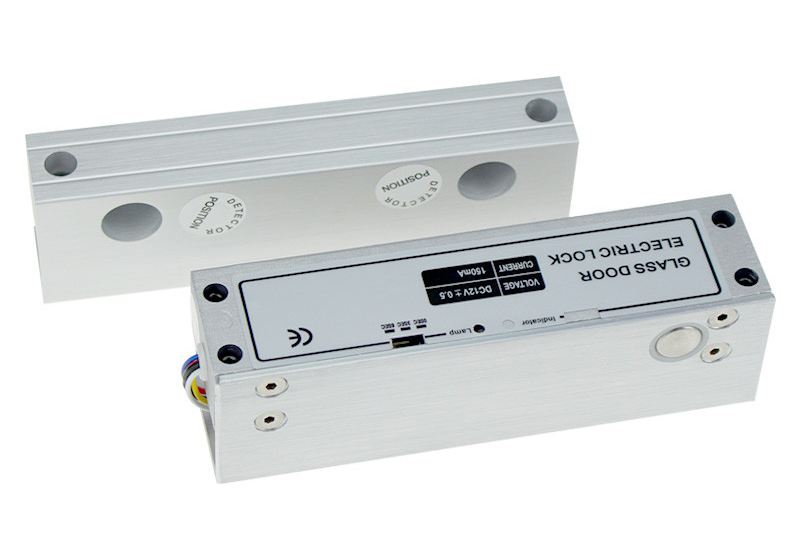

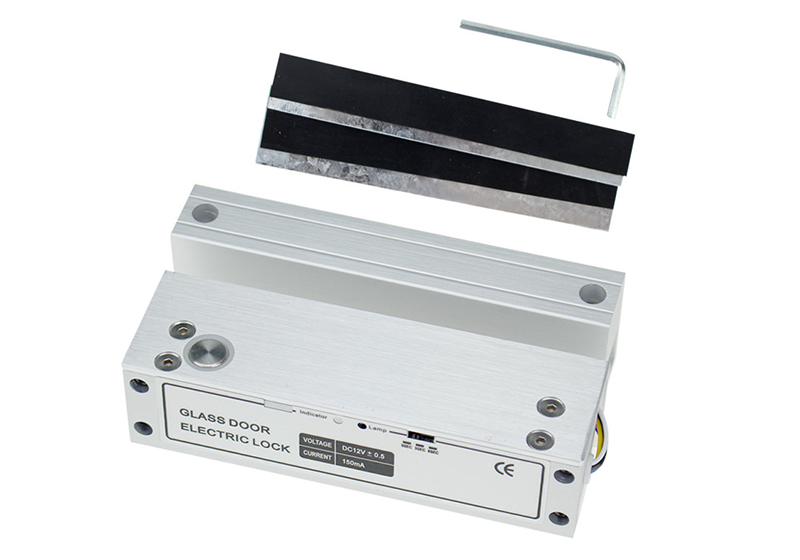

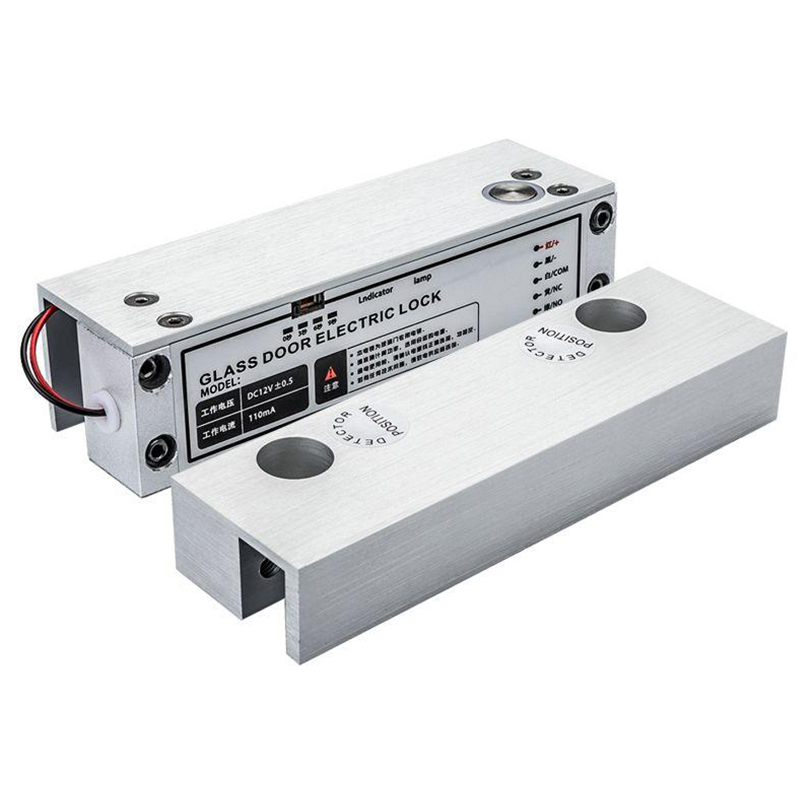

BL-28005wires Electric Bolt Lock for Frameless Glass Door
Model No.: BL-2800
I. Fail-Safe: Adjustable fail-safe (Power to lock)
Adjustable to fail-secure (power to open) for high-security places. Adjustable to fail-safe (Power to lock) for public places.
Adjustable to fail-secure (power to open) to achieve long unlock state function.

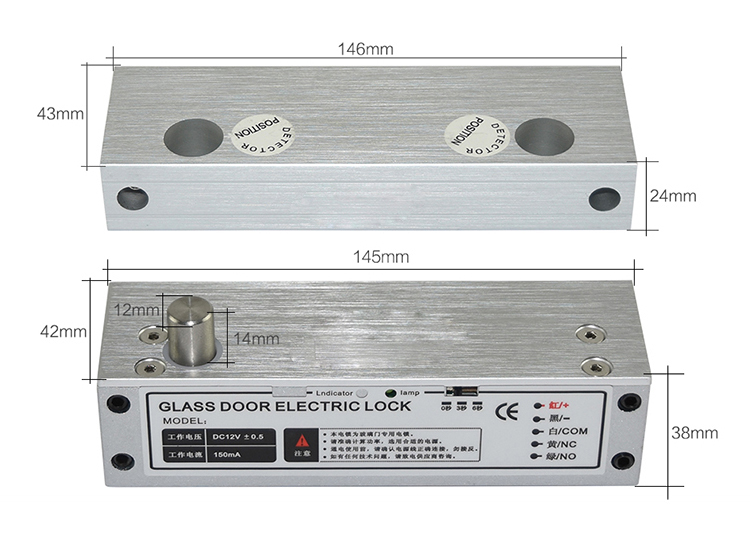

Face Plate | 170Lx48WX40H(mm) |
Bolt | 17mm(Throw) x 13mm(Diameter) |
II. Built-in oval cylinder as unlocking the device
Use of oval cylinder to unlock when power cut occurred or during emergency
Built-in photo couplers door open push button input contact. The door will lock again automatically when door is not open within 5 seconds

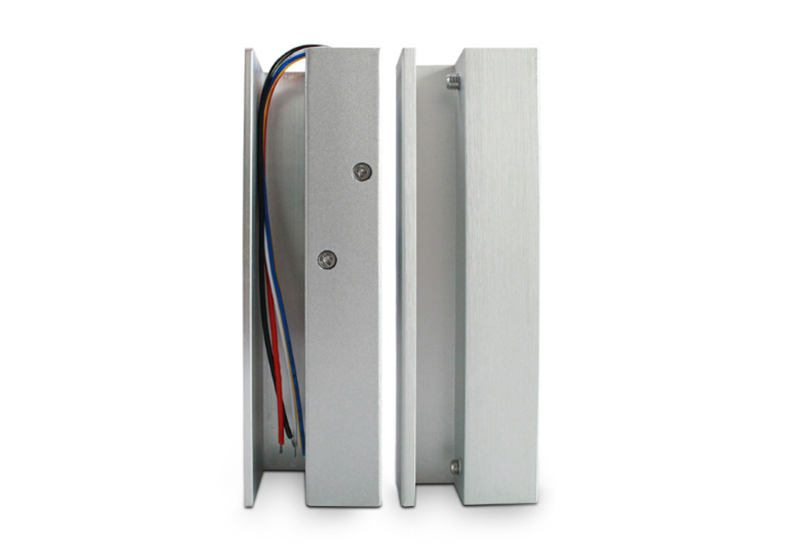

III. Bolt lock Suitable For Fully Frameless Glassdoor
Fail-Safe/Fail secure | power to lock/power to open |
Voltage | DC12V |
Start Current | 900mA |
Face place material | Stainless steel |
IV. Bolt lock with a timer to set
With a delay timer, When you swiping your card and do not open the door, the bolt lock will lock itself within 0/2.5/5S

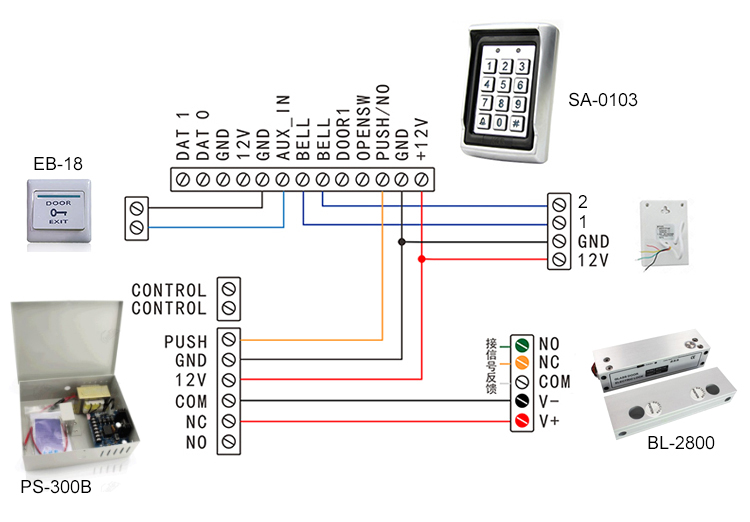

V. Four lines electric bolt lock with door state detection output point
6 line magnetic output with LED detection when the door opened, the detection point get red, when the door closed, the detection light turned off.NO/COM Detection point advise you working status.
S4A Datasheet_5wires Electric Bolt Lock for Frameless Glass Door
