Foot Emergency Switch Button

>Rated load: 10/250V

>Contact form: one normally open and one normally closed

  • Brand:

    S4A
  • Item NO.:

    TFS-1 (2m cable)
  • Specifications

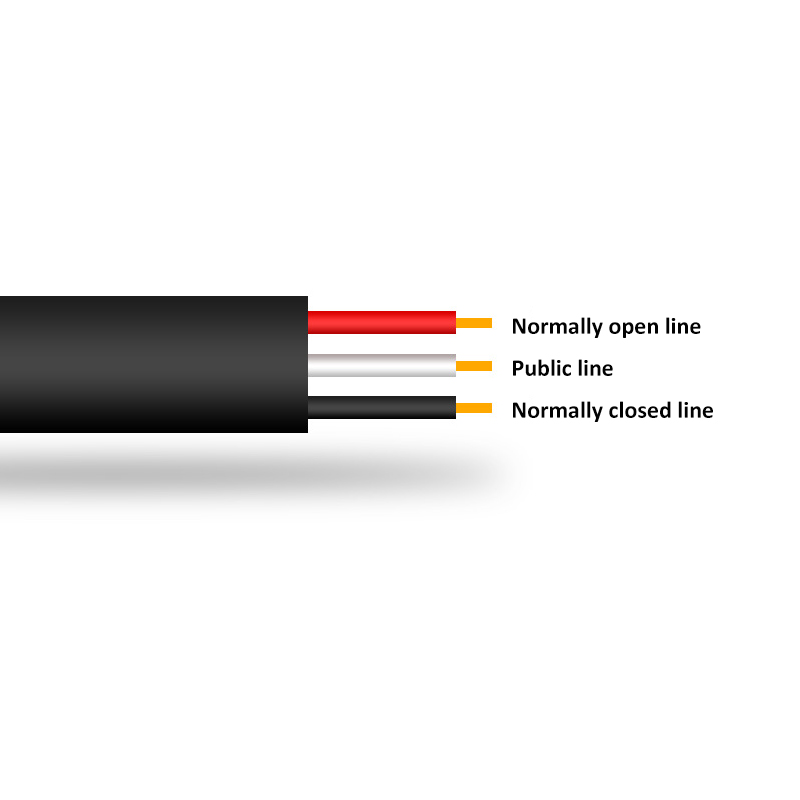

  • Wiring Diagram
  • Package
  • Download

Foot Emergency Switch Button

Model No: TFS-1 (2m cable)


what is Foot Emergency Switch Button ?

Emergency stop foot switches are a safety device used in industrial settings. These switches are designed to prevent injury to personnel, by breaking a circuit to stop the machinery they are using from functioning ...


Rated load

10/250V

Contact form

one normally open and one normally closed

Cable length

1m/2m optional

Shell material

iron shell

Weight

1 meter 0.275KG

Weight

2 meters 0.315KG


Foot Emergency Switch Button

Foot Emergency Switch Button

Foot Emergency Switch Button

S4A_Datesheet_Foot Emergency Switch Button
