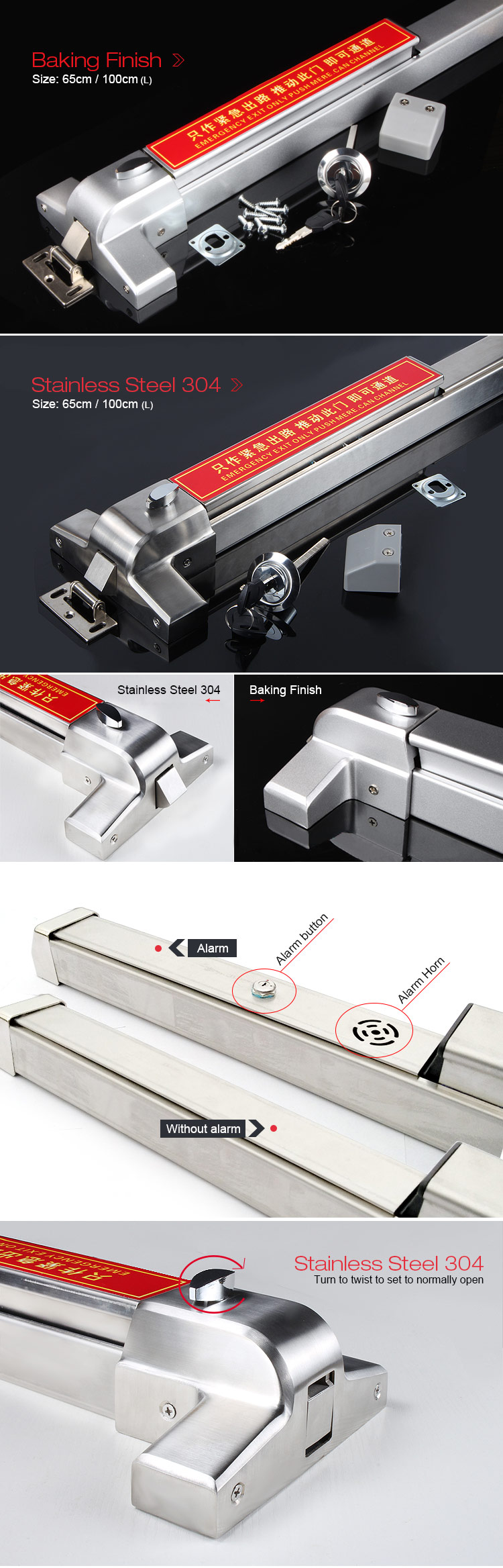

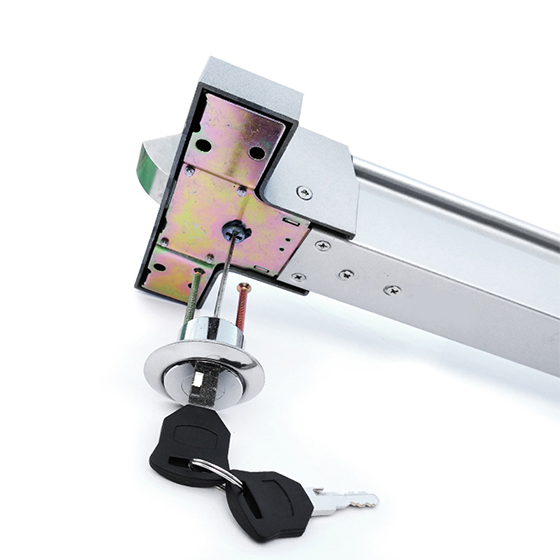

Emergency Exit Panic Push Bar (Baking Finish)

> Material: Baking Finish

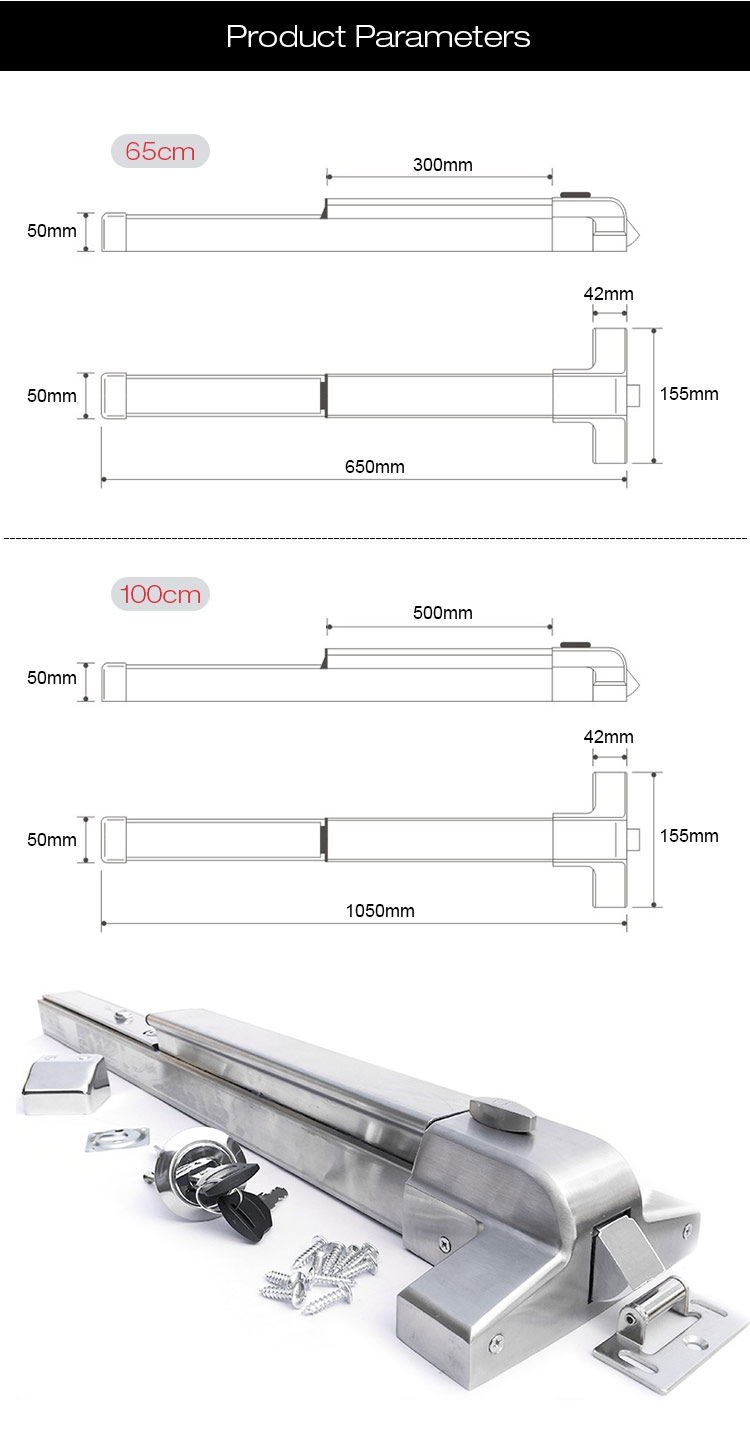

> Dimension: 65x15.5x5cm

                   100x15.5x5cm

  • Brand:

    S4A
  • Item NO.:

    PB-BF65A/N, 100A/N
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Emergency Exit Panic Push Bar (Baking Finish)

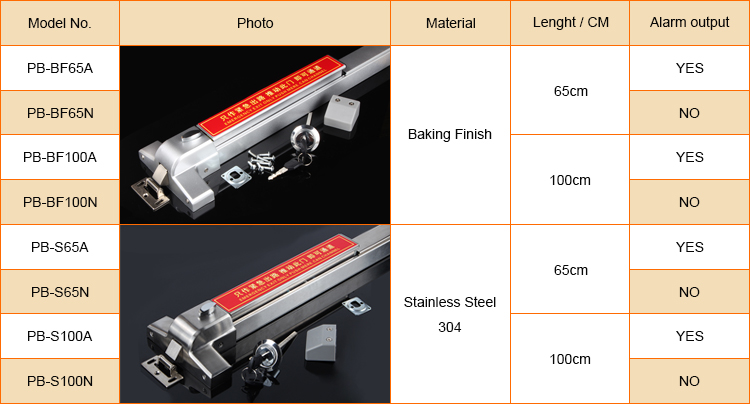

Model No: PB-BF65A, PB-BF65N, PB-BF100A, PB-BF100N


Here are the available models for your choose, Available for 1000mm and 650mm,


Emergency Exit panic push bar (Baking Finish)-PB-BF65A/65N/100A/100N


Specifications:

> Fire-proof ability

> Fits doors 30'-36' wide

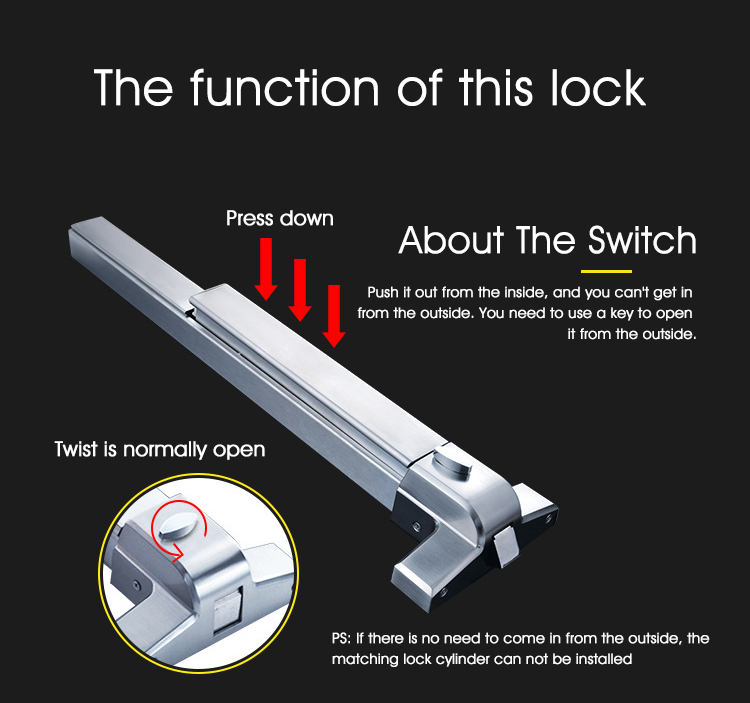

> Panic devise with dogging feature

> Solid cored spring bolt

> Normally open/close

> Corrosion resistance

> Able for exterior opening with keys

> Reversible, non-hand opening

> Competent for crowded public places

> Prevents unauthorized access

> Rounded edges avoiding accidental injury


Product Feature:

> Suitable for both wood or metal door applications (not used for glass doors).

> Easy Installation.

> Excellent Quality Panic Hardware.

> Strike Plate, Dogging Key and Screws Included

> Able to resist the strong external pull. Solid cored spring bolt, resisting sawing and destruction. Trustworthy guardian for life and property security.

> Suitable for controlling visitor flow rate, preventing unauthorized access and theft.

> Meets legal demands for emergency exit devices in buildings.

> Doors will open faster based on convenient non-hand opening with a large compression area.

> Doors will open with a lighter force of ≤70N.

> Rounded edges with standard curving, preventing accidental injuries in an emergency.

> High-resistance to corrosion, passes long-time tests without damaged parts, ensuring its ability to fit in all kinds of places.

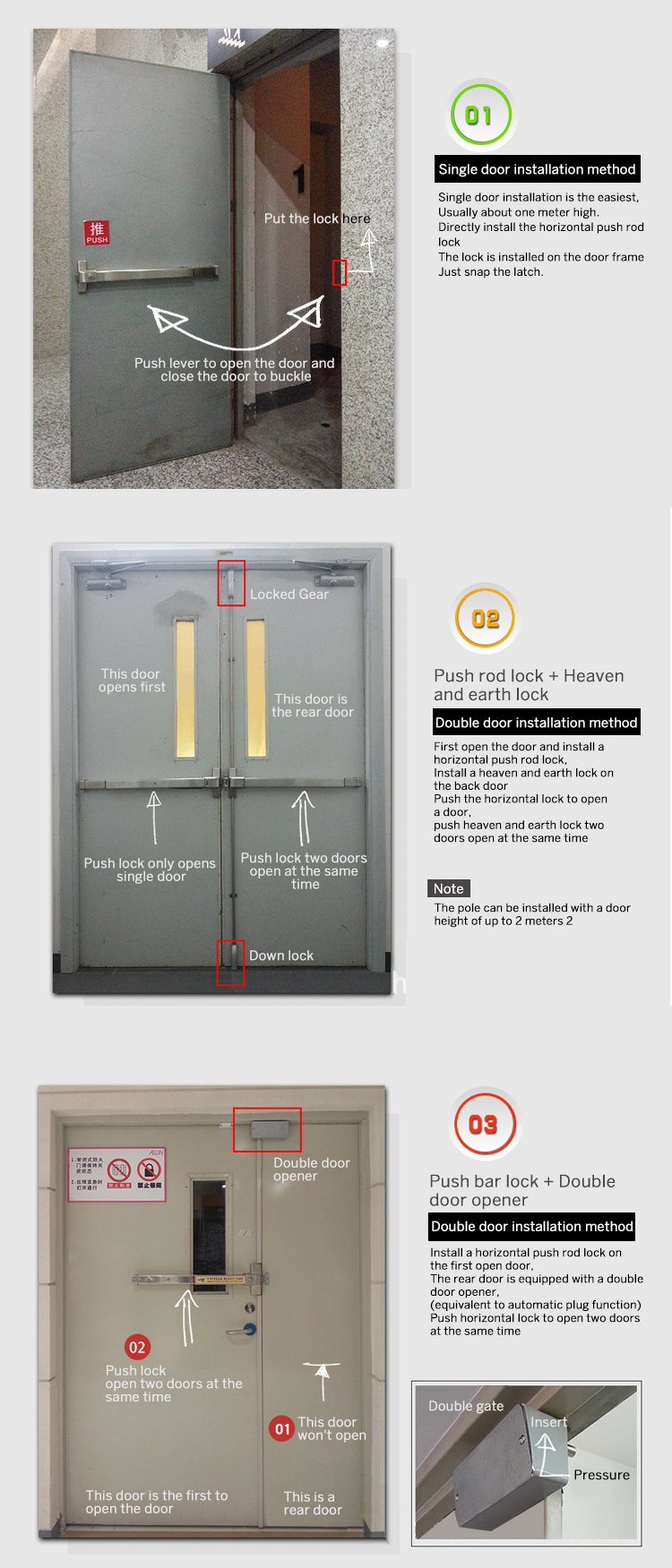

Emergency Push Bar

Emergency Exit Panic Push BarEmergency Exit Panic Push BarEmergency Exit Panic Push Bar



Emergency Push Bar

Emergency Exit panic push bar (Baking Finish)-PB-BF65A/65N/100A/100N

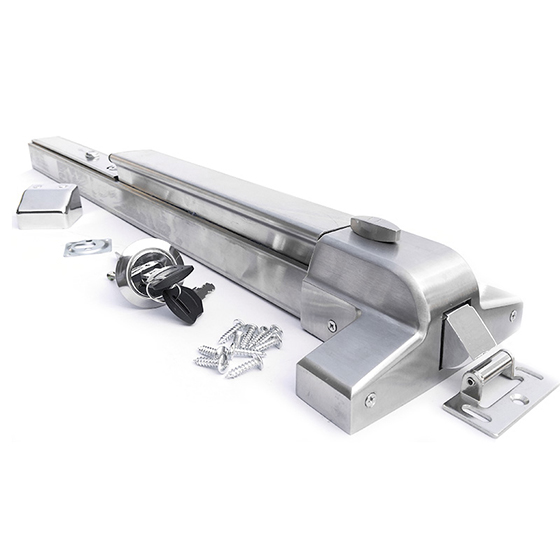

Package Include:

1 x Door Push Bar Exit Lock

Screws for Installation

1 x External Lever

3 x Lever Keys

1 x Strike

1 x End Cap

1 x User Manual



Emergency Exit panic push bar (Baking Finish)-PB-BF65A/65N/100A/100N

S4A_Datesheet_Emergency Exit Panic Push Bar (Baking Finish)

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Manual call point for conventional fire systems
Manual call point for conventional Fire systems

>Operating Voltage Range:DC9~28V>Alarm Current:45mA @ DC 24V>Dimensions:140x105x45mm

Door Handles with Keys

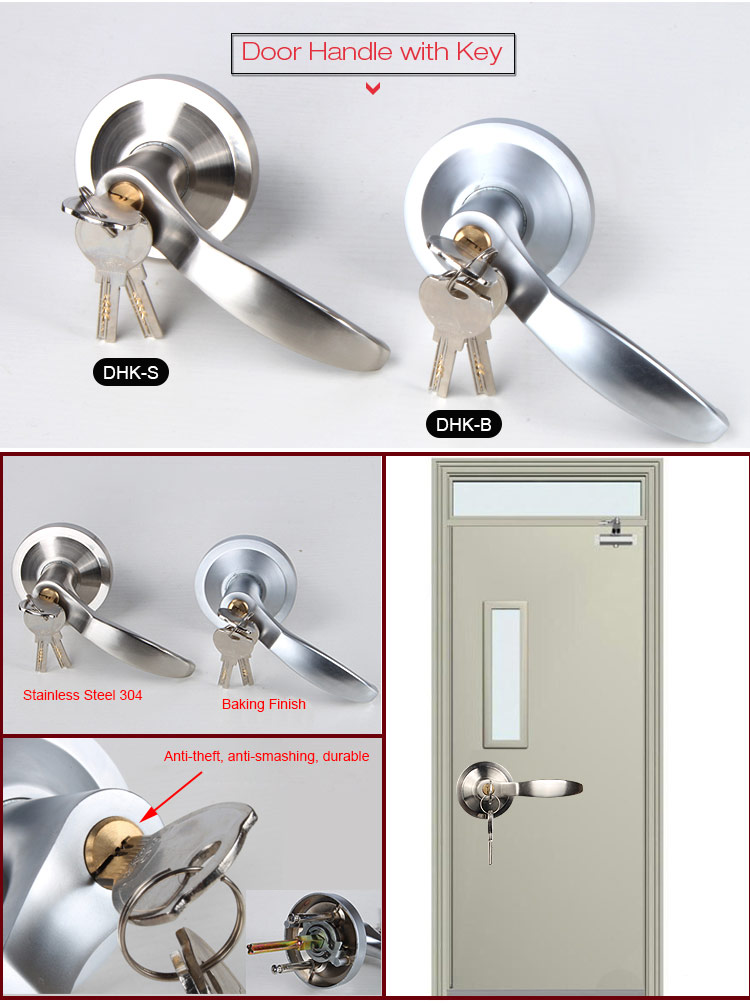

Door Handle with Key

Material: Baking Finish or Stainless Steel 304

Double Doors

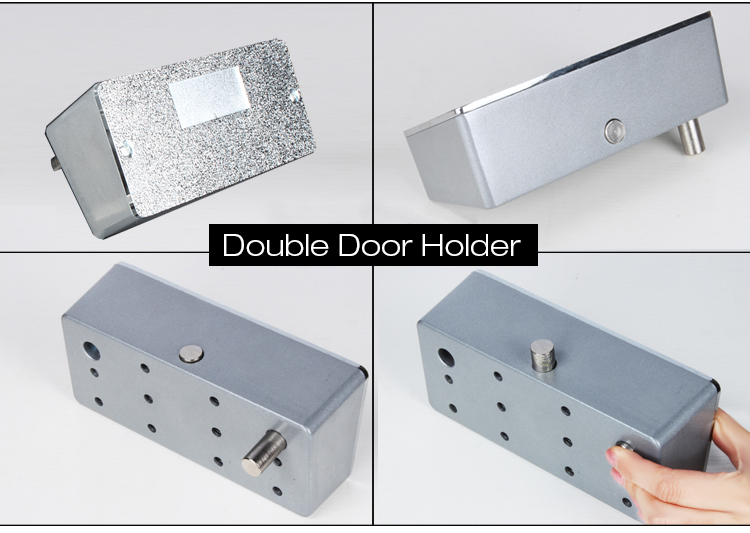

Zinc Alloy Double Door Holder
