BL-2700A: (power to lock)
BL-2700B: (power to open)
Voltage: DC12V ( 12V+ 24V is optional)
Brand:
S4AItem NO.:

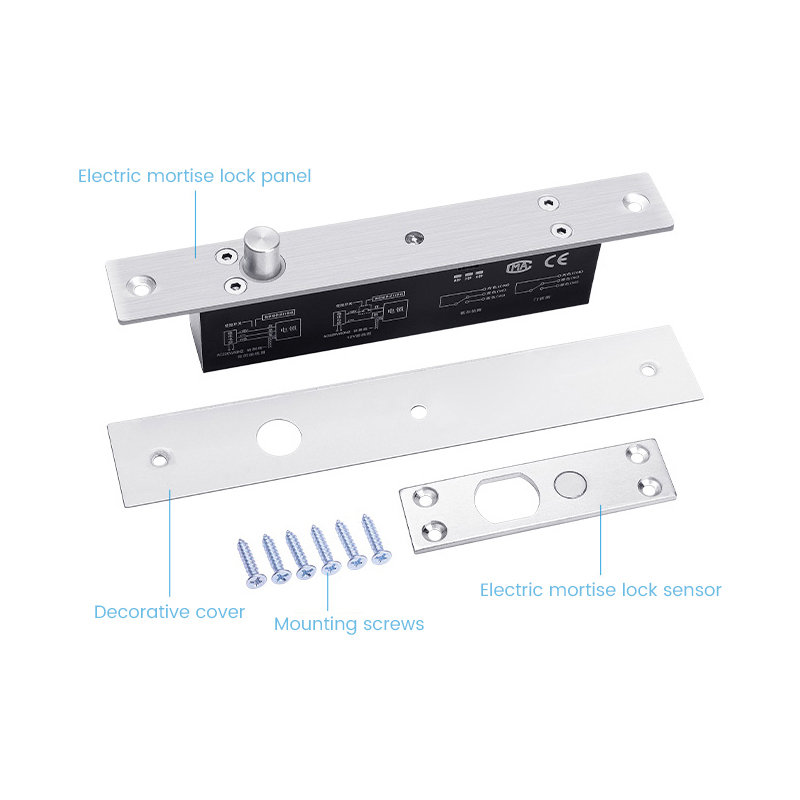

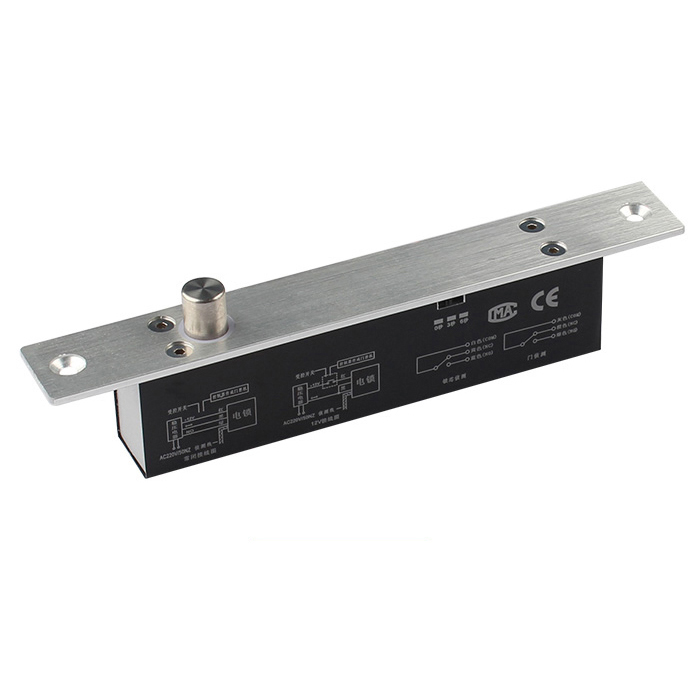

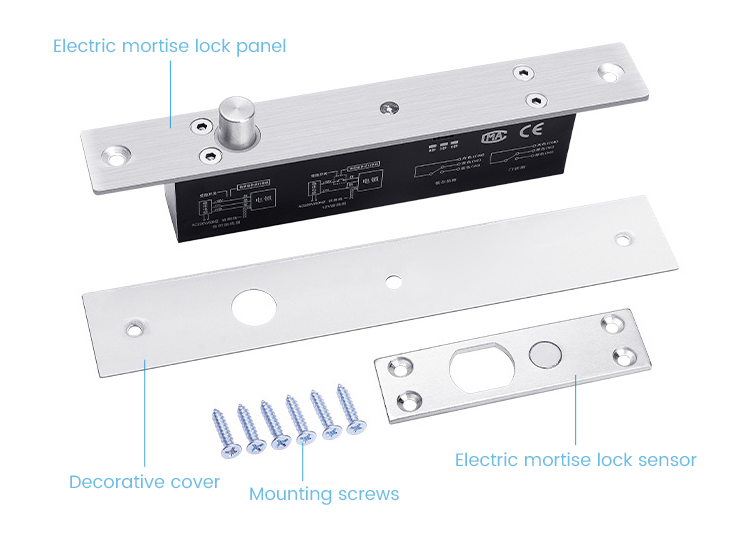

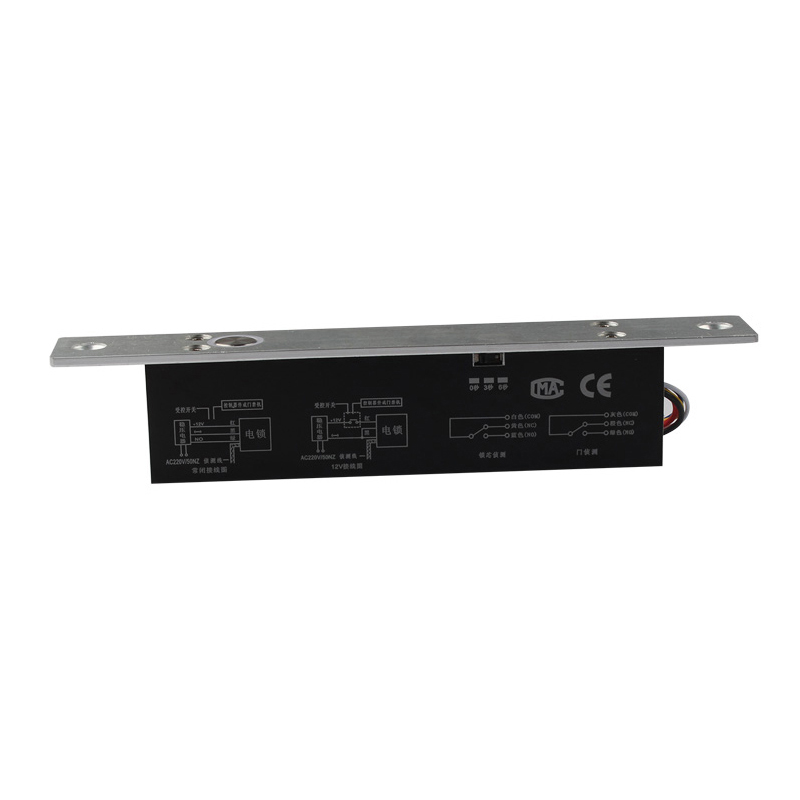

BL-2700A, 2700BElectric Bolt With Magnetic feature
Model No.: BL-2700A, 2700B
Voltage | DC12V |
Current | Start current: 1.1A standby 0.14A |

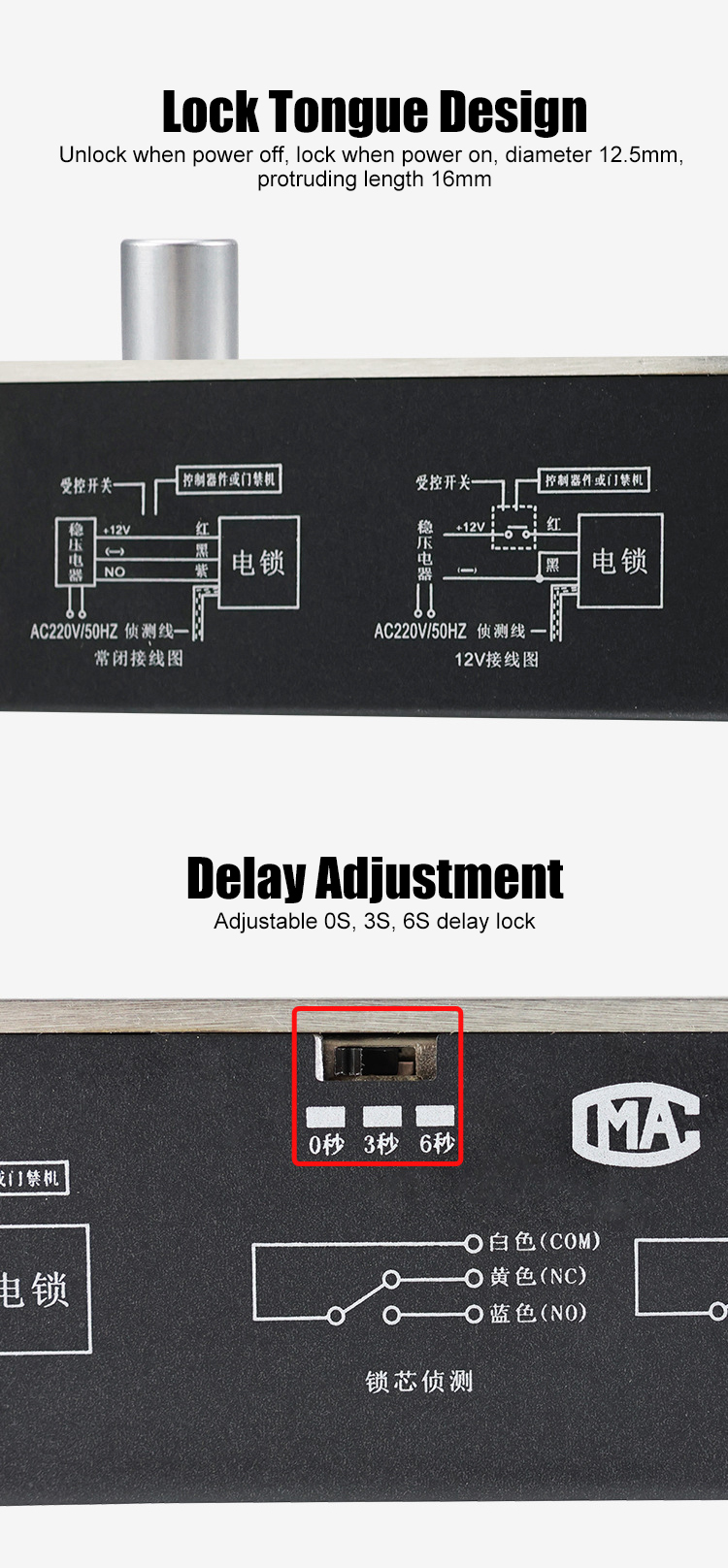

Time Delay | 0.3. 6 seconds |
Current output | Less 200mA |
Open door way | Fail-safe or Fail-Secure |
Lock way | Magnet induction |
Weight | 0.52KG |

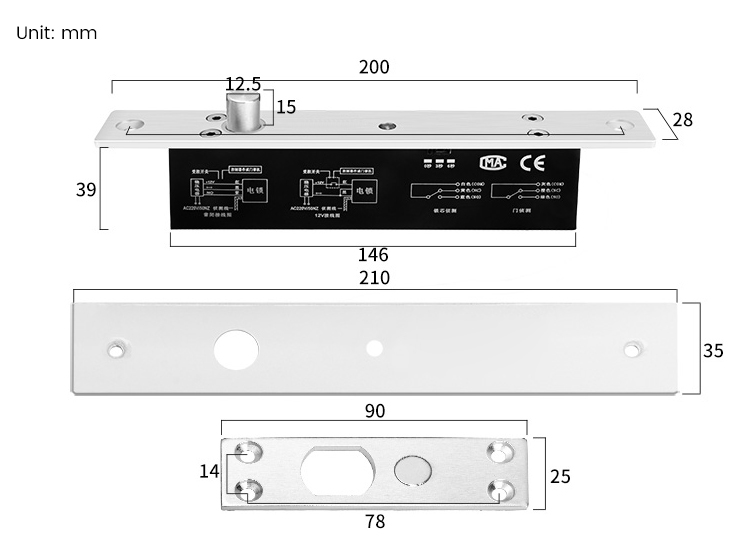

Dimension | 200 X 28 X 38mm |
S4A Datesheet_Electric Bolt with Magnetic Feature
> Face Plate: 205Lx35WX40H(mm)> Bolt: 16mm(Throw) x 16mm(Diameter)> Voltage: DC12V
Signal Output: door open or door close state detectionwith output point, NC/COM
> Voltage: DC12V> Start Current: 900mA> Standby Current: 150mA> Face Plate: 205Lx35WX41H(mm)> Strike plate: 90Lx25Wx2W(mm)> Solid Bolt: polishing housing, 800Kg Holding Force> Signal Output: Door status Output, NC/COM> Timer: 0/ 3/ 6/ 9 seconds available to set
Fail-Secure (power off, the door is locked) 12V-24V> Low Temperature, safe & Durable> Low Power, Environmental Protection> MOV Provides Reverse Current Protection> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt> Autolock Time Delay: 0,3,6,9sec.> Double protection for loading current> Auto-relock if no Action within 5 secs.
> Power supply: DC12-24V> Locking start current: 980mA> Quiescent Current: 200mA> Security type: Power on lock
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Face Plate: 200X34X42mm> Strike Plate: 90X25X3mm> Lock Cylinder: 15mmX15mm> Working Voltage: DC12V> Start working: 450mA
> Face Plate: 205Lx35WX40H(mm)> Bolt: 16mm(Throw) x 16mm(Diameter)> Voltage: DC12V
Signal Output: door open or door close state detectionwith output point, NC/COM
> Voltage: DC12V> Start Current: 900mA> Standby Current: 150mA> Face Plate: 205Lx35WX41H(mm)> Strike plate: 90Lx25Wx2W(mm)> Solid Bolt: polishing housing, 800Kg Holding Force> Signal Output: Door status Output, NC/COM> Timer: 0/ 3/ 6/ 9 seconds available to set
Fail-Secure (power off, the door is locked) 12V-24V> Low Temperature, safe & Durable> Low Power, Environmental Protection> MOV Provides Reverse Current Protection> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt> Autolock Time Delay: 0,3,6,9sec.> Double protection for loading current> Auto-relock if no Action within 5 secs.
> Power supply: DC12-24V> Locking start current: 980mA> Quiescent Current: 200mA> Security type: Power on lock
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Face Plate: 200X34X42mm> Strike Plate: 90X25X3mm> Lock Cylinder: 15mmX15mm> Working Voltage: DC12V> Start working: 450mA
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
