Products
Products
Home /

Electric Door Lock

/

Electric Dropbolt Lock

/DC12V Waterproof Mortise Bolt lock

New Products

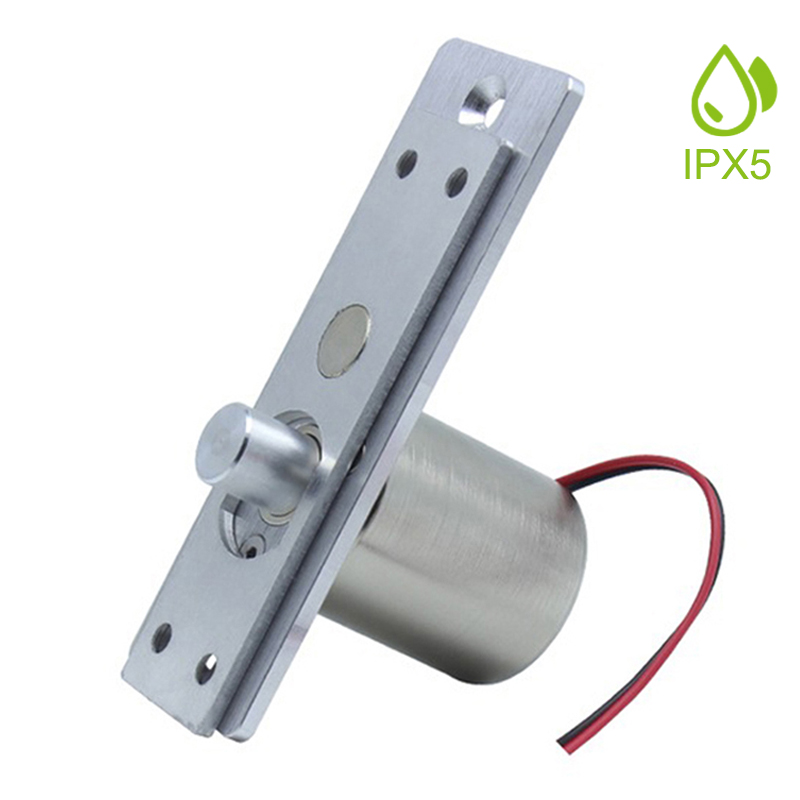

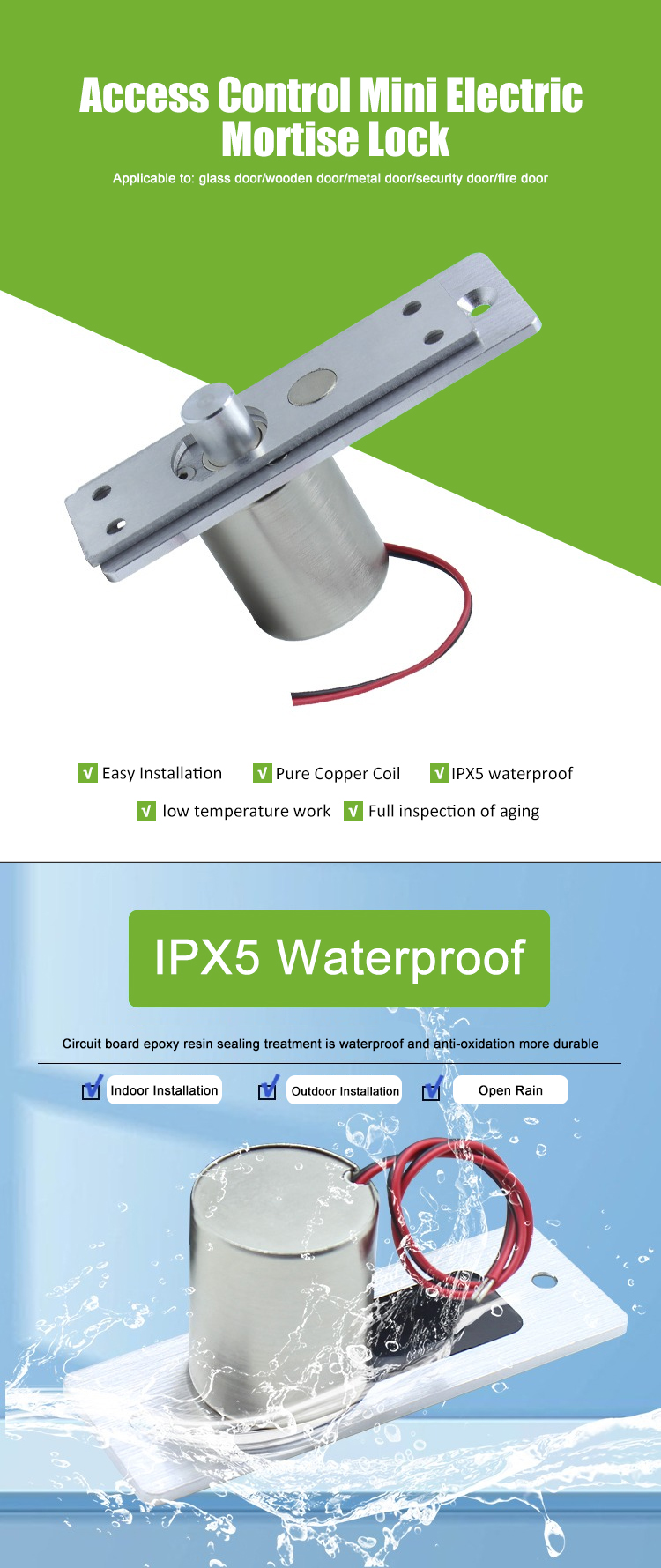

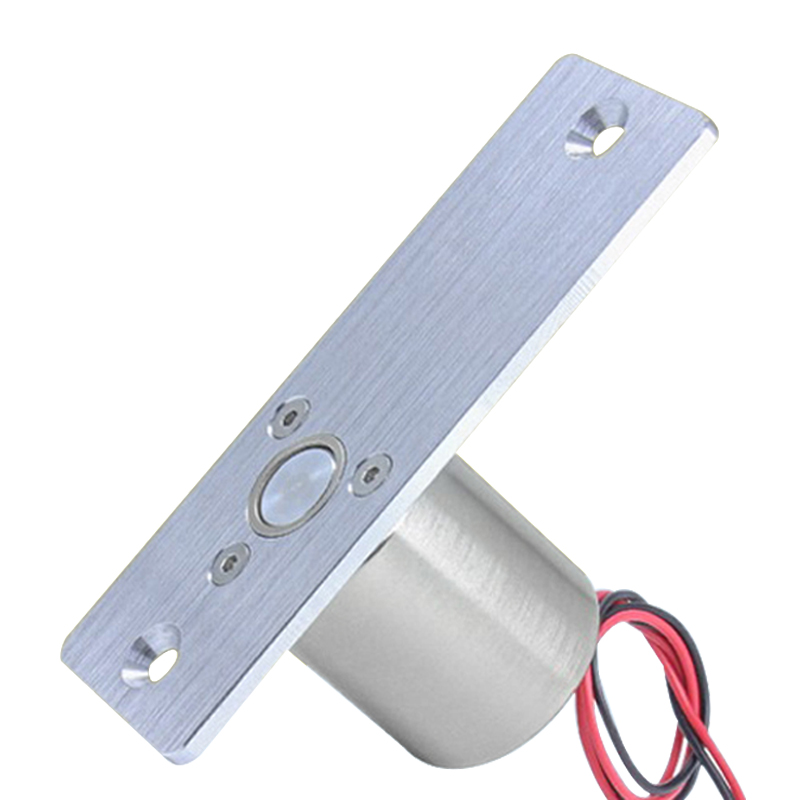

DC12V Waterproof Mortise Bolt lock

>Voltage: DC1 2V

>Current: start state 1.1A continuous state 0.09A

>Security type: lock when power on, unlock when power off

  • Brand:

    S4A
  • Item NO.:

    BL-T10
  • Specifications

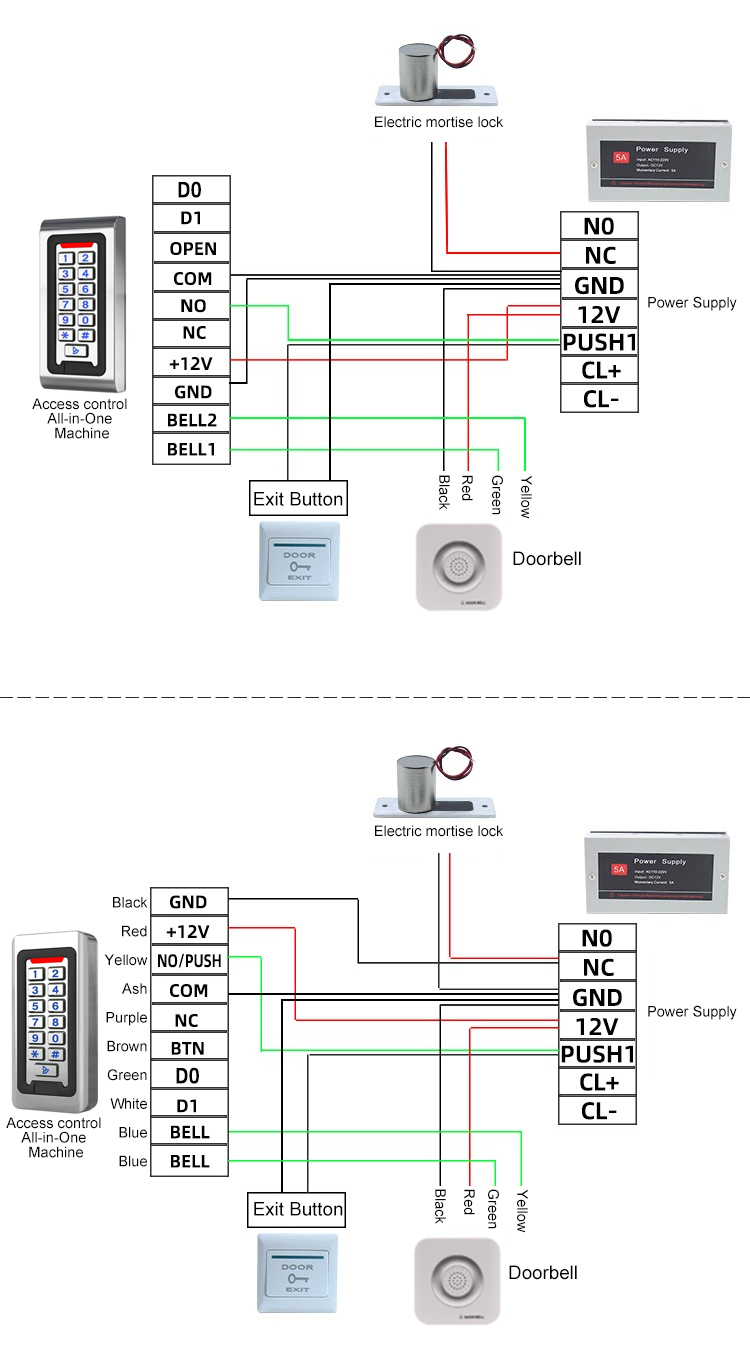

  • Wiring Diagram
  • Package
  • Download

DC12V Waterproof Mortise Bolt lock

Model No.: BL-T10


Voltage

DC12V

Current

start state 1.1A continuous state 0.09A

Security type

lock when power on, unlock when power off

Locking method

Magnetic induction. Locking

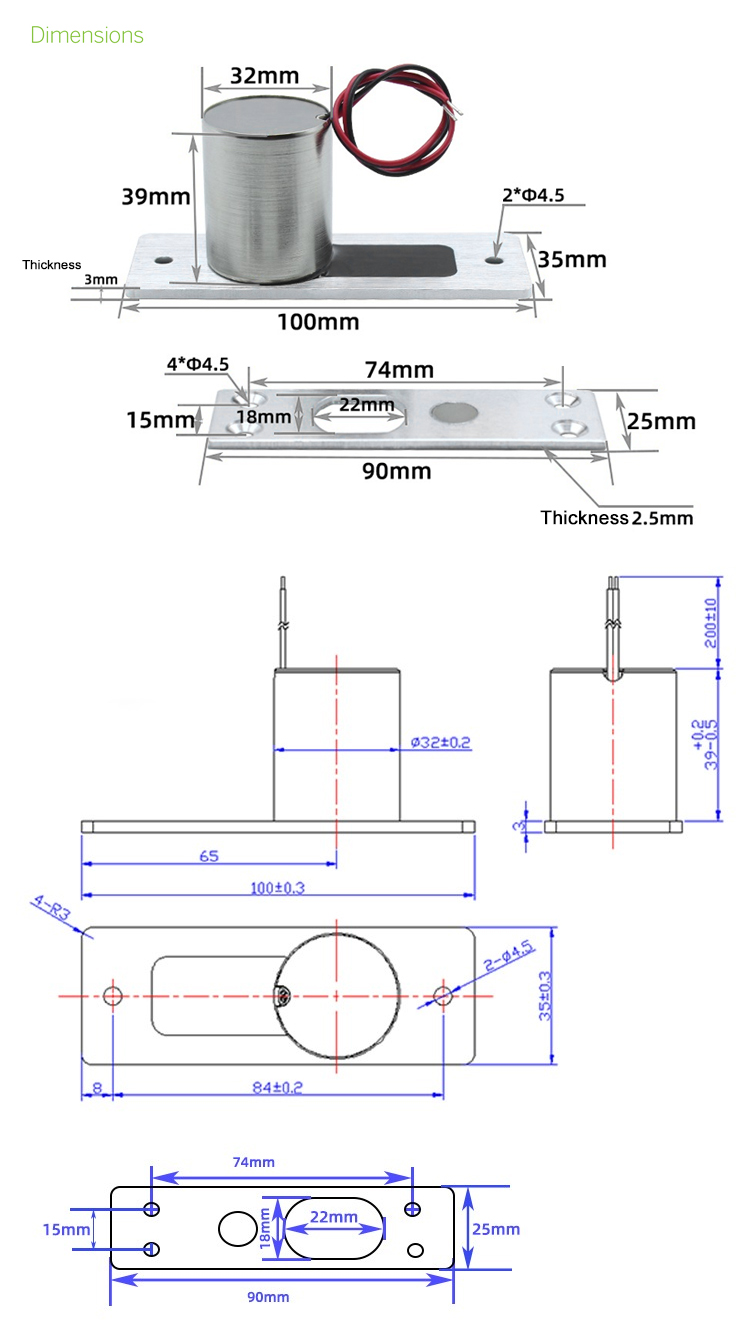

Lock core size

lock core diameter 12mm, extension length 13mm


Mortise Bolt lock

Mortise Bolt lock

Mortise Bolt lock

Mortise Bolt lock

Mortise Bolt lock

S4A Datesheet_DC12V Waterproof Mortise Bolt Lock
