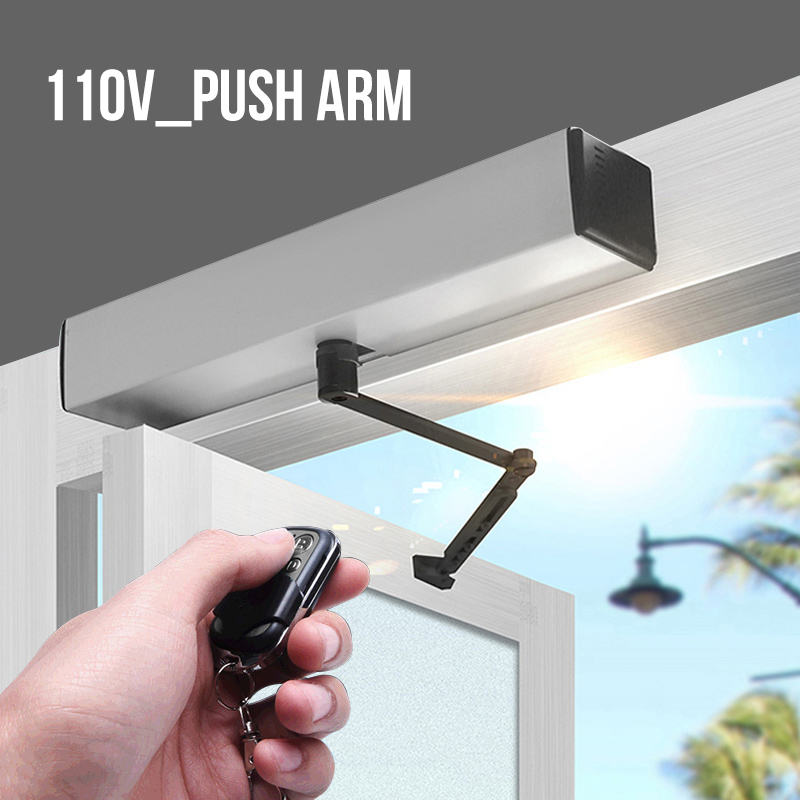

S4A Automatic Flat door systems with Pull arm or Push arm, support 110V or 220V with a brushed motor
> Power supply: 110V or 220V
> Opening time: 3~7s / 90°
> Opening and holding time: 1-30s
> Protection level: IP12D
Brand:
S4AItem NO.:

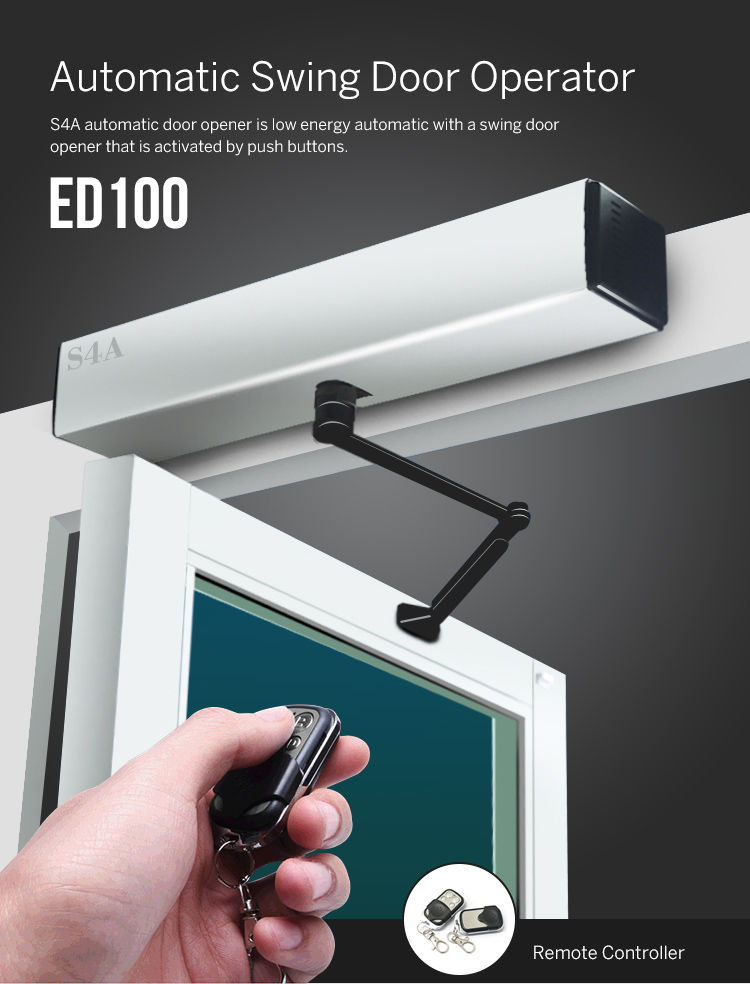

ED100 (C)Automatic Operator 110v Garage Swing Auto Door Openers with 90open degree
Model No.: ED100
Model No. | ED100 (A) | ED100 (B) | ED100 (C) | ED100 (D) |

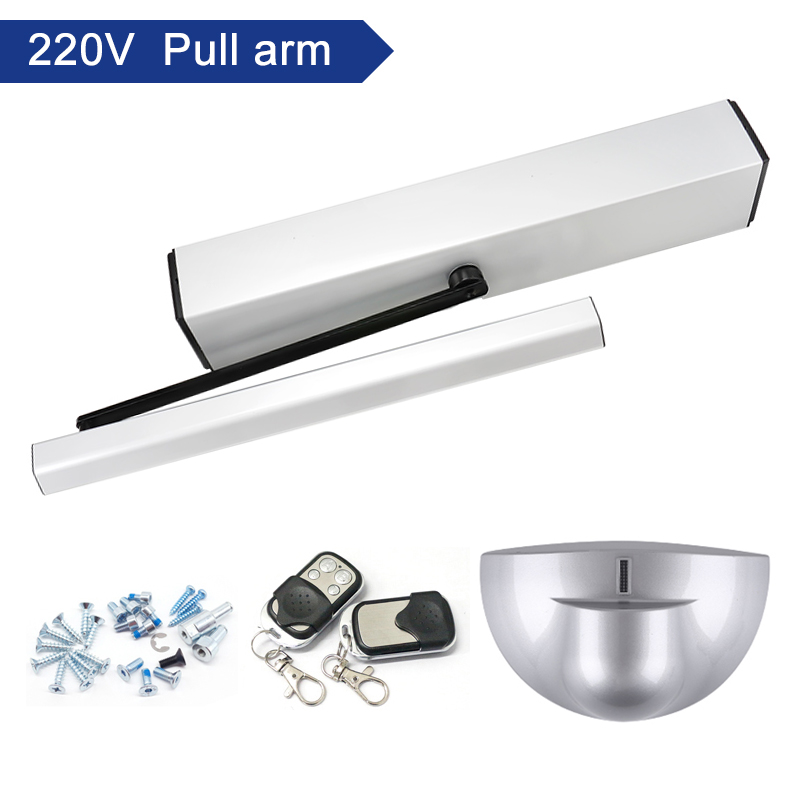

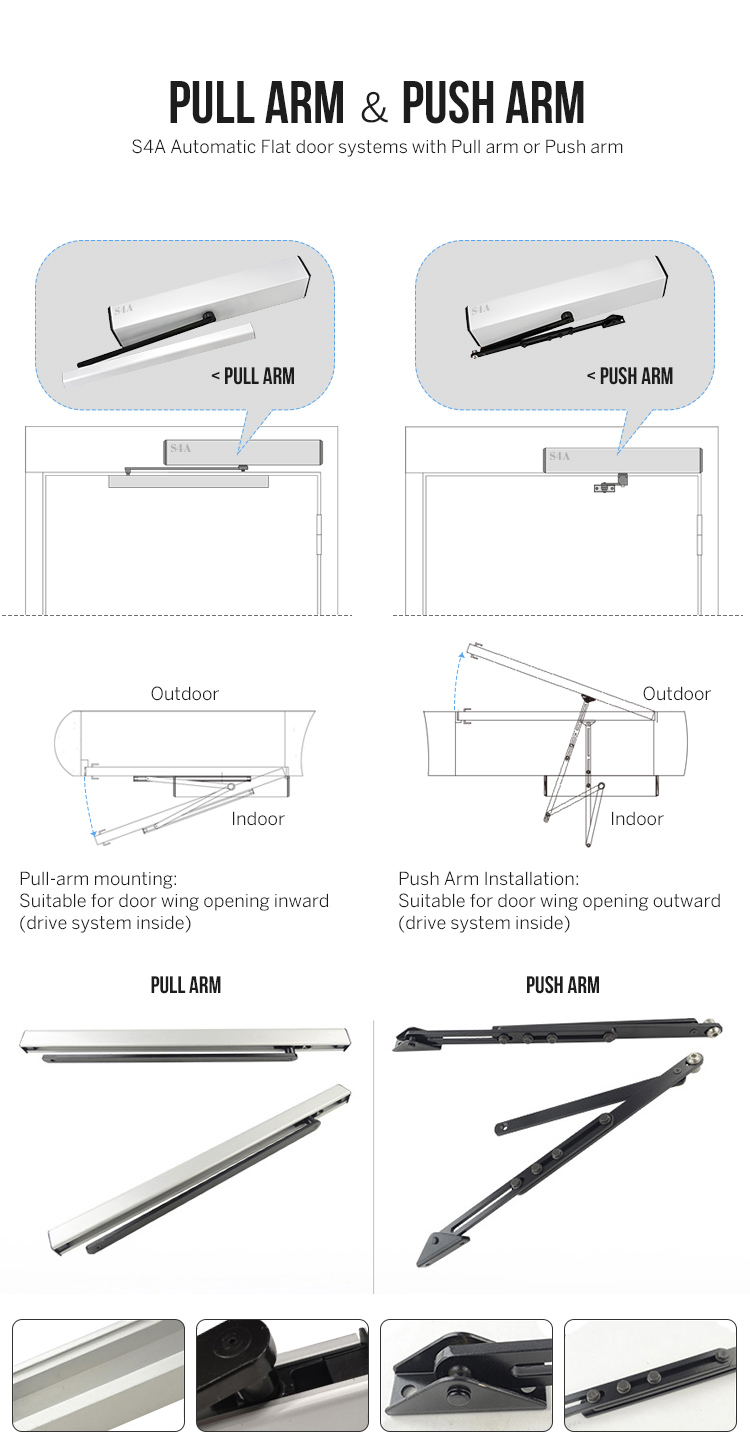

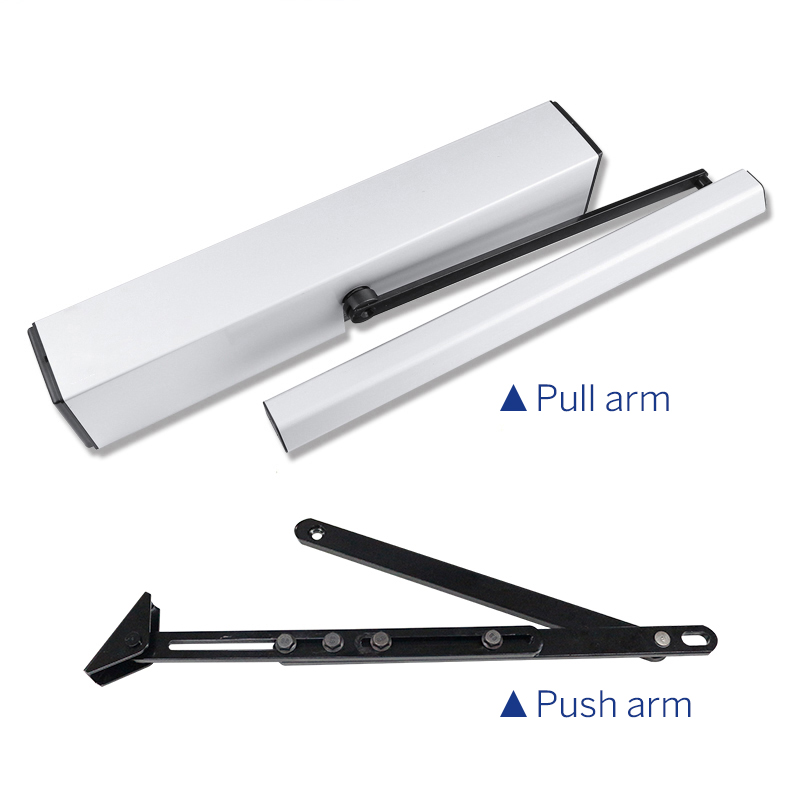

An operator with arm | Pull arm | Push arm | Pull arm | Push arm |

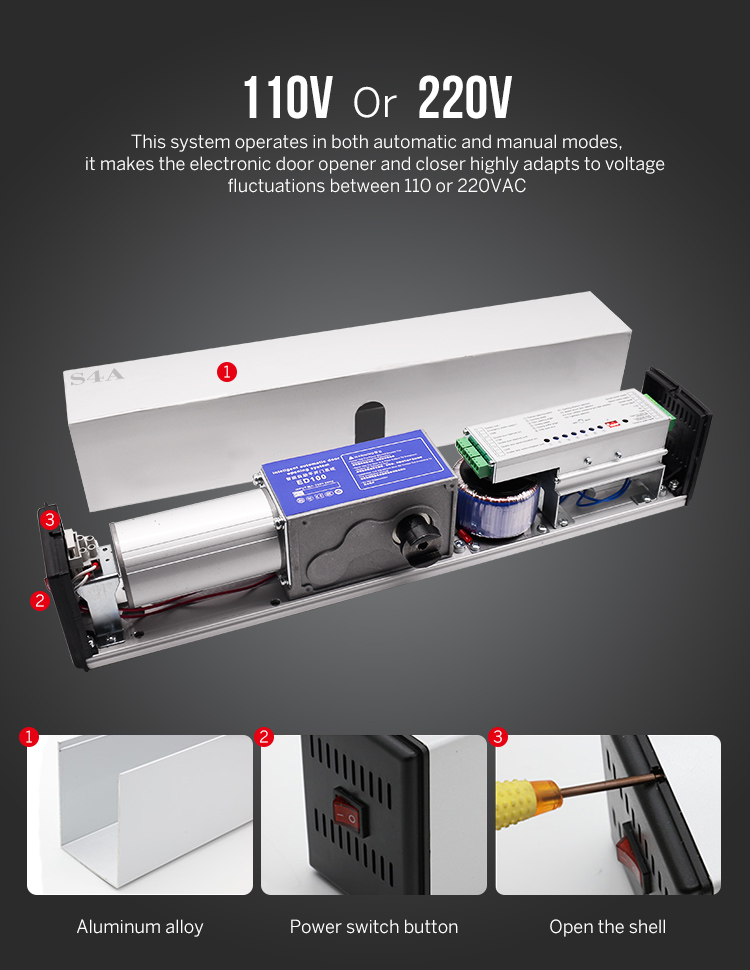

Power supply | 220V | 220V | 110V | 110V |
Opening time | 3~7s / 90° | |||
Opening and holding time | 1-30s | |||
Temperature | -20℃~55℃ | |||
Protection level | IP12D | |||

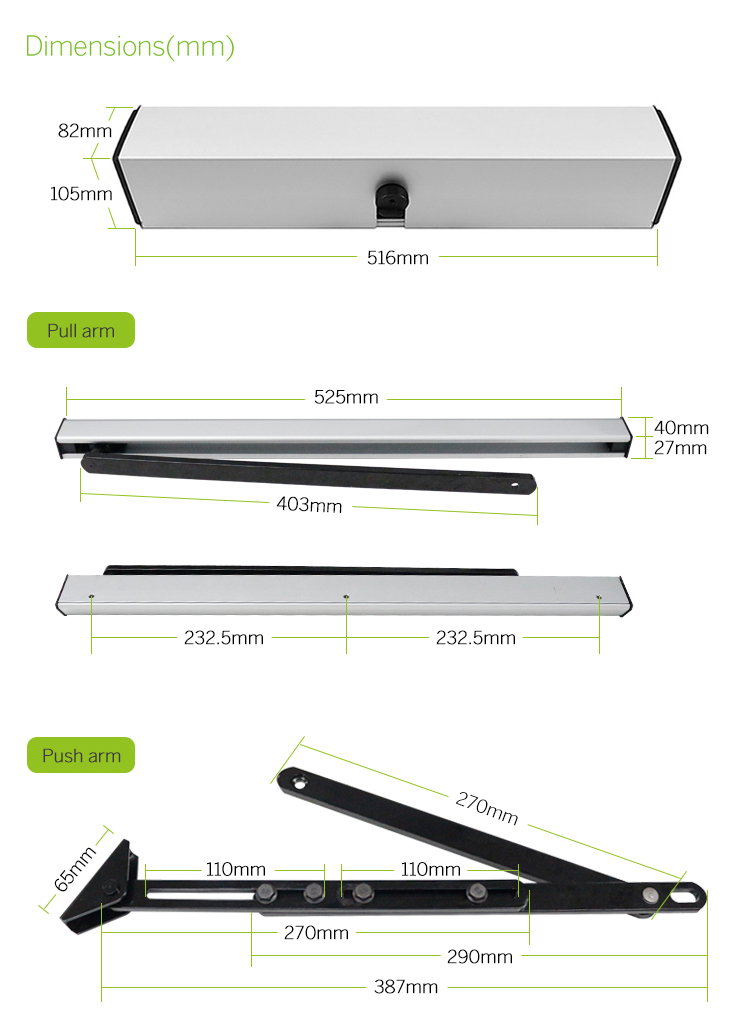

Dimensions | 516x105x82mm | |||
Packing box | 626x197x152mm | |||
Weight | 8.5kg | |||
Main Features:

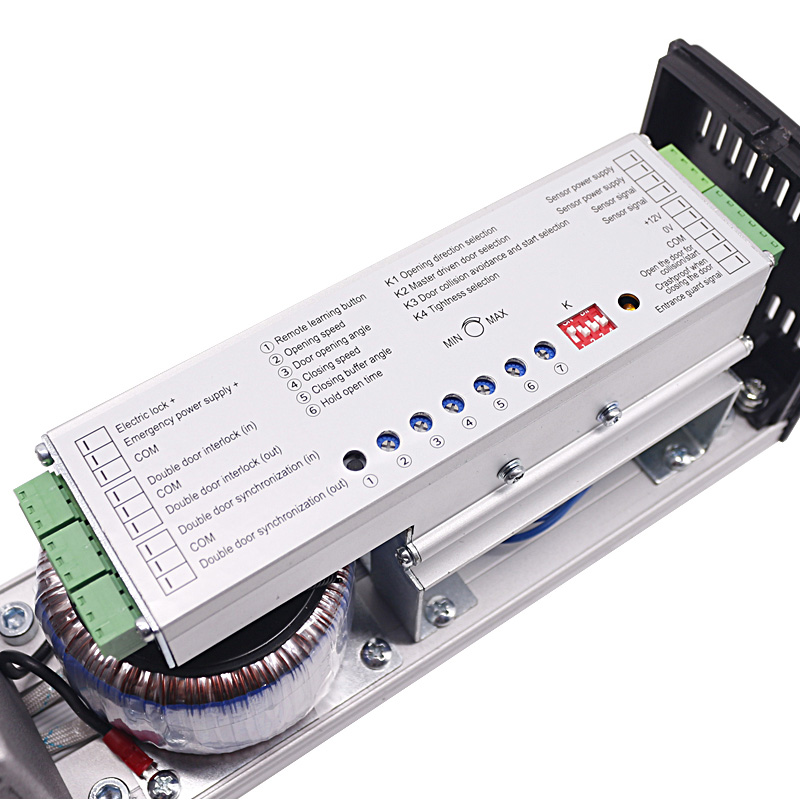

1. An advanced and reliable microprocessor controller is applied.
2. Brushless motor with self-locking, a long life span, and energy conservation.
3. Opening & Closing Speed adjustable.
4. Automatic/Lock/One Way/Half-open/Hold-open status can be set by remote key.
5. Opening and closing smooth with low noise.
6. Safety interlock and electric lock function.

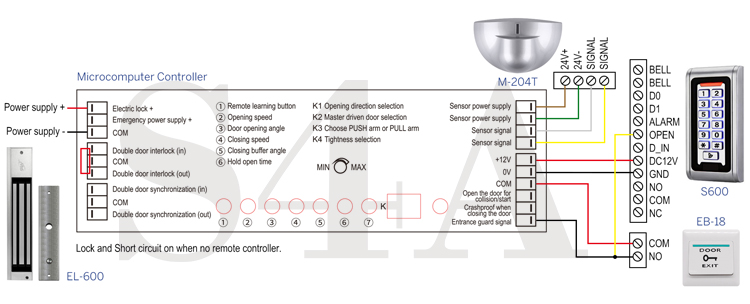

7. Support multiple access control systems and Fire Alarm System
8. Auto-Reverse
Automatic Swing Door Opener With Wireless Push Button And Pull Arm Or Push Arm | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ED100 | 2pcs | 16KG | 65x33x23cm |
S4A ED100 User Manual_Automatic Operator 110V Garage Swing Auto Door Openers with 90open Degree
