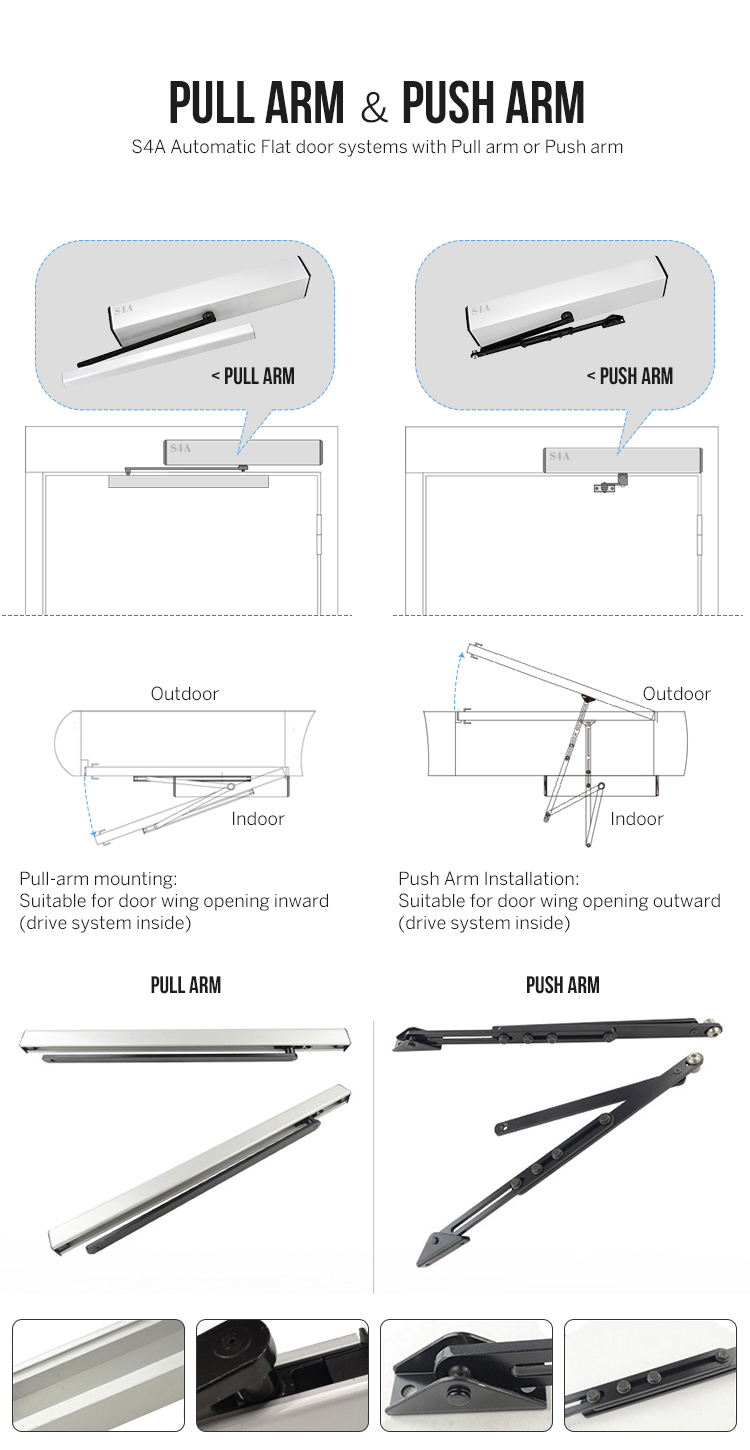

S4A Automatic Flat door systems with Pull arm or Push arm, support 110V or 220V with a brushed motor
> Power supply: 110V or 220V
> Opening time: 3~7s / 90°
> Opening and holding time: 1-30s

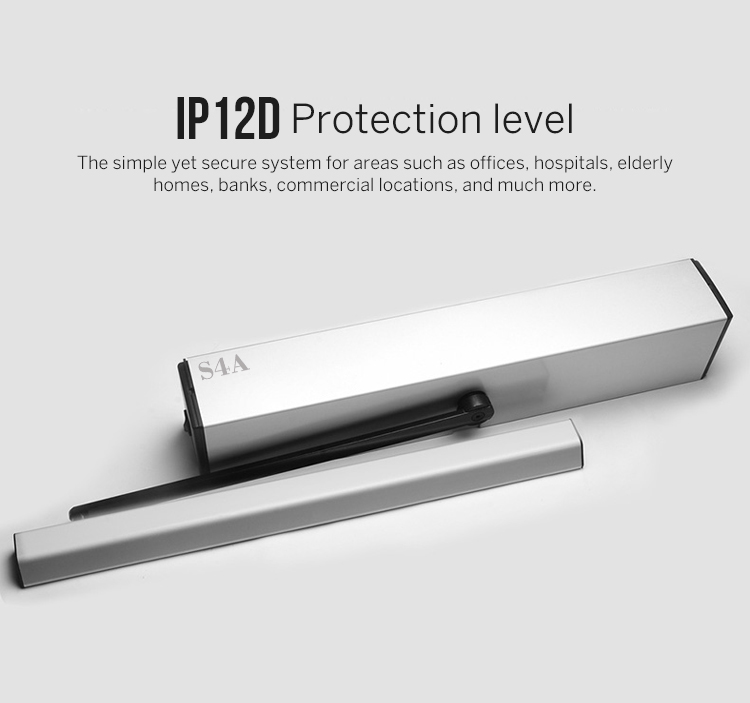

> Protection level: IP12D
Brand:
S4AItem NO.:
ED100 (B)Aluminum alloy Automatic door closer Swing Gate opener garage door opener with remote control fire door opener
Model No.: ED100
Model No. | ED100 (A) | ED100 (B) | ED100 (C) | ED100 (D) |

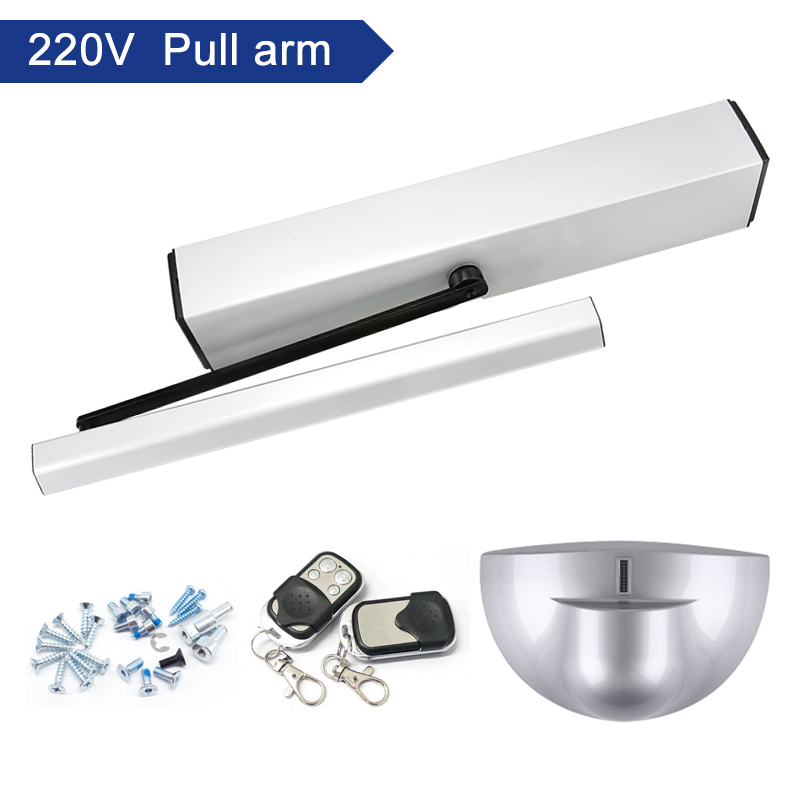

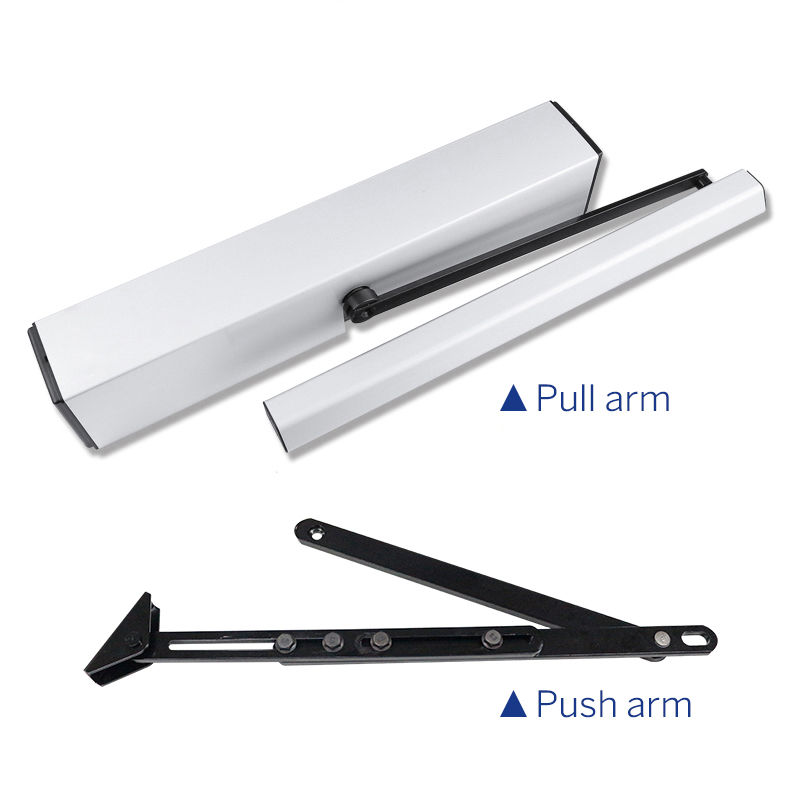

An operator with arm | Pull arm | Push arm | Pull arm | Push arm |
Power supply | 220V | 220V | 110V | 110V |
Opening time | 3~7s / 90° | |||
Opening and holding time | 1-30s | |||
Temperature | -20℃~55℃ | |||
Protection level | IP12D | |||

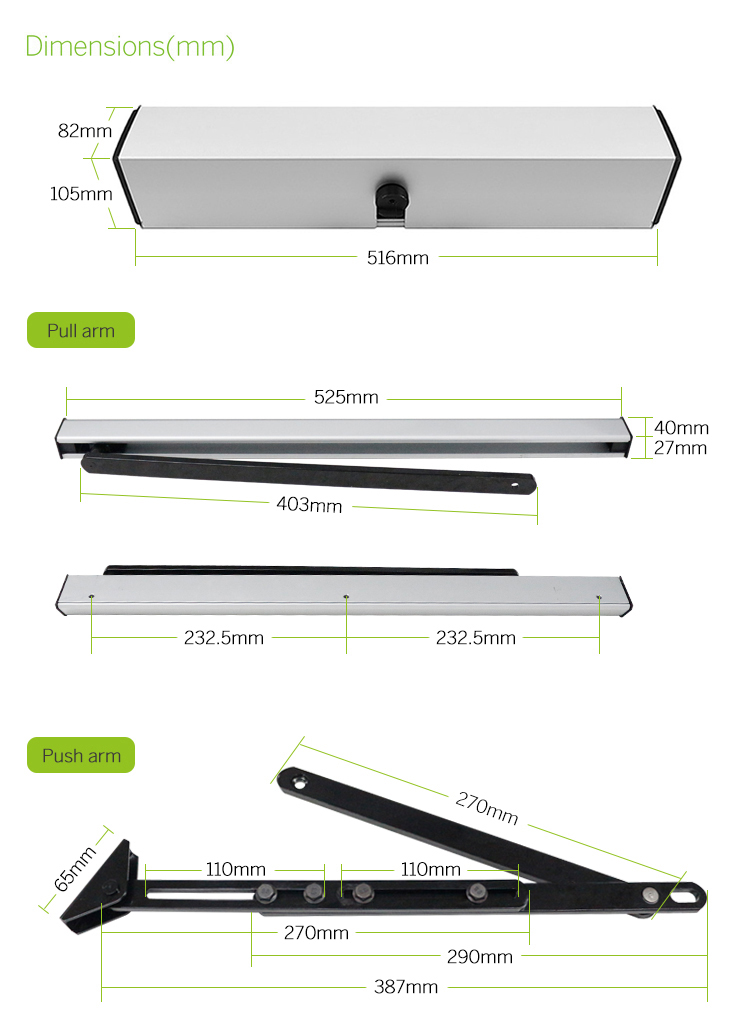

Dimensions | 516x105x82mm | |||
Packing box | 626x197x152mm | |||
Weight | 8.5kg |
Main Features:

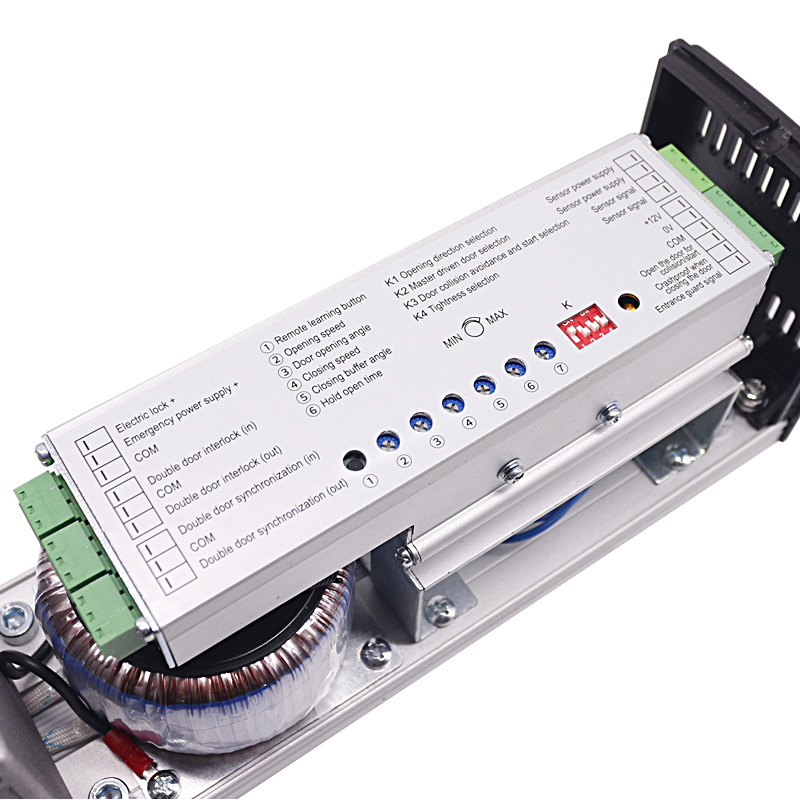

1. An advanced and reliable microprocessor controller is applied.
2. Brushless motor with self-locking, a long life span, and energy conservation.
3. Opening & Closing Speed adjustable.

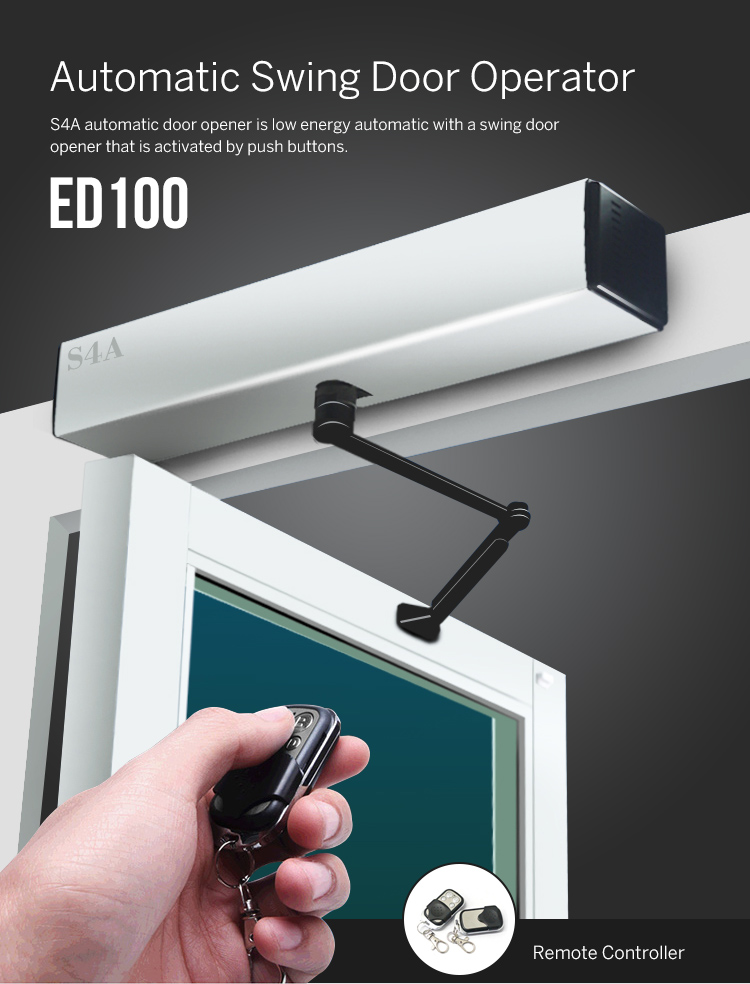

4. The remote key can set Automatic/Lock/One Way/Half-open/Hold-open status.
5. Opening and closing smooth with low noise.
6. Safety interlock and electric lock function.
7. Support multiple access control systems and Fire Alarm systems
8. Auto-Reverse
Automatic Garage Door Opener Swing Opening Heavy Duty Door Operator With 2pcs Microwave Sensor | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ED100 | 2pcs | 16KG | 65x33x23cm |
S4A ED100 User Manual_Aluminum Alloy Automatic Door Closer Swing Gate Opener Garage Door Opener with Remote Control Fire Door Opener
