Wireless Wiegand Interface Module

>Shell size:61x36x25mm

>Wireless working frequency band:433-473Mhz

>Number of supported channels:Use USB to set 50

  • Brand:

    S4A

  • Item NO.:

    Wireless-WG
Inquire Now
  • Specifications

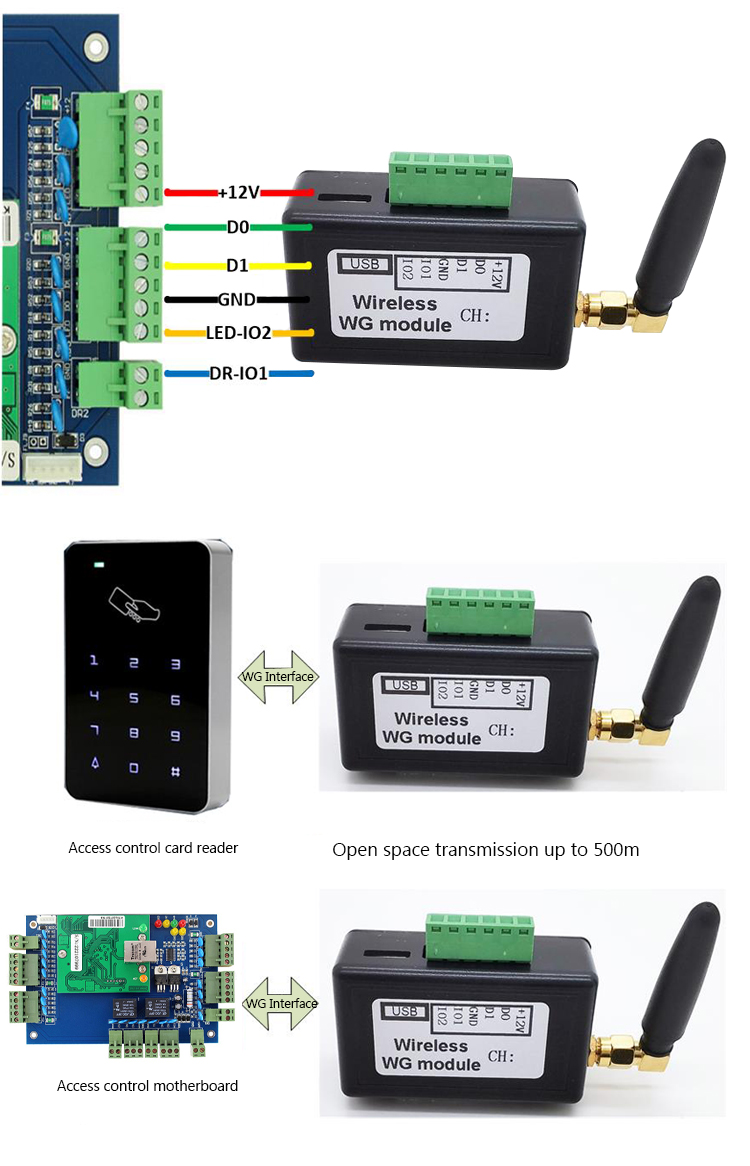

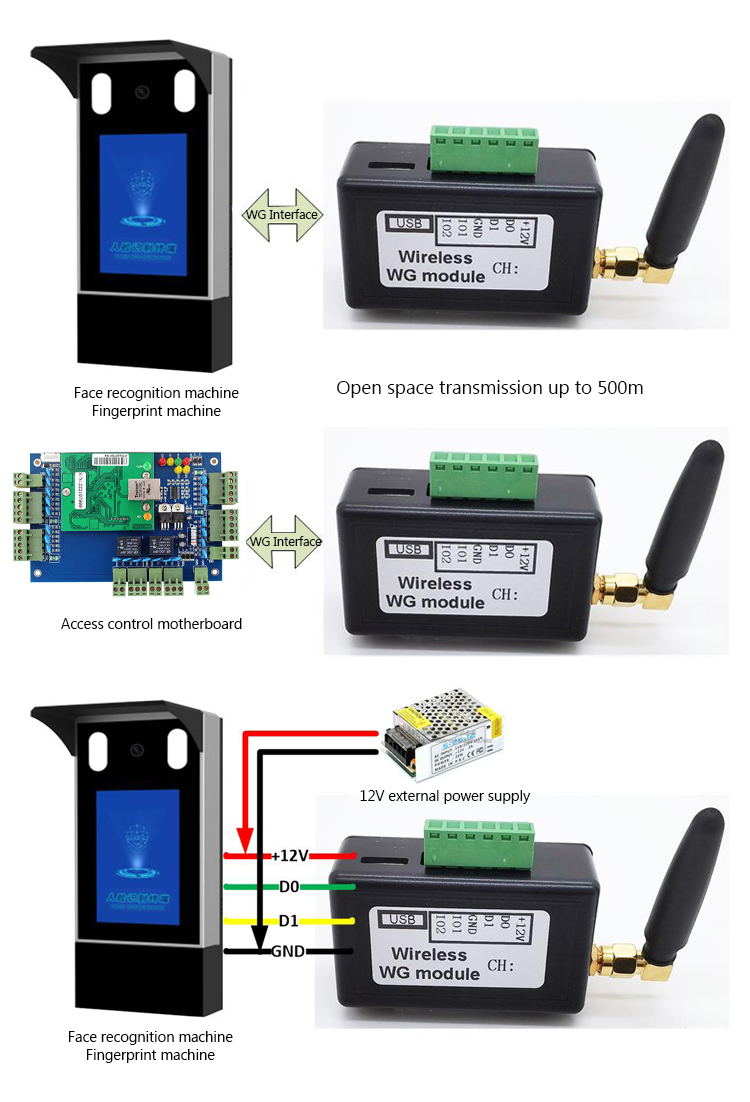

  • Wiring Diagram

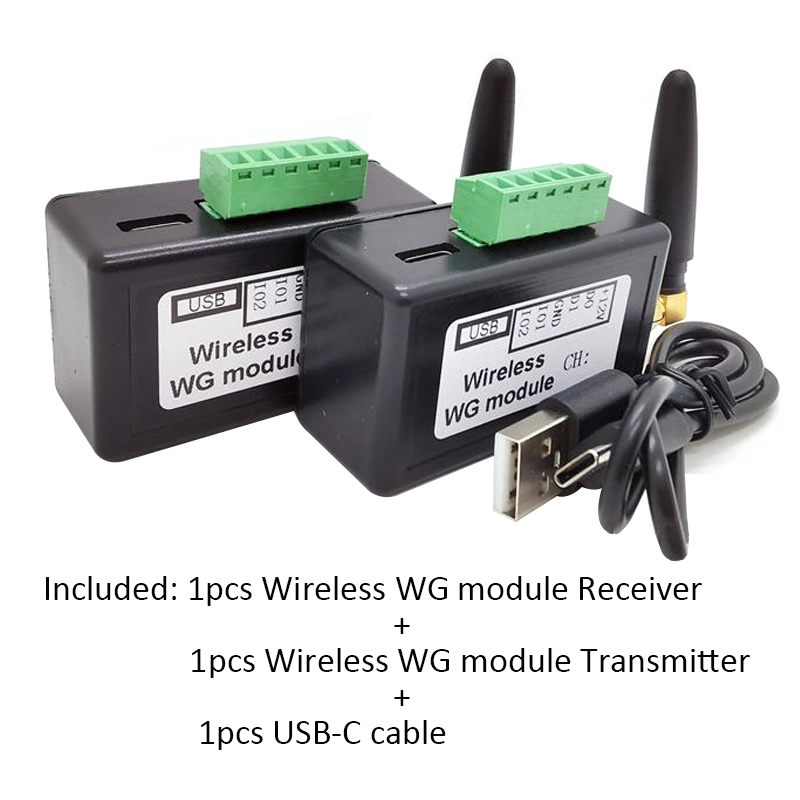

  • Package

Wireless Wiegand Interface Module

Model No.: Wireless-WG

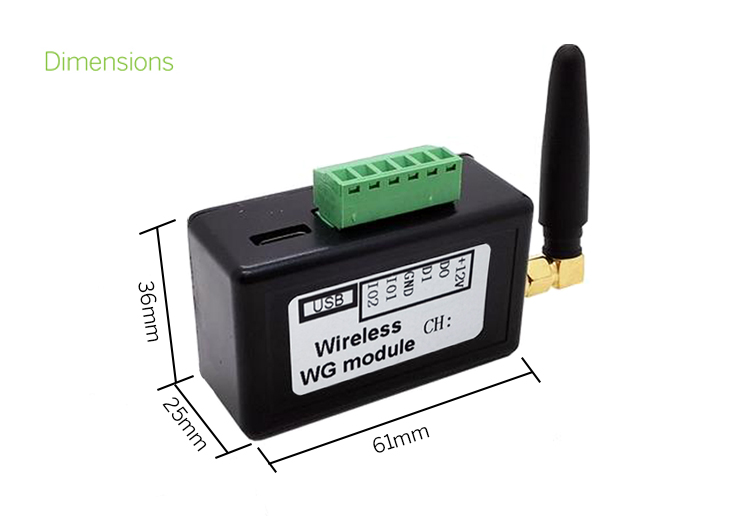

Shell size

61x36x25mm

External power supply

9-24V/static 50mA, maximum 300mA

USB interface

Type-C virtual serial port mode, baud rate adaptive

Wireless transmission distance

Matching 3DB rod antenna line of sight of about 500 meters External 12DB antenna line of sight of about 1000 meters (optional)

Wiegand interface

WG26~WG80 automatic identification, including password button

Data transmission delay

Less than 300ms

Wireless working frequency band

433-473Mhz

Number of supported channels

Use USB to set 50

IO port

2-way bidirectional IO, automatic identification of input and output

Wiegand terminal

Pin pitch 3.81mm*6P

Antenna interface

Rod or external antenna SMA internal screw internal pin


Wireless Wiegand Interface Module

Wireless Wiegand Interface Module

Wireless Wiegand Interface Module

Related Tags : Wireless Wiegand Interface Module 500M wireless converter module Wiegand Converter
