> 433MHz Rolling Code technology
> 500PIN/card users
> 4~8 digits PIN, 125KHz EM card
> Communication distance: 50m Max
> Open/Close by Keypad, transmitter, or touch the lock
Brand:
S4AItem NO.:
D5-PWireless invisible lock anti-theft access all-in-one machine, with anti-theft and 4 keys
Model No: D5-P

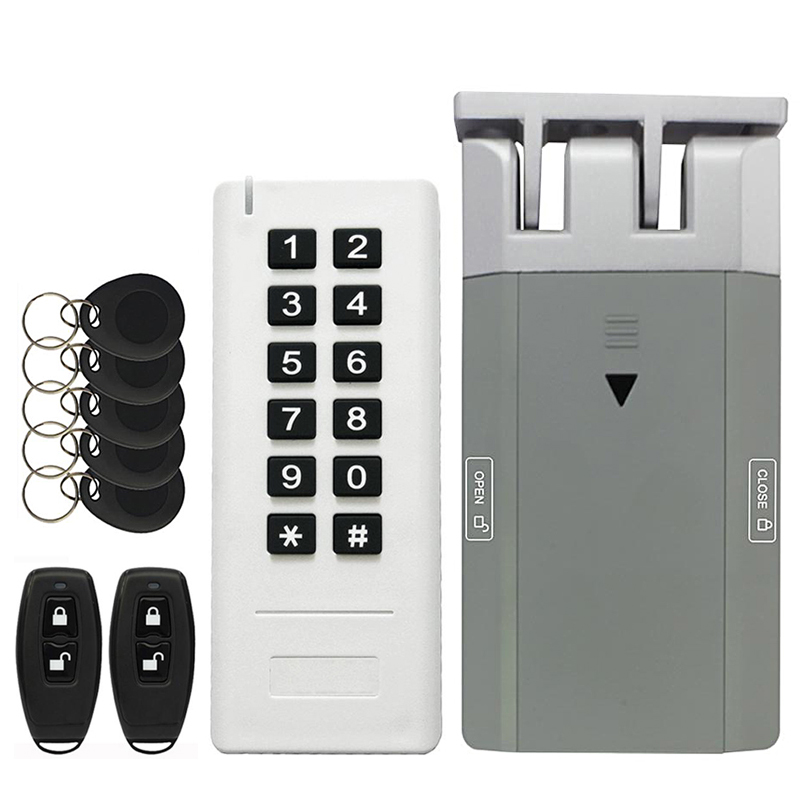

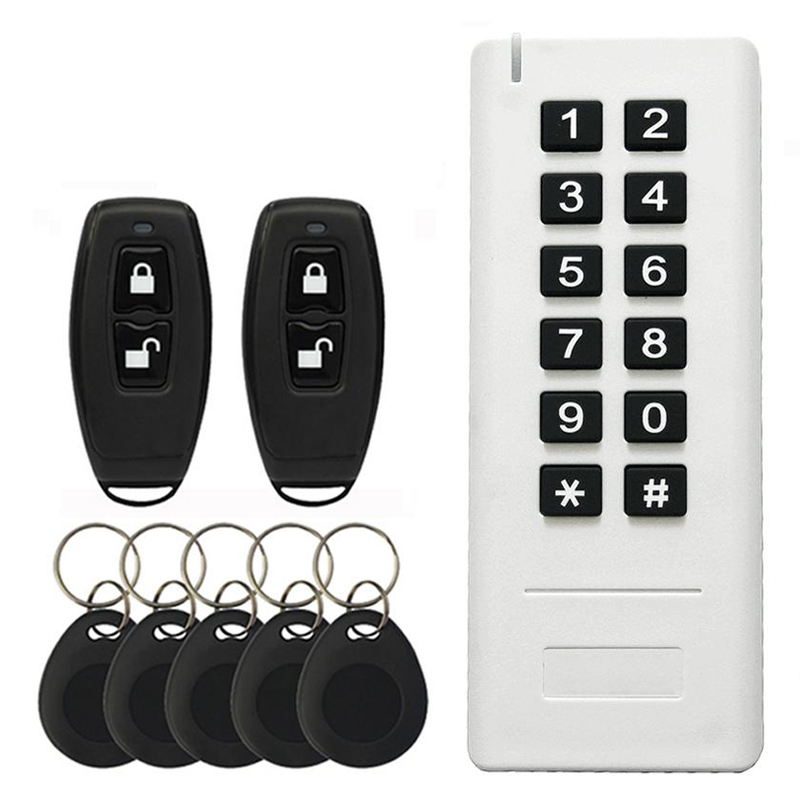

The D5-P is a Wireless smart lock kit for home use, it includes Wireless Keypad+ Wireless Lock + 2pcs Remote Transmitters + 5pcs RFID Tags
433MHz Rolling Code of the encryption algorithm and the split design guarantee higher-secure.
> 433MHz Rolling Code technology
> 500PIN/card users
> 4~8 digits PIN, 125KHz EM card

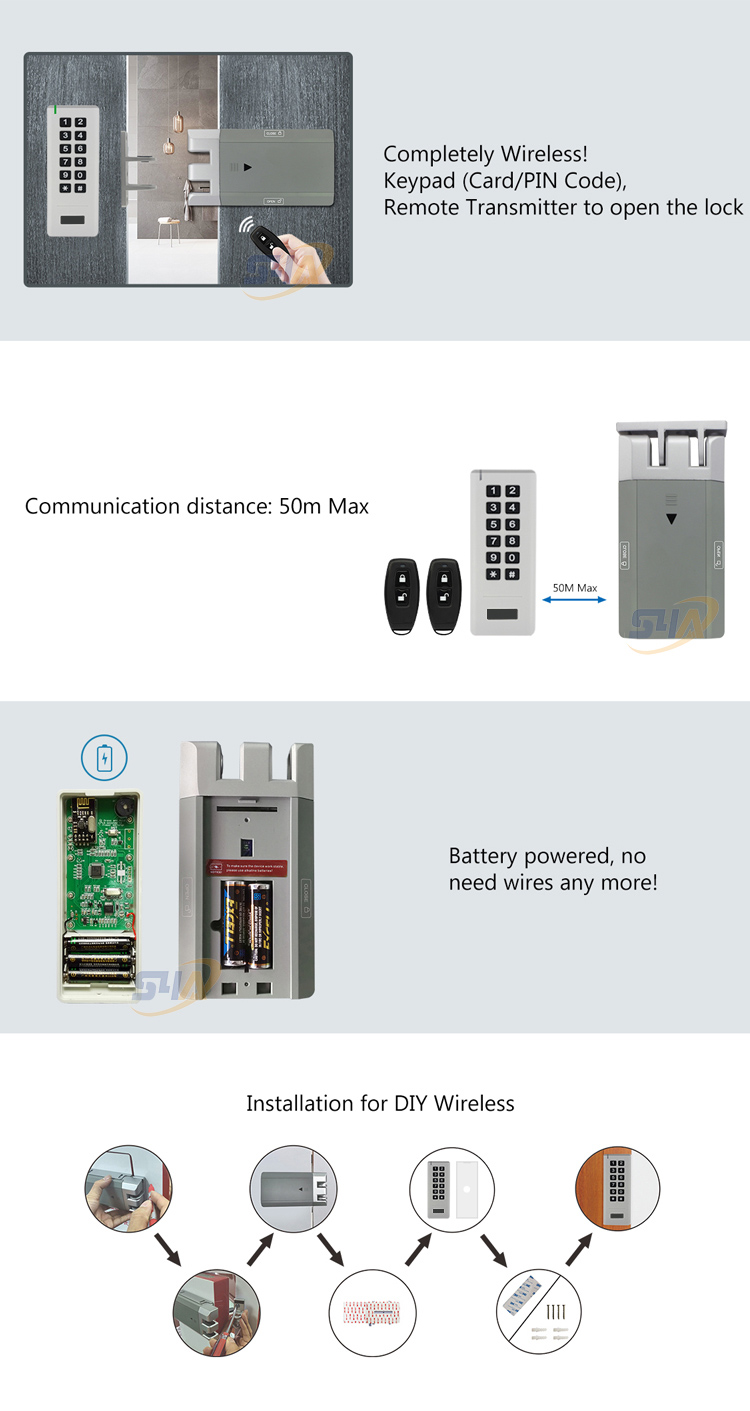

> Communication distance: 50m Max
> Open/Close by Keypad, transmitter, or touch the lock
User Capacity | 500 |
PIN Length | 4-8 Digits |
Card Type | 125KHz EM Card |
Operating Voltage | |
Wireless Keypad | 3 units of AAA batteries |
Wireless Lock | 2 units of AA batteries |
Remote Transmitter | 1 unit of 2032 Lithium battery |
Idle Current | All items < 10uA |
Working Current | |
Wireless Keypad | < 50mA |
Wireless Lock | < 60mA |
Remote Transmitter | < 3mA |
Communication Frequency | 433MHz |
Communication Distance | 50m Maximum |
Operating Temperature | |
Wireless Keypad | -40°C~+60°C (-40°F~+140°F) |
Wireless Lock | -20°C~+60°C (-4°F~+140°F) |
Operating Humidity | 0%~86%RH |
Physical | |
Wireless Lock | Zinc-Alloy |
Wireless Keypad | ABS |
Remote Transmitter | ABS |

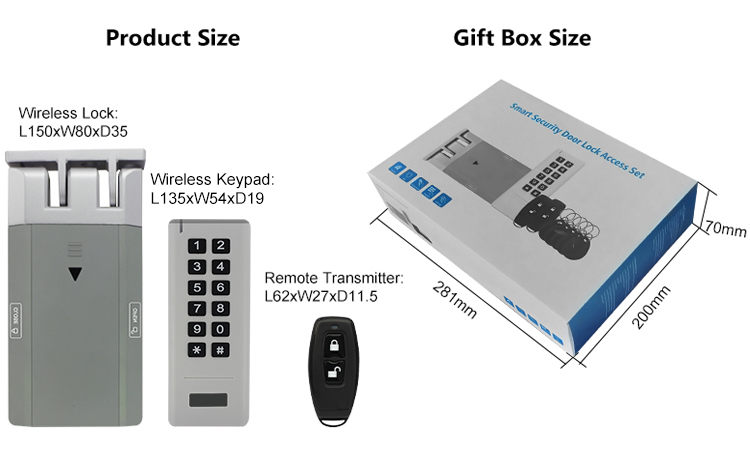

Dimensions | |
Wireless Keypad | L135 x W54 x D19(mm) |
Wireless Lock | L150 x W83 x D38(mm) |
Remote Transmitter | L62 x W30 x D11.5(mm) |
Unit Weight | |
Wireless Keypad | 90g |
Wireless Lock | 800g |
Remote Transmitter | 25g/pc |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
