>Switch form: NO-Normally Open/NC-Normally Close/NO+NC
>Power cord length: 45cm
>Hose length: 30cm
Brand:
S4AItem NO.:

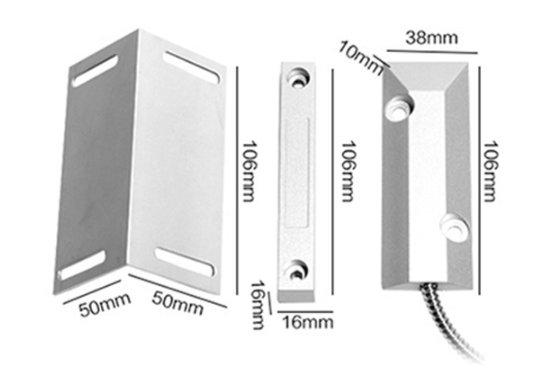

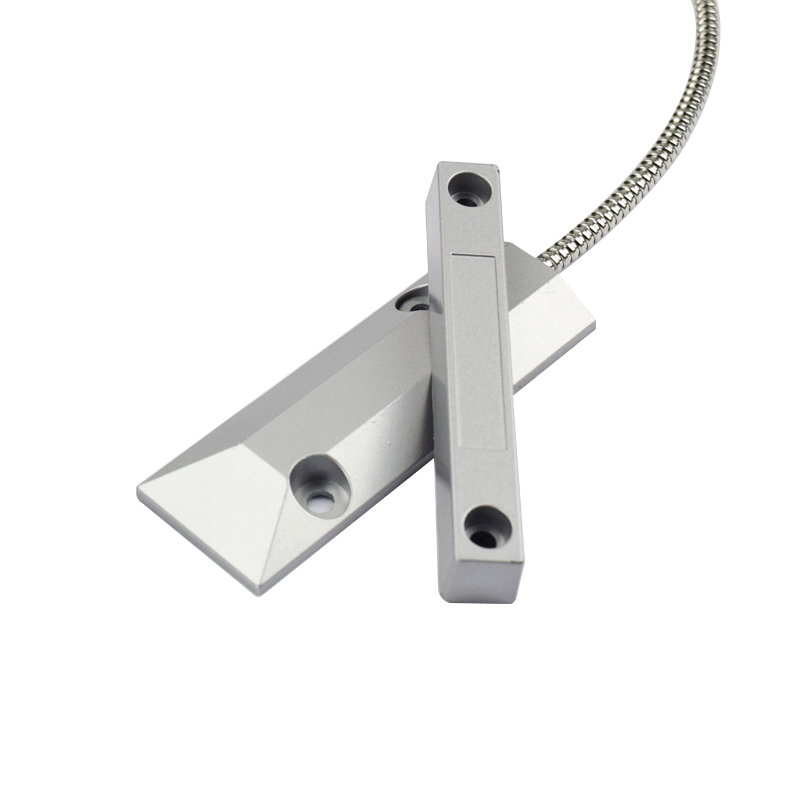

OC-55ZL NO+NCWired Surface-Mounted NC Magnetic Door Window Contact Sensor

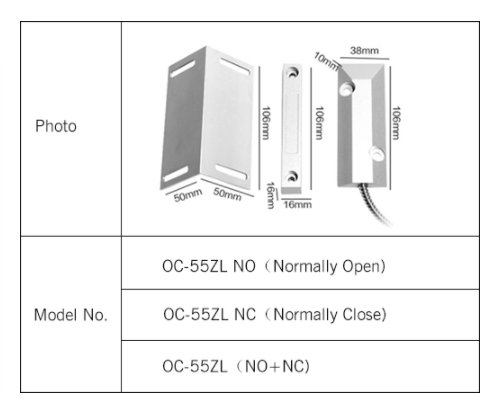

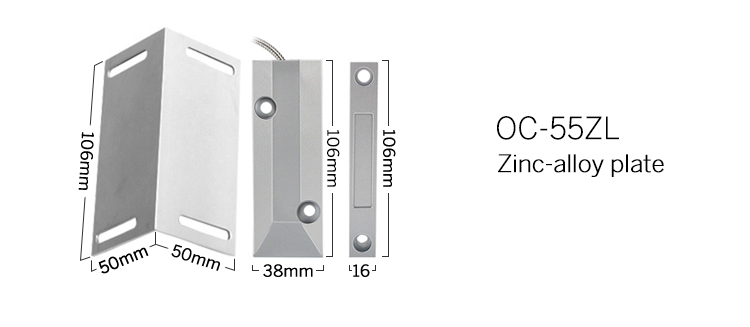

Model No.: OC-55ZL
WHAT IS A REED SWITCH?
The term “Magnetic Reed Switch” can refer to either the small glass electronic component, as shown in the above drawing, or a complete assembly that is based around this, or a similar type, of electronic component. On this page, “magnetic reed switch” will be used to refer to the component itself and its overall functionality. But generally, what is true for a reed switch component is also true for a complete assembly. Magnetic reed switches are often also otherwise referred to as magnetic switches, magnetic sensors, proximity switches or proximity sensors.
What are magnetic reed switches used for?
Reed switches actuated by magnets are commonly used in mechanical systems as proximity sensors. Examples are door and window sensors in burglar alarm systems and tamper-proofing methods. Reed switches have been used in laptops to put the laptop into sleep/hibernation mode when the lid is closed.
S4A Model | OC-55ZL |

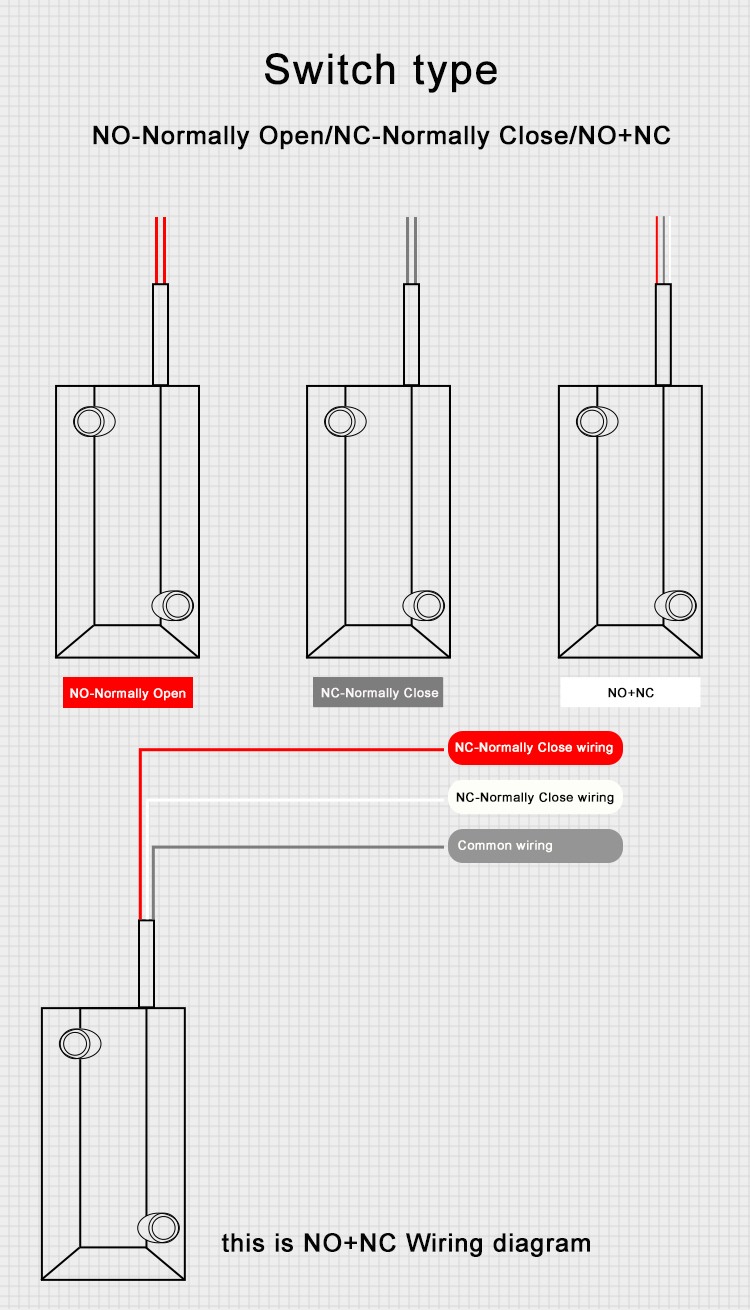

Switch form | NO-Normally Open/NC-Normally Close/NO+NC |
maximum power | 10W |
maximum voltage | 100V |
maximum current | 0.5A |
Power cord length | 45cm |
Hose length | 30cm |
Working environment | -40°C~80℃ |
Relative humidity | ≤95% (40℃ ) |
S4A_Datesheet_Wired Surface-Mounted NC Magnetic Door Window Contact Sensor
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
