Wired Burglar Alarm 8 beams sensor OUTDOOR DC 12V Power Active Infrared IR Detector Sensor

>4 beams:73cm
>6 beams:113cm

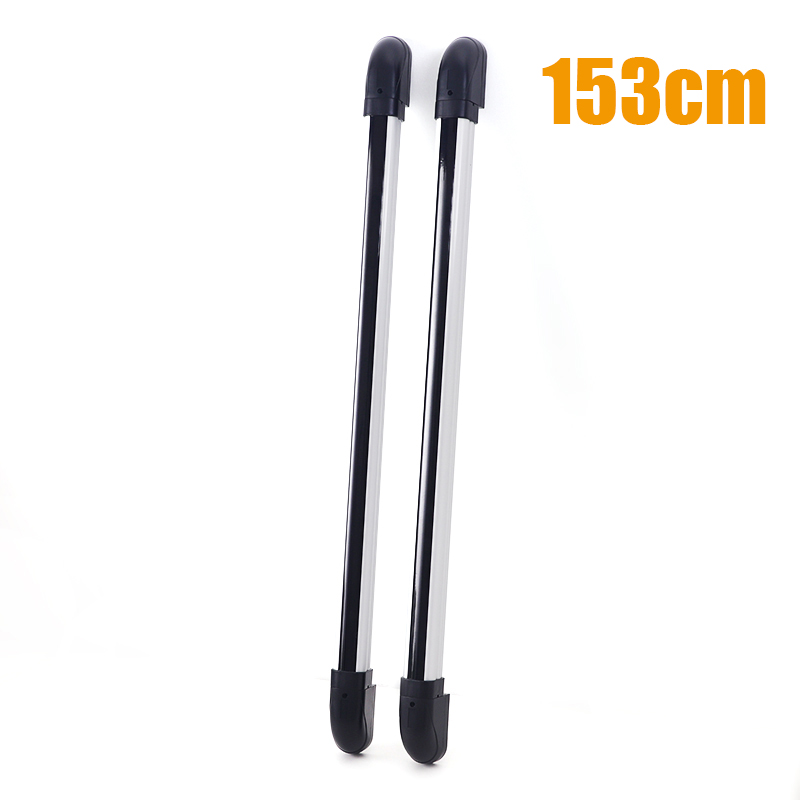

>8 beams:153cm

Brand:
S4A
Item NO.:
BS-08-10M 20M 30M 60M 100M

Inquire Now

Specifications

Model No: BS-08-10m/BS-08-20m/BS-08-30m/BS-08-60m/BS-08-100m

Maximum protection distance	5m\10m\20m\40m\60m\80m\100m (outdoor)
Working voltage	12V DC (allowable range 10.5-15V DC)
Working current	≤100mA (detector normal)
Reaction time	≤40mS
Alarm condition	Block two adjacent beams/any beam triggers alarm
Alarm output	Normally open and normally closed switch outputs Contact capacity: 0.5A 125V AC, 1A 24V DC
Anti-disassembly output	Normally closed switch: 0.1A 125V DC
Buzzer prompt	Buzzer sounds when alarm occurs
Working temperature	-35°C - + 55°C

Wired Burglar Alarm 8 beams sensor
