>Output Digits: 10 hexadecimal
> for access control system
Brand:
S4AItem NO.:

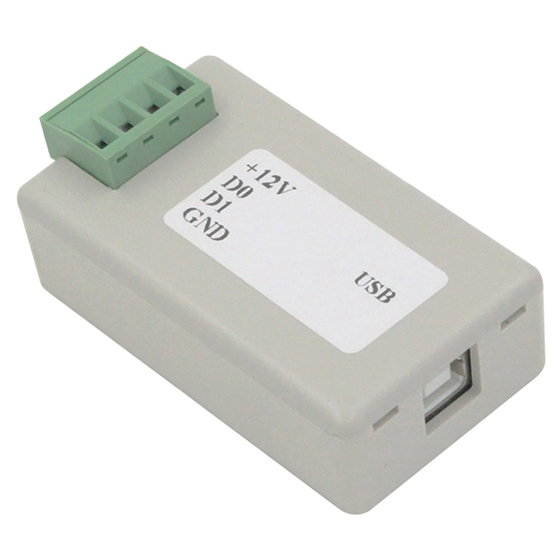

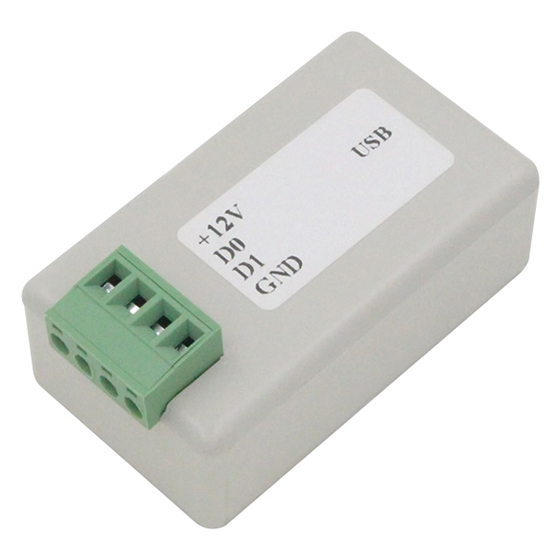

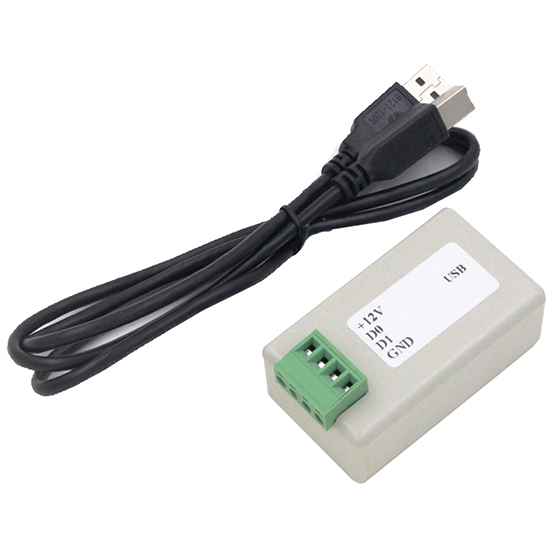

WG-USBWiegand 26/34 converter into USB port
Model No.: WG-USB
Model No. | WG-USB-U | WG-USB-D |
Communicate way | unbidirectional | bidirectional |
Output Digits | 10 hexadecimal | 10 hexadecimal |
16 hexadecimal | 16 hexadecimal |
Product description:
WG-USB communication converter is designed for hand-held testing tool or embedding into products manufactured by third-parties,
crypton and S4A had widely use for our RFID and access control system solution.

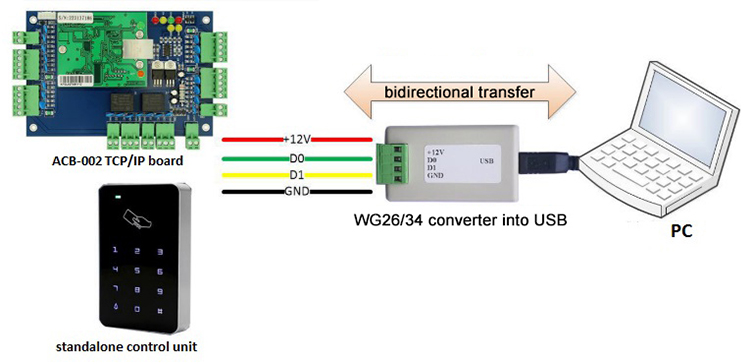

The converter support double-way transmission, it can transfer Wiegand 26bit or Wiegand 34bit data to USB data,
also can transfer USB data to Wiegand 26bit or Wiegand 34bit data, standard Wiegand output 26bit data in default
(Wiegand 34bit and other format as optional), and standard USB output format.
Technical parameters:
Operating voltage: DC 9V-12V;
Compatible with USB standards,corresponding to Wiegand all the way out;
With an external watchdog to prevent the crash.
Communication Format:
Baud Rate 9600 N 8 1
1. WG26 or WG34 input
4 byte number: 1010795316 = (hex) 3C3F8334
WG26 input (hexadecimal) 3F8334
WG34 input (hexadecimal) 3C3F8334
WG To Usb Converter Serial Port Usb Into Wiegand 26 Bit Analog Keyboard | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
WG-USB | 40pcs | 6.71KG | 41X39X21cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
