> Two Accesses: Fingerprin, Pincode
> Hardware Platform: ARM9
> Wiegand: WG26 output
> Finger Capacity: 500 users
Brand:
S4AItem NO.:

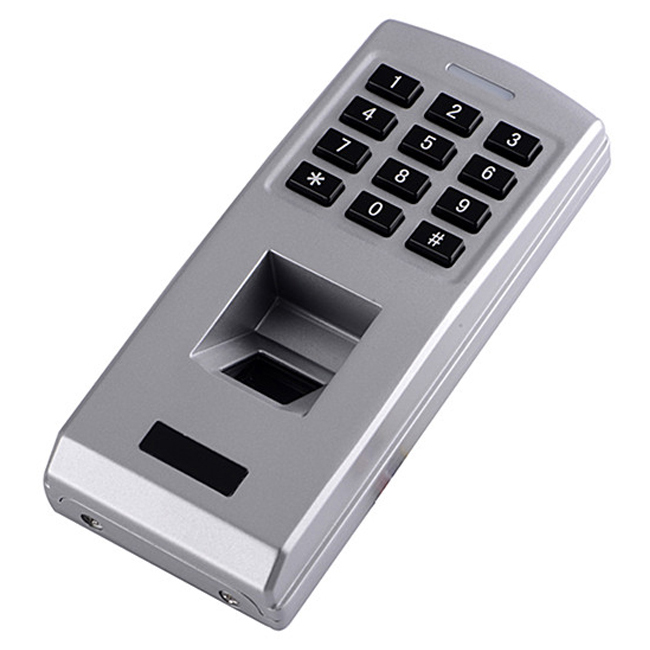

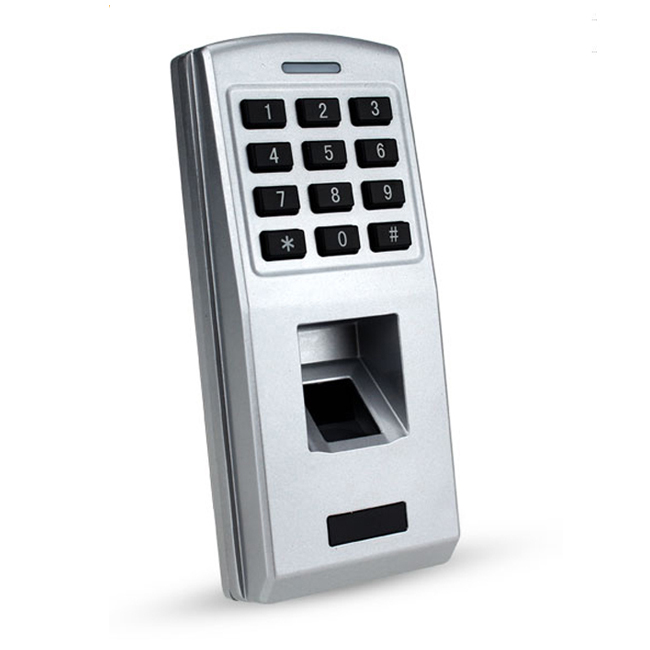

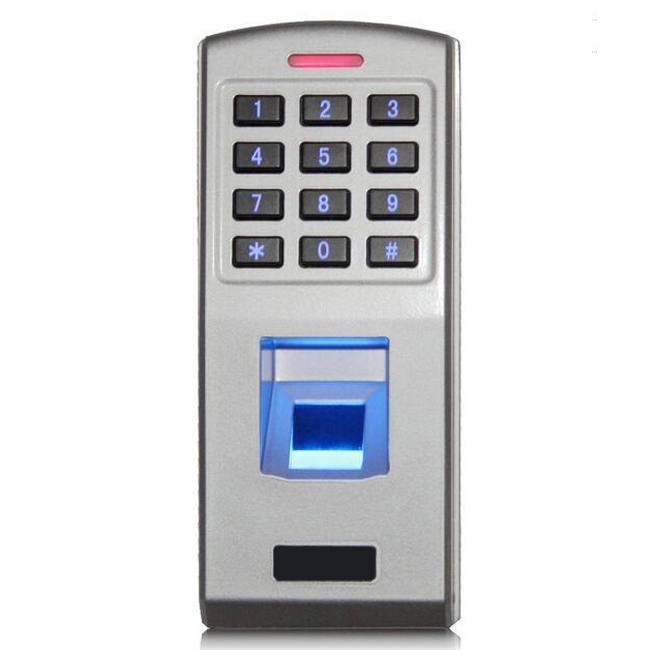

F3KFingerprint Standalone Access Controller
Model No.: F3K Pincode&Finger
Product Features:
> Internal electric lock control directly, the out switch, magnetic detection(independent control mode)
> Capacitance induction type fingerprint collector, standby and power nap function.
> The administrator function, we can effectively operate the equipment without needing a connection to any of the PC machines. Operation is more convenient.
> Wiegand signal output can combine with all standard controller
Hardware platform | ARM9 |
Fingerprint collector | Fingerprint sensing optical Blu ray fingerprint collector |
Fingerprint Capacity | 500(standard), Can be extended to 1000,3000 |
Password Capacity | 500 groups |
Administrator Function | support 2 groups of administrators to register and delete |
Wiegand | WG26 output |
Recognition Speed | <1second |
LED | Red&Blue |
Alert Tone | Buzzer |
Alarm Function | Anti-dismantle, Force to open the door, Open door overtime |
Temperature of use | －25℃～50℃ |
Work humidity | 20%～80% |
Power supply | +12V |

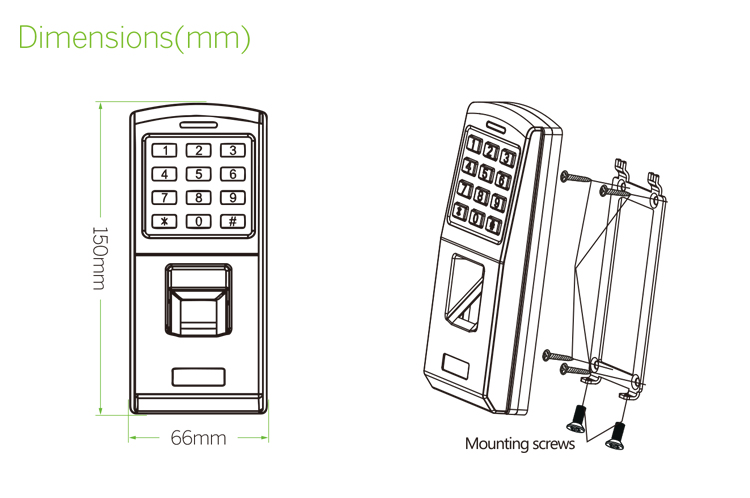

Size | 150 x 66mm |
S4A User Manual F3K_Weatherproof Standalone Fingerprint Access Control with Keypad for Outdoor Use
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
