> Card type: EM Card
> Metal case, anti-vandal
> Waterproof conforms to IP66
> One relay, 2000 users, standalone
> Card type: 125KHz EM card
> Pulse mode, toggle mode
> Built-in LDR for anti-tamper
> Card block enrollment
Brand:
S4AItem NO.:
S7Waterproof IP66 Metal Access Control
Model No.: S7 EM

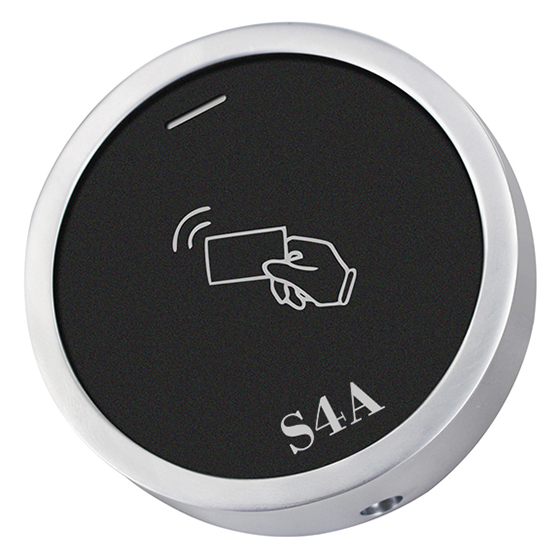

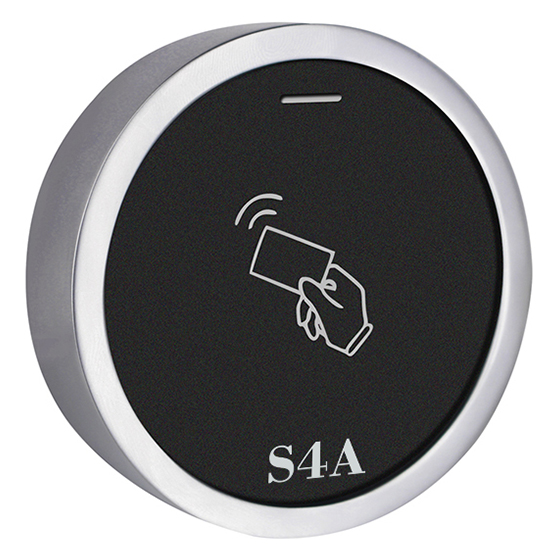

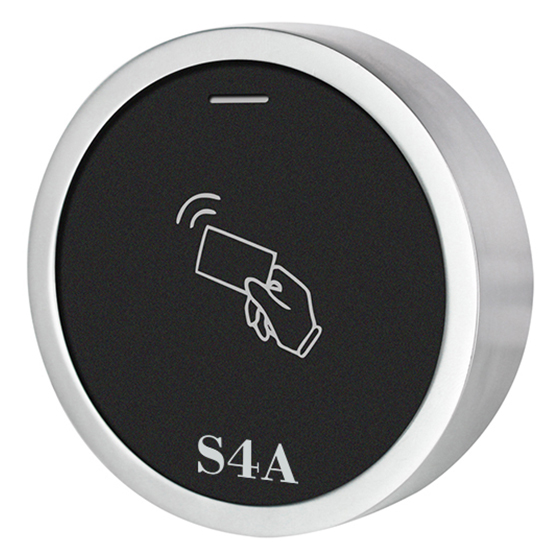

The S7-EM is a compact, waterproof stand-alone programmable mini access control system that provides proximity entry.
The product unique feature is simple in design, easy operation, and high reliability.
Features:
> Metal case, anti-vandal
> Waterproof conforms to IP66
> One relay, 2000 users, standalone
> Card type: 125KHz EM card
> Pulse mode, toggle mode
> Built-in LDR for anti-tamper
> Card block enrollment
User Capacity | 2000 |
Card | EM Card |
Operating Voltage | 9~24V DC |
Idle Current | < 40mA |
Proximity Card Reader | EM |
Radio Technology | 125KHz |
Read Range | 3~10cm |

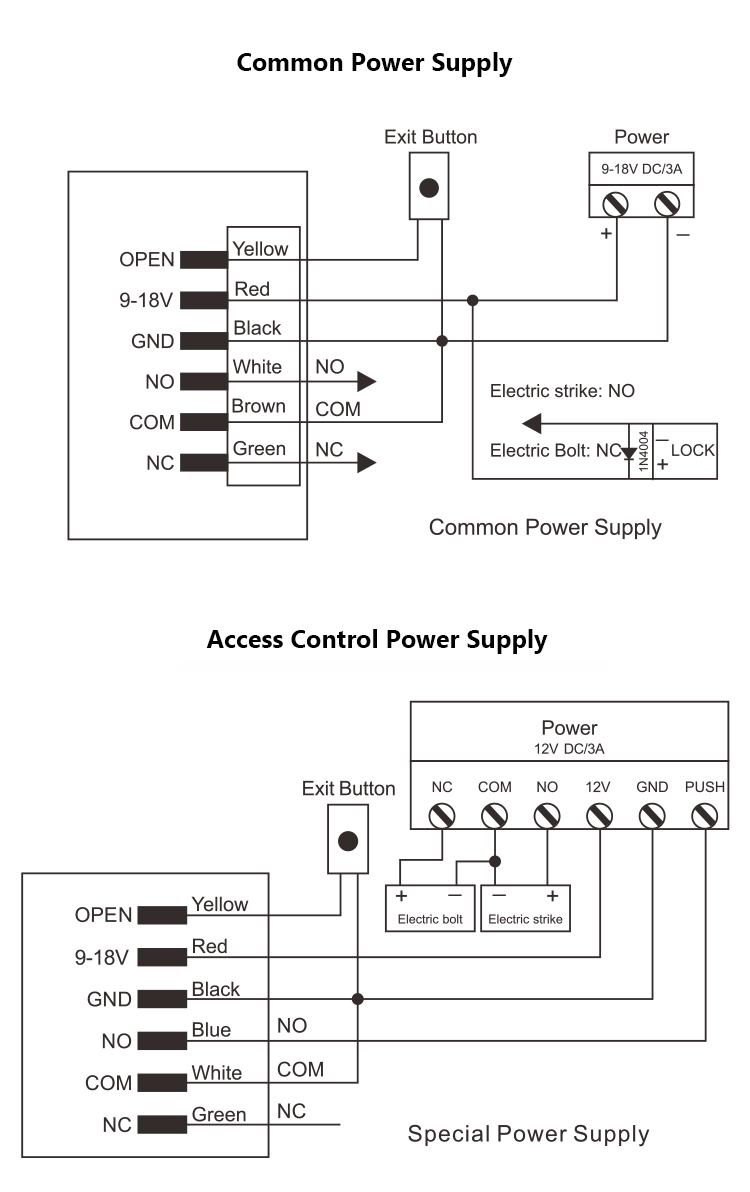

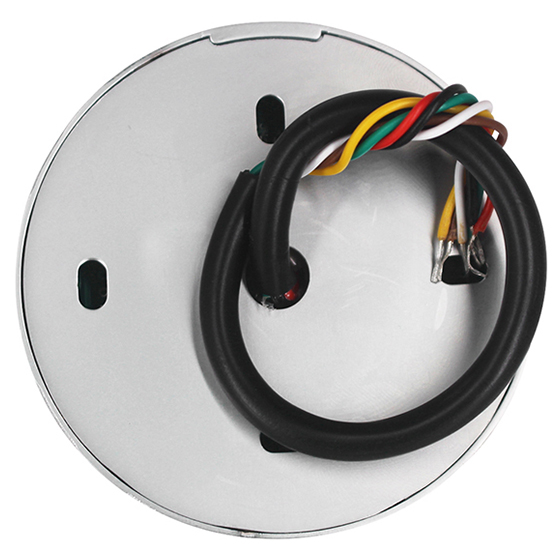

Wiring Connections | Relay output, exit button |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Environment | Meets IP66 |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Operating Humidity | 20% RH ~ 98% RH |
Physical | Zinc Alloy |
Surface Finish | Powder Coat |

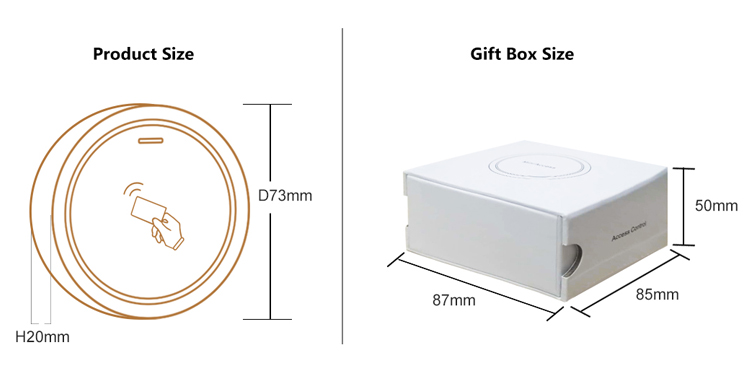

Dimensions | Diameter: 73mm, Thickness: 20mm |
Unit Weight | 180g |
Shipping Weight | 260g |
S4A User Manual S7_Waterproof IP66 Metal Access Control and Reader Without Keypa
