> Size: 260 x 260 x 35mm
> Voltage: DC5-16V
> Reading Range: 70~100CM
> Output Format: Wiegand 26 (Factory default, customized Wiegand 34, RS485/232)
> Card Type EM-ID Middle distance card
> Comunication Distance WG≤100M, RS485≤1200M
Brand:
S4AItem NO.:

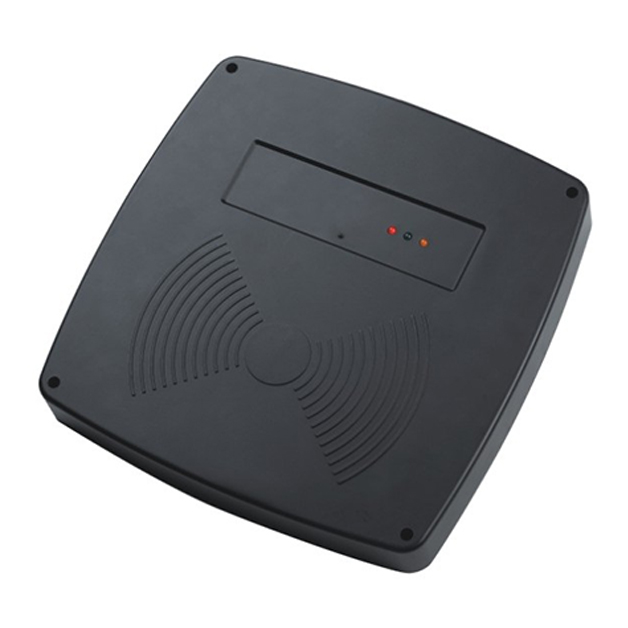

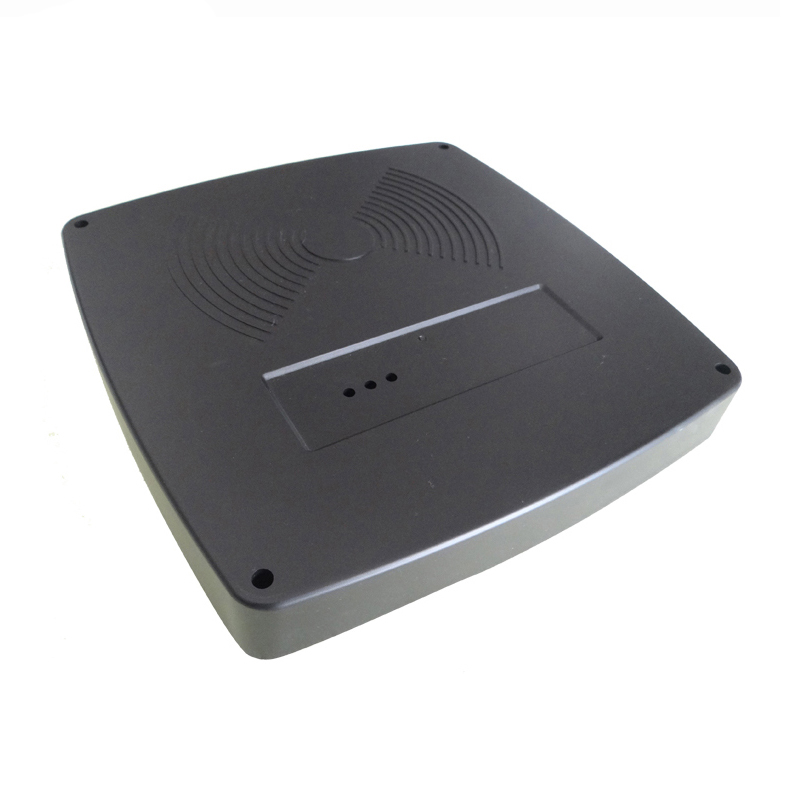

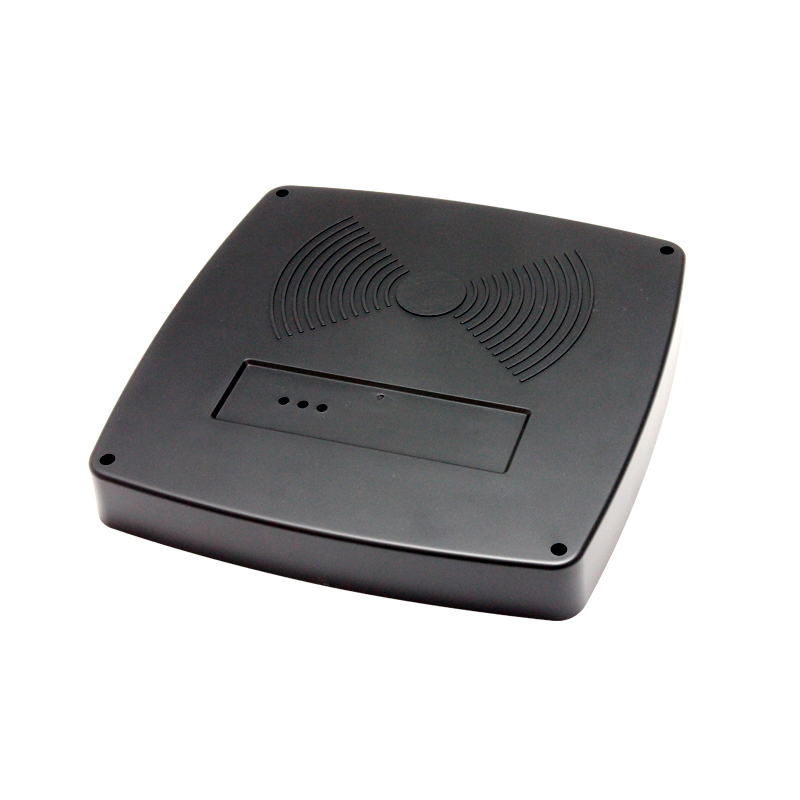

PCD-120Middle Distance RFID Access Reader
Model No.: PCD-120
Working voltage | DC5 ~ 16V |
Quiescent current | ≤100mA |
Card reading distance | 70 ~ 90CM |
Card reading type | EM/ID card |
Working temperature | 0'C ~ 70'C |
Working humidity | 10% ~ 90% |
Interface mode | Wiegand26/34, RS485/232 |
Reading Range | 70 ~ 100cm |
Size | 260 x 260 x 35mm |
UHF RFID Reader Long Range Network Output UHF Integrated Reader | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
PCD-120 | 6PCS | 9.17KGS | 31x31x29cm |
S4A Datesheet_Middle Distance RFID Access Reader
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
